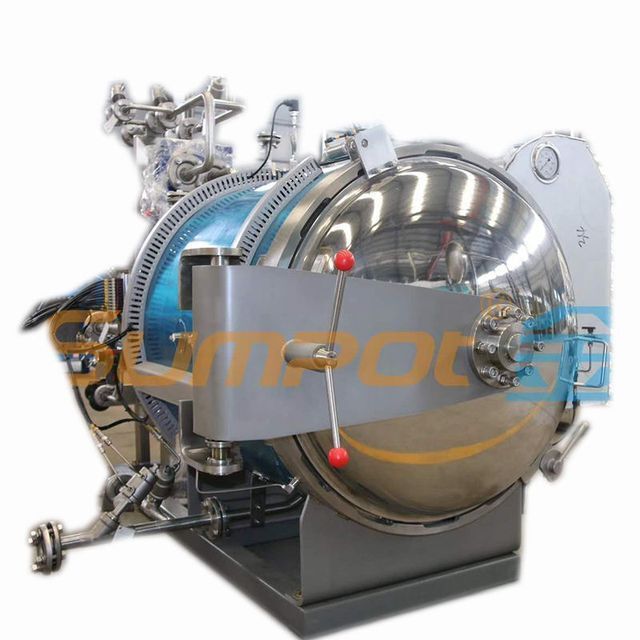

Static mini scale water spray retort for aluminum pouch
- $1129.00 /piece
- 1 piece
- Zhucheng City Jinding Food Machinery Co., Ltd.
- Shandong, China
- Mr SUMPOT SUN
| Model Number: | PLJ10-1.B4; | Product name: | Retort sterilizer; |
| Port: | Qingdao; | Package Preview: | ; |
| Power: | 1.5KW; | After Warranty Service: | Field maintenance and repair service; |
| Showroom Location: | None; | Application: | Canned food, glass jar, pouch , PP bottle,seasoning sterilizer; |
| Number of basket: | 1pcs; | Capacity: | 1000 liter; |
| After-sales Service Provided: | Field installation, commissioning and training; | Supply Ability: | 3 Units per Month Retort sterilizer for ready meal; |
| Machinery Test Report: | Provided; | Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; |
| Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Food & Beverage Shops; | Warranty: | 1 Year; |
| Raw material: | SUS304 316; | Place of Origin: | Shandong, China; |
| Operation: | Fully automatically operation control; | Dimension(L*W*H): | 2050 L*1400 W * 1550mm H; |
| Sterilization way: | Hot water spray; | Weight (KG): | 500; |
| Marketing Type: | Hot Product 2019; | Condition: | New; |
| Brand Name: | Sumpot; | Heating way: | Boiler steam; |
| Production Capacity: | 100kgs; | Voltage: | 380V or customized; |
| Packaging Detail: | Plastic film or wooden box into container (1 X 20GP) Retort sterilizer for ready meal; | Features: | safety; |
| Video outgoing-inspection: | Provided; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Ali trade assurance; |
| Warranty of core components: | 1 Year; |
Static mini scale water spray retort for aluminum pouch
Company information
Sumpot established at 1996, the company is a set of food sterilization equipment design and development,manufacturing, marketing services in one of pressional operator , has formed raw material of supply, product development,process desgin, experimental design, finish product inspection, production and operation, storage and transportation, tenical services in one of perfect company operation system. Now we own welding machine , laser cutting machine, and produce retort sterilizer at systemic production way, select super good sparepart at high quality, we consistently offer retort sterilizer at stable high quality.
Working principle
1. Inject an appropriate amount of sterilization water into the bottom of the sterilizer.
2.The circulating pump continuously circulates the sterilization water in the closed circuit system, and the water forms a mist spray to the surface of the food package.As the steam enters the heat exchanger, the temperature of the circulating water continues to rise and is finally controlled within the required temperature. The inside pressure is adjusted within the desired range through the pressure valve and the exhaust valve.
3.The heat exchanger stops entering steam and begins to enter the cooling water, and the temperature of the circulating water is continuously reduced to the set temperature.
4.The remaining sterilizing water is discharged through the drain valve, and the inside pressure is discharged through the exhaust valve.

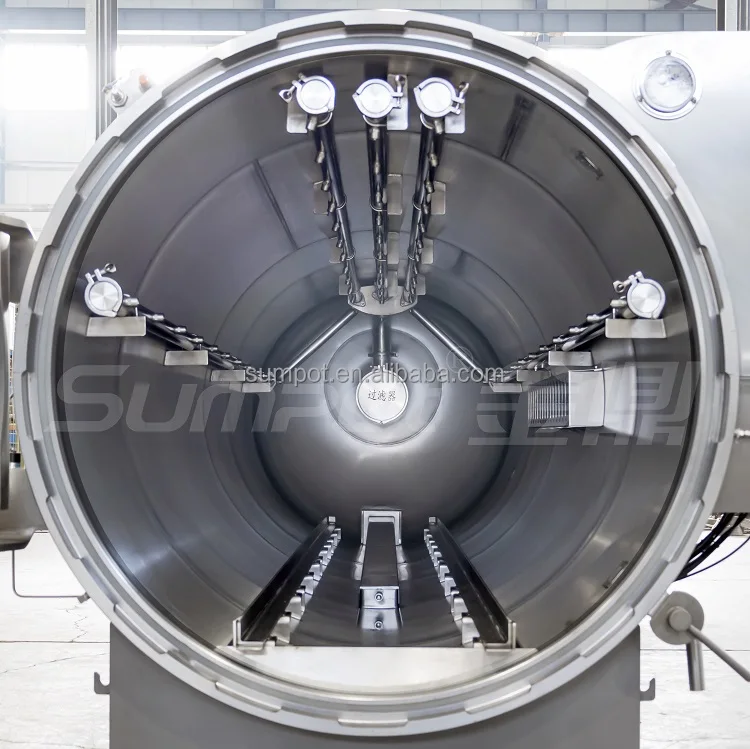

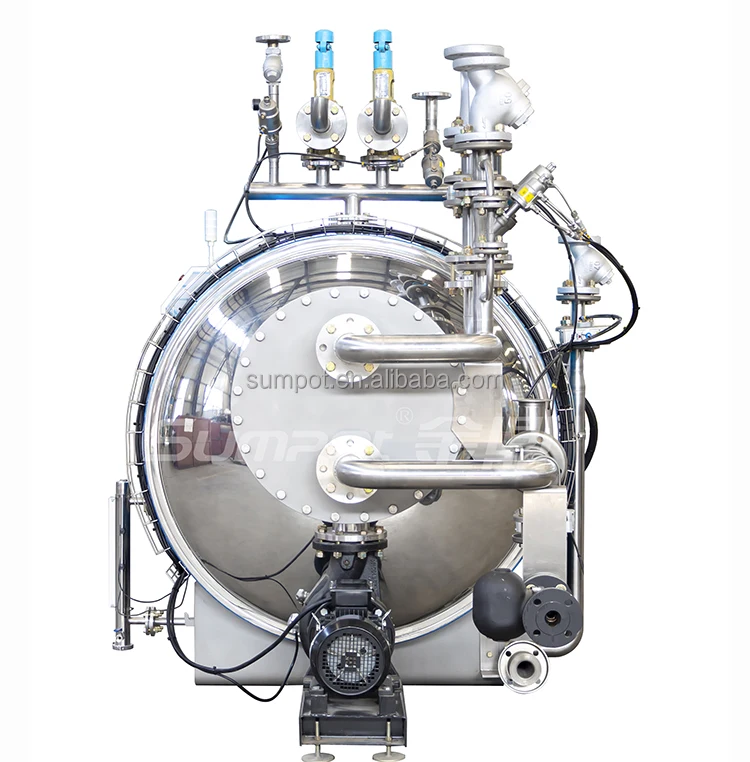

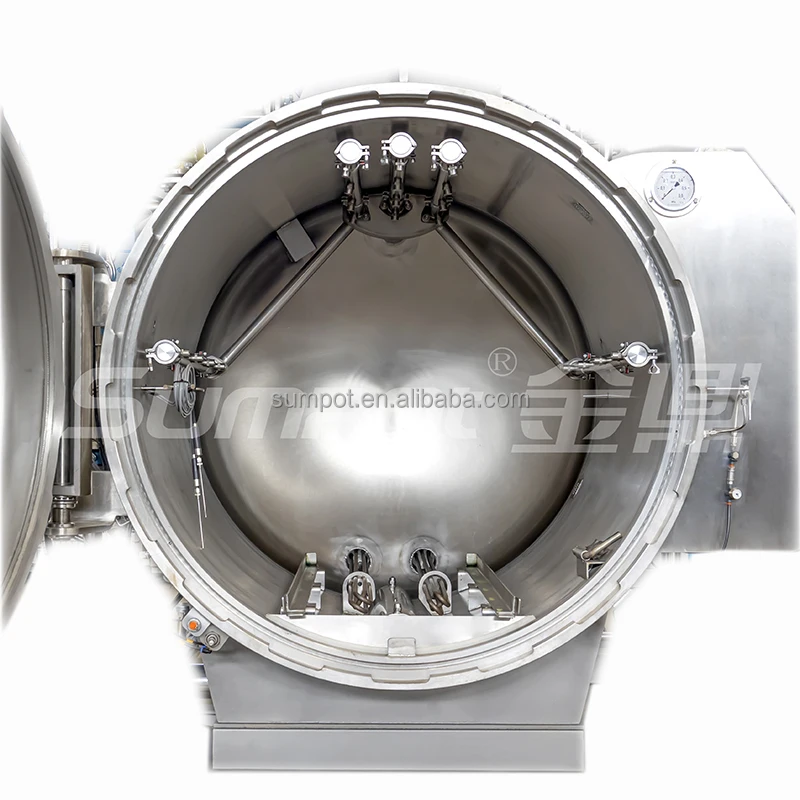

Equipment details
Accessories

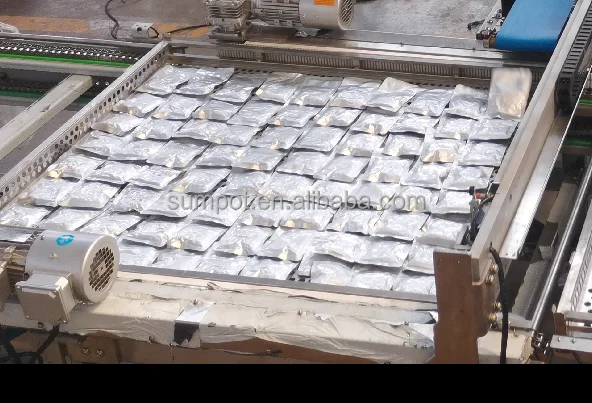

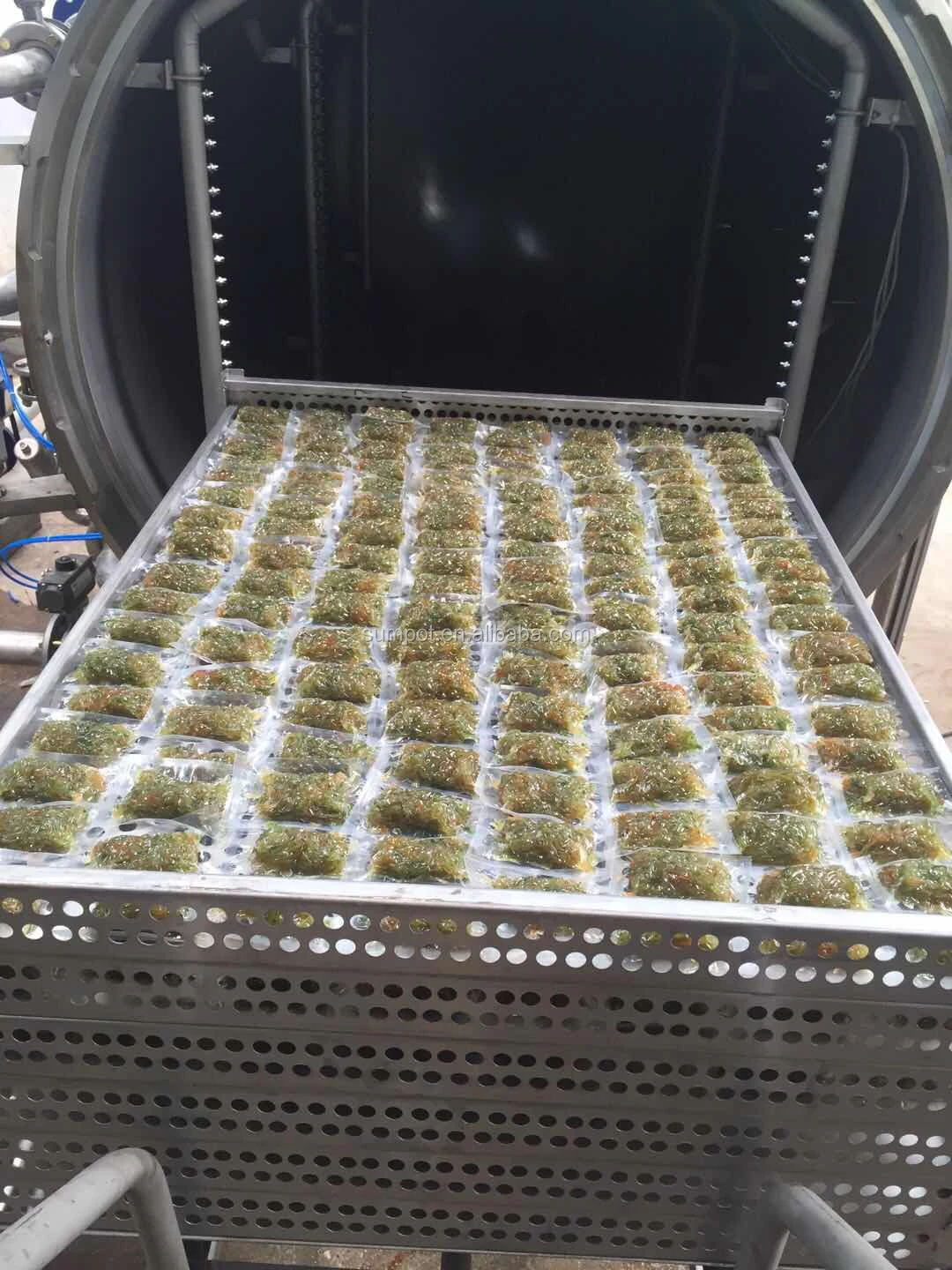

Becides retort ,we will offer tray , pallet, trolley to you. And it is better that foods is loaded like this

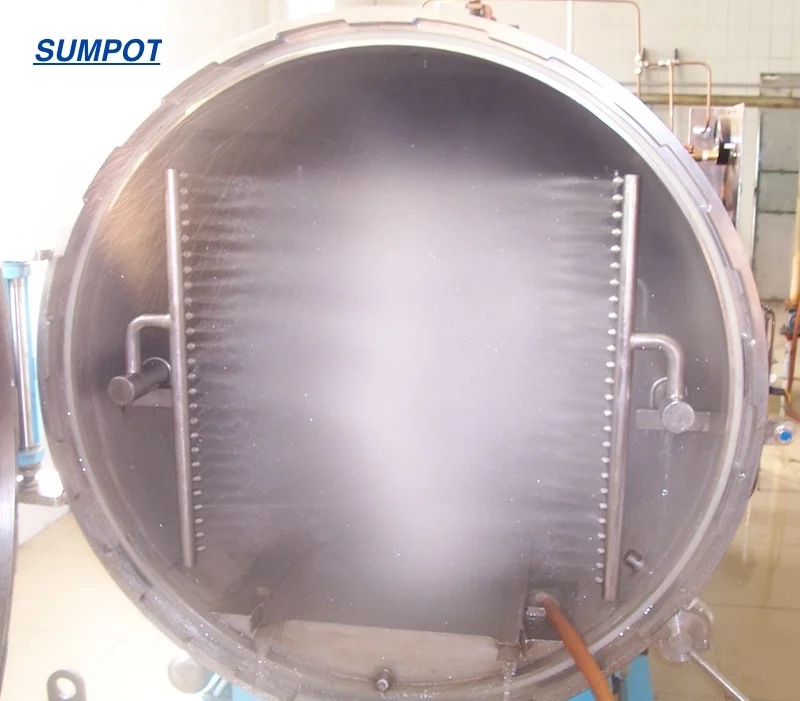

Spray way for pouch food
Technical parameter
|
Item |
Content |
|
Inner diameter/length/capacity |
1000mm /900mm/950liter |
|
Design pressure |
0.35 Mpa/50.8Psi |
|
Max working pressure |
0.30 Mpa/43.5Psi |
|
Max working temperature |
130℃ |
|
Working temperature |
121℃ |
|
Boiler needed/minimum pressure |
0.5ton/h /0.4Mpa |
|
Install power |
1.5KW |
|
Supply voltage |
380V 50HZ or customized |
|
Size of baskets |
900mmX600mmX600mm |
|
Material of body |
Sus304 stainless steel |
|
Thickness of body |
4mm |
|
Floor space |
2600mm×1700mm×1650mm |
|
weight(empty)/(load) |
1.05T/1.35T |
|
Water quality required |
l Cooling water: pipe water, chloride ion content are not allowed to exceed 10mg/L l Processing water: soft water hardness≤0.003mmolI/L |
Consumption
|
Item |
Content |
|
Power |
0.7kw/h |
|
Steam |
50kg/times |
|
Sterilization Soften water |
100L(can be recycled) |
|
Cooling water |
1900L(can be recycled) |
Subsidiary facility (User prepare these machine )

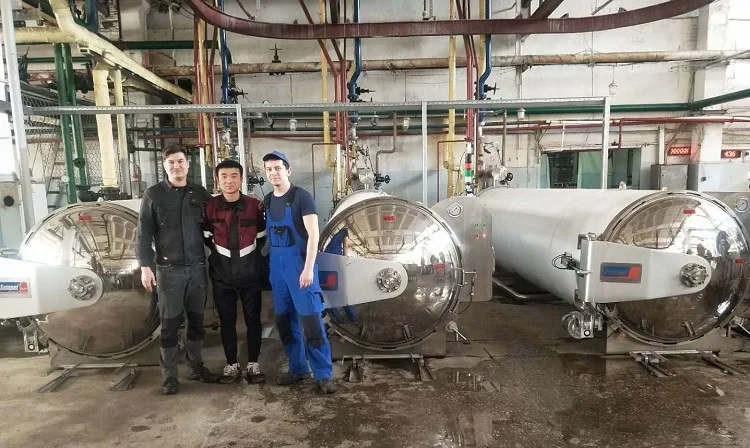

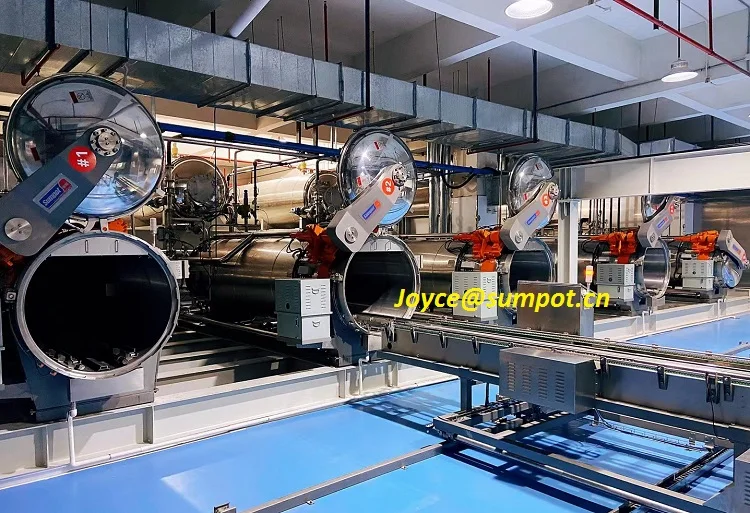

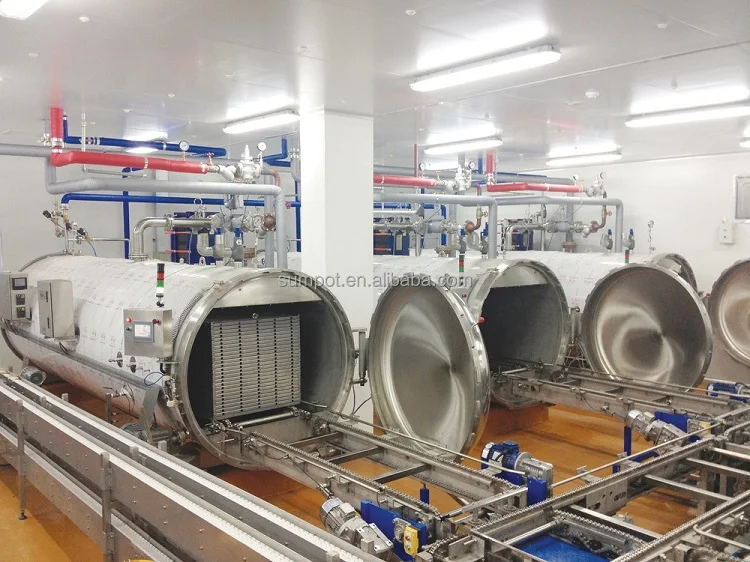

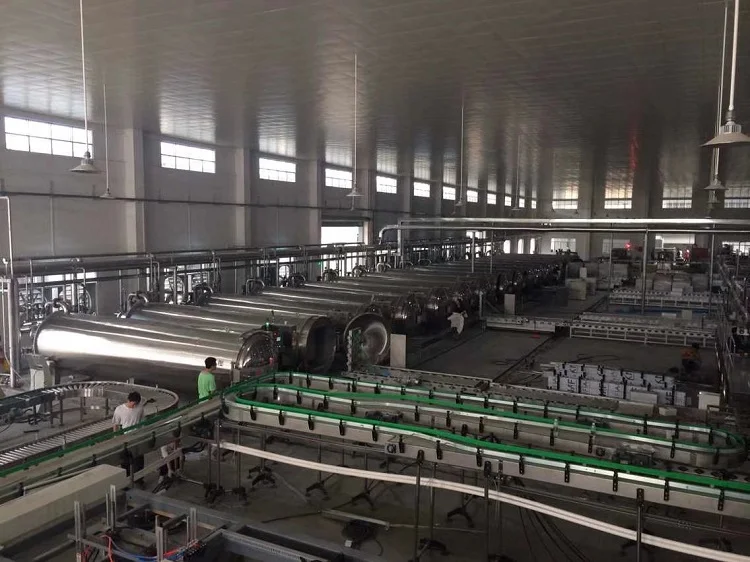

Customer workshop
Domestic customer workshop
Russian customer workshop
Domestic customer workshop
Korean customer workshop
