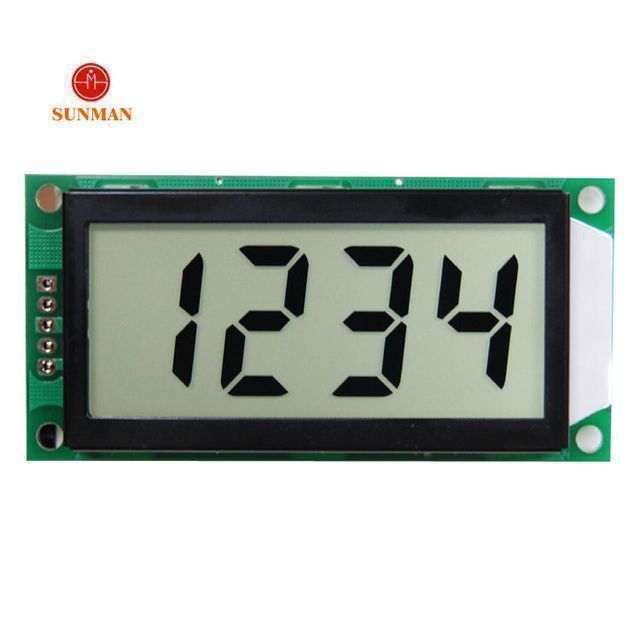

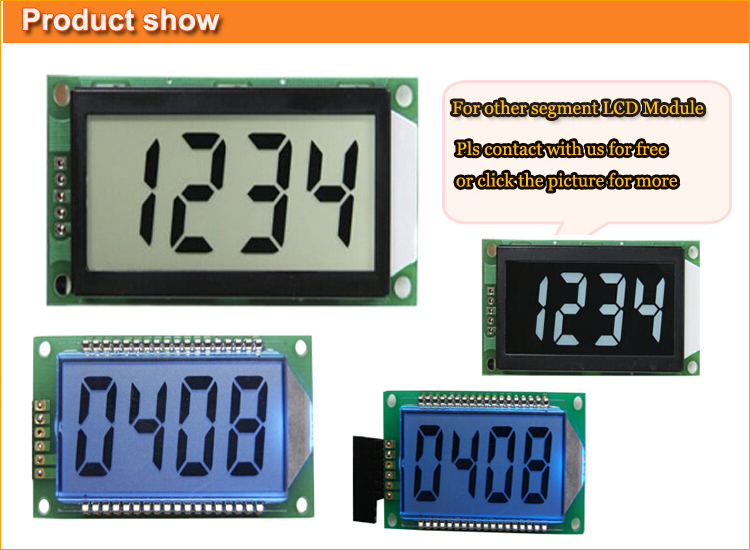

Sunman SMS0408 monochrome 4-bit segment lcd
- $3.80 / 1 - 4999 pieces
$2.60 / 5000 - 9999 pieces
$1.50 / >=10000 pieces - 1 piece
- Changsha Sunman Electronics Co., Ltd.
- Hunan, China
- Ms Doris Liu
| payment terms: | letter of credit, wire transfer | Packaging Details: | Standard carton packaging, (if you have special packaging requirements, we can negotiate) the product is Sunman SMS0408 monochrome 4-segment lcd |
| type: | TN | Working current: | 20uA(3.0V), 300uA(5.0V) |
| place of origin; place of origin: | Hunan, China | Display content: | 4 decimal points + 1 time separation point |
| Operating temperature: | -20~+60℃ | Interface mode: | Two-wire serial interface |
| brand: | Sun Man | Backlight Color: | white |
| Operating Voltage: | 2.7~5.5V | Display method: | Transflective, VA optional |
| Storage temperature: | -30~+70℃ | Backlight current: | 20 mA |
| Perspective: | 6:00 | Display size: | 55.3x23mm (Virginia) |
Sunman SMS0408 monochrome 4-bit segment lcd
Main technical data:
|
Display content: |
4 decimal points + 1 time separation point |
||
|
Operating Voltage: |
2.7~5.5V |
Backlight Color: |
white |
|
Working current: |
20uA(3.0V), 300uA(5.0V) |
Backlight current: |
20 mA |
|
High character: |
18.0mm |
Ambient relative humidity: |
<85% |
|
Perspective: |
6:00 |
Operating temperature: |
-20~+60℃ |
|
Display method: |
Transflective anode |
Storage temperature: |
-30~+70℃ |
|
Interface mode: |
Two-wire serial interface |
||
Interface flag description:
|
1 VDD: |
Power anode |
2 DI: |
Serial data input |
|
3 VSS: |
Power supply (backlight cathode) |
4 clocks: |
Serial shift pulse input |
|
5 BLAs: |
Backlight anode |

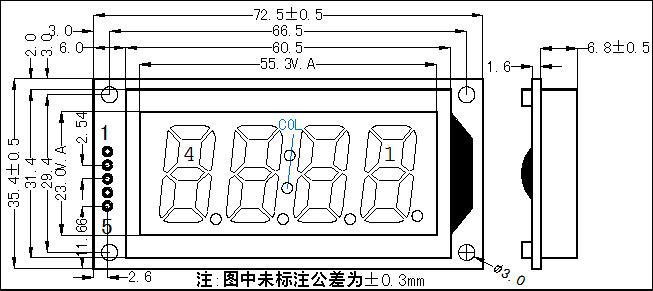

Monochrome 4-bit segment lcd outline drawing:
Address map:
|
LCDBUF |
D7 |
D6 |
D5 |
D4 |
D3 |
D2 |
D1 |
D0 |
|
0 |
/ |
/ |
/ |
/ |
/ |
/ |
Cole |
/ |
|
1 |
H1 |
C1 |
D1 |
E1 |
G1 |
B1 |
A1 |
F1 |
|
2 |
H2 |
C2 |
D2 |
E2 |
G2 |
B2 |
A2 |
F2 |
|
3 |
H3 |
C3 |
D3 |
E3 |
G3 |
B3 |
A3 |
F3 |
|
4 |
H4 |
C4 |
D4 |
E4 |
G4 |
B4 |
A4 |
F4 |

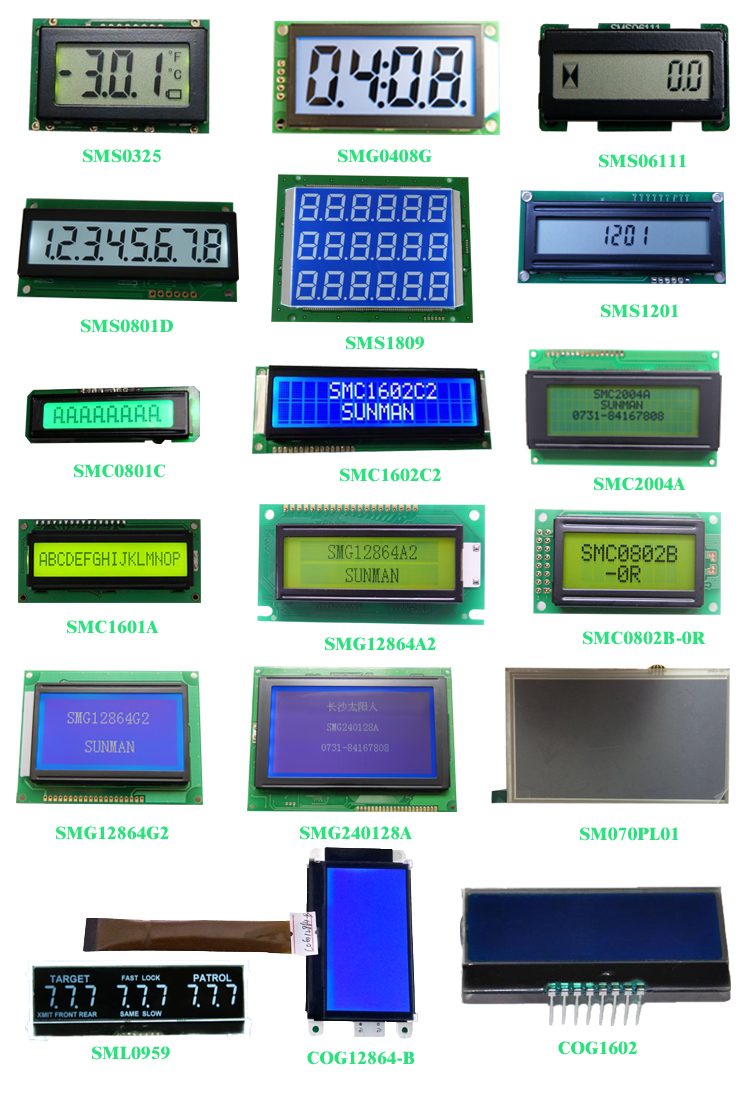

Other 4-digit LCD monitors:
Standard paper packaging:
100-300 pcs/ctn, 15kg-20kg/ctn, carton size: 41.5cm*36.0cm*50.0cm , 0.075cbm.
Each LCD comes with a small package just in case it gets damaged.
Shipping:
(1) Sample 1-3 working days
(2) 15-30 working days for large orders
(3) The goods will be shipped by DHL, TNT, UPS, Fedex (door-to-door service) or your designated freight forwarder
(4)DHL usually arrives in all regions within 5 days
(1), we always provide you with one-year warranty service and support
(2) We have our own pcb factory, can provide PCBA service if you need
(3) Do you need a custom LCD monitor? Contact us for free design
Welcome to contact us for free design!
One-stop solution for LCD&BL&LCM design/production!
(4) Do you need more products?
