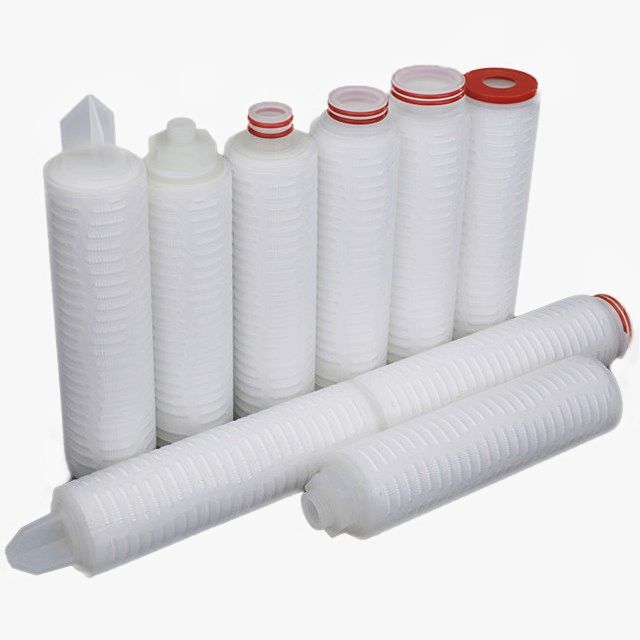

TS filter 10'',20'' polypropylene membrane pleated 20 micron filter element / PP membrane filter element for water filtration
- $6.80 / 1 - 99 pieces
$6.60 / >=100 pieces - 1 piece
- Hangzhou Kosma Membrane Technology Co., Ltd.
- Zhejiang, China
- Mr Loong Long
PRODUCT DETAIL
| model: | Polypropylene | Processing type: | water |
| Voltage: | / | Warranty: | unavailable |
| weight: | 0.2kg | application: | water filtration |
| Sales unit: | Single product | diameter: | 70/68mm |
| Support layer: | Polypropylene | Core component warranty: | not available |
| Sealing material: | Silicone EPDM NBR fluororubber | Package preview: | |
| Packaging details: | 20 pieces/carton carton size: 39*32*-32CM PP filter element | type: | PP filter element |
| Showroom location: | not any | Marketing type: | normal product |
| Place of origin: | Zhejiang, China | Micron grade (um): | 0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0 |
| Core components: | PP film | Single piece packaging size: | 10X10X27cm |
| Normal operating temperature: | up to 60℃ (140°F) | brand: | TS filter |
| Dimensions (length*width*height): | / | flow: | ≥ 17 l/min at 210 mbar |
| strength: | / | Video outbound inspection: | not available |
| Gross weight of single piece: | 0.500kg | Mechanical test report: | if |
| Health status: | new | Applicable industries: | aquatic plants |
| Processing: | filter | Length (based on DOE end cap): | 10" - 254mm, 20" - 508mm, 30" - 762mm, 40" - 1016mm |
| Particle removal efficiency (%): | ≥99.97 |

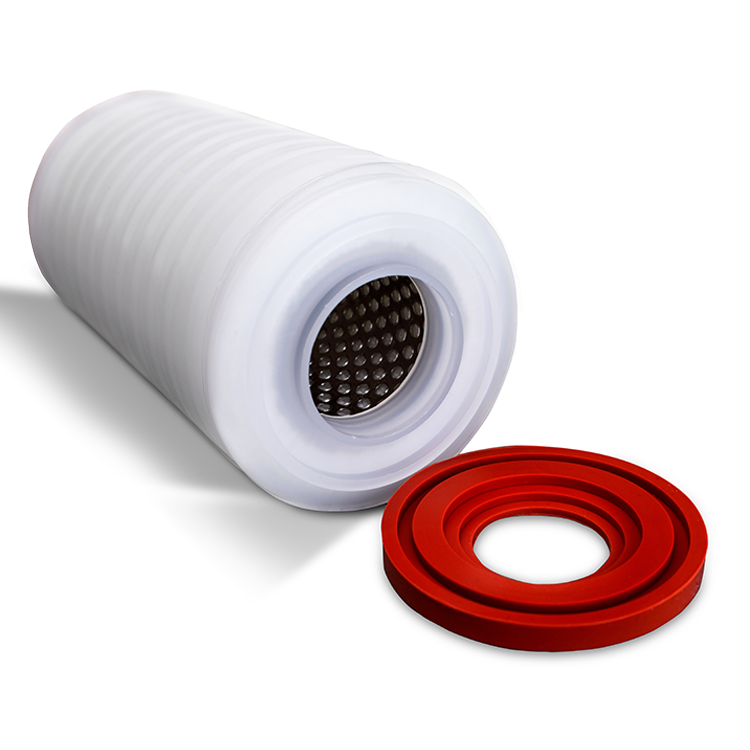

TS filter 10'',20'' polypropylene membrane pleated 20 micron filter element / PP membrane filter element for water filtration
Product Description
| Specification | ||||||
| building materials | Filter media: | Polypropylene | ||||
| Support layer: | polypropylene | |||||
| Micron grade: | 0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0um | |||||
| Kernel: | Polypropylene | |||||
| Outer cage and end cover: | polypropylene | |||||
| Sealing method: | Thermal bonding, no adhesive | |||||
| O-ring/washer: | Silicone, nitrile rubber, EPDM rubber, fluorine rubber, etc. | |||||
| Cartridge size | outer diameter | 69 mm (2.75 inches) | ||||
| the inside diameter of | 33 mm (1.30 inches) | |||||
| Length (based on DOE end cap) | 10" - 254mm, 20" - 508mm, 30" - 762mm, 40" - 1016mm | |||||
| Filter area (m2) | 0.65 meters2every 10 inches | |||||
| Operating conditions | Normal operating temperature: | up to 60℃ (140°F) | ||||
| Maximum operating temperature: | 80℃ (172°F) at P≤1.0 bar (14psi) | |||||
| maximum. different pressures | ||||||
| Normal flow direction: | 4.2 bar (60 psi) at 25°C (77°F) | |||||
| Counter flow direction: | 2.1 bar (30psi) at 25°C (77°F). | |||||
| PH value compatibility: | 1-13 | |||||
| disinfect: | Steam sterilization at 121±2℃ for 30 minutes, Total time: 15 hours; |
|||||
| Rinse with 82℃ (180℉) hot water for 30 minutes. When P≤1.0 bar (14psi) - Recommended. |
||||||
| Cartridge safety | Endotoxins: | <0.25 EU/ml | ||||
| Extractables: | 0.03g/10 inches | |||||
other products
Click on the image to see more

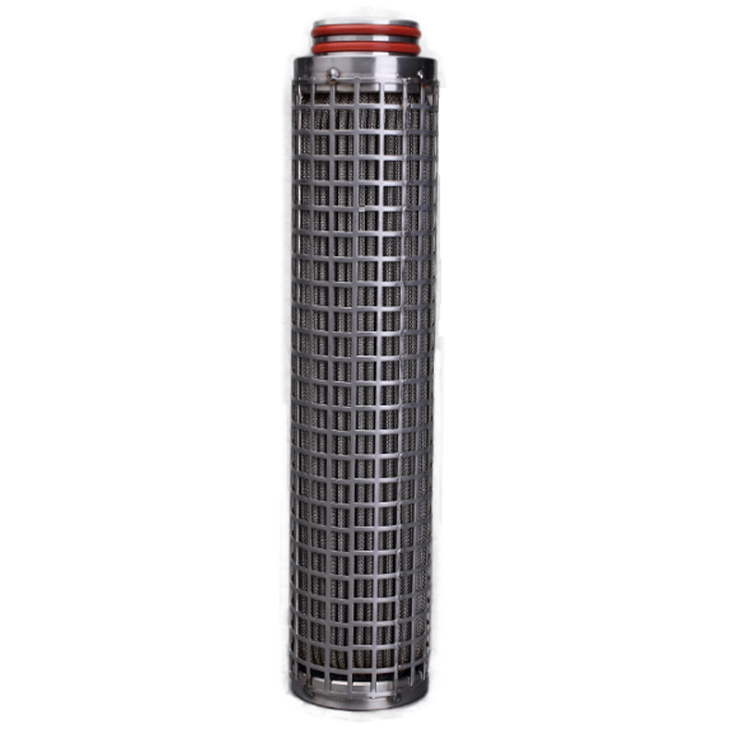

Stainless steel PP filter element stainless steel

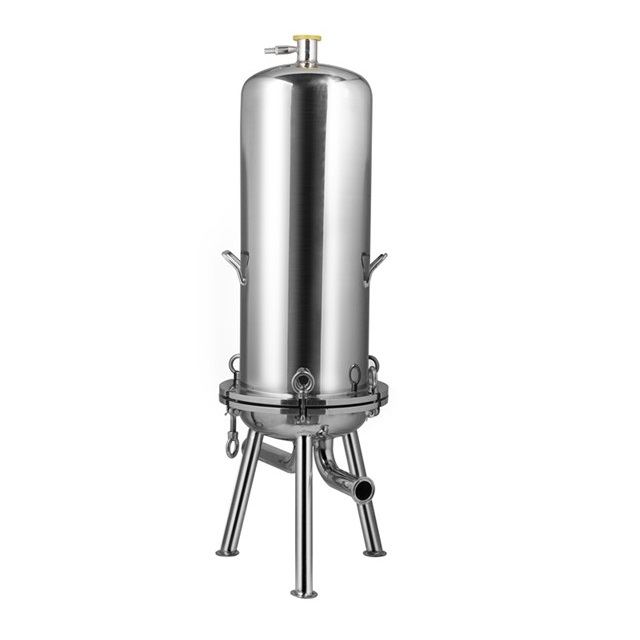

filter element filter housing

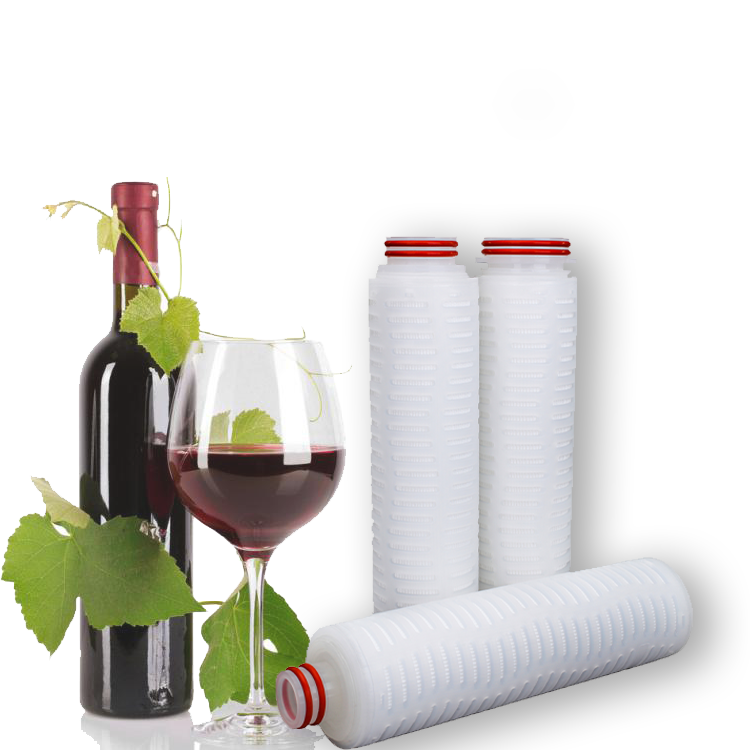

Stainless Steel Capsule Wine Filter

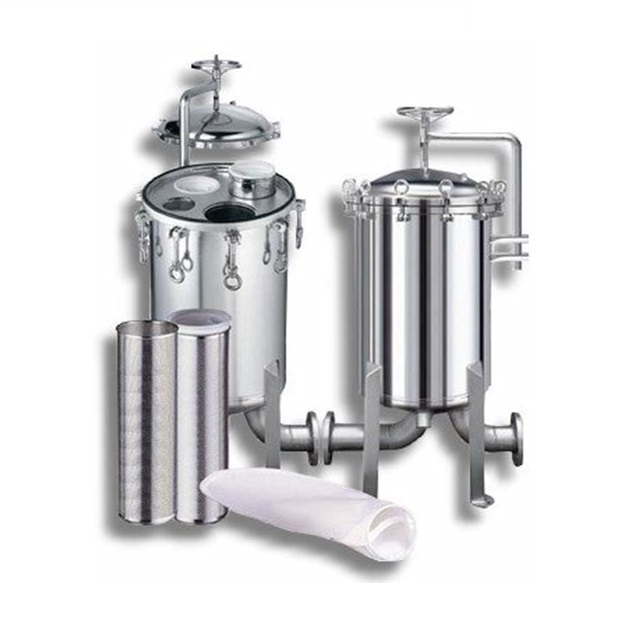

Bag filter housing filter element

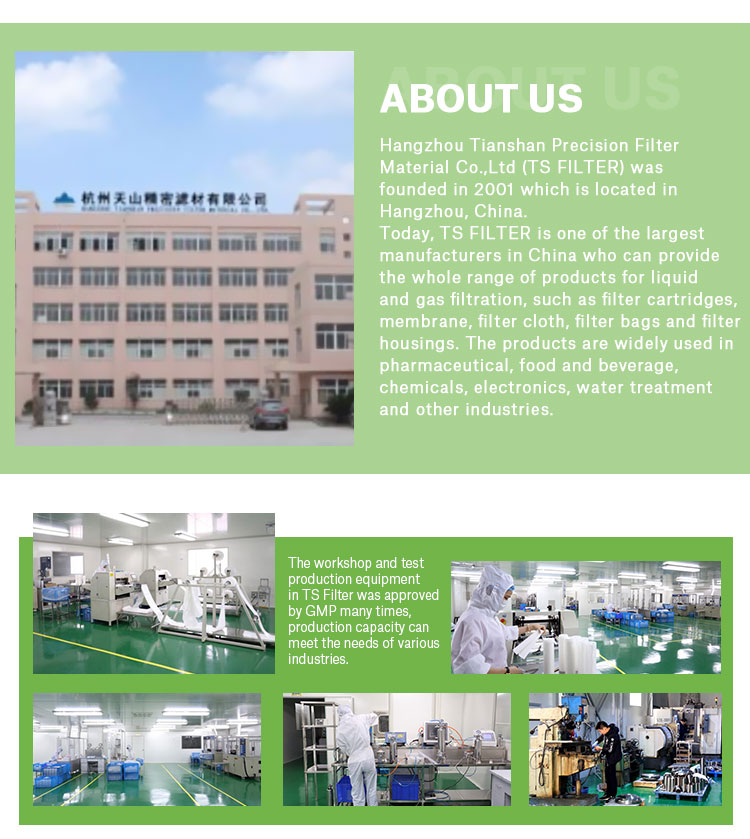

about Us
