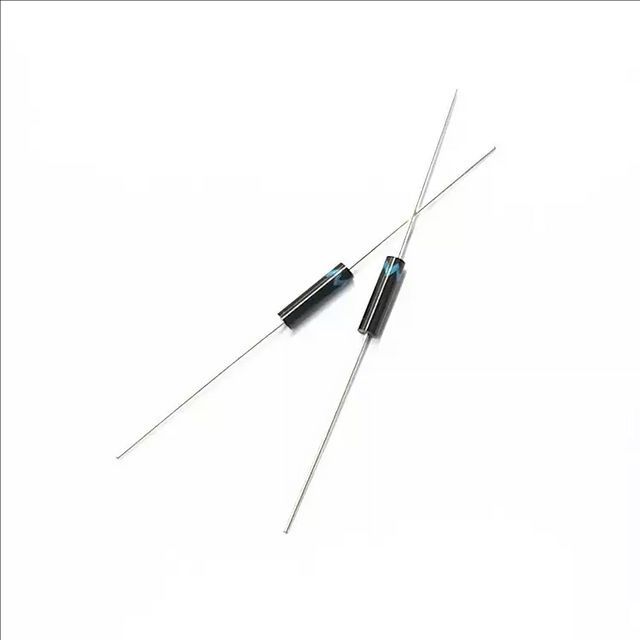

TVS Transorb Diode PCB Design Components 5000W Unidirectional VC 35.5V Low Frequency Signal Transmission One-Stop Solution
- $0.186 / >=3000 pieces
- 3000 pieces
- Shenzhen Shengtai Microelectronics Technology Co., Ltd.
- Guangdong, China
- Mr Martin Huang
PRODUCT DETAIL
| Feature 3: | bi-directional version available | Feature 7: | Fast response time: usually less than 1.0ps |
| Supply capacity: | 5,000,000 pieces per month | Feature 1: | 22V shutdown voltage |
| port: | Shenzhen | Application 1: | AC/DC power supply |
| model: | HHCSK22A502 | Packaging/Case: | P600 |
| Feature 2: | Glass passivated or planar junction | brand: | Huachuang |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Feature 5: | low inductance |
| Feature 4: | low leakage | Feature 6: | Excellent clamping ability |
| Packaging Details: | 13" (330 mm) reel | Origin: | melon |
| type: | TVS diode | Application 2: | input/output interface |
| Application 3: | Low frequency signal transmission line |
Specification
Reverse Standoff Voltage (VRWM) | 22 volts |
Reverse Breakdown Voltage (VBR) min. | 24.4 volts |
Reverse Breakdown Voltage (VBR) max. | 26.9 volts |
Test current (IT) | 1mA |
maximum. Reverse leak @VRWM (IR) | 1 microampere |
maximum. Clamping Voltage @ Ipp (VC) | 35.5 volts |
maximum. Peak pulse current (Ipp) | 141 |
Product Description
feature• 5000W peak pulse power consumption at 10/1000μs waveform, repetition rate (duty cycle): 0.01% • 22V off-state voltage • Glass passivated or planar junction • Unidirectional versions available • Low leakage • Low inductance • Excellent clamping Bit Capability • Fast Response Time: Typically, less than 1.0ps from 0V to VBR • Repetition Rate (Duty Cycle): 0.01%. • Plastic material: UL flammability • Classification level 94V-0 • Halogen free and RoHS compliant
mechanical data• Package: P600 • Housing Material: Green Molding Compound • JEDEC R-6/P-600 Molding Plastic • Polarity Indicator: Color band indicates cathode (Note: Bi-directional devices do not have a polarity indicator) • Flammability of plastic package rated to 94V-0 Underwriters Laboratories
application• AC/DC power supply • I/O interface • Low frequency signal transmission line
