Taidacent Output 24V 1.6A XKT801-28 High Power Long Range Wireless Charging Wireless Inductive Power Transfer
- $17.88 / 100 - 499 pieces
$16.85 / >=500 pieces - 100 pieces
- Shenzhen Taida Century Technology Co., Ltd.
- Guangdong, China
- Mr Abe Lee
PRODUCT DETAIL
| Input voltage: | 24V; | DC Resistance (DCR) - Parallel: | Other; |
| DC Resistance (DCR): | Other; | Brand: | Taidacent; |
| Model Number: | 24V 1.6A High Power Wireless Charging; | Payment Terms: | L/C,Western Union,T/T,MoneyGram; |
| Cross Reference: | None; | Resistance Tolerance: | Other; |
| Supplier Type: | ODM,OEM; | Package Type: | Other; |
| Shielding: | Other; | Inductance - Connected In Series: | Other; |
| Mounting Type: | Other; | Current Saturation - Parallel: | Other; |
| DC Resistance (DCR) - Series: | Other; | Rated Power: | max 38W; |
| Supply Ability: | 1000 Pieces per Week; | Packaging Detail: | Box package; |
| Media Available: | Other; | Number of Coils: | Other; |
| Function: | Receiver, Transmitter,Other; | Tolerance: | Other; |
| Height - Seated (Max): | Other; | Application: | Wireless charger; |
| Inductance: | Other; | Temperature Coefficient: | Other; |
| Current Saturation - Series: | Other; | Features: | Other; |
| Package / Case: | Other; | Current Rating (Amps): | Other; |
| Current Rating - Parallel: | Other; | Height: | Other; |
| Type: | Wireless Charging Coils; | Inductance - Connected In Parallel: | Other; |
| D/C: | Other; | Operating Temperature: | Other; |
| Brand Name: | Taidacent; | Frequency - Self Resonant: | Other; |
| Material - Core: | Other; | Place of Origin: | Guangdong, China; |
| Q @ Freq: | Other; | Current - Saturation: | Other; |
| Size / Dimension: | Receiver module 30mm*36mm*6mm; | Resistance: | Other; |
Taidacent Output 24V 1.6A XKT801-28 High Power Long Range Wireless Charging Wireless Inductive Power Transfer
Product Description

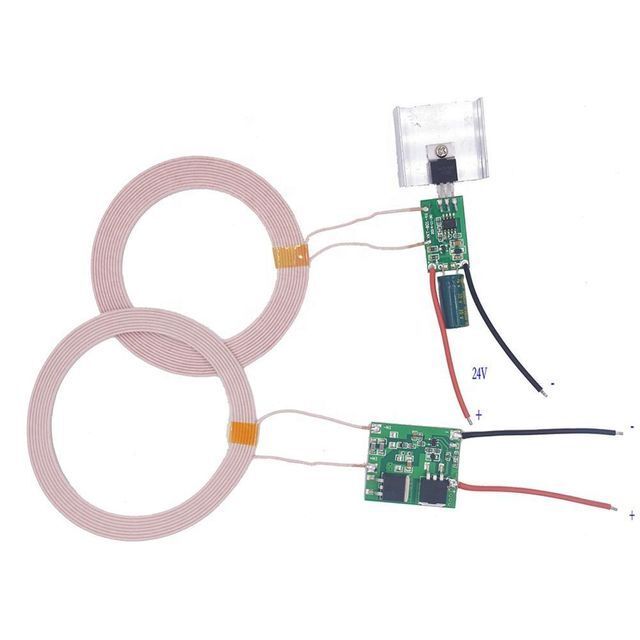

The 80mm DC remote module is designed with XKT-801 chip. The circuit is simple and practical.
Note
1, Receive output 24V1.6A when the distance is 8mm
2, This module can not be used below 3mm! Long-term work should be less than 1A as much as possible, pay attention to heat dissipation when using
2, This module can not be used below 3mm! Long-term work should be less than 1A as much as possible, pay attention to heat dissipation when using
3, Proximity will overvoltage damage the receiving module!
Specification
item | value |
The transmission voltage is designed with a wide voltage | 24V |
Transmitter module size | 17*28mm |
Transmitting coil | inner diameter 70mm outer diameter 88mm thickness 1.3mm |
Receiver module size | 30mm*36mm*6mm |
Receiver coil size | inner diameter 70mm outer diameter 90mm thickness 1.3mm |
Sensing distance | 3mm~20mm |
Details Images
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(20.00%),Western Europe(18.00%),Domestic Market(15.00%),Southern Europe(8.00%),Oceania(6.00%),South America(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),Eastern Europe(4.00%),Mid East(4.00%),South Asia(4.00%),Eastern Asia(3.00%),Central America(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
power supply module,wireless module,rfid module,antenna,bluetooth module
4. why should you buy from us not from other suppliers?
Taida was founded by several geeks who graduated from the top universities of China. In 2016, it moved to Guangzhou. Taida focuses on electronic communication product design, development. Its products exported to all over the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Portuguese,German,French,Russian
We are based in Guangdong, China, start from 2013,sell to North America(20.00%),Western Europe(18.00%),Domestic Market(15.00%),Southern Europe(8.00%),Oceania(6.00%),South America(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),Eastern Europe(4.00%),Mid East(4.00%),South Asia(4.00%),Eastern Asia(3.00%),Central America(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
power supply module,wireless module,rfid module,antenna,bluetooth module
4. why should you buy from us not from other suppliers?
Taida was founded by several geeks who graduated from the top universities of China. In 2016, it moved to Guangzhou. Taida focuses on electronic communication product design, development. Its products exported to all over the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Portuguese,German,French,Russian
