Taiwan fasteners machinery
- $52000.00 /set
- 1 set
- Dongguan Songwei Machinery And Metal Product Co., Ltd.
- Guangdong, China
- Mr PEILAN
| Name: | Cold Header; | Dimension(L*W*H): | 4.4 m * 2.3 m * 1.75 m; |
| Package Preview: | ; | Forging station: | 6 Stations; |
| Port: | SHENZHEN; | Lubricant: | 350 Gallons; |
| Power Source: | Electric; | Type: | Forging Operation; |
| Condition: | New; | Warranty: | 1 Year; |
| Packaging Detail: | Each set is wrapped with stretch film and packed in a wooden case. Or according to the circumstances and need. Nut Former Machine.; | Brand Name: | SONGWEI; |
| Usage: | Automatic Control Operation; | Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Fasteners,Auto industry ,Bridge ,furniture; |
| Forging Power: | 150 Newtons; | Power: | 30 KW; |
| Supply Ability: | 8 Sets per Month; | After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Engineers available to service machinery overseas; |
| Forging Forming Method: | Mold Forging; | Payment Terms: | L/C,D/A,D/P,T/T; |
| Weight: | 19.5 Tons; | Place of Origin: | Guangdong, China; |
| Capacity: | 130 Pcs/Minute (Max.); | Certification: | ISO, CE; |
| Voltage: | 380V 50Hz 3Phase/Customized; |
1. Technical Parameters
COLD FORGING MACHINE PRICE
MODEL | UNIT | SW-NF |
19B | ||
FORGING STATION | No. | 6SL |
CUT- OFF DIA | mm(max) | 20 |
CUT- OFF LENGTH | mm(max) | 60 |
KICK- OUT LENGTH | mm(max) | 130 |
CENTER DISTANCE BETWEEN DIES | mm | 80 |
RAM STROKE | mm | 140 |
FORGING POWER | Ton | 150 |
PRODUCT SIZE | Inch (mm) | 5/16 1/2 8/12 |
OUTPUT | Pcs/min (max) | 130 |
MAIN MOTOR | kw | 30 |
LUBRICANT | Gallon | 350 |
APPROX. WEIGHT | Ton | 19.5 |
FLOOR AREA REQUIRED | L(m) | 4.4 |
W(m) | 2.3 | |
H(m) | 1.75 |
2. Application
- Presently it is widely used in Construction, Automobile, Furniture, Electronics, Machinery, Aerospace, National defense industries

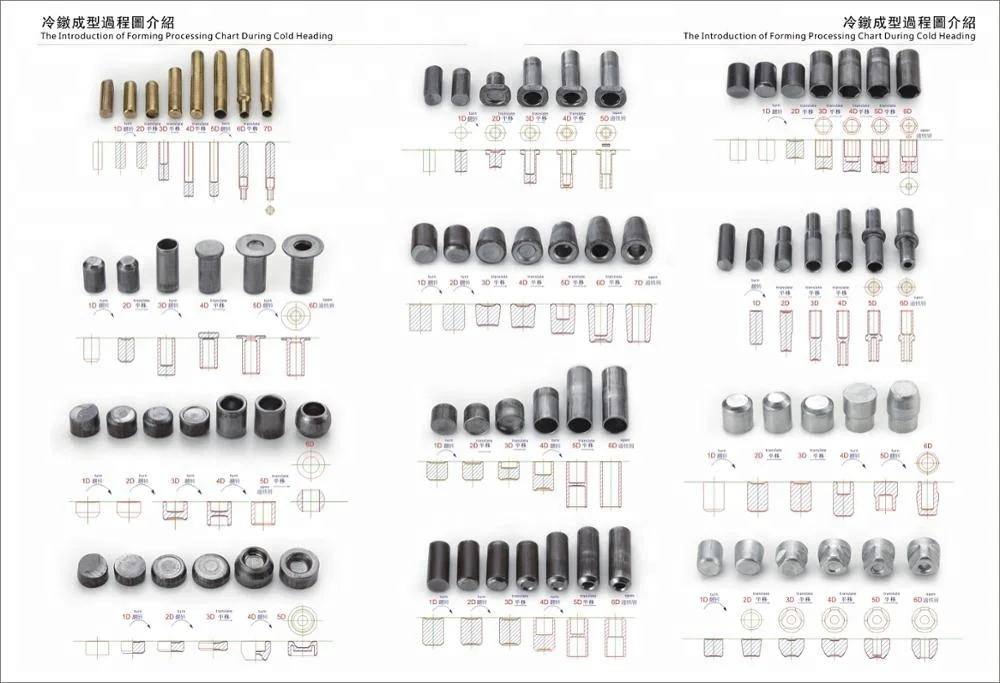

- Not only can be used for manufacturing Normal nuts, like Hex nut, Flanged nut, Square nut, Weld nut, Rivet nut, but also Motorcycle link pin, Oil plug screw, Pipe joint, Chain roller, Bearing roller, Bearing ring, Expansion anchor, Bushing sleeve, Bicycle and Motorcycle shaped spare parts, Auto spare parts, shaped nuts and various shaped pieces of shaped and non-standard items, ect.

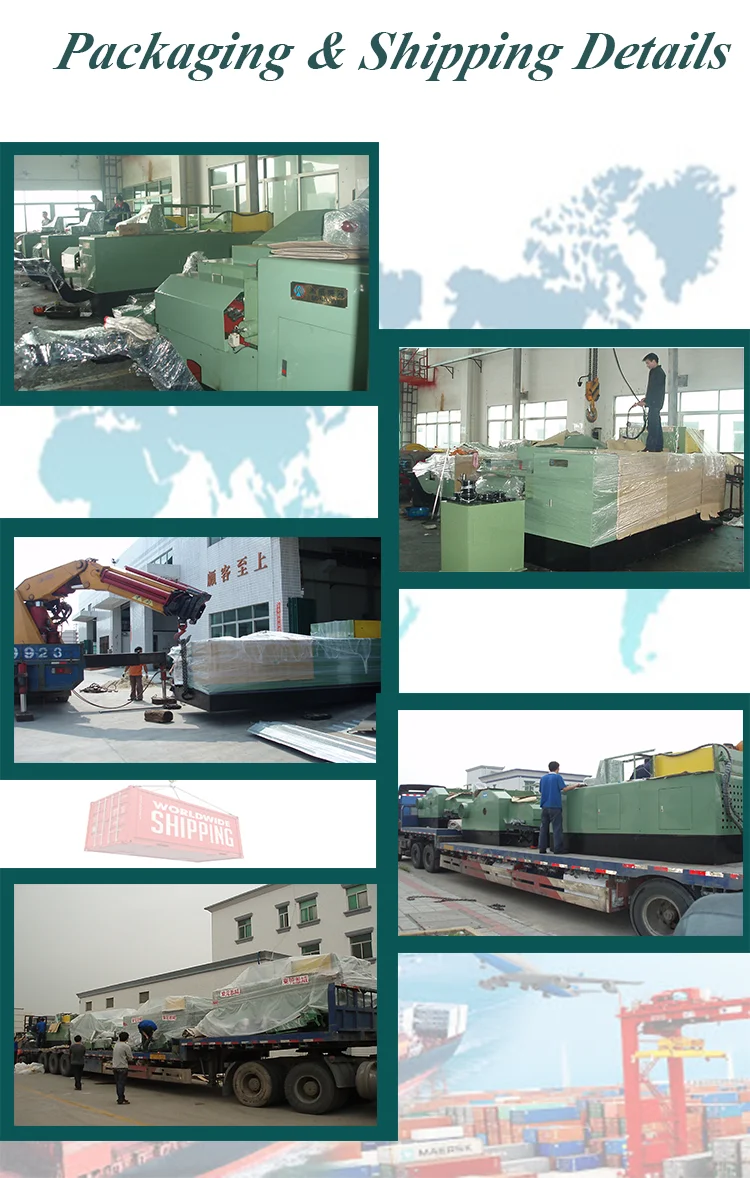

Packaging Details: Each set is wrapped with stretch film and packed in a wooden case. Or according to the circumstances and need.
Delivery Time: Shipped in 60-90 days after deposit payment. Generally, the smaller models like 8B, 11B, 14B, 17B can be supplied from stock.
cold former machine
1. Provide after-sale service, including profession engineer in oversea, one year warranty and according you need.
2. Designing the machine and the mould according the customers' product drawings and product samples.
3. Offering the technical supports and former documents according you need.
4. Provide the professional engineer , teaching customers how to operate the machines.
5. Reply you in 24 hours, we can reply you soonest.
FAQ
Q1. Are you a factory or trade company ?
A: We are a company with our own factory, we can provide the ex-factory price.
Q2.How about the delivery time?
A:We insist on foreign customers first, supervise the factory production,
arrange your goods first, never delay the delivery.
Q3:Your price so high?
A: The price can negotiable and believe it we are not the most expensive, and
we can provide you with the best overseas after-sale service and professional
engineers
Q4:How long is the machine life?
A: Our machine life can maintain 15-20 year.
Q5:How about the after-sales service?
A:We can provide the oversea service and install the machine, traning the people.
