Tdf flange forming machine, air duct forming machine, flange forming machine
- $499.00 /set
- 1 set
- Maanshan Dama Machinery Manufacturing Co., Ltd.
- Anhui, China
- Mr mark Zou
| application: | Duct Flange Forming | thing: | TDF air duct flange forming machine |
| Supply capacity: | 100 sets/month flange forming machine | Certification: | ISO9001 |
| size: | T12 T15 flange forming machine | port: | Shanghai Port, Nanjing Port |
| usage: | architecture | capacity: | 10-15M/min |
| Dimensions (L*W*H): | machine configuration | Origin: | Anhui, China |
| Name: | TDF flange forming machine | thickness: | 0.2-1.5mm |
| type: | Bender | Pipe shape: | square tube |
| brand: | DM flange forming machine | Pipe material: | Galvanized sheet |
| Packaging Details: | Flange forming machine, bulk plastic paper packaging, standard packaging, wooden case, or according to your special requirements. | strength: | 3KW |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | color: | Elective |
| After-sales service provided: | Engineers available to service machinery overseas | Voltage: | 220/380/415/420/440V |
| Production capacity: | 10-15M/min | Warranty: | one year |
| Health status: | new | Shipping Details: | 10 days after flange forming machine order |
| weight: | 2000 kg | raw material: | steel |
Tdf flange forming machine, air duct forming machine, flange forming machine
feature
1. Air duct HVAC tdf flange forming machine is the main equipment for HVAC duct tdf flange forming, especially suitable for large-scale, standardized and automated production.

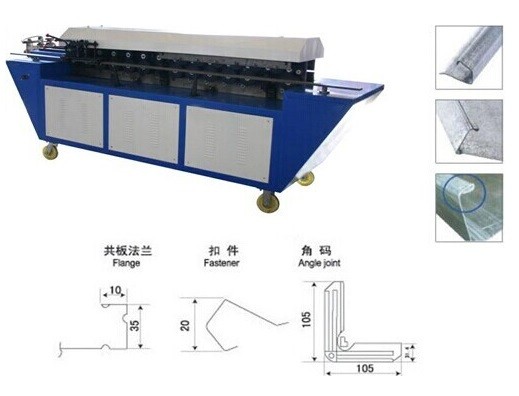

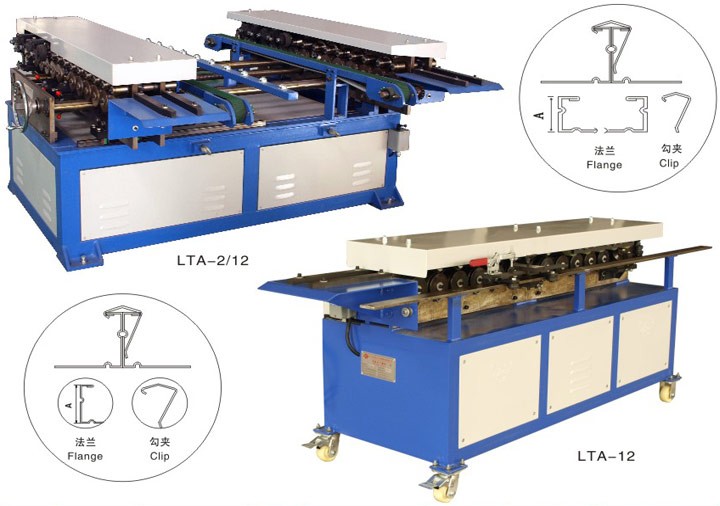

2. Flanges and L-shaped clamps can be produced simultaneously.
3. Automatic feeding while processing.
4. All rollers and bearings are made of high-quality steel, which has been treated with advanced heat treatment (quenching) to enhance the wear resistance of the machine.

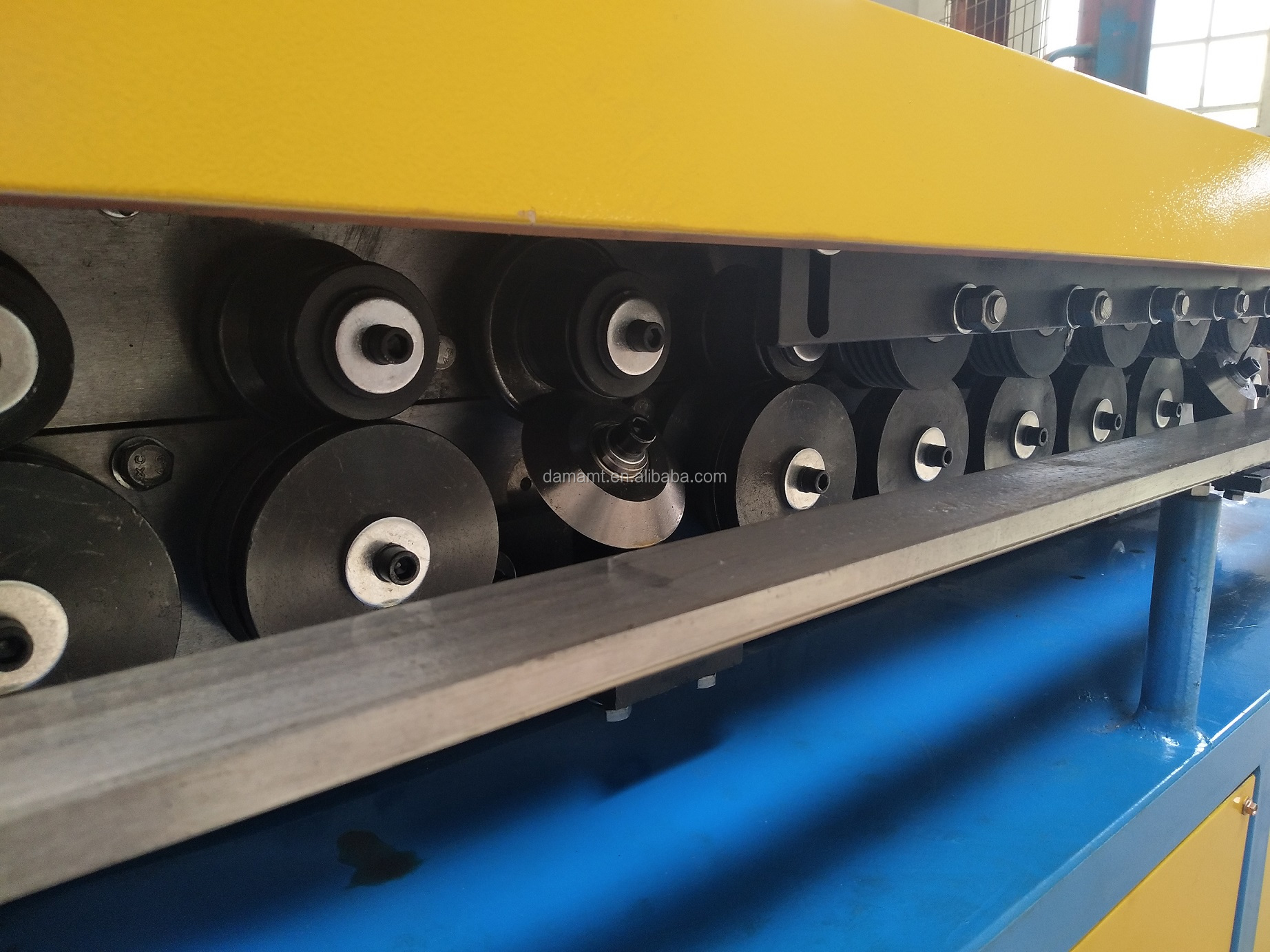

5. 14 sets of rollers, the shape is stable and beautiful. Pressure bearings are used to avoid side wear.
Air duct hvac tdf flange forming machine technical data
Model | Sheet thickness (mm) | A size (mm) | Weight (kg) | DimensionsL*W*H(mm) | Power(KW) |
T-12 | 0.5-1.2 | 32±5 | 1000 | 2900*700*1100 | 2.2 |
T-15 | 0.8-1.5 | 32±5 | 1200 | 2900*700*1100 | 4 |

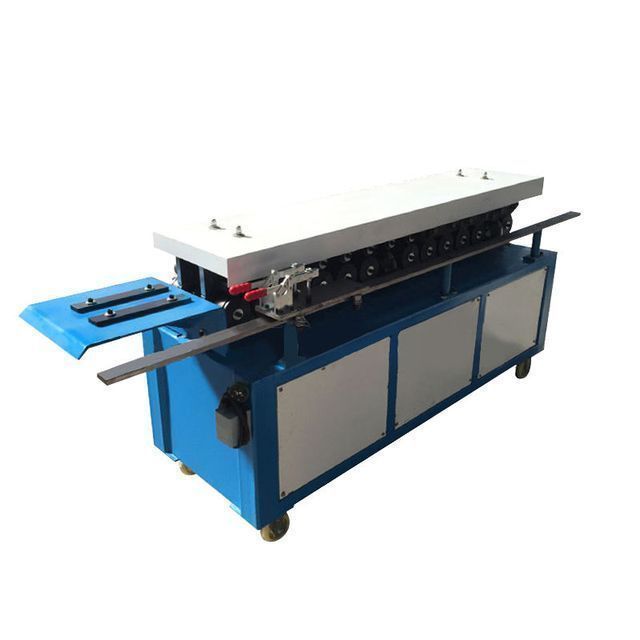

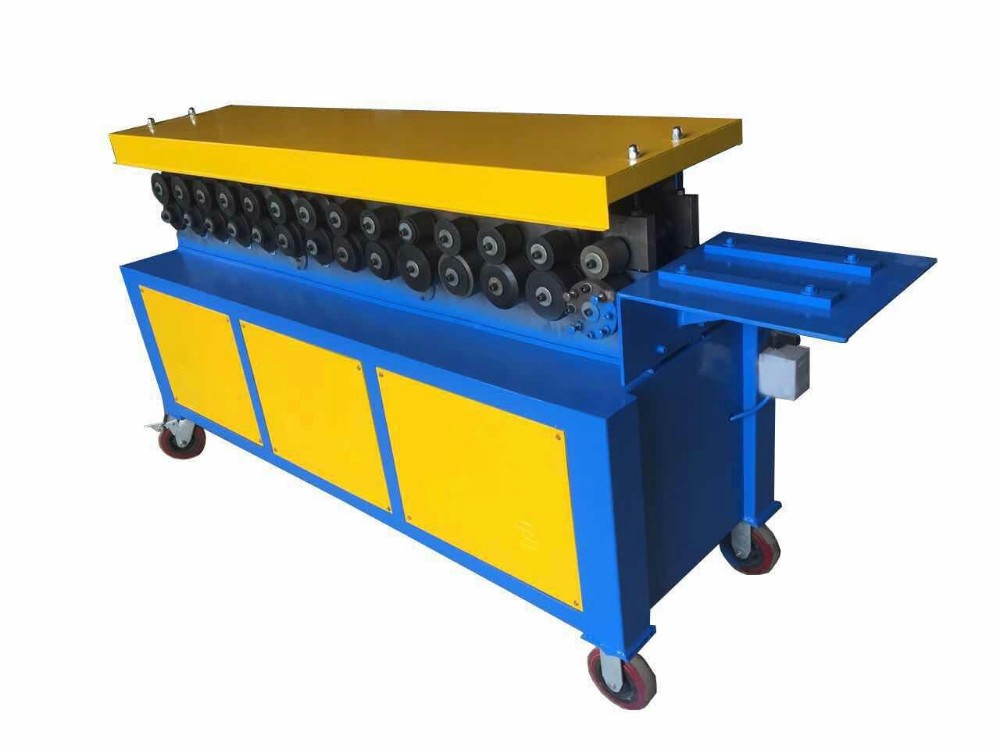

hvac tdf flange forming machine photo:

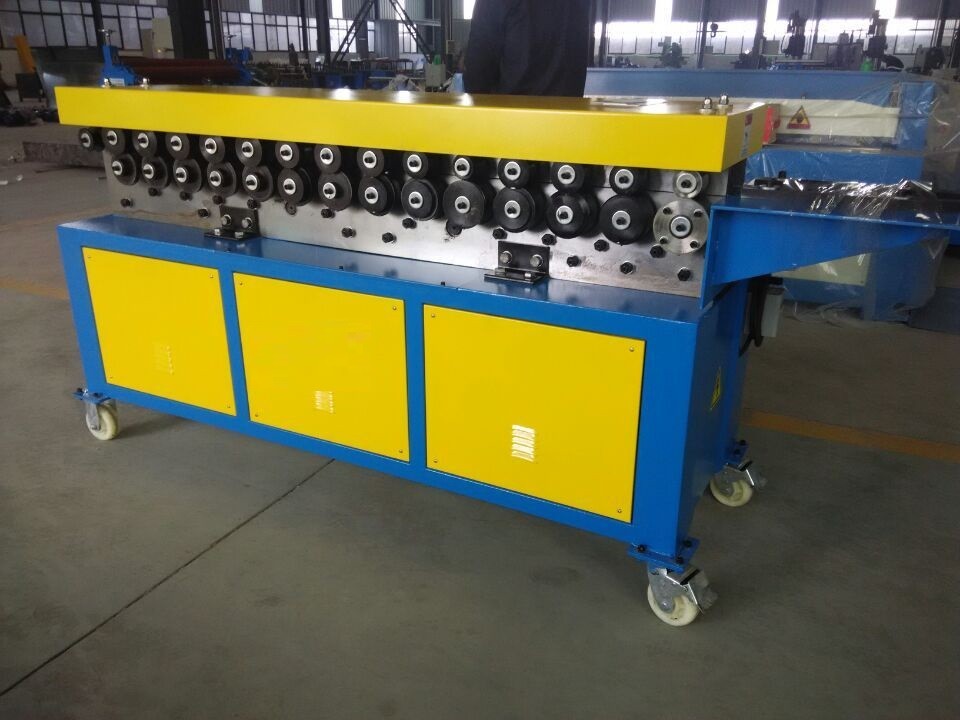

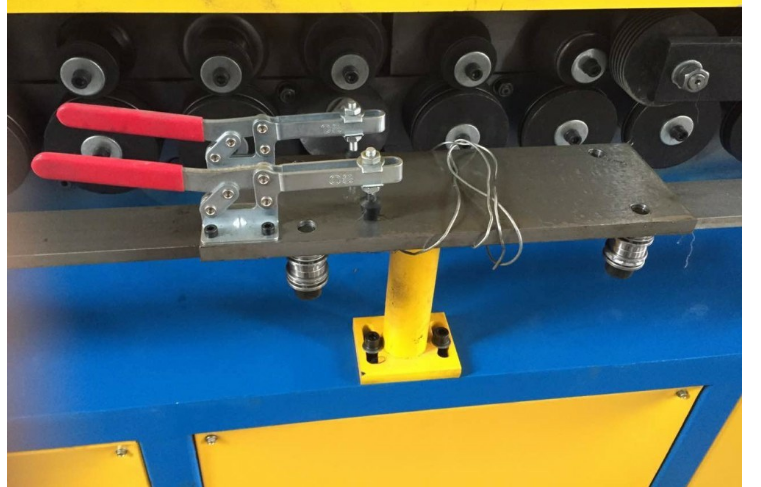

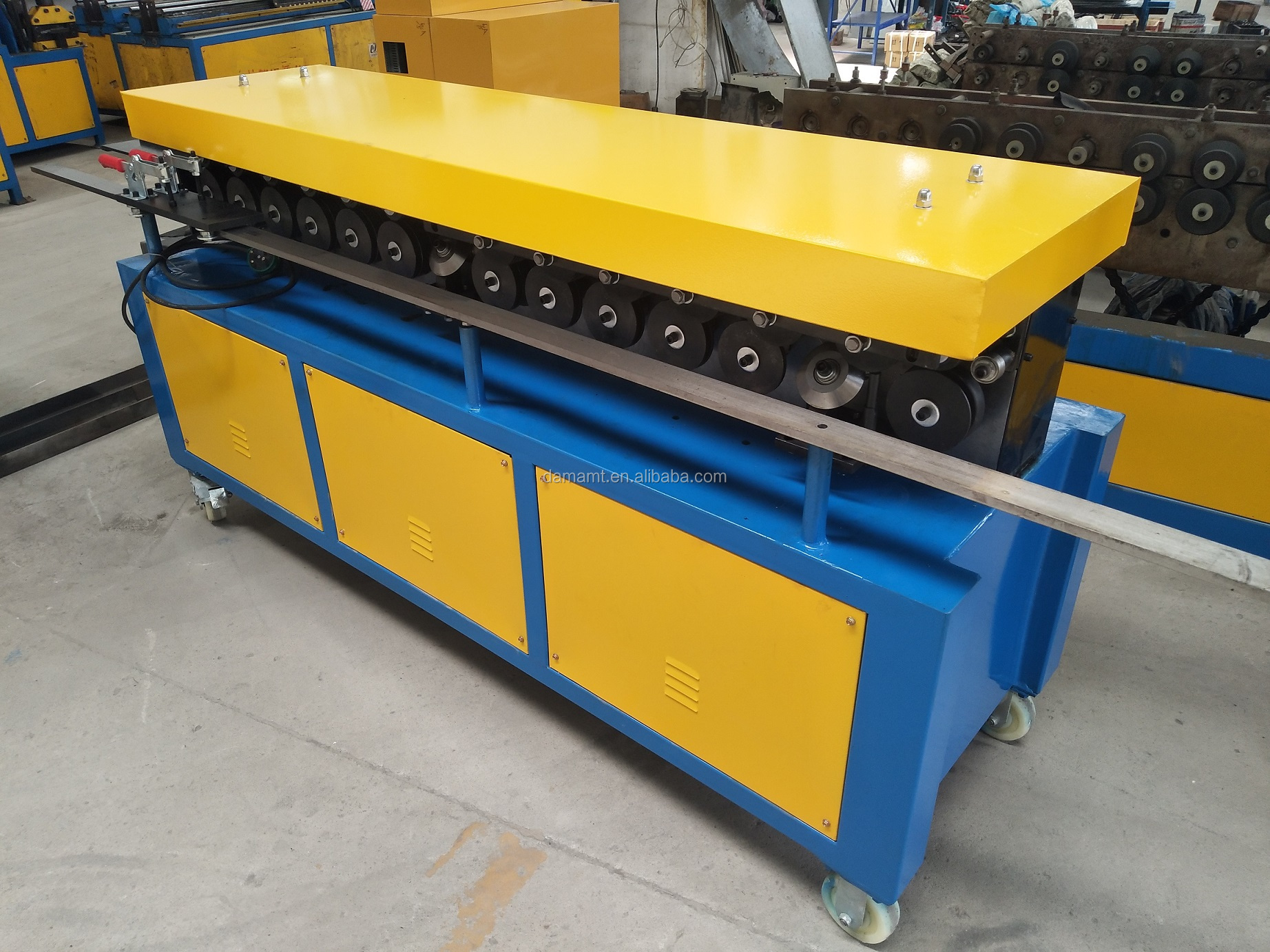

Details of hvac tdf flange forming machine:
tdf flange forming machine
tdf flange forming machine
tdf flange forming machine
tdf flange forming machine

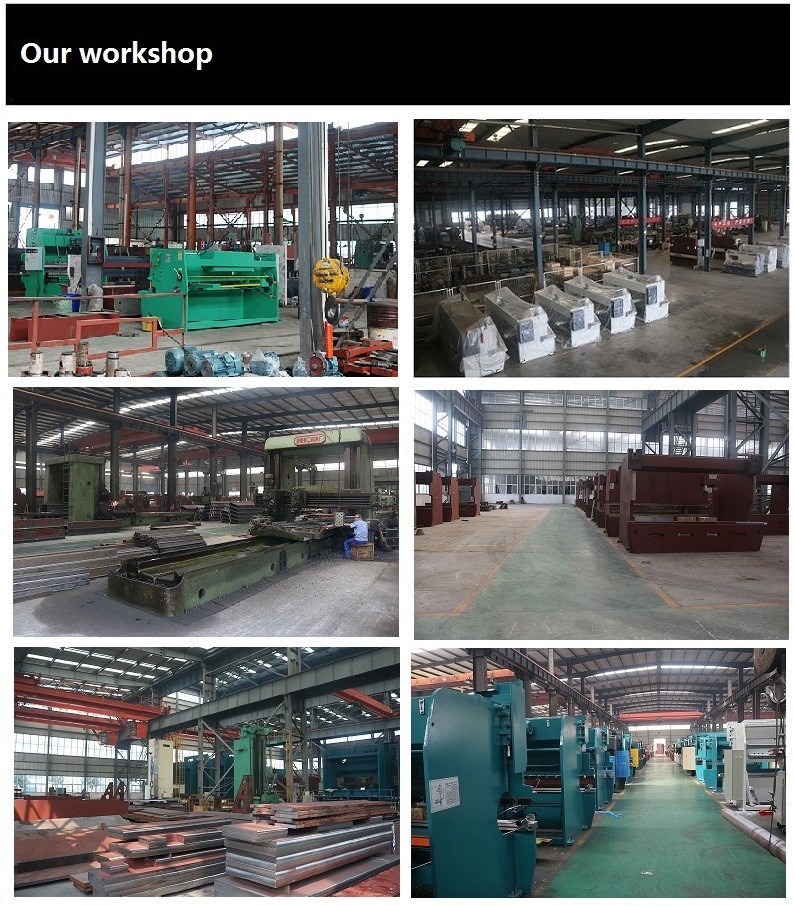

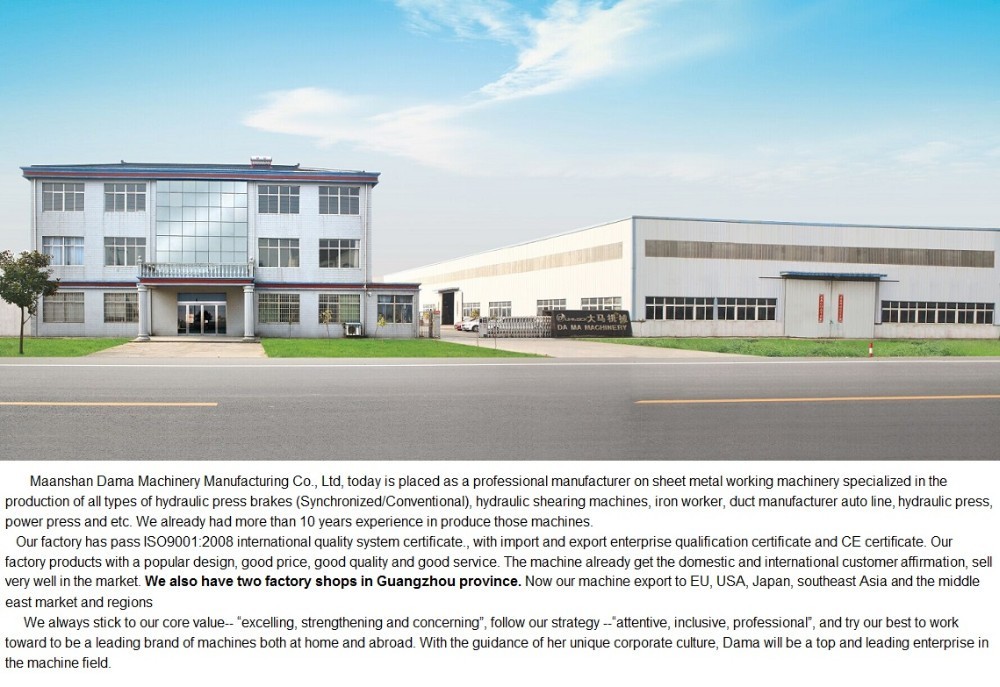

factory scene
Thank you for visiting our air duct hvac tdf flange forming machine!
