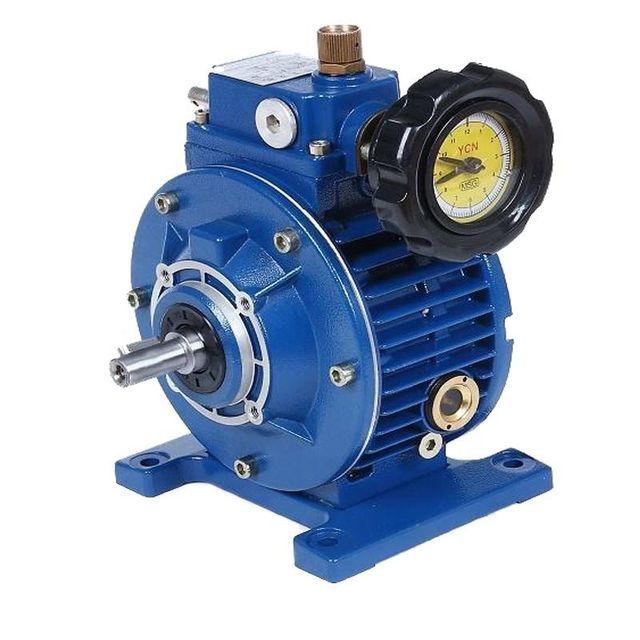

UDL Variable Gearbox Transmission Planetary Gearbox
- $18.20 /set
- 1 set
- Hangzhou Obang Machinery Co., Ltd.
- Zhejiang, China
- Mr XiaoLing Qian
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal | Output torque: | 1.5-118N.m |
| output speed: | 170-1000rpm | seal: | SKF, CTY, CFW or according to customer requirements |
| color: | blue/silver or according to customer requirements | Packaging Details: | Carton or wooden box, or according to customer requirements |
| Warranty: | 1 year | Input speed: | 780-3000 rpm |
| port: | Ningbo, Shanghai or Shenzhen | Input/Output Shaft: | solid or hollow |
| product name: | UDL Variable Gearbox Transmission Planetary Gearbox | quality: | high precision |
| Origin: | Zhejiang, China | Lubricant: | Synthetic and Mineral |
| transmission: | insect | brand: | Yibang |
| Material: | HT250 | Applicable industries: | Manufacturing plants, food and beverage plants, farms, retail, construction, energy and mining |
| Model: | UDL.B3 | Supply capacity: | 2000 sets per month |
| Bearing: | C&U,NSK,SKFor at customer's request |
UDL Variable Gearbox Transmission Planetary Gearbox
Obang produces YB.. series geared motors with international advanced level, including YBR series helical geared motors, YBF parallel shaft helical geared motors, YBK series helical bevel geared motors, YBS series helical worm geared motors, YBH series Helical gear reducer, YBB series bevel helical gear reducer, YBT series bevel gear steering gear,WP series helical gear worm reducer, NMRV reducer and other small parts.
UDL Variable Gearbox Transmission Planetary Gearbox
|
type: |
UDL series stepless variable speed motor |
|
Model: |
UDL.B3 |
|
color: |
blue/silver or according to customer requirements |
|
Material: |
HT250 |
|
input power: |
0.18-7.5kw |
|
Output torque: |
1.5-118N.m |
|
Input speed: |
780-3000rpm |
|
output speed: |
170-1000rpm |
|
Bearing: |
C&U, NSK, SKF or according to customer requirements |
|
seal: |
SKF, CTY, CFW or according to customer requirements |
|
Lubricant: |
Synthetic & Mineral |
|
Warranty: |
1 year |
Features:
1. High precision: 0.5-1
2. The speed range is wide, and the output speed ratio can be between 1/1.4 and 1/7
3. High strength and long service life
4. Convenient speed adjustment
5. Continuous work, stable operation, stable performance, low noise
6. Fully sealed, low environmental requirements
7. The mechanism is compact and the volume is small.
8. It is made of high-quality aluminum alloy, with beautiful appearance, light weight and no rust.
9. Good adaptability. UDL series continuously variable transmission can be combined with variable reduction unit to realize low-speed continuously variable transmission.
Application fields: It can be widely used in food, packaging, chemical industry, pharmaceuticals, plastics, papermaking, machine tools, transportation and various automatic production lines and conveyor lines that require speed regulation.
(1) Good quality
(2) Reasonable price
(3) Promise to deliver on time
(4) Large output torque
(5) Safe, reliable, economical and durable
(6) Smooth transmission and quiet operation
(7) High heat dissipation efficiency and strong carrying capacity
(8) Quality certificate: ISO9001:2008
(9) Every product must be tested before sending
(10) Made of high-quality aluminum alloy, light in weight and rust-free
(11) The output torque is large.
(12) The operation is stable and the noise is low.
(13) High heat dissipation efficiency.
(14) Beautiful appearance, long service life and small size.
(15) Suitable for Omni bearing mounts.
Welcome to contact us for more details and parameters
