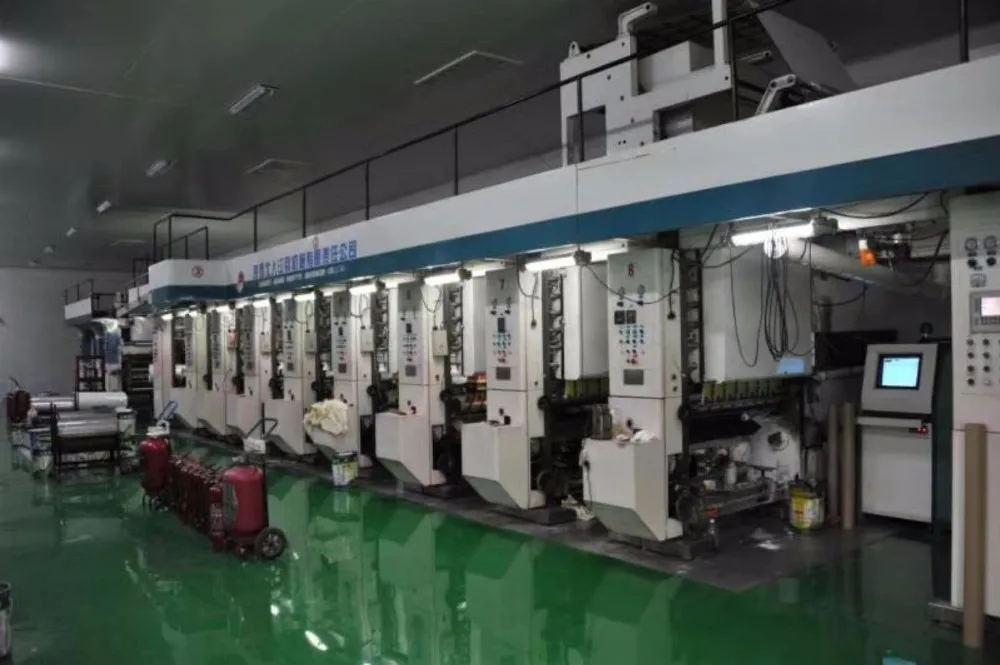

Used Automatic gravure printing press machine for film
- $85000.00 / 1 - 1 sets
$84000.00 / 2 - 2 sets
$83000.00 / >=3 sets - 1 set
- Rizhao Quanju Machinery Co., Ltd.
- Shandong, China
- Ms Ella Jiao
PRODUCT DETAIL
| Packaging Detail: | Used Automatic gravure printing press machine for film Package:Wooden box or according to clients requirtments.; | Printing Speed: | 150m/min; |
| Port: | Qingdao; | Color: | 1-8; |
| Payment Terms: | L/C,T/T,Western Union; | Voltage: | 220V/380V; |
| MOQ: | 1 set; | Weight: | 36000kg,31000 KGS; |
| Usage: | Paper Printer,Tube Printer; | Warranty: | 1 Year; |
| Color & Page: | Multicolor; | Year: | 2008; |
| OEM: | No; | Brand Name: | Beiren; |
| After-sales Service Provided: | Overseas third-party support available; | Certification: | CE/ISO9001; |
| Type: | Rotogravure Printing Machine; | Place of Origin: | Shaanxi, China; |
| Make: | Beiren; | Automatic Grade: | Automatic,Automatic; |
| Printing width: | 1050mm; | Suitable material: | LLDPE PET BOPP CPP Film; |
| Dimensions(L*W*H): | 20000*4200*3500mm; | Supply Ability: | 100 Sets per Month Used Automatic gravure printing press machine for film; |
| Condition: | Used,Used; | Name: | Used Automatic gravure printing press machine for film; |
Product Description
The product parameters
Max.Machine speed:180m/min
Max.printing speed:150m/min
Printing color:8
Web width:1050mm
Register accuracy:≤±0.2mm(Longitudinal Automatic registration system tracking,Horizontal manual)
Unwind/rewind dia.:Φ600mm
Plate cylinder dia.:Φ120～Φ300mm
Tension accuracy:±0.5kg
Rewinding/Unwinding roll core dia.:φ76*φ92mm
Drying method: steam
Main motor power:22kw
Machine size:15800*4500*3370mm
Machine weight:36000kg
Material:OPP、BOPP、CPP、PE、PET、PVC、NY
Manufactured in 2008
Feature:
1. With high-speed loading device and pre-driven (automatic cutting)
2. Double roll against rolling, steel soft combination
3. Pre-register function
Max.Machine speed:180m/min
Max.printing speed:150m/min
Printing color:8
Web width:1050mm
Register accuracy:≤±0.2mm(Longitudinal Automatic registration system tracking,Horizontal manual)
Unwind/rewind dia.:Φ600mm
Plate cylinder dia.:Φ120～Φ300mm
Tension accuracy:±0.5kg
Rewinding/Unwinding roll core dia.:φ76*φ92mm
Drying method: steam
Main motor power:22kw
Machine size:15800*4500*3370mm
Machine weight:36000kg
Material:OPP、BOPP、CPP、PE、PET、PVC、NY
Manufactured in 2008
Feature:
1. With high-speed loading device and pre-driven (automatic cutting)
2. Double roll against rolling, steel soft combination
3. Pre-register function
