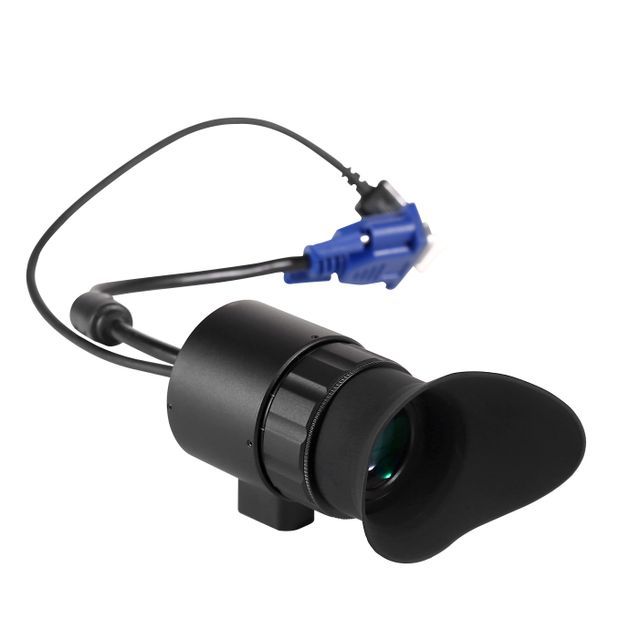

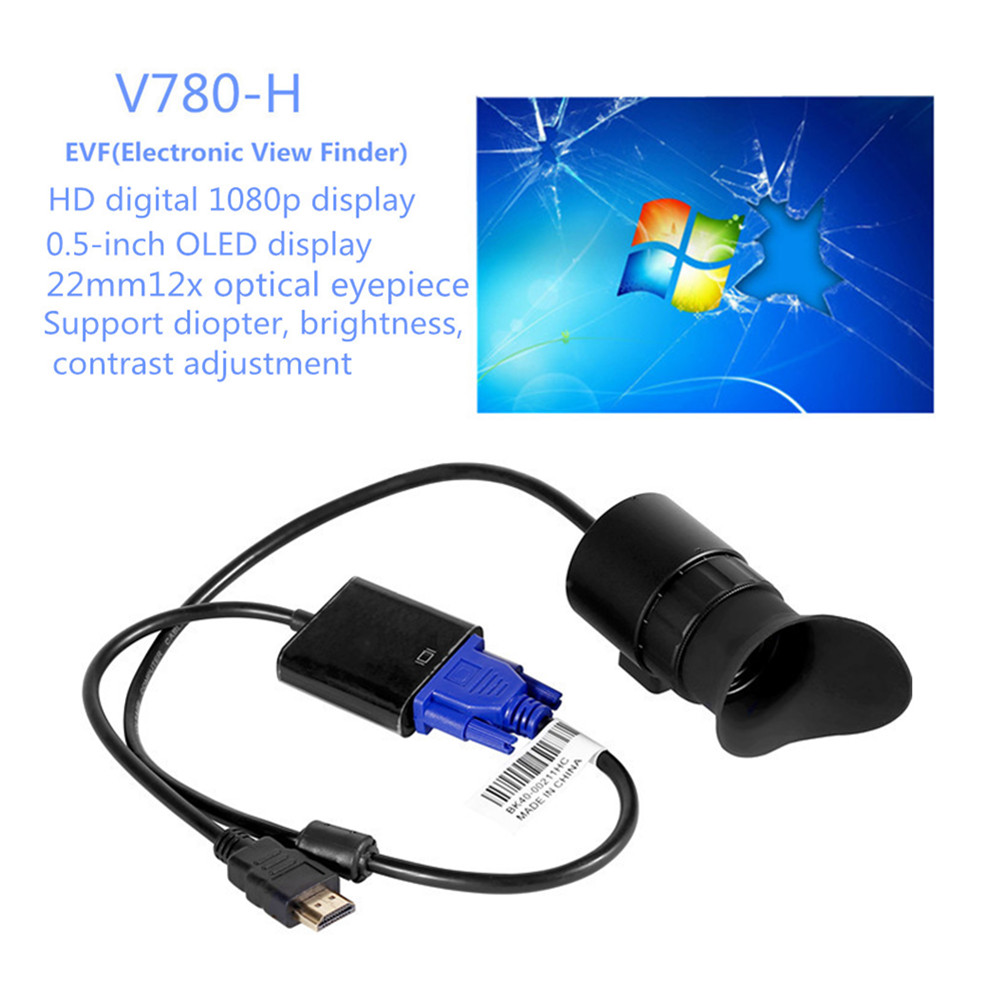

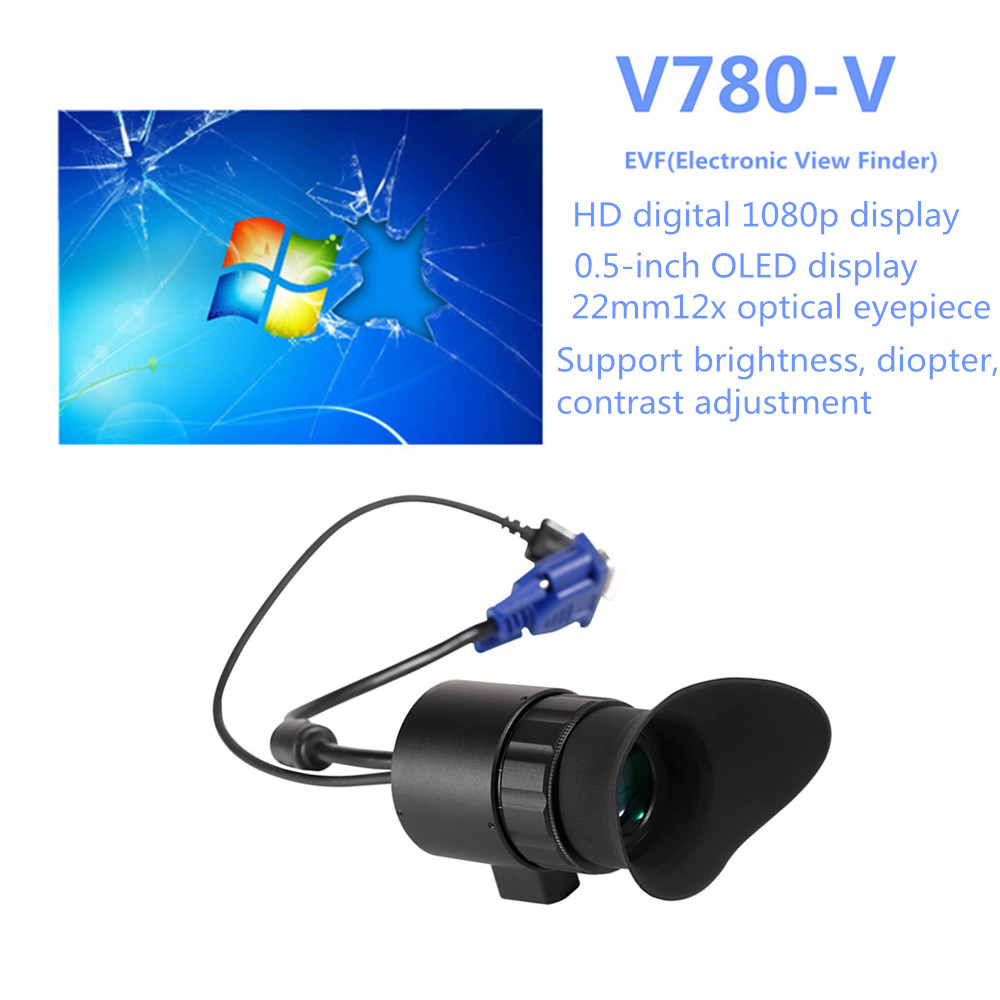

V780V/H 0.5-inch OLED virtual 80-inch display wearable large HD screen portable display electronic viewfinder
- $221.00 / 1 - 4 pieces
$219.00 / 5 - 9 pieces
$217.00 / >=10 pieces - 1 piece
- Shenzhen V-Focus Electronic Technology R&D Co., Ltd.
- Guangdong, China
- Mr Andy Yu
PRODUCT DETAIL
| Gross weight of single piece: | 1.000kg | Packaging details: | safe packaging |
| Single piece packaging size: | 18X8X9 cm | model: | V780V/H |
| brand: | OEM production | Place of origin: | Guangdong, China |
| Sales unit: | Single product |
V780V/H virtual 80-inch monitor wearable large high-definition screen portable monitor
| scope | exhibit: | 0.5 inch OLED |
| solve: | 1024*768 | |
| screen ratio: | 4:3 | |
| Color depth: | 24-bit input | |
| Viewing angle: | 45° diagonal | |
| Video input: | Composite VGA | |
| Video signal: | Digital signal | |
| Operating Voltage | 3.7-5V | |
| Working current | 350MA | |
| energy consumption | 0.5W | |
| display frame rate | 60 Hz | |
| Exit pupil distance | 20mm | |
| pupil diameter | 22MM | |
| eyepiece | 12x optical | |
| Dimming | Yes | |
| Contrast | Yes | |
| diopter adjustment | Yes | |
| Application areas | ||
1024*768 active matrix color 0.5-inch OLED panel module uses monocrystalline silicon transistors | ||
| The display module can be equivalent to a virtual 80-inch screen at a distance of 2 meters. | ||
| VGA pixel microdisplay chip, image and light source system, High-performance optical engine, drive control circuit | ||

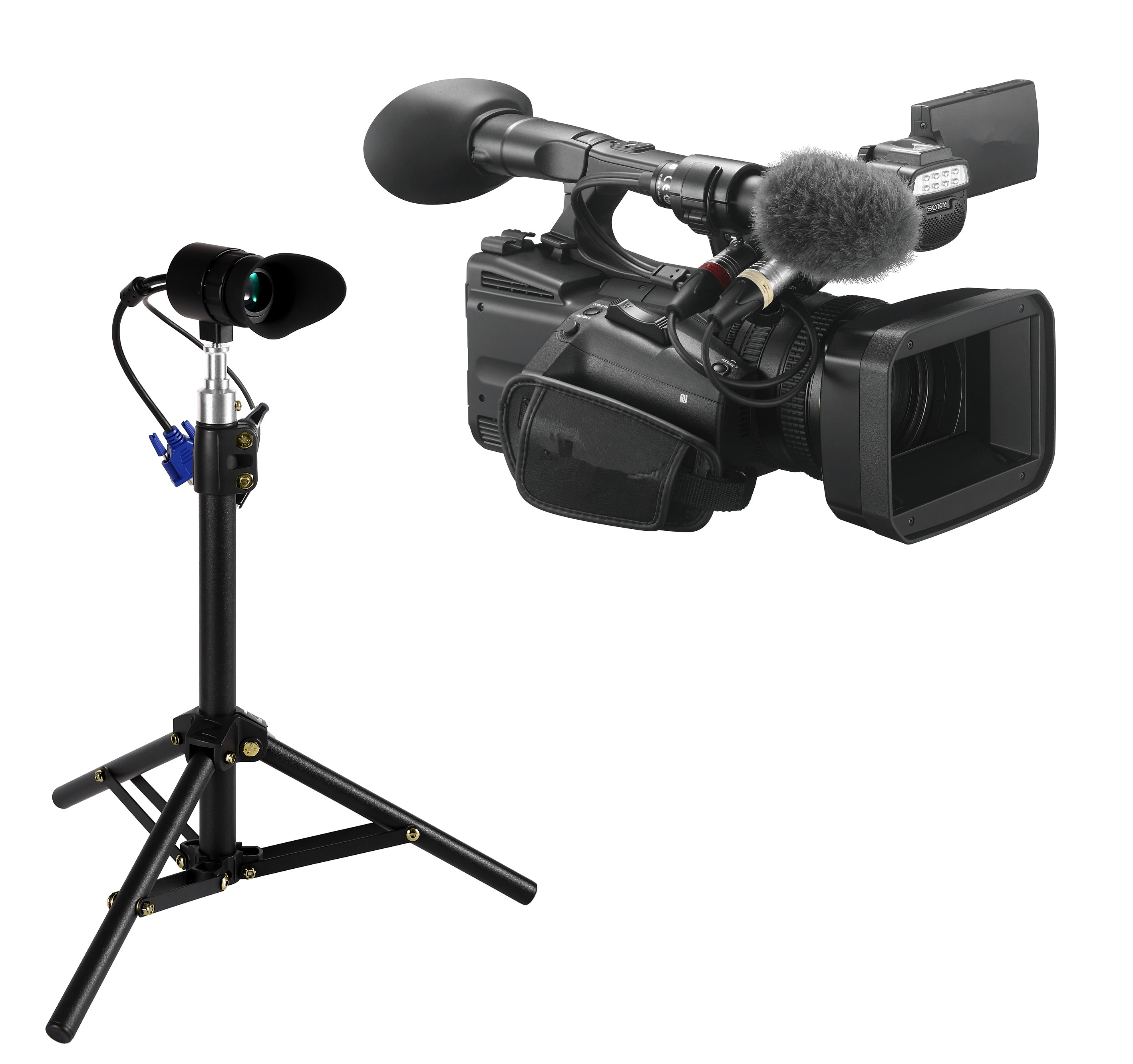

| Camera external viewfinder, industrial equipment high-definition monitor, analog command system observer | ||

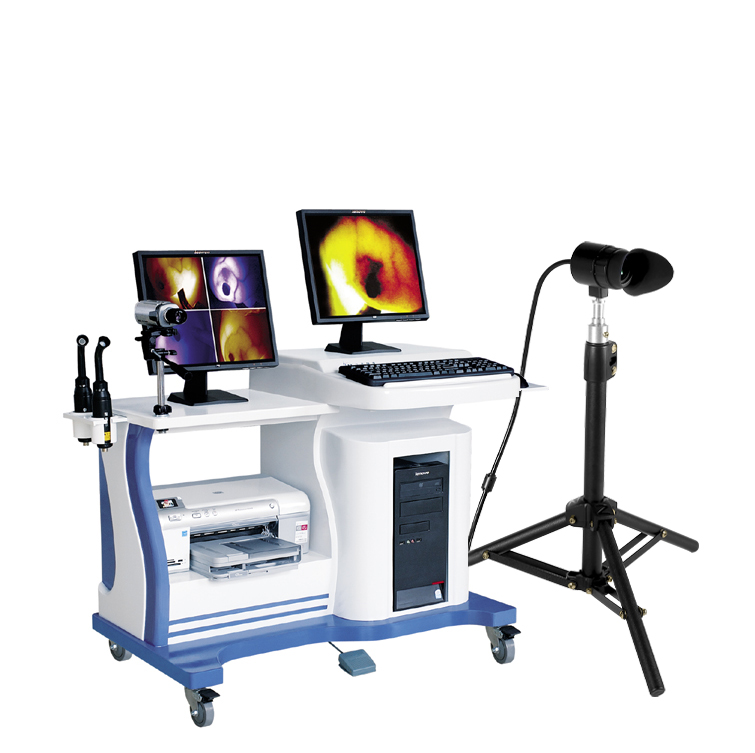

| Monocular display kit, night vision, medical, information, infrared detection, Power Monitoring Electronics Kit Viewfinder | ||
| Metal shell, built-in fixed bracket, waterproof, dustproof and shockproof | ||
| Equipped with 22MM eyepieces and customized hood, | ||
| Supports 1/4-inch tripod hole fixing | ||
| Support brightness contrast adjustment, 0-400° diopter adjustment | ||
| Accessories | ||
| USB extension cable*1 | ||
| Portable box*1 | ||
| VGA extension cable*1 | ||
| Instruction Manual×1 | ||
| Package | Unit size(mm) | Unit gross weight (kg) |
| 18*8*9CM | 0.55 | |
