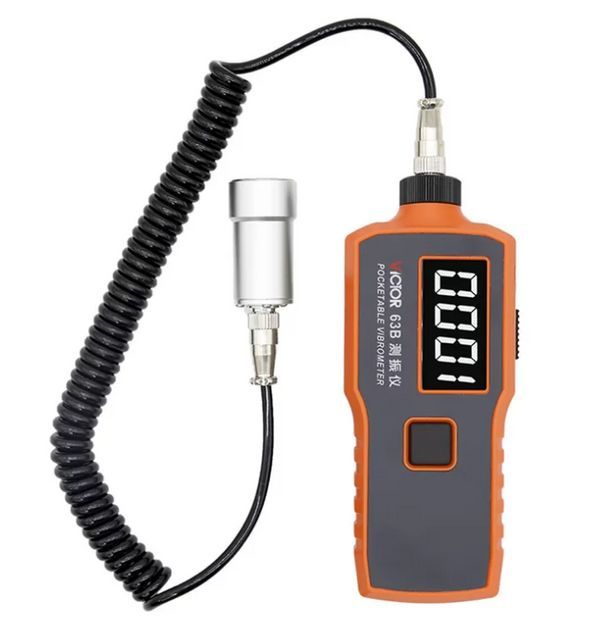

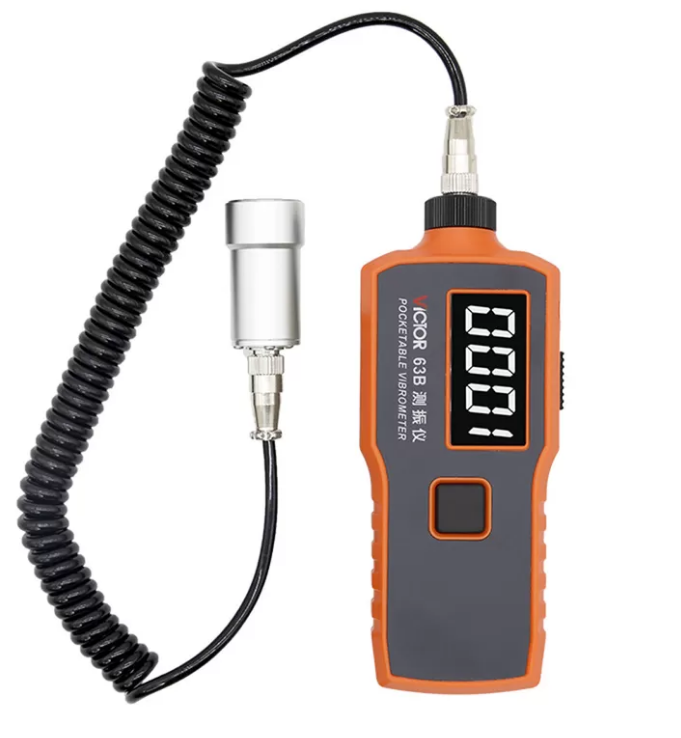

VICTOR VC63B vibration displacement effective value measurement rotating machinery vibration speed frequency meter

VC63B vibration meter 0~1999um measures the vibration displacement RMS vibration velocity acceleration of rotating machinery

The vibration meter consists of an acceleration sensor and a digital measurement display circuit. it is used to measure vibration
Root mean square values ​​of displacement (peak-to-peak displacement), vibration velocity and acceleration of rotating machinery. Its measurement value can be
is latched, and when the voltage is low, there will be a prompt on the screen. If there is no measurement after one minute, it will automatically
closure. It has the characteristics of wide measuring range, easy operation and portability, and is an ideal testing instrument.

Specification
1. Measuring range: acceleration: 0.1~199.9m/s2 (half peak value)
Speed: 0.1～199.9mm/s (RMS)
Displacement amplitude: 1～1999μm (peak to peak)
2. Frequency response: Acceleration: 10Hz~1000Hz, ≤±10%
Speed: 10Hz～500Hz, ≤±10%
Displacement amplitude: 10Hz～200Hz, ≤±10%
3. Linearity and accuracy
Displacement: 0～20μm, ≤±10% >20μm, ≤±5%
Speed: 0～2.0mm/s, ≤±10% >2.0mm/s, ≤±5%
Acceleration: 0～2.0m/s², ≤±10% >2.0m/s², ≤±5%
4. Display: three and a half digit LCD display
5. Power supply: laminated battery (9V), one section
6. Low voltage indication: When the battery voltage is lower than 5.5V, the screen will prompt low voltage, then replace the battery
with new ones. If there is no measurement after one minute, it will automatically turn off.
7. Hold function: After releasing the MEAS button, the displayed vibration value is frozen and maintained for one minute.
8. Environment: Ambient temperature: 0~40℃ Relative humidity: ≤80%
Atmospheric pressure: 75～106kpa
9. Overall dimensions: 185(H)×68(W)×30(D)mm
10. Weight: 380g (including battery)

Operation
Load battery

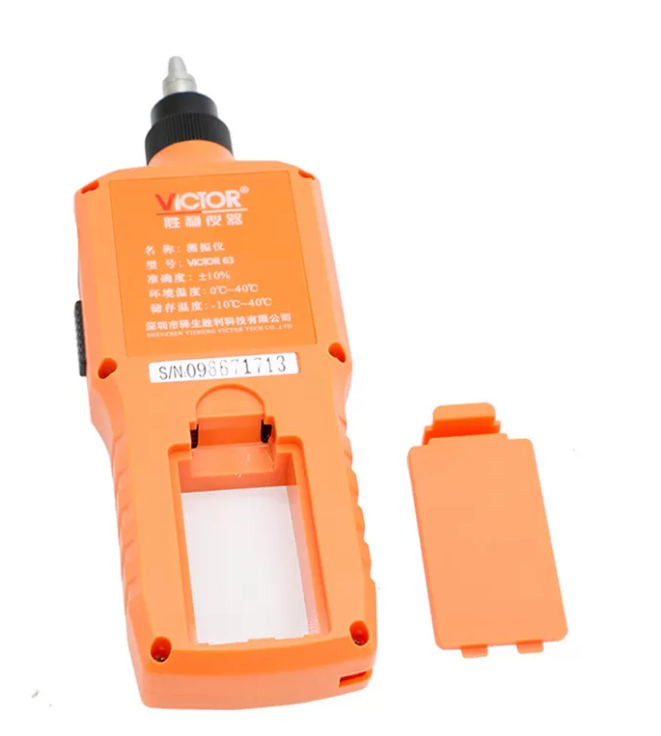

1. Install the battery
Open the battery compartment cover, insert the 6F22 battery into the battery compartment according to the correct polarity, and close the compartment cover.
2. Check battery voltage
Press the MEAS button and observe the display. If a battery mark appears on the display (left side), replace the battery with a new one
one. If this mark does not appear, the meter is ready to take measurements.

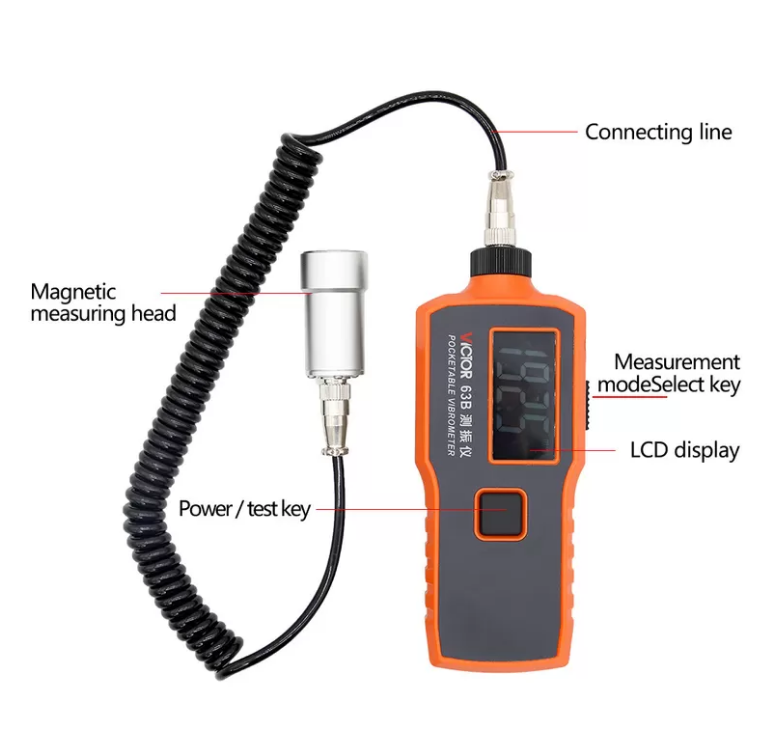

3. Set measurement mode
Use the mode selector to select acceleration, velocity or displacement measurement mode. The selected mode consists of
arrow on the right side of the display.
4. Measurement
A vertical section of the vibration of the object caused by the magnet.
Insert the sensor's connection cable into the sensor's input socket, press the MEAS button (power on) and hold the button.
The vibration value is now shown on the display. Release the MEAS button and the vibration value will be frozen on the screen.
show. Now you can detach the probe from the object and read the displayed value.

5. Press the MEAS button again to reset the hold function and repeat the measurement.

Notice
It cannot be used in environments with strong magnetic fields, corrosive gases and massive attacks.
The instrument and sensor are an integral structure and cannot be shut down or arbitrarily adjusted internally.
Potential.
When the battery replacement mark is displayed, replace the batteries.
When using the instrument for a long time, please remove the battery to avoid damage.
Common malfunctions
