VSM010100 Earthquake Detector Switch Vibration Sensor Module for Magnitude Sensor

PRODUCT DETAIL

brand:	OncQue	Function:	vibration detection
Installation features:	panel front	Supply capacity:	5000 pieces per month
port:	Taichung	Rated voltage:	-
Supplier type:	original factory	Package:	-
Current - Toggle:	-	payment terms:	wire transfer
output type:	-	Origin:	Taiwan
Voltage:	0.5V	color:	-
rated power:	-	Voltage - Switching DC:	-
Material:	-	Payment/Payment:	-
type:	tactile switch	capacitance:	-
feature:	magnitude 3 or 4 earthquake	Dimensions/dimensions:	21152.5mm
Module size:	21.0(L)15.0(W)2.5(H) mm	LED color:	red-green
brand:	Vibration Sensing Module	Operating temperature:	-20~+80℃, -20℃~+80℃
Lighting voltage (nominal):	-	Rated voltage:	-
application:	earthquake detector	Installation type:	-
Cross reference:	-	Rated Voltage - AC:	-
power supply:	DC3V±0.5V	Rated Voltage - DC:	-
Voltage - Switching AC:	-	Voltage - Power:	-
model:	VSM010100	Packaging Details:	Bubble bag: 1 inner box: 450 pcs Carton: 1,350 pcs
Switch function:	-	Rated Current (Amps):	-
Display mode:	-	feature:	vibration detection

Product Description

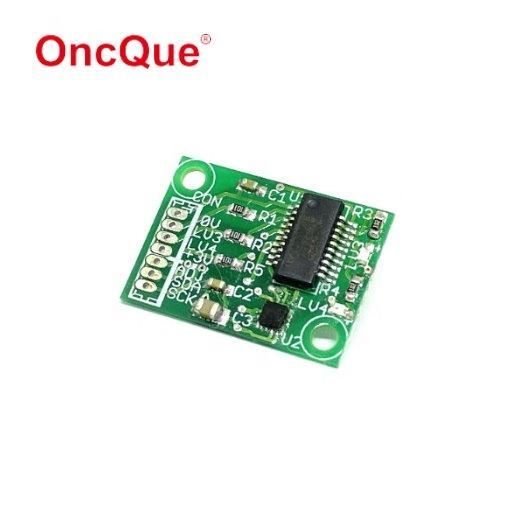

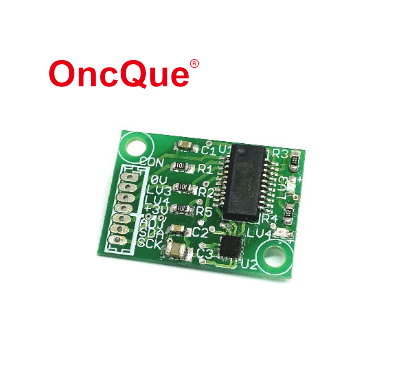

Vibration Sensing Module VSM010100

Function1. Vibration detection 2. Earthquake detection

application1. Level 3 or 4 earthquake alarm 2. Devices or applications that require vibration or earthquake detection

feature

When vibration or earthquake above level 3 or 4 is detected, the alarm light will light up accordingly.

When an earthquake or vibration occurs, the module calculates the intensity. once the magnitude

Above 3 or 4, the corresponding pin will output the signal

The warning light will come on for a while.

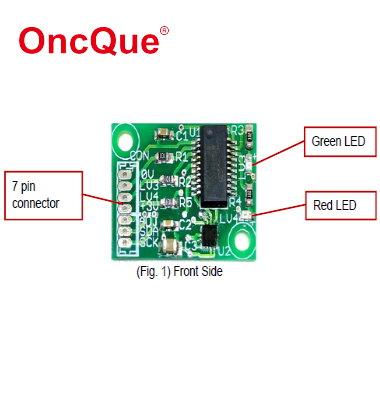

Green light: earthquake of magnitude 3 or above Red light: earthquake of magnitude 4 or above

Specification

● Customization:

GGravitational acceleration (gal)

● Power supply:

DC3V±0.5V

● Current consumption: 0.5mA in normal state, 0.8-2.0mA when LED is on.
