Video Grabber Card Video Grabber Record Box USB 2.0 HD Video Capture for PS4 Game DVD Camcorder Camera Recording
- $4.30 / 5 - 49 pieces
$3.95 / 50 - 499 pieces
$3.75 / 500 - 9999999 pieces
$2.00 / >=10000000 pieces - 5 pieces
- Shenzhen Vivid Technology Co., Ltd.
- Guangdong, China
- Mr Gus Zheng
| Function: | USB video capture | Packaging Preview: | |
| Certification: | RoHS CE | OEM/ODM: | acceptable |
| place of origin; place of origin: | Guangdong, China | product name: | HD video capture |
| size: | 6.1*2.5*1cm | Warranty: | 12 months |
| channel: | 4,8 | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Video compression format: | H.264 | color: | Black |
| Supply capacity: | 50,000 pieces per month | interface: | USB 2.0 |
| Material: | Aluminum alloy | port: | Shenzhen |
| Packaging Details: | colorful package | brand: | vivid |

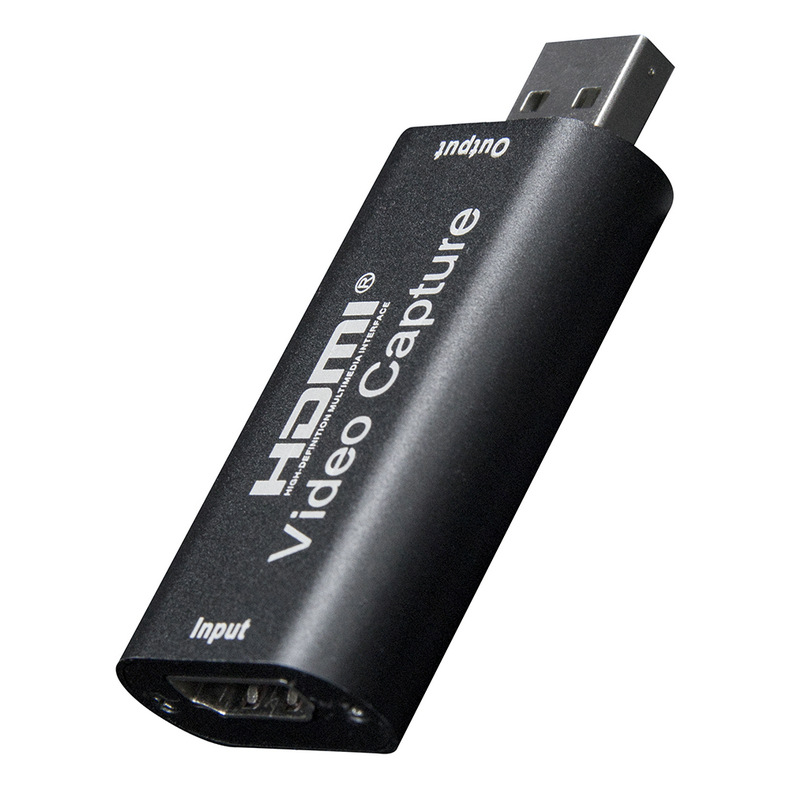

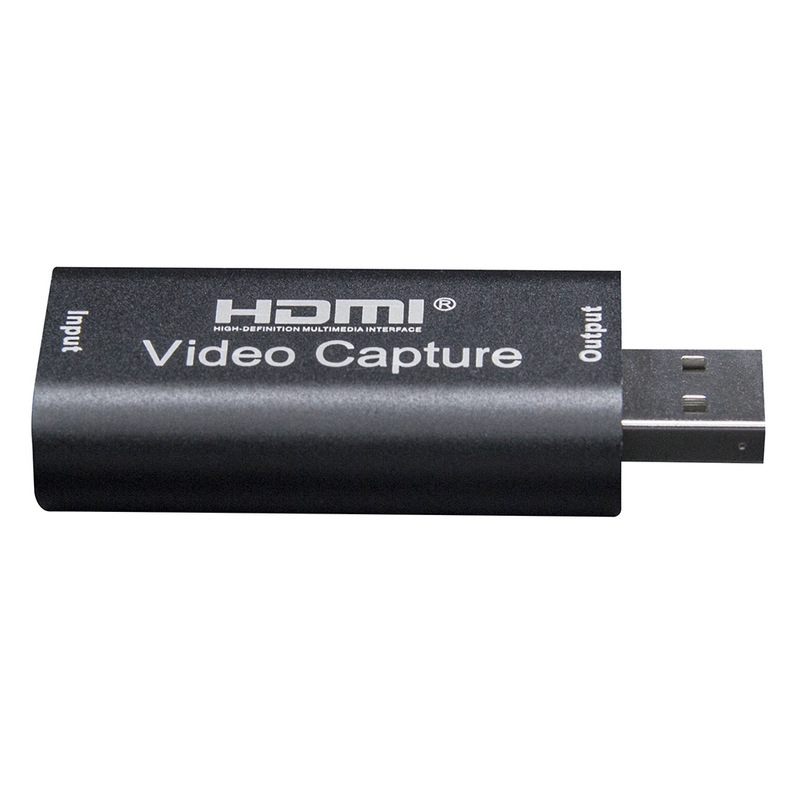

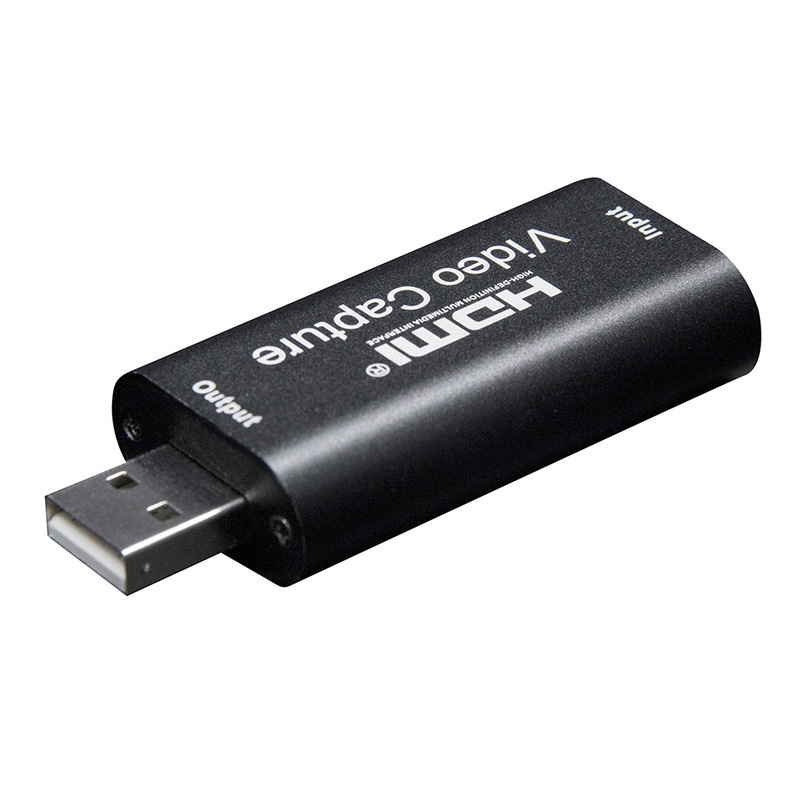

4K Video Capture Card USB 2.0 HD Video Capturer Recording Box HD Video Capture for PS4 Game DVD Camcorder Camera Recording
feature:
1. Support the maximum input resolution of 3840x2160@30Hz;
2. Support the maximum output resolution 1920x1080@30Hz;
3. Support 8/10/12 bit color depth;
4. When using standard AWG26 cable, the input transmission distance can reach 15m (resolution 1080P and below);
5. Support most acquisition software, such as VLC, OBS, Amcap, etc.;
6. Support windows, Android and Mac OS;
7. Comply with USB video UVC specification;
8. Comply with USB audio UAC specification;
9. No external power supply, compact and portable.
Specification:
HDTV Resolution: Up to 3840x2160 @ 30Hz
Video input format: 8 / 10 / 12 bit color depth
Video output method: YUV, JPEG
Video output resolution: maximum output resolution 1920x1080@30Hz
Supported audio format: L-PCM
Input cable length: ≤15m, AWG26 HDTV standard cable
Maximum operating current: 0.4A/5VDC
Operating temperature range: (- 10 to + 55 ℃)
Dimensions: 64x28x13mm/2.52x1.1x0.51in

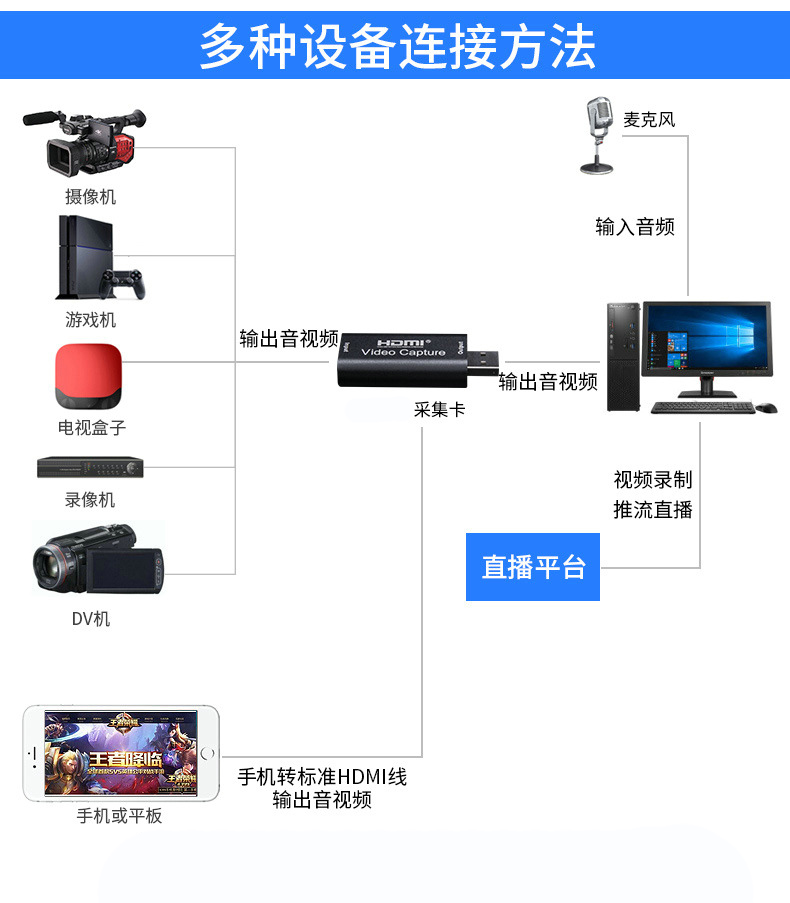

Connection operation:

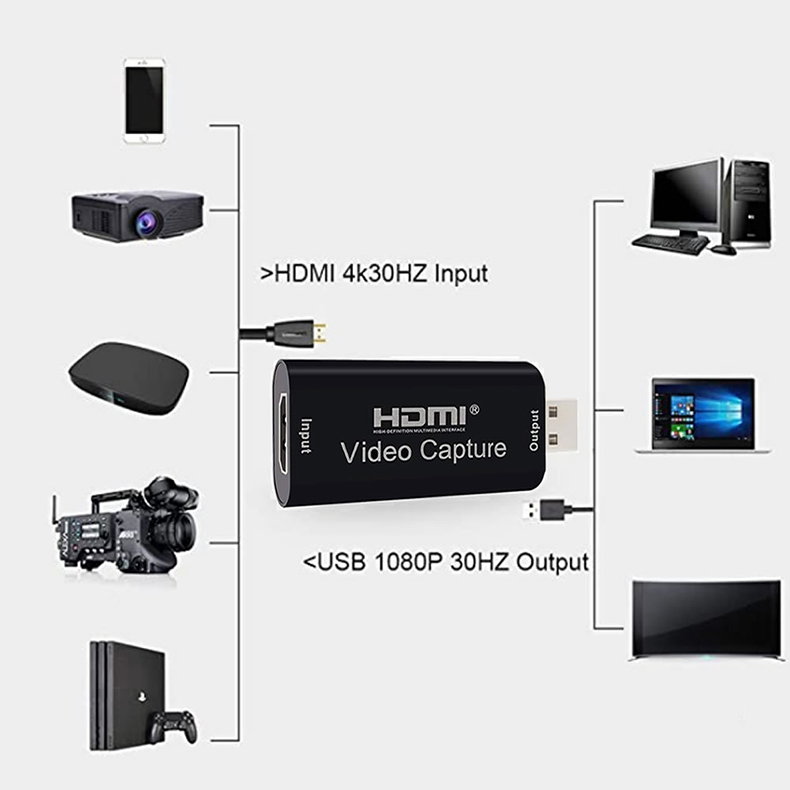

1: Use an HDTV cable to connect the UHD signal source and the HDTV input port of the USB capture card

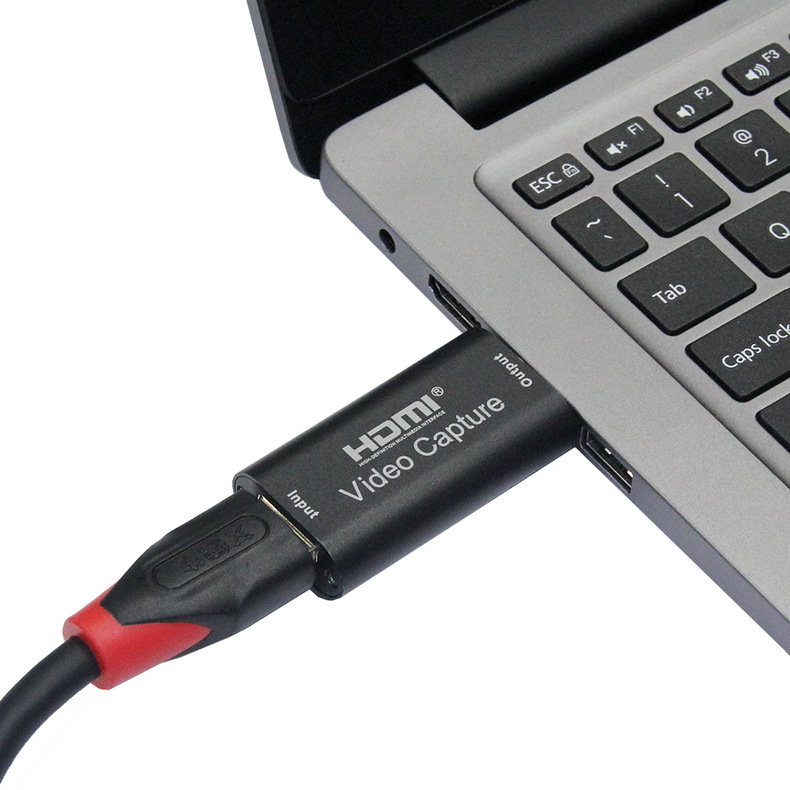

2: Insert the USB male head of the USB capture card into the USB port of the computer
3: Capture operation steps (OBS): open the software - add a new source - select "video capture device" - set the screen size -
Select "Studio Mode" (dual window) - click "Start Recording"
Computer hardware configuration requirements:
CPU: PC i5-3400 or above; NB i7-3537u 2.0GHz or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G RAM
Packing list:
1* Capture card
1*How to use
notes:
1. Due to the difference of different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Please allow 1-3cm deviation due to manual measurement and different measurement methods. thanks
Sales Unit: Single Piece
- Single package size: 13.3*9.2*2.3cm
- Single piece gross weight: 50g
- Single piece net weight: 21g

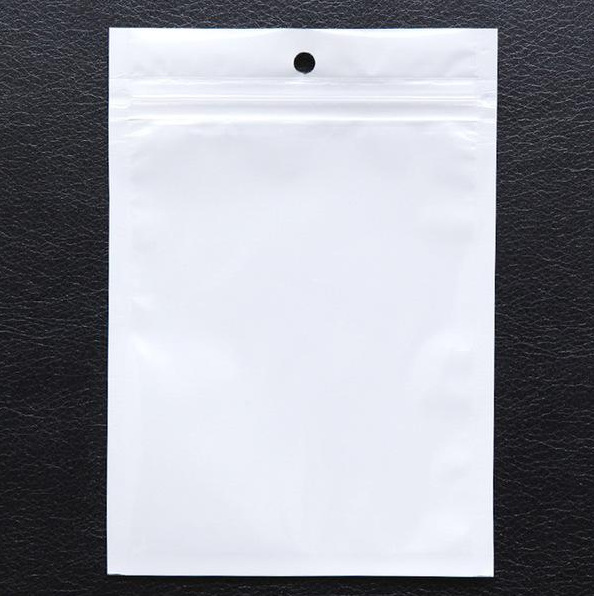

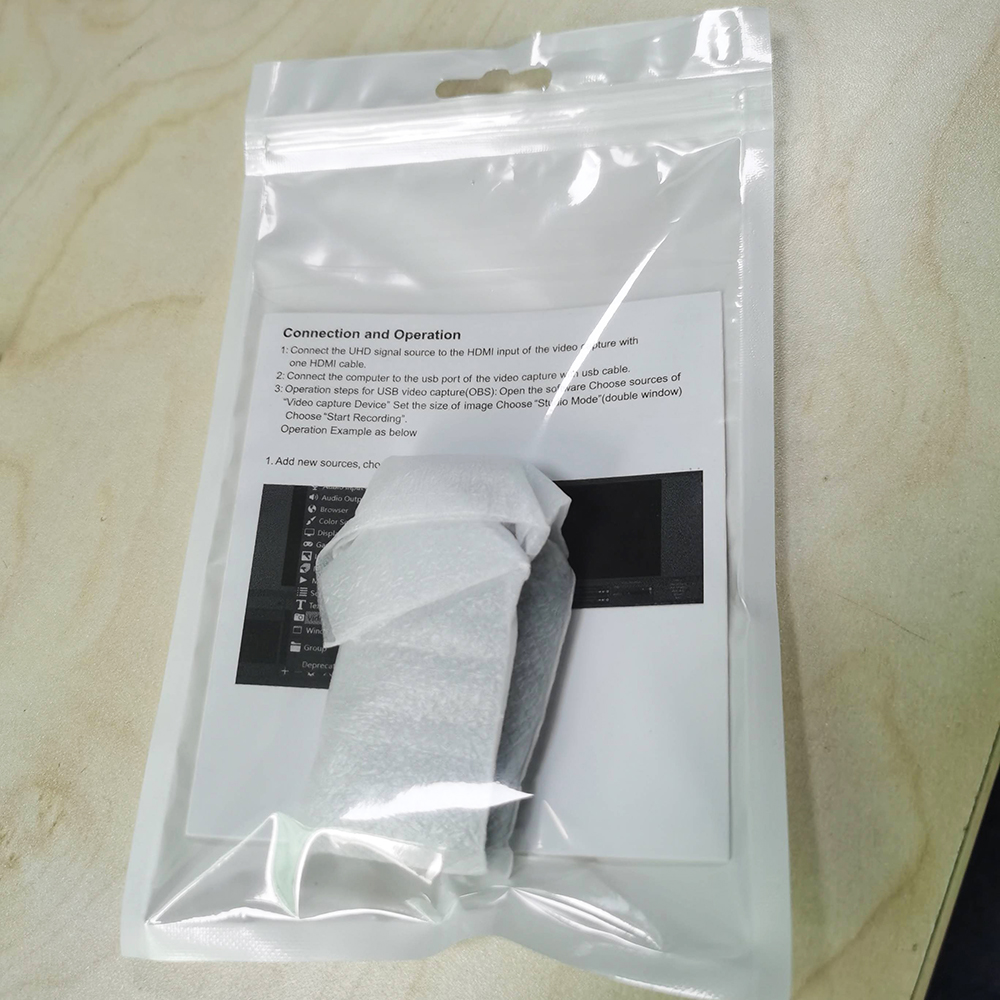

- Packing type: Pe bag packing.
- Image example:
We accept OEM ODM
