WESTBAY 4G Wireless Remote Monitor Intelligent Seat Belt Alarm System Seat Occupancy Pressure Sensor Suitable for Car Bus Van Truck Vehicle
- $44.00 / 5 - 499 sets
$40.00 / >=500 sets - 5 sets
- Westbay Intelligent Technology (Shenzhen) Co., Ltd
- Guangdong, China
- Ms Sherry Zhang
PRODUCT DETAIL
| Adhesive: | 3M467, 3M468, 3M9080, etc. | Sales unit: | Single product |
| type: | Seat occupancy pressure sensor | Installation type: | Connector assembly |
| Material: | PET film and adhesive | Packaging details: | Customer definition |
| Gross weight of single piece: | 2.000kg | Place of origin: | Guangdong, China |
| Connector: | 2.54mm female connector or 1mm ZIF connector | Life expectancy: | More than 5 million times |
| Resistance: | <1 Ω/cm Width 1.27mm | model: | WB-valve seat pressure sensor |
| Artwork/Drawing Format: | CorelDraw, Adobe Illustrator AI, AutoCAD | Features: | Anti-scratch/wear-resistant |
| thickness: | 0.5-1.0mm | describe: | Seat occupancy pressure sensor |
| Tail/pin/circuit layout: | According to customer's detailed requirements | Single piece packaging size: | 35X35X10cm |
| Working principles: | Touch points send signals |
Product Description
Product Description
WESTBAY smart seat occupancy monitoring solution
Intelligent seat occupancy monitoring/seat belt reminder system
The purpose of the passenger car seat belt detection system is to achieve scientific passenger safety management and remindersPassengers wear seat belts to reduce secondary injuries caused by traffic accidents.
1. Passenger bus occupancy rate statistics help passenger transport companies realize real-time seat monitoringUnderstand the operating status of passenger vehicles and help managers make scientific and effective decisions using big data analysis.
2. Attendance statisticsCars, buses, restaurants, cinemas, hospital seats, beds, office chairs, living room sofas,Intelligently identify and count the number of people seated in a movieThe theater uses Internet of Things technology and provides technical support for big data analysis.

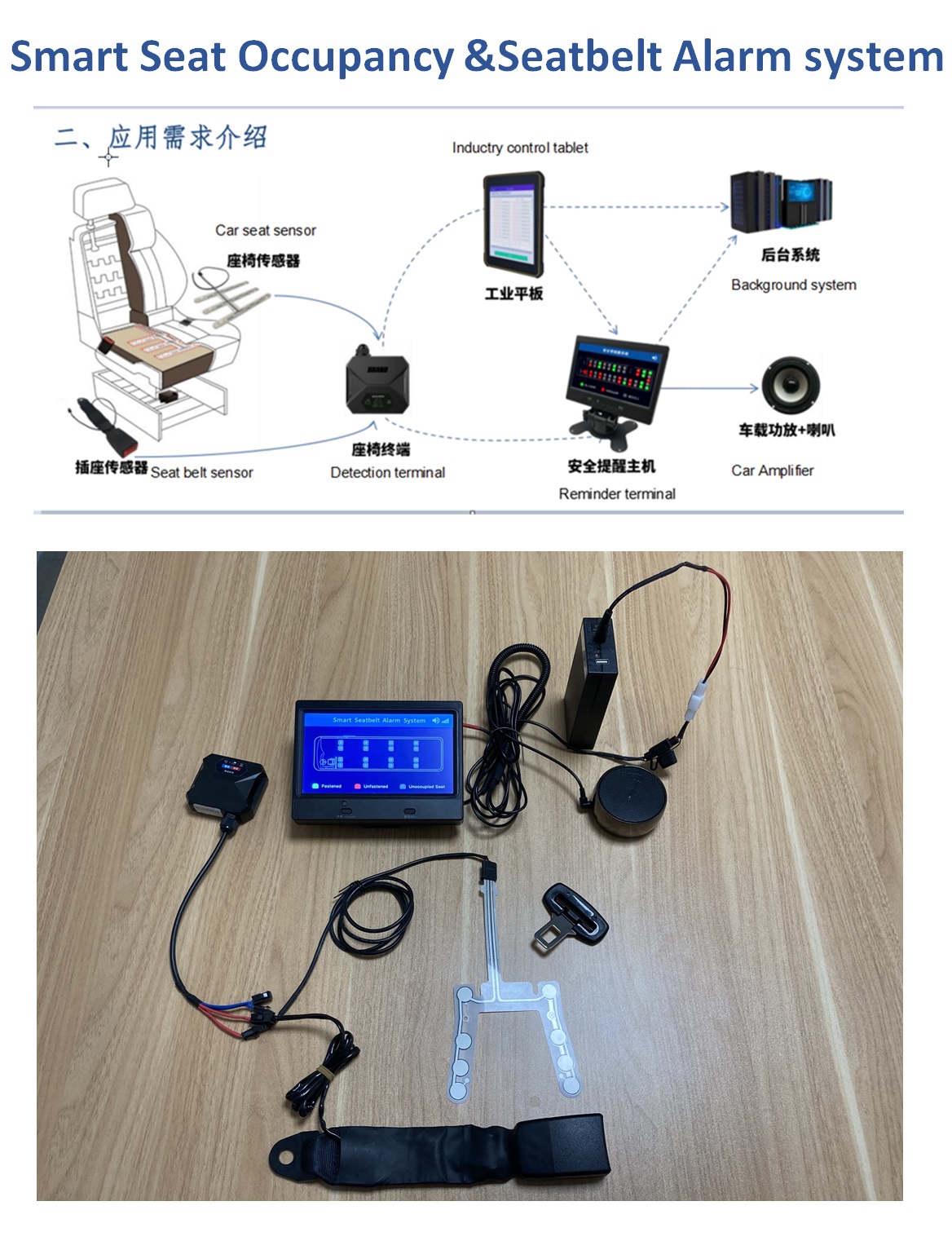

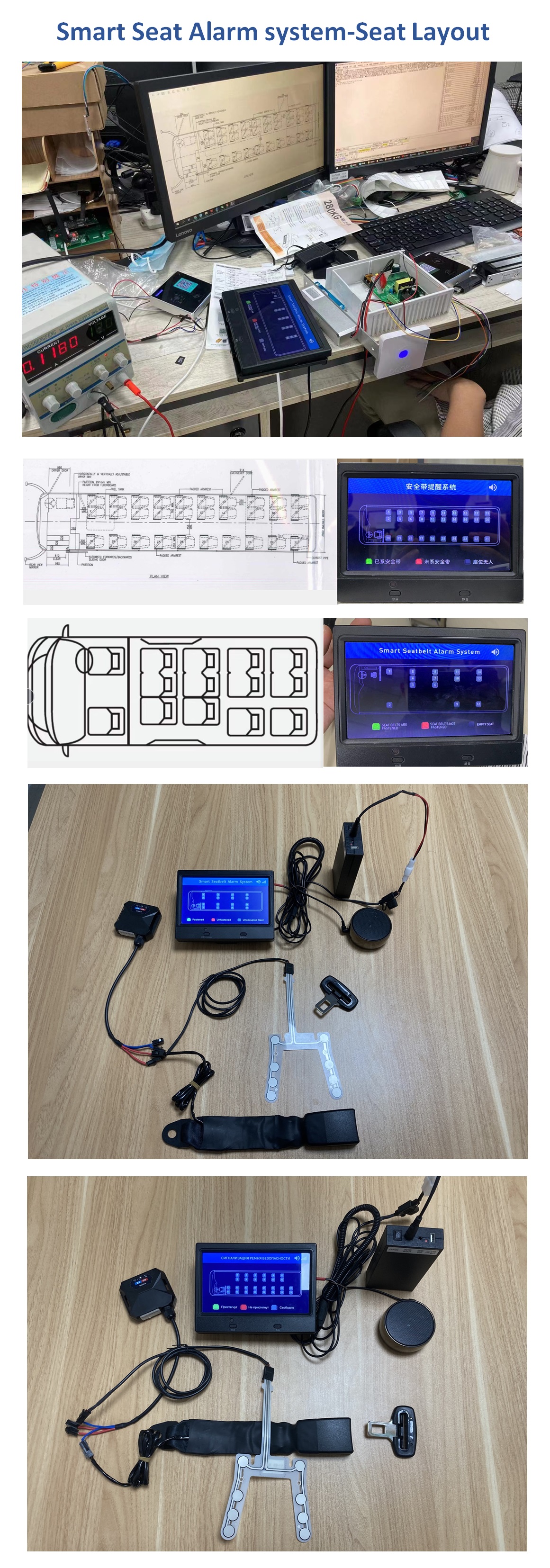

Westbay Intelligent Seat Occupancy Monitoring/Seat Belt Reminder System: This system consists of the following partsSafety reminder host, seat detection terminal, seat belt socket and seat sensor, handheld pad, background system and car audio system.When pressure on the seat is detected, the sensor willsSend a signal to the seat detection terminal, and the seat detection terminal wirelessly transmits the signal to the reminder host, handheld pad and cloud terminal.At the same time, it will issue audible and visual reminders to inform passengers to fasten their seat belts.
by installing aWireless sensor transmitters in each seat, data is transmitted to the driver interaction device and into a cloud server. Vehicle location and passenger seat belt statusReal-time monitoring is possible, and real-time remote supervision can be achieved through the cloud server, which can effectively reduce security risks.

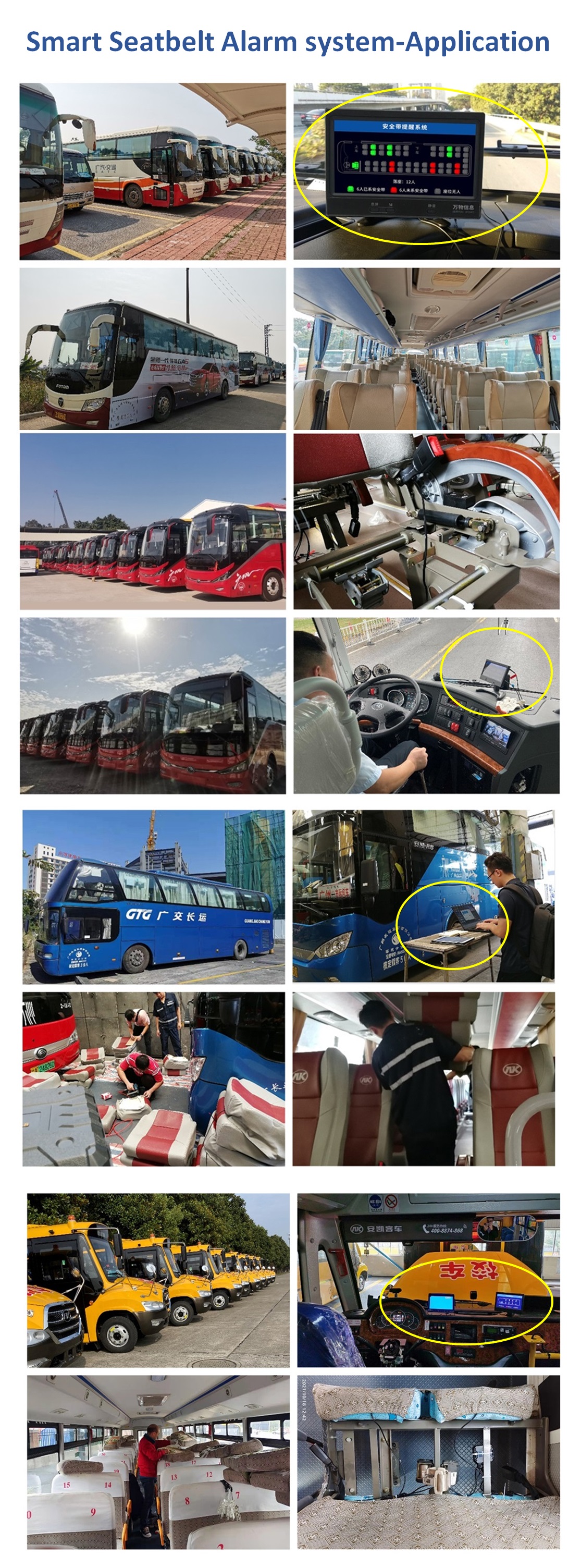

The intelligent seat occupancy system can be widely used in cars, buses, restaurants, cinemas, hospital seats, beds, office chairs, sofas, to remotely monitor occupancy status while sitting in the office or at home.
Custom languages: Chinese, English, Russian, Turkish, German, Italian, Spanish, etc.
1.Safety reminder host

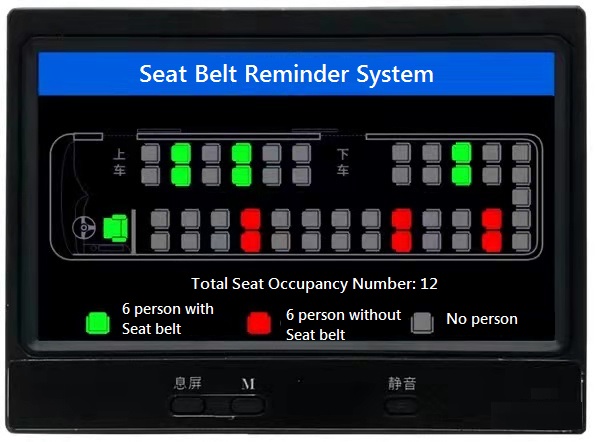

The reminder host terminal receives the signal from the seat detection terminal, displays the result on the screen, outputs the audio signal to the car audio system, and broadcasts to remind passengers who are not wearing seat belts to fasten their seat belts, and uploads the data to the background system through the 4G network.
2. Seat detection terminal
The seat detection terminal packages the detection results of the seat sensors and seat belt sockets and regularly sends them to the safety reminder host through wireless signals. A seat detection terminal can detect the status information of one or two seats.
3. Seat belt socket and seat sensor
The seat belt socket detects whether the seat belt is fastened, and the seat sensor detects whether there is someone sitting on the seat. The detection result is output to the seat detection terminal through a level signal.
4.Handheld pad
The handheld pad has a special wireless communication function, which can be used by installation and maintenance personnel for input configuration, acceptance, and quick problem location and search. And can interact with server data through 4G.
5. Backend system
The background system can remotely monitor the status of passengers on the vehicle, count passenger flow, store data, and remotely manage equipment.

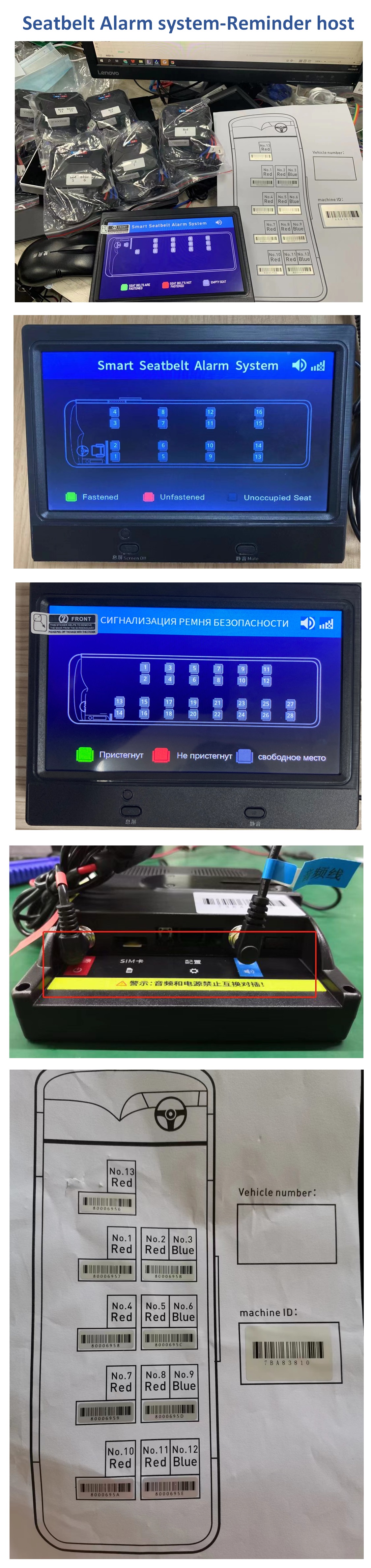

Security reminder host

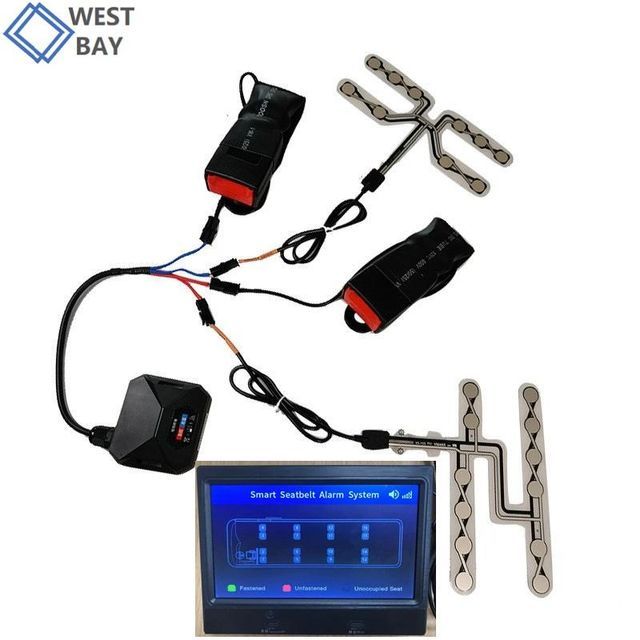

As shown in the picture above, the safety reminder host is installed at the front of the vehicle and is responsible for receiving signals from the seat detection terminal, displaying the results on the screen, outputting audio signals to the vehicle audio system, and broadcasting to remind passengers who are not wearing seat belts to fasten their seat belts. , and transmit the data to the backend system through the 4G network.
(1) Communication frequency band: Sub-1G; (2) Communication distance: 60 meters (spacious space); (3) Power supply method: DC9V~36V, outer lead 2000mm, red positive and black negative, including fuse suitable for vehicle modification; (4) Data upload: 4G function; (5) Screen size: 7 inches; (6) Audio interface: external lead 1500mm, 3.5mm audio plug; (7) Installation method: enhanced bracket installation. (8)GPS: Positioning function (9) Size: 172mm*127mm*38mm

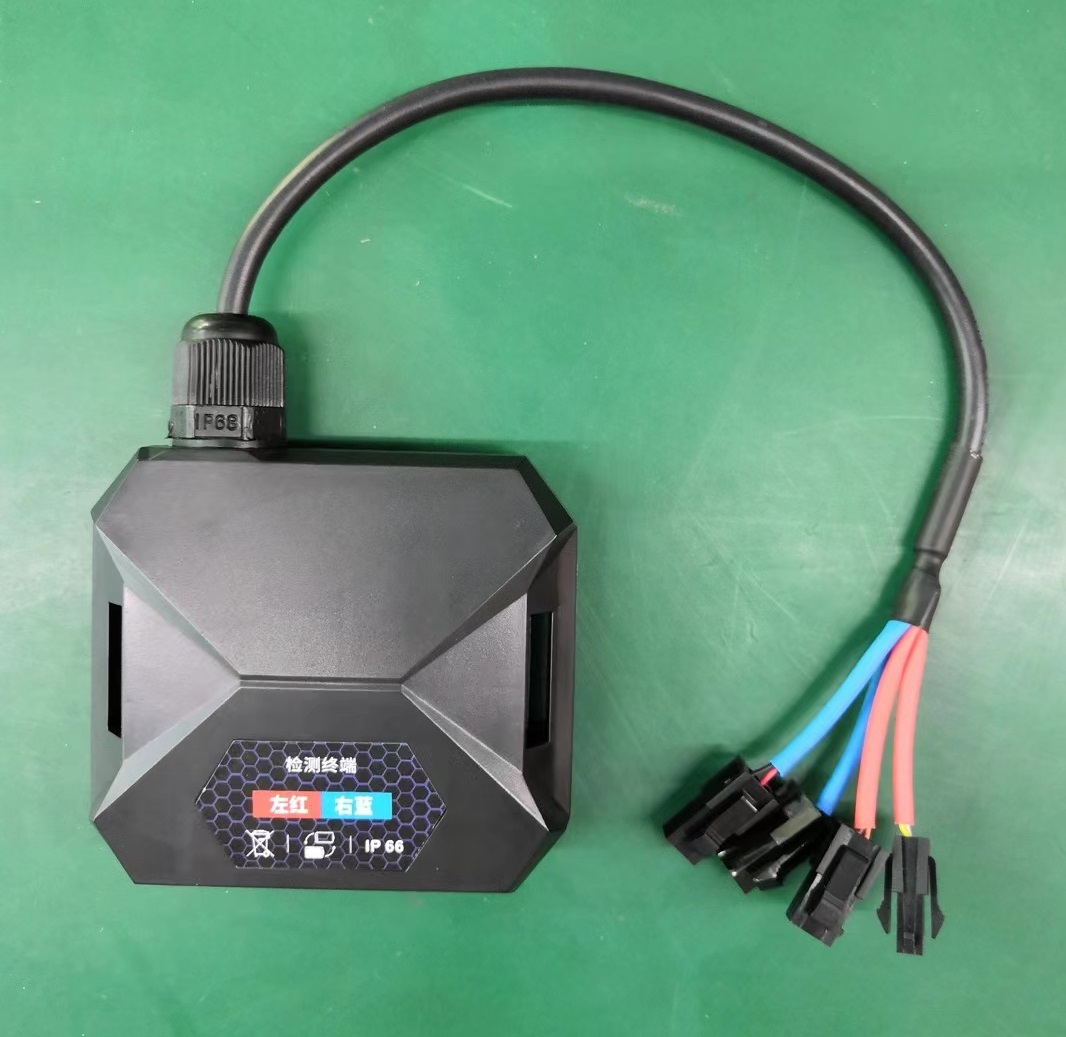

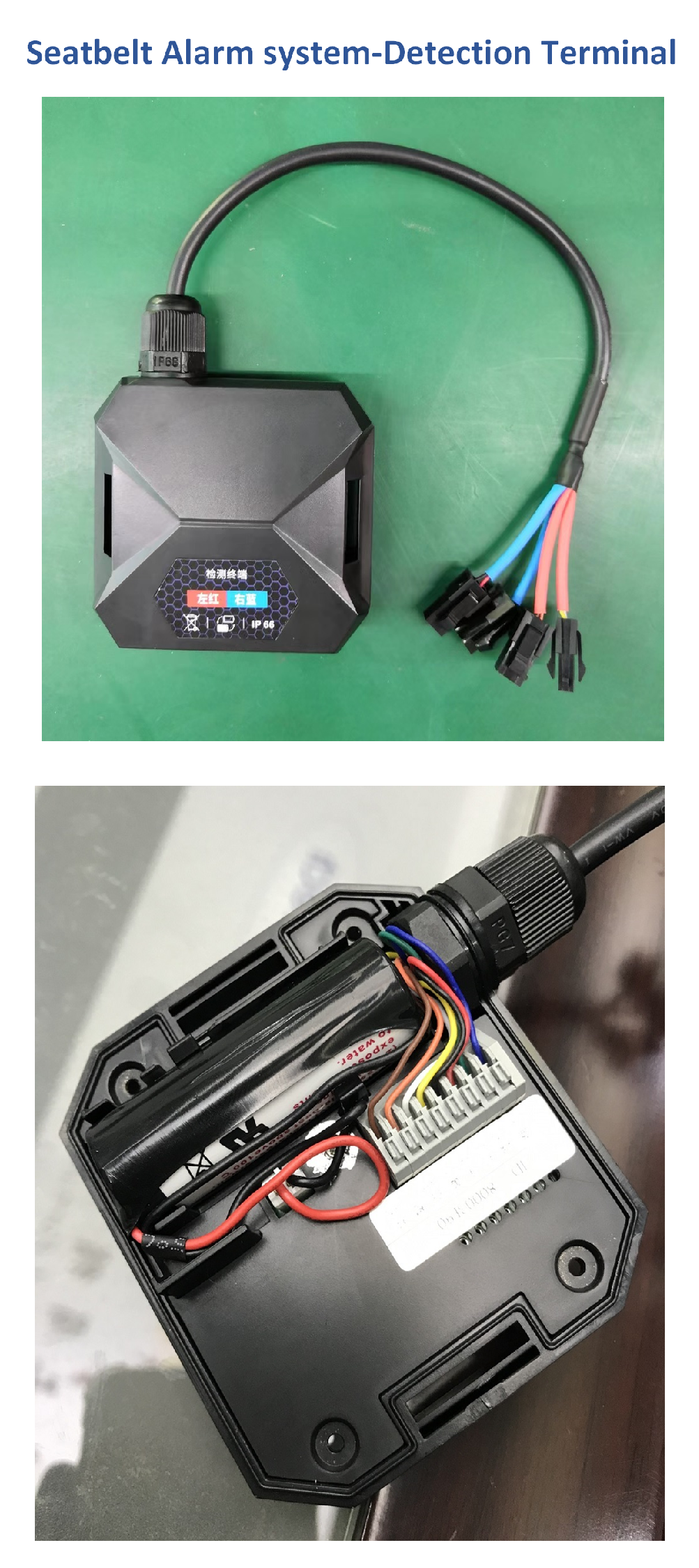

Seat detection terminal
As shown in the picture above, the seat detection terminal and the reminder host are wirelessly transmitted, no wiring is required, high-efficiency energy-saving algorithm, the battery can be used for more than 3 years, the installation design is simple, the seat detection terminal can connect to 2 seat belt sockets and 2 seat sensors; other The device serial number is marked on it, and there is a signal line identification prompt on the front.
(1) Communication frequency band: Sub-1G; (2) Communication distance: 60 meters (spacious space); (3) Power supply: replaceable battery, battery life: 3 years; (4) Size: 73mm×65mm×24mm (5 )Installation method: screws or ties. (6)Power supply voltage: 3.6V (7)Lead length: 100mm

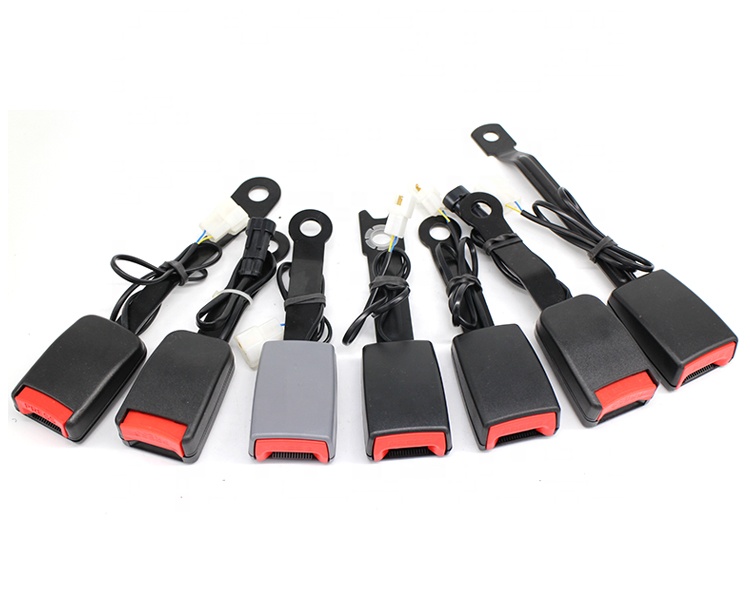

seat belt buckle
As shown in the picture above, the seat belt socket has a built-in electronic detection device to detect whether the seat belt is fastened; the seat sensor detects whether someone is sitting on the seat through weight monitoring, and reports the detection results to the safety reminder host through the seat detection terminal .
(1) Detection method: bayonet contact type; (2) Size: 145mm*48mm*2.8mm; (3) Color: black (4) Insert specification: 21.5mm (5) Installation method: screw fixed installation, aperture 12.05 mm.
seat sensor
Most vehicles are pre-equipped with seat belt sockets and seat sensors, and you only need to match the interface model of the seat detection terminal.

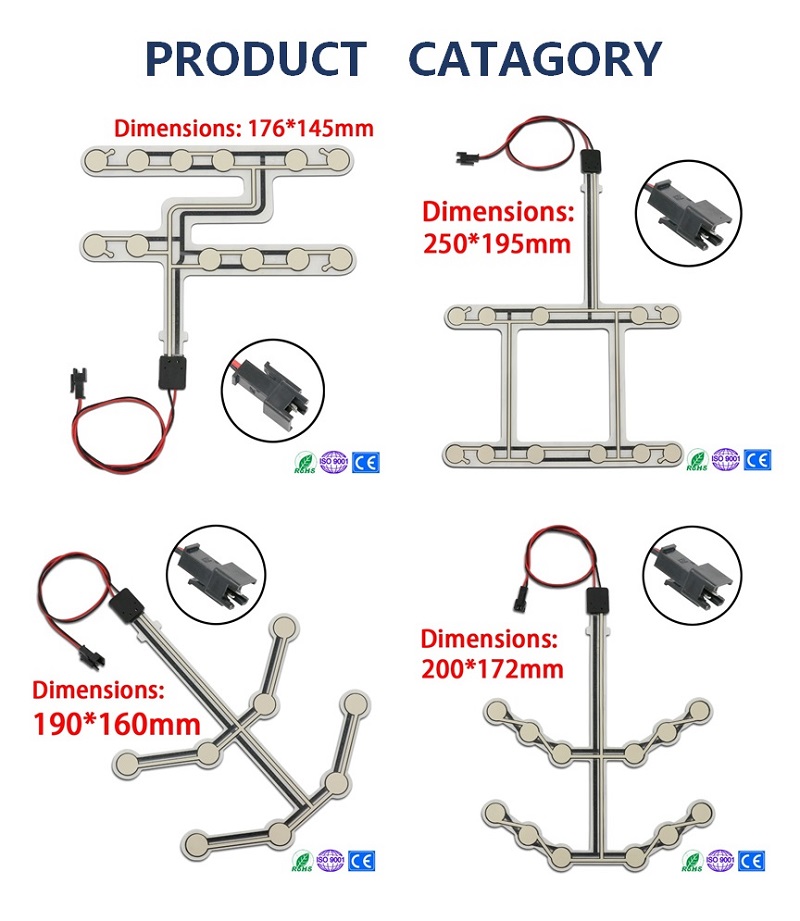

(1) Material: transparent PET; (2) Starting method: two rows of double-contact triggers. (3) Detection method: pressure, measuring range 5kg (different detection methods, different data); (4) Size: coverage area: 108.26x123mm, conductive part length: 118.26mm. (5) Installation method: pasting (adhesive).

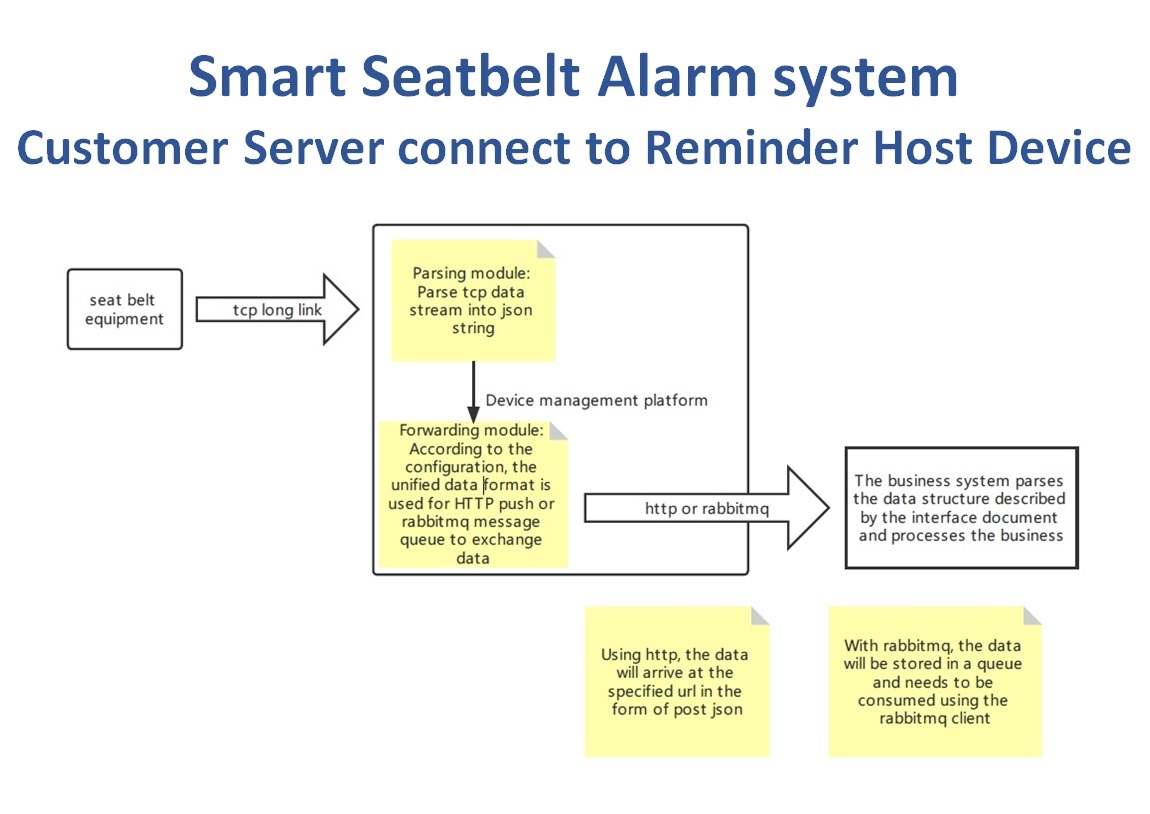

Computer background software system

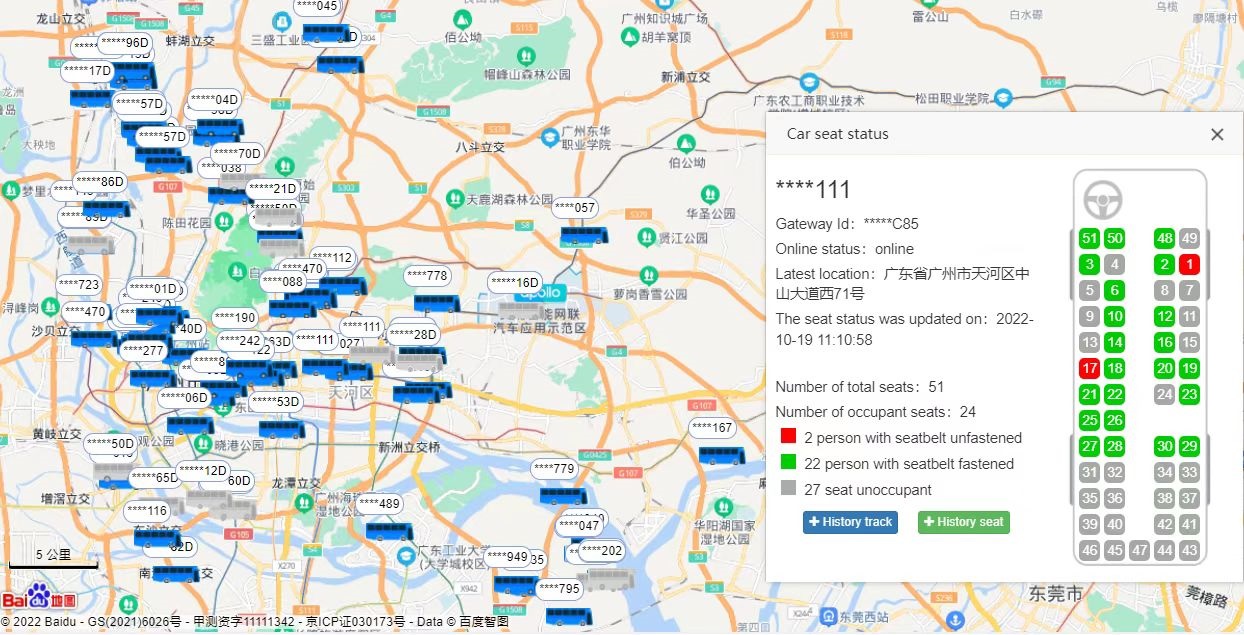

The passenger flow and timetable of vehicles can be remotely monitored. The passenger flow and timetable of vehicles can be remotely monitored.

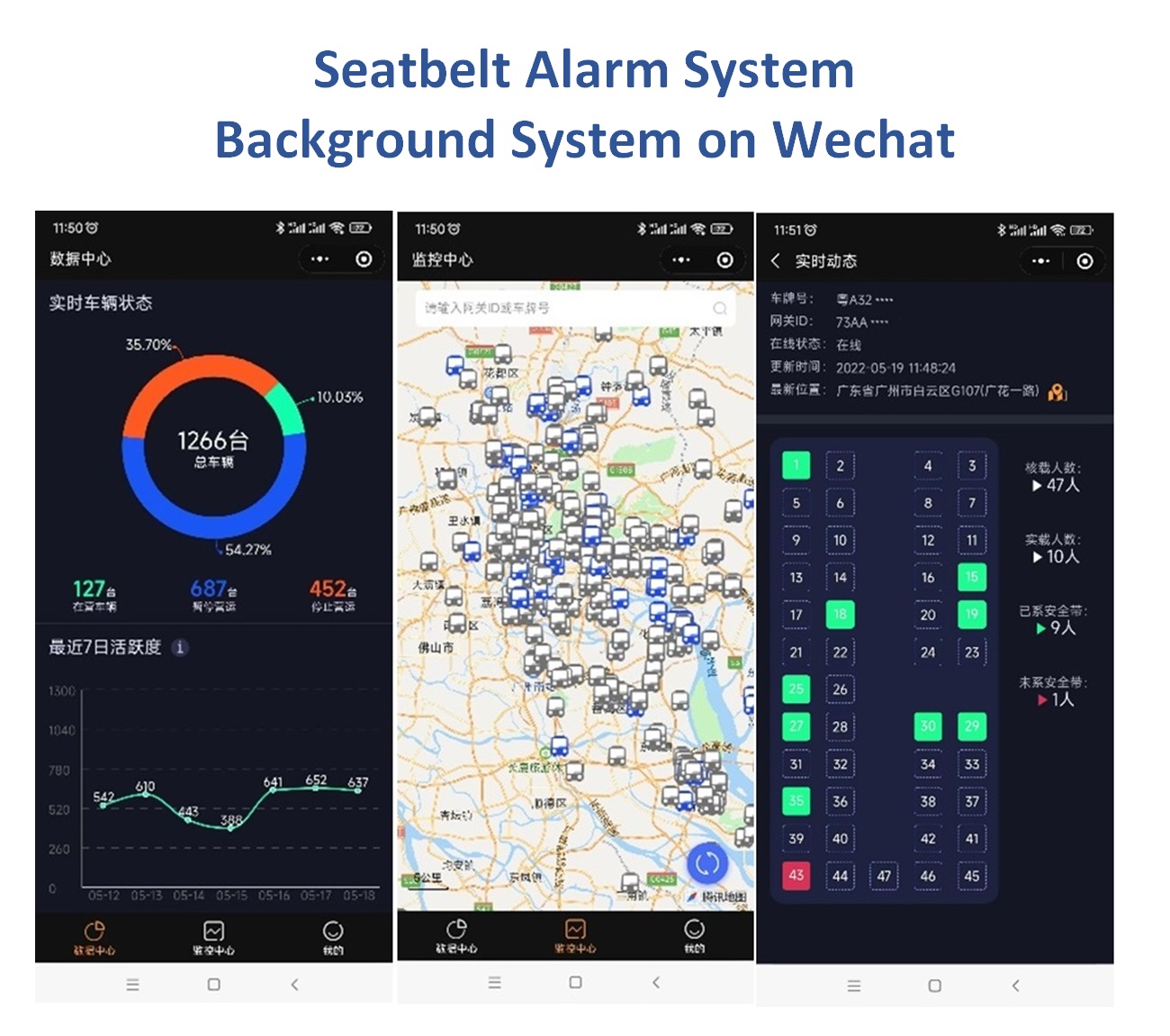

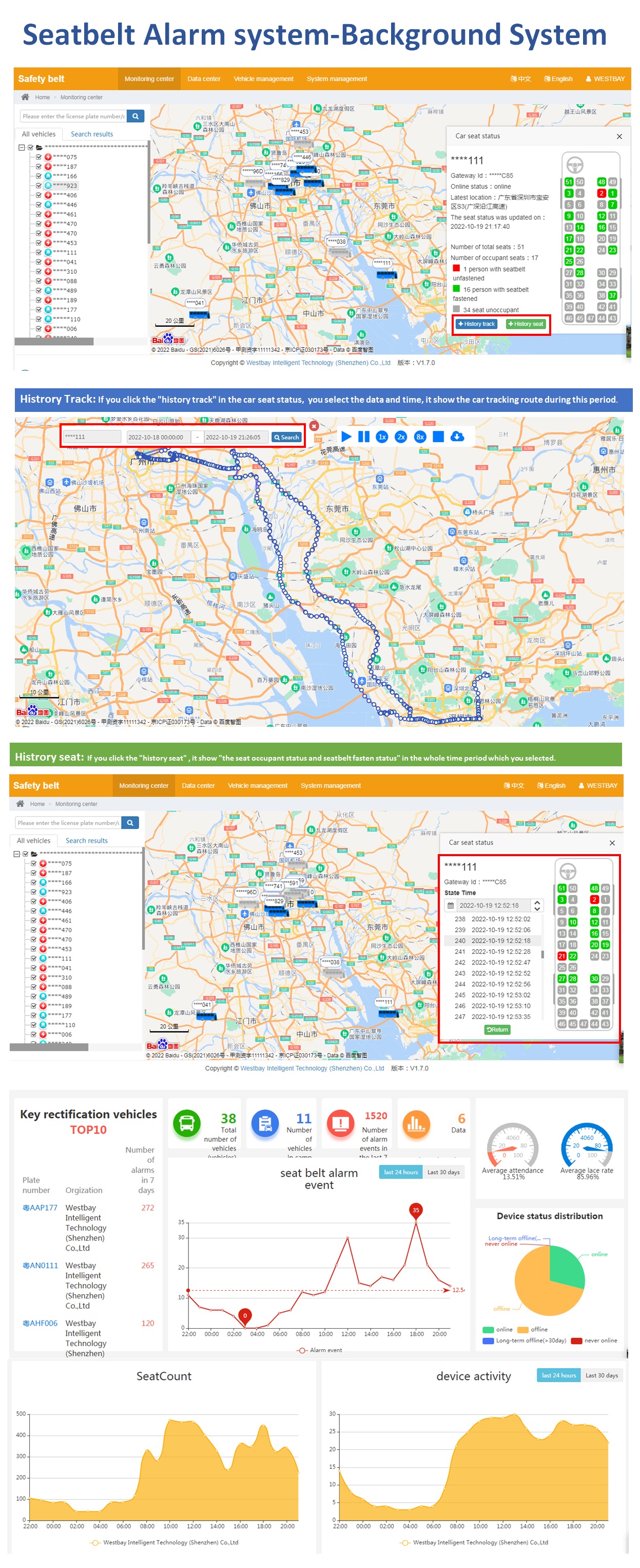

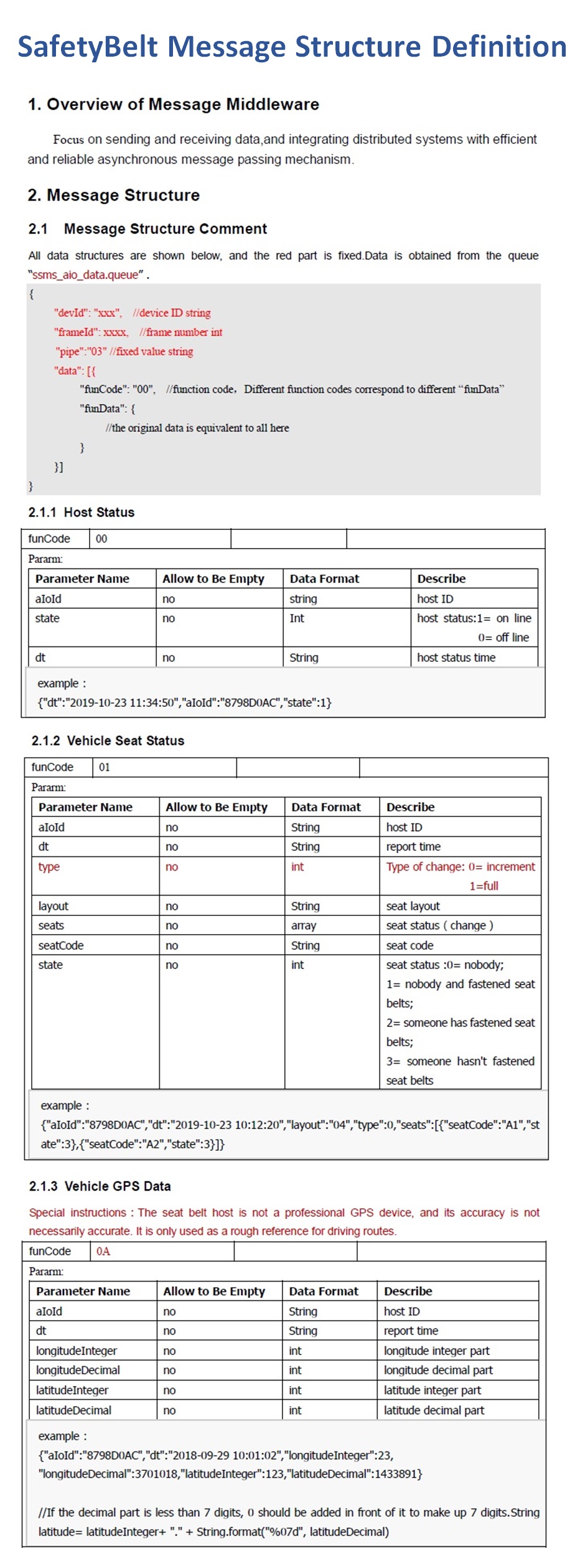

Backend software system

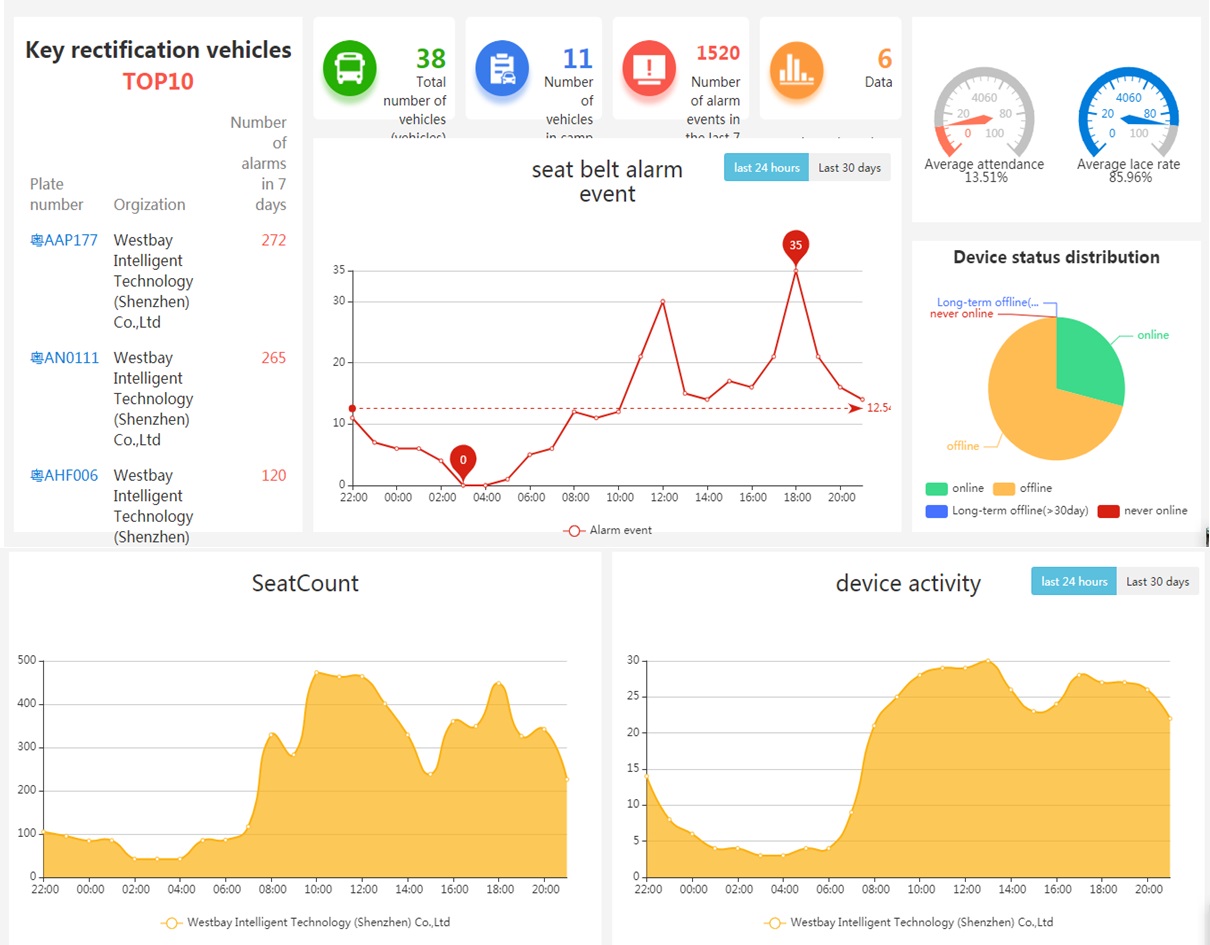

The system interface can set up account management, vehicle management, etc. Account management can set account permissions to facilitate different people to manage their own vehicles; vehicle management can enter new vehicle information, configure, classify, manage, etc. •Through the operation of the system interface, you can check the usage of each vehicle equipment and realize the scientific management of passenger transport enterprises.
car seat pressure sensor | ||
Electrical characteristics: | ||
Rated voltage | Screen size: 7 inches; | |
Rated current | ≤100mA | |
Working power | ≤1W | |
Insulation resistance | ≥100MΩ (250V DC) | |
Loop resistance | 10Ω~2kΩ (according to design) | |
Contact resistance | 0.5～5Ω | |
Lead resistance | <1Ω/cm | |
Base material pressure resistance | 1500V DC | |
Mechanical behavior: | ||
life expectancy | More than 10 years (more than 5 million times) | |
power of action | More than 500 grams | |
Tail bending performance | ≤180° | |
vibration | Maximum 20G | |
thickness | 0.7~2mm | |
Environmental characteristics: | ||
Operating temperature | -40°C to +90°C (-40° to 176°F) | |
Storage temperature | -40°C to +90°C (-40° to 185°F) | |
air pressure | 86～106kPa | |
humidity | +40°C, 90%~95%RH 480 hours | |
Working principles: | ||
sensor | Check whether the seat belt is fastened | |
Two levels of reminder | Level 1: Vision, Level 2: Vision + Sound | |
Characteristics of styrene-butadiene rubber | 1. Membrane, 2. Pressure activation | |
usage | Sensor layout and sensitivity can be adjusted based on shape | |
Styrene-butadiene rubber applications | Taxi meters, airbag sensors and driver presence sensors | |
Number of layers and material specifications | ||
top printed circuit | Silver paste+carbon paste+PET 0.125mm | |
Gasket | Adhesive 0.10mm | |
Bottom printed circuit | Silver paste+carbon paste+PET 0.125mm | |
Connector type: | BS01,BS02,BS03,BS04,BS05,BS06 | |
Wiring type | C01,C02,C03 | |
Other features | ||
Artwork/Drawing Format | CorelDraw, Adobe Illustrator AI, AutoCAD | |
Tail/pinout/circuit layout | According to customer's detailed requirements | |
Anti-static shielding | Can add protection | |
Connector | Female/male connector or ZIF connector | |
Back glue: | 3M467, 3M468, 3M9080, etc... | |
cable | Circuit extension and connection to your device | |
printing method | Screen printing/digital printing | |
Window/lens coating | can be added | |
Certificate | ISO9001 RoHS CE SGS | |
Multiple Sclerosis Applications
Working principles:

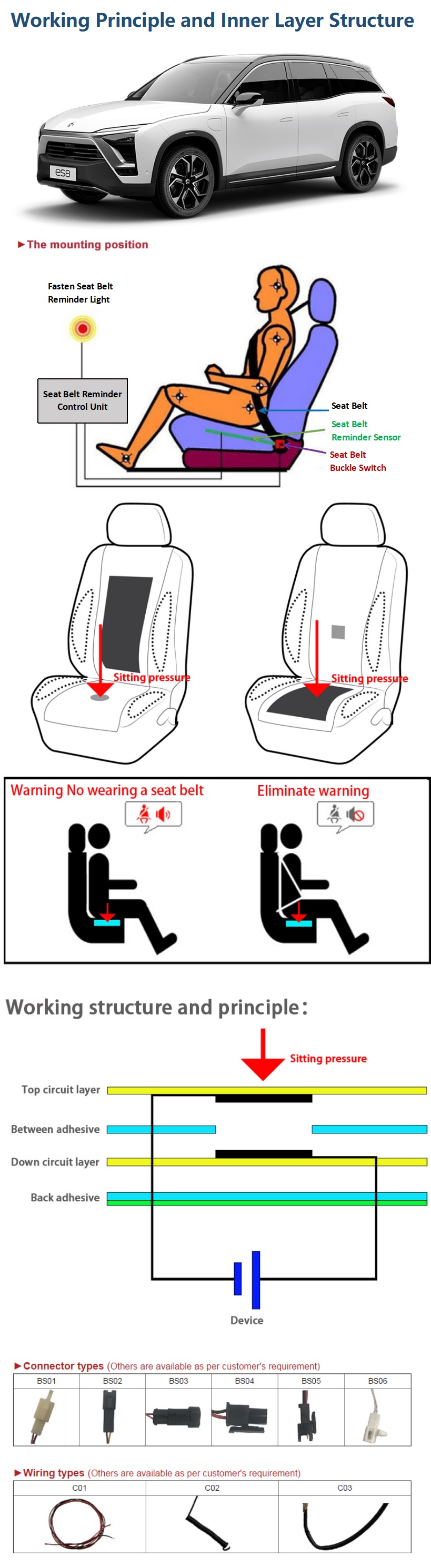

When someone sits on the car seat, the surface of the car seat is subject to pressure. This pressure causes the upper and lower circuit layers of the seat sensor to contact each other, so that the circuit loop is turned on and generates a signal to other devices to indicate that someone is sitting on the car seat. , and other systems in the car use this signal to work. For example, the seat belt warning system detects whether the person in the car seat has fastened a seat belt.
