Waste Rubber Cutting Machine/ Used Tire Cutting Machine/ Used Tire Recycling
- $2000.00 /set
- 1 set
- Qingdao Eenor Science&Technology Co., Ltd.
- Shandong, China
- Mr kimsun pang
| Function: | Cut the tire into sections | Voltage: | According to customer requirements |
| Mechanical test report: | if | Core components: | Bearings, motors |
| Single action time: | 20-110 seconds | Marketing Type: | New Products 2020 |
| Showroom location: | not any | model: | Different kinds |
| Energy source: | hydraulic | Blade stroke: | 580-1130mm |
| Power (kW): | 5.5 kW | payment terms: | L/C, T/T |
| Origin: | Shandong China | Cylinder maximum working pressure: | 80-200 kN |
| Supply capacity: | 15 sets per month | port: | Qingdao |
| Packaging Details: | According to customer's request | type: | tire cutting machine |
| Cylinder unit pressure: | 4.4-6 MPa | Applicable industries: | manufacturing plant |
| Breaking force (T): | 63 tons | brand: | Eno |
| Cutting stroke(mm): | 800 | Health status: | new |
| Warranty: | 1 year | Core component warranty: | 3 years |
| Main selling points: | competitive price | Year: | 2022 |
| Model: | XQ-80, XQ-100x10 | color: | blue, green, etc. |
| Cutting width: | 660-1000 mm | Weight (kg): | 2300 kg |
| Type of tire machine: | tire recycling machine | Video shipment inspection: | if |
Machine Details:
1). The machine is automatically controlled by oil pressure and adopts a special oil pressure circuit.
2). Cutting speed is very fast. The operation is easier and the noise is less.
3). Fixed with a brake for parking in case of emergency. Dual control buttons are used to ensure the safety of the operator.
4). The quality of the machine is stable, reliable, fast, and the yield is good. It is an ideal machine for many industries.
The main purpose:
This rubber cutter/cutter/baler is mainly used forCutting of natural rubber, synthetic rubber and other plastic materials into small pieces/pieces, mixing is convenient, especially suitable for cutting small pieces of rubber installed near the rubber mixer.
structure:
The rubber cutting machine mainly consists ofRubber knife, frame, oil cylinder, base, auxiliary table, hydraulic system, electrical systemThe structure is simple and the operation is convenient.
Technical Parameters:
|
|
XQ-80 |
XQ-100x10 |
|
|
cutting width |
mm |
660 |
1000 |
|
maximum. Cylinder working pressure |
KN |
80 |
200 |
|
Cylinder unit pressure |
MPa |
4.4 |
6 |
|
Blade stroke |
mm |
580 |
1130 |
|
single action time |
small |
20-30 |
110 |
|
Pump model |
|
YB-74B-fLY132M2-6-5.5kW |
970r/min-22kW |
|
Dimensions |
mm |
2500x1000x2650 |
3815x1300x2066 |
|
Lots of |
Kilogram |
14000 |
8000 |

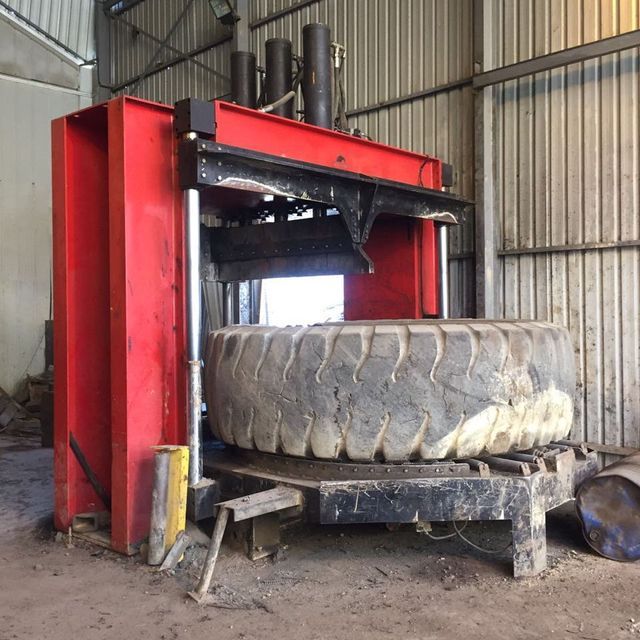

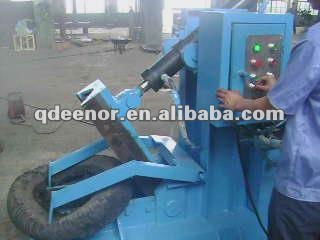

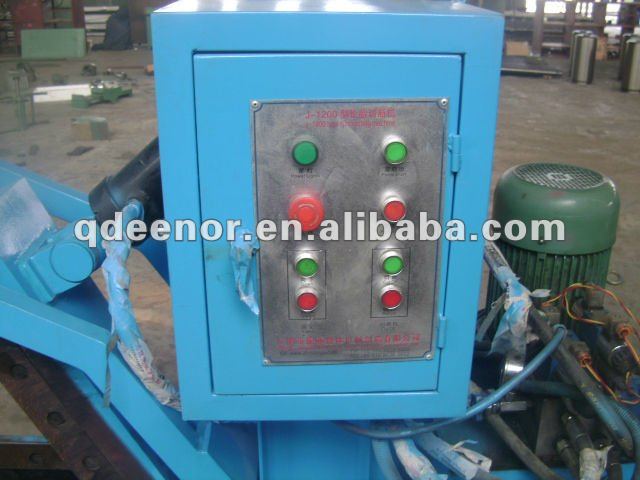

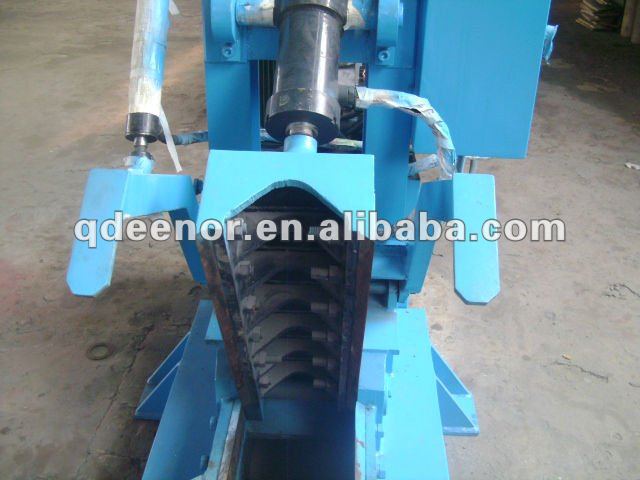

Machine picture:
Waste Rubber Cutting Machine
Our motto: integrity-based.
A promise is a promise.
We can also design and produce according to customers' requirements. We can produce all kinds of non-standard rubber machinery, and we can design according to your requirements.If you are interested in our products or have any questions, please feel free to contact us. We will try our best to meet your request in the first time.
If you have any questions, welcome to contact me.
