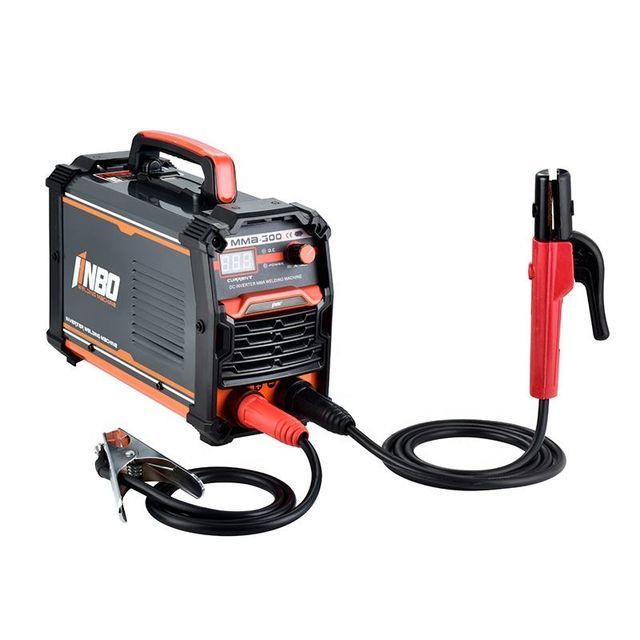

Waterproof portable welding machine igbt mma-250
- $35.00 /piece
- 1 piece
- Zhejiang Jinbo Technology Co., Ltd.
- Zhejiang, China
- Mr Steven Tian
PRODUCT DETAIL
| Nominal Duty Cycle: | 60% | usage: | welding |
| Warranty: | 1 year | Video shipment inspection: | if |
| Pulse frequency: | 50/60 Hz | Main selling points: | competitive price |
| Mechanical test report: | if | Rated input power capacity (KVA): | 5; 5.7; 6.6 |
| Output current range (A): | 20-200; 250; 300 | brand: | Jimbo |
| Origin: | Zhejiang, China | Arc current: | 20-200; 250; 300 |
| efficiency(%): | 85% | Nominal Duty Cycle (%): | 60% |
| Arc current: | 20-200; 250; 300 | Supply capacity: | 20000 bags per month |
| Core components: | Programmable Controllers | Package preview: | |
| Health status: | new | type: | Waterproof welding machine, MMA welding machine |
| Motor type: | DC | AC input voltage (V): | AC 220V (110V is also acceptable) |
| Packaging Details: | Color box + foam | Insulation class: | f |
| Enclosure rating: | IP21 | payment terms: | L/C, D/P, D/P, T/T, MoneyGram |
| Voltage: | 220V (110 is also acceptable) | Marketing Type: | New Products 2020 |
| Core component warranty: | 1 year | No-load voltage (V): | 68 |
| aspect: | 340*155*235mm | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Factories, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies, other |
| Input frequency (Hz): | 50/60 | port: | Ningbo |
| Showroom location: | Egypt, Turkey, USA, Italy, Germany, Vietnam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Thailand, Morocco, Korea, Chile, UAE, Bangladesh, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia ,Australia | Weight (kg): | 5.6 kg |

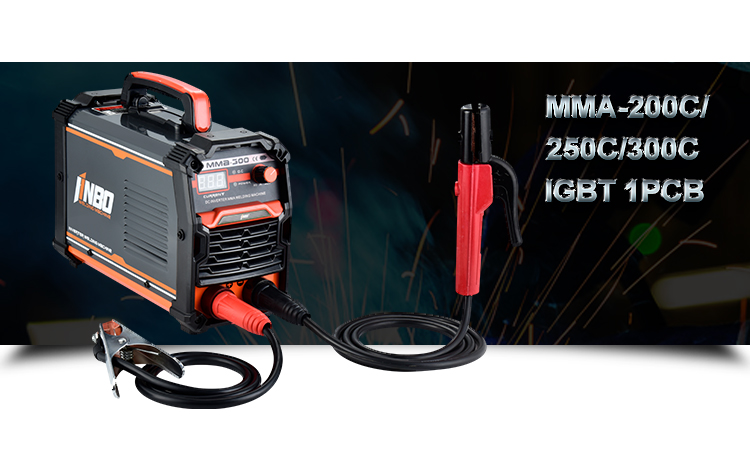

| Model | MMA-200C | MMA-250C | MMA-300C |
| type | IGBT 1 PCB | IGBT 1 PCB | IGBT 1 PCB |
| AC input voltage (V) | AC 220V (110V is also acceptable) | AC 220V (110V is also acceptable) | AC 220V (110V is also acceptable) |
| Rated input power capacity (KVA) | 5 | 5.7 | 6.6 |
| Input frequency (Hz) | 50/60 | 50/60 | 50/60 |
| No-load voltage (V) | 68 | 68 | 68 |
| Output current range (A) | 20-200 | 20-250 | 20-300 |
| Rated Duty Cycle (%) | 60% | 60% | 60% |
| efficiency(%) | 85% | 85% | 85% |
| Insulation class | f | f | f |
| Enclosure rating | IP21 | IP21 | IP21 |
| Electrode diameter (mm) | 1.6-3.2 | 1.6-3.2 | 1.6-4.0 |
| Quick connector size | 35-50mm | 35-50mm | 35-50mm |
| Net weight/Gross weight(kg) | 3.8/5.6 | 4.0/5.8 | 4.2/6 |
| Machine Dimensions (LxWxH mm) | 340*155*235 | 340*155*235 | 340*155*235 |

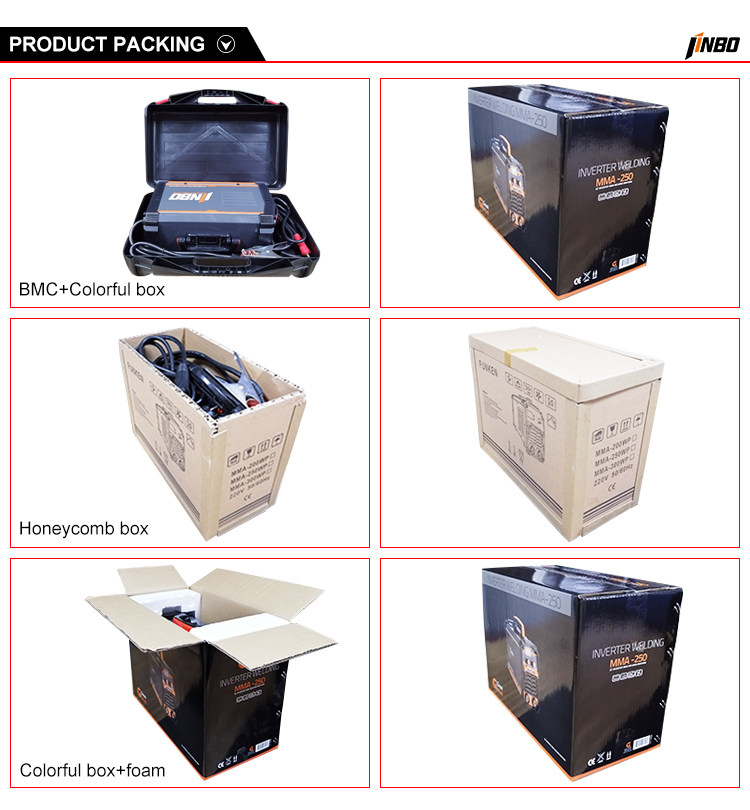

| Packing Dimensions (LxWxH mm) |
408*210*310 Color box + foam |
408*210*310 Color box + foam |
408*210*310 Color box + foam |
|
420*195*320 honeycomb box |
420*195*320 honeycomb box |
420*195*320 honeycomb box |
|
|
435*190*405 BMC box |
435*190*405 BMC box |
435*190*405 BMC box |
|

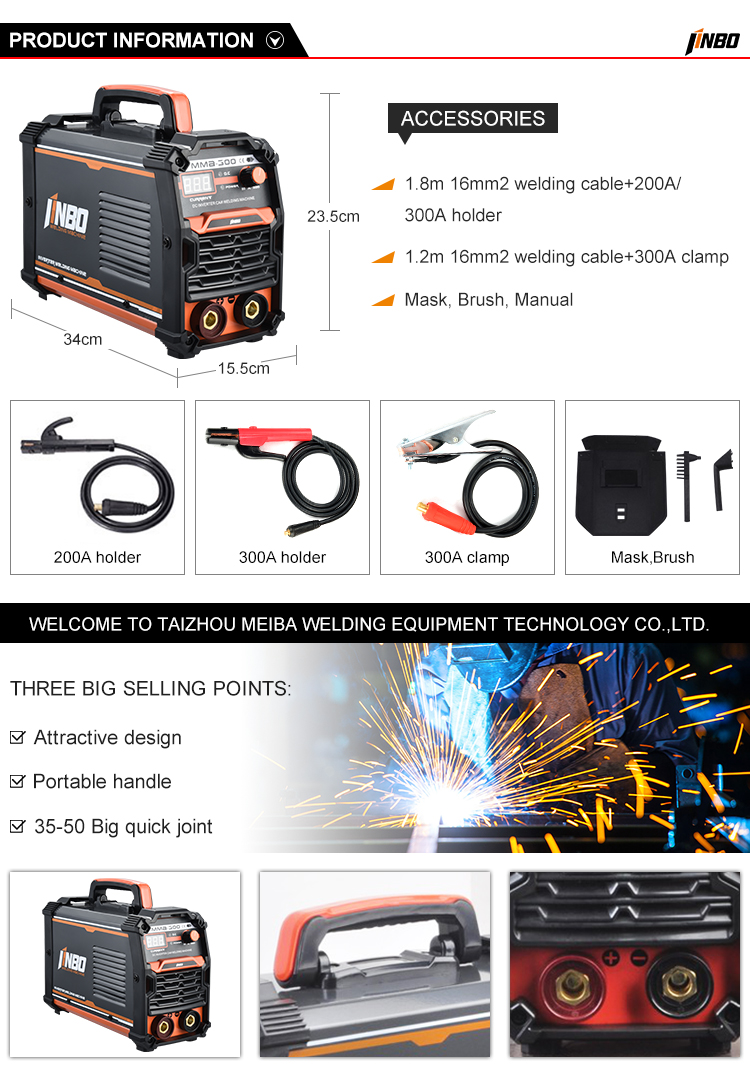

| Accessories | 1.8m 16mm 200A bracket 1.2m 16mm 300A Cable Clamp Masks, Brushes, Manuals |
 1.8m 16mm 200A bracket1.2m 16mm 300A Cable Clamp Masks, Brushes, Manuals |
1.8m 16mm 300A bracket 1.2m 16mm 300A Cable Clamp Masks, Brushes, Manuals |
