Wholesale Japanese high quality digital precision measuring equipment
- $150.00 /unit
- 1 unit
- Koueisangyou Co LTD.
- Oita, Japan
- Mr Shinichiro Tsuzuki
PRODUCT DETAIL
| Supply capacity: | 10 units per week | place of origin; place of origin: | Japan |
| Warranty: | contact us | model: | Product_18-02 |
| brand: | Mitutoyo | port: | Oita Airport, Fukuoka Airport |
| payment terms: | wire transfer, paypal | Packaging Details: | Package size varies by order quantity. Cardboard packaging with cushioning. |
| Custom Support: | not any |
Product Description

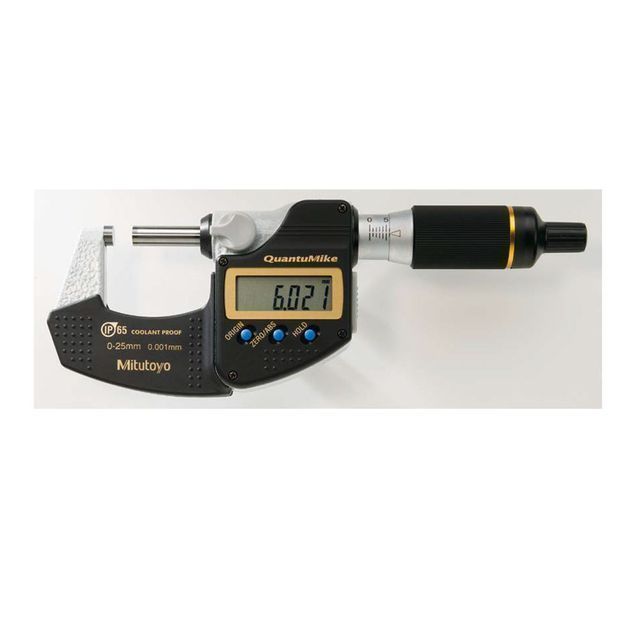

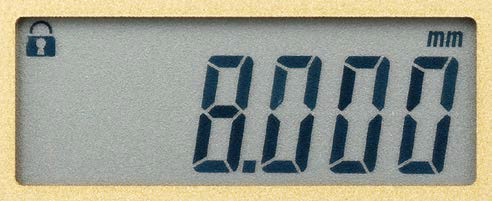

micrometerQuantuMike 293 Series IP65 Micrometer, 2mm/rev Spindle Feed • Advanced groundbreaking technology creates the next generation of micrometers, the most revolutionary advancement in micrometer technology since James Watt invented the instrument. Ejector 1 revolution Spindle feed per revolution 0.5 mm 2.0 mm Conventional model QuantuMike • QuantuMike is equipped with a function lock to prevent the origin from being moved by mistake during measurement.

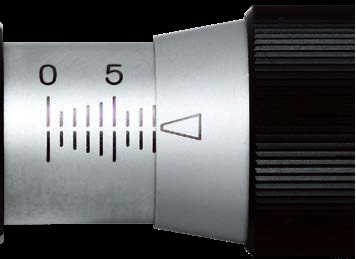

• A scale is provided on the sleeve for use with the reference mark on the thimble to check every millimeter of displacement for extra confidence.

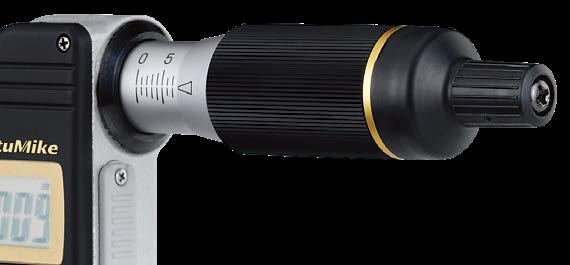

• Ratchet thimble mechanism helps ensure repeatable results by transmitting micro-vibration along the spindle to the contact surface to provide constant measurement force and promote good contact with the workpiece. The ratchet works with the thimble and governor, so it's always easy to use - even when measuring with one hand. The sound of the ratchet provides the user with a sense of confidence, while the governor enables the fast spindle feeds needed when measuring different sizes.
• Statistical process control systems and measurement network systems can be built to share quality-related information with models equipped with data export capabilities. (See page A-3 for details.) • A range of convenient interface input tools are available to convert measurement data into keyboard signals and enter them directly into cells in off-the-shelf spreadsheet software such as Excel. (See page A-13 for details.) • Excellent oil, water and dust resistance (IP65 rating) allows this product to be used in processing environments including splash coolant. • Measuring surface: Carbide.

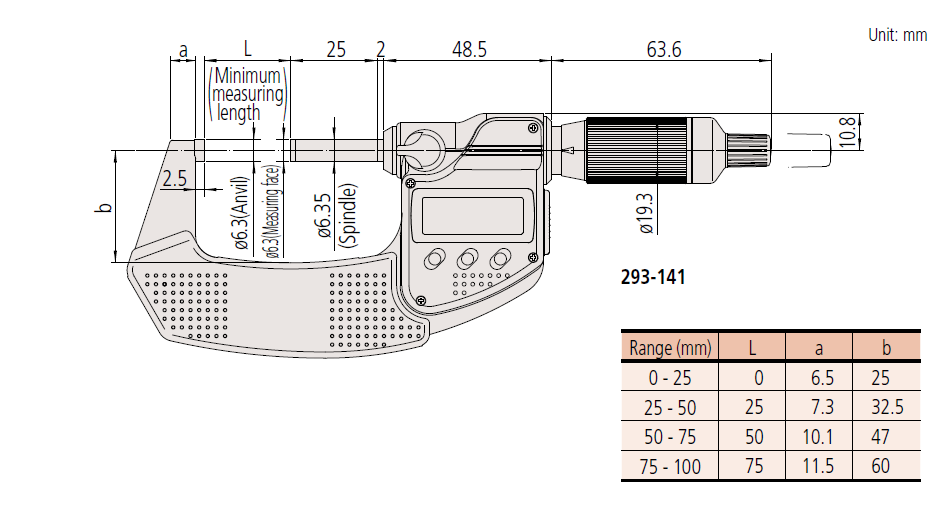

Specification
Metric
With SPC data output | order number. | Range (mm) | Resolution (mm) | Accuracy (microns) | Flatness (µm) | Parallelism (µm) | Lots of (G) |
293-140-30 | 0-25 | 0.001 | ±1 | 0.3 | 1 | 265 | |
293-141-30 | 25-50 | 325 | |||||
293-142-30 | 50-75 | 2 | 465 | ||||
293-143-30 | 75-100 | ±2 | 620 | ||||
With SPC data output | 293-145-30 | 0-25 | ±1 | 1 | 265 | ||
293-146-30 | 25-50 | 325 | |||||
293-147-30 | 50-75 | 2 | 465 | ||||
293-148-30 | 75-100 | ±1 | 620 |
With SPC data output | order number. | scope (mm) | Resolution (mm) | Accuracy (microns) | Flatness (µm) | Parallelism (µm) | Lots of (G) |
293-180-30 | 0-1 | 0.00005 inches/ 0.001 mm | ±0.00005 | 0.000012 | 0.00004 | 265 | |
293-181-30 | 1-2 | 325 | |||||
293-182-30 | 2-3 | 0.00008 | 465 | ||||
293-183-30 | 3-4 | ±0.0001 | 620 | ||||
With SPC data output | 293-185-30 | 0-1 | ±0.00005 | 0.00004 | 265 | ||
293-186-30 | 1-2 | 325 | |||||
293-187-300 | 2-3 | 0.00008 | 465 | ||||
293-188-30 | 3-4 | ±0.0001 | 620 |
