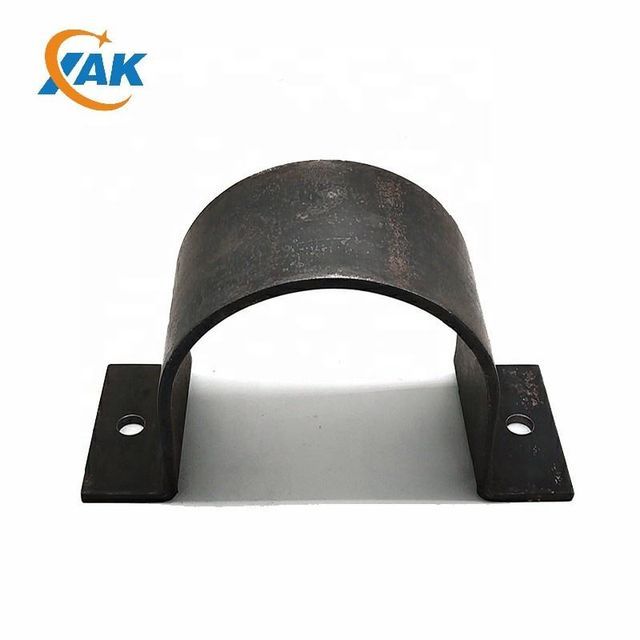

XAK Custom Adjustable Stainless Steel/Carbon Steel OEM Size 10mm Thickness Omega Clamp Pipe Clamp
- $45.00 / 10 - 99 pieces
$30.00 / 100 - 999 pieces
$25.00 / 1000 - 9999 pieces
$18.00 / >=10000 pieces - 10 pieces
- Wuxi New Aokai Industry & Trade Co., Ltd.
- Jiangsu, China
- Ms julia Hu
| technology: | stamping | Certification: | CE, ISO9001 |
| Surface treatment: | Self-color black | Gross weight per piece: | 15.000 kg |
| Warranty: | 1 year | application: | Fully braced channels, general industry, heavy industry, mining |
| MOQ: | 10 | Material: | Q235/Q345/SS304/SS316L |
| OEM/Design Manufacturer: | Yes | sample: | free of charge |
| Packaging Details: | Serve on a wooden pallet. PVC is wrapped around the outside of the pallet to keep it waterproof. | Sales unit: | single product |
| Package preview: | Single package size: | 10X10X40 cm | |
| Bolt Clamping Type: | heavy fixture | Customization support: | OEM production |
| product name: | Adjustable Stainless Steel Single Inch Wall Mount Pipe Clamp |
Custom Adjustable Stainless Steel Single Inch Wall Mount Pipe Clamps
1.10+ years of rich experience in cold-rolled steel pipe fittings
2. Strict FA quality control system, supporting the third party
3. Professional R&D team engineers and standardized 6 cold forming and stamping production lines
4. OEM, accept lower quantity trial order by one-stop service
5. Discount express 24 hours fast delivery free samples, by air
Quick details:
-
Exquisite workmanship: surface treatment galvanized (EGG) or hot-dip galvanized (HDG);
-
Easy to use: Tighten the bolts with both hands, no need to apply a torque wrench, until the bolt head falls off, simplifying the installation and inspection of the anti-seismic support;
-
Ease of operation: swivel fixed connector for longitudinal and transverse seismic bracing applications;
-
Cost saving: Innovative design makes installation easy, saving time and cost.
| Product Description |
| product name | Custom Adjustable Stainless Steel Single Inch Wall Mount Pipe Clamps |
|---|---|
| brand | XAK |
| birthplace | Jiangsu, China (Mainland) |
| type | Pillar channel accessories |
| shape | custom made |
| size | standard or customized |
| standard | AISI, ASTM, BS, DIN, GB, JIS |
| Material | Q235 |
| surface treatment | True black; we also support EG; HDG, etc. |
| Processing Technology | stamping |
| OEM service | Yes |
| Specification | Various specifications as required |
| certified | CE, ISO9001 |
| application | Srut channel system |
| payment method | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
• Provide product customization service according to customer requirements
|
Hanging pipe clamp
|
Nominal diameter | Pipe diameter | Material | Prosperity | bolt | |
| upper film | next movie | |||||
| DN65 |
76.1 |
5*40 | 5*40 | M12 | M12 | |
| DN80 | 88.9 | 5*40 | 5*40 | M12 | M12 | |
| DN100 | 114.3 | 5*40 | 5*40 | M12 | M12 | |
| DN125 | 139.7 | 5*40 | 5*40 | M12 | M12 | |
| DN150 | 168.3 | 5*40 | 5*40 | M12 | M12 | |
| DN200 | 219.1 | 5*40 | 5*40 | M12 | M12 | |
|
O-ring
|
Nominal diameter | Pipe diameter | Material | Prosperity | bolt | |
| upper film | next movie | |||||
| DN65 |
76.1 |
5*40 | 5*40 | M12 | M12 | |
| DN80 | 88.9 | 5*40 | 5*40 | M12 | M12 | |
| DN100 | 114.3 | 5*40 | 5*40 | M12 | M12 | |
| DN125 | 139.7 | 5*40 | 5*40 | M12 | M12 | |
| DN150 | 168.3 | 5*40 | 5*40 | M12 | M12 | |
| DN200 | 219.1 | 5*40 | 5*40 | M12 | M12 | |
|
Ω type hoop
|
Nominal diameter | Pipe diameter | Material |
| DN65 |
76.3 |
5*40 | |
| DN80 | 89.1 | 5*40 | |
| DN100 | 114.3 | 5*40 | |
| DN125 | 139.8 | 5*40 | |
| DN150 | 168.3 | 5*40 | |
| DN200 | 219 | 5*40 |
|
P-clip
|
Model | Applicable pipe outer diameter (mm) | Material thickness(mm) | Bolt Selection Criteria | Recommended design load (KN) |
| P15 | 18~21.3 | 2 | M6*25 | 2.7 | |
| P20 | 25~26.9 | 2 | M6*25 | 2.7 | |
| P25 | 32~33.7 | 2 | M6*25 | 2.7 | |
| P32 | 38~42.4 | 2.5 | M6*25 | 3.6 | |
| P40 | 45~48.3 | 2.5 | M6*25 | 3.6 | |
| P50 | 57~60.3 | 2.5 | M8*30 | 3.6 | |
| P65 | 73~76.1 | 2.5 | M8*30 | 3.6 | |
| P80 | 89.0 | 3 | M8*30 | 4.4 | |
| P100 | 108~114.3 | 3 | M10*35 | 4.4 | |
| P125 | 133~139.7 | 3.5 | M10*35 | 4.4 | |
| P150 | 159~168.3 | 3.5 | M10*35 | 4.4 | |
| P200 | 217~219.3 | 3.5 | M10*35 | 4.4 | |
| P250 | 268~273 | 4 | M10*35 | 5.3 | |
| P300 | 323.9~325 | 4 | M10*35 | 5.3 |
Application fields:
- Pillar channel system
- Photovoltaic support system
- construction industry
- pipe support system

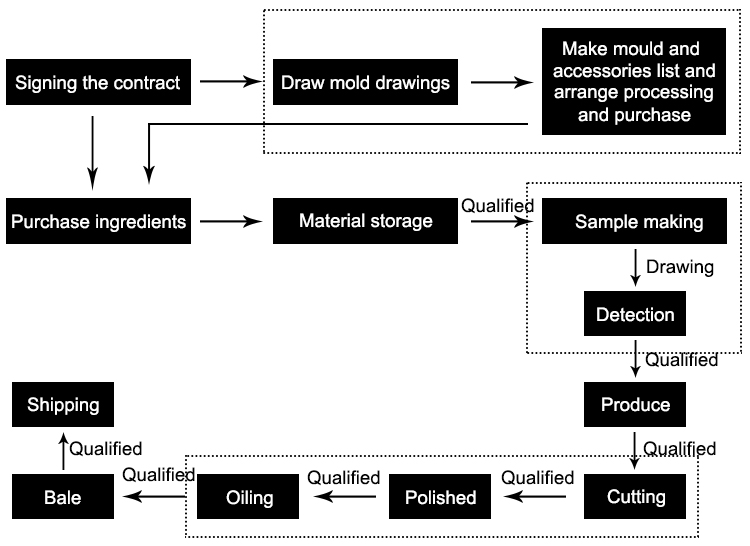

Pipe clip fittings production process

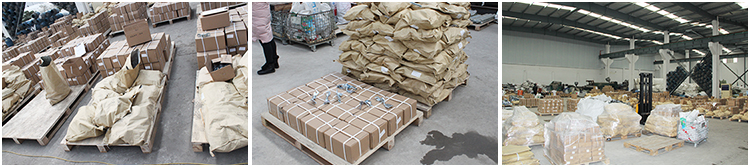

packaging details
Simple seaworthy packaging, or packaging according to customer requirements, but additional charges are required.
Shipping Details
Usually within 10-15 days after down payment
Technical strength:
Professional R&D team with more than 10 years of experience
QC:
We adopt strict quality control system, standardized production
Serve:
Integrated factory group, one-stop service
Economy:
high salary ratio
