XLPE/XLPO solar cable PV1-F solar pv cable 4mm2 6mm2 for solar panel
- $0.30 / >=100 meters
- 100 meters
- Shanghai Kuka Special Cable Co., Ltd.
- Shanghai, China
- Mr Tony Si
PRODUCT DETAIL
| Warranty period: | 25 years | port: | Shanghai, Ningbo, Shenzhen |
| brand: | Kuka | Operating temperature: | -40°C to +120°C |
| Supply capacity: | 1,000,000 meters of solar cable 2x6mm per week | Insulation Materials: | Xlpe |
| Number of cores: | single/double | Rated voltage: | 1000V~1800V |
| MOQ: | 100 metres | Conductor material: | tinned copper |
| jacket: | XLPE | Package preview: | |
| color: | black/blue/red, optional | type: | low voltage |
| Certificate: | TUV | model: | PV1-F |
| application: | Solar Power Station/Solar Power System | payment terms: | L/C, Western Union, D/P, T/T |
| place of origin; place of origin: | China Shanghai | Packaging Details: | 100m/200m/300m/500m/roll, wooden barrel or as required. |
| product name: | Solar photovoltaic cable |
Product Description
solar cable
H1Z2Z2-K|PV1-F
Solar cables are interconnecting cables for photovoltaic power generation. Solar cables interconnect solar panels and other electrical components of photovoltaic systems. The solar cables are designed to be UV and weather resistant. It can be used in a large temperature range and is generally laid outdoors.

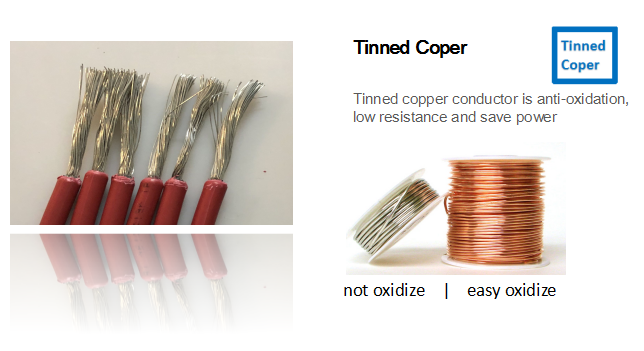

conductor | Tinned fine Re copper stranded wire, in accordance with VDE0295/IEC60228. Level 5 |

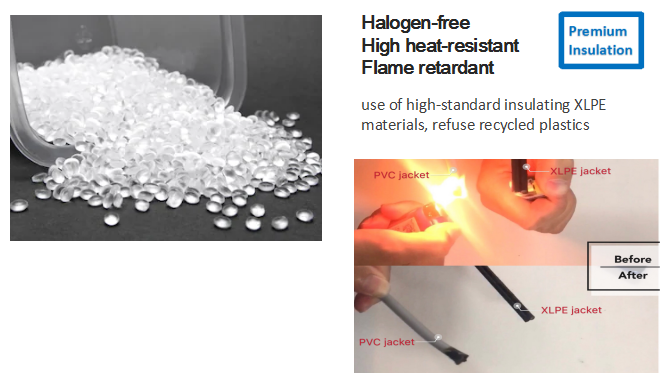

insulation | Electron Beam Copolymerization of Polyolefin Copolymers |
sheath jacket | Electron Beam Copolymerization of Polyolefin Copolymers |
standard | Uo/U=1000VAC, 1500VDC |
Test voltage | 6500V, 50Hz, 5 minutes |
temperature class | -40°C-120°C, over 25 years |
fire performance | IEC 60332-1 |
smoke emission | IEC61034, EN50286-2 |
low fire load | Standard 51 900 |
certified | TUV 2pfg 1169/08.07 standard |
Product parameters
★ Single-core solar photovoltaic power cord
Cross section (mm²) | Conductor structure | outside (mm) | resist maximum. | currently carrying capacity |
1*1.5 | 30/0.25 | 4.90 | 13.30 | 30 |
1*2.5 | 50/0.25 | 5.45 | 7.89 | 41 |
1*4 | 56/0.3 | 6.10 | 4.75 | 50 |
1*6 | 84/0.3 | 7.20 | 3.39 | 70 |
1*10 | 142/0.3 | 9.00 | 1.95 | 98 |
1*16 | 228/0.3 | 10.20 | 1.24 | 132 |
1*25 | 361/0.3 | 12.00 | 0.795 | 176 |
1*35 | 525/0.3 | 13.8 | 0.565 | 218 |
1*50 | 720/0.3 | 14.8 | 0.393 | 280 |
1*70 | 988/0.3 | 16.9 | 0.277 | 350 |
1*95 | 1349/0.3 | 18.7 | 0.21 | 410 |
1*120 | 1691/0.3 | 20.7 | 0.164 | 480 |
★ Double/dual-core solar photovoltaic power cord
Cross section (mm²) | Conductor structure | outside (mm) | resist maximum. | currently carrying capacity |
2×1.5 | 30/0.25 | 8.3±0.2 | 13.30 | 30 |
2×2.5 | 50/0.25 | 9.2 ± 0.2 | 7.98 | 41 |
2×4 | 56/0.3 | 12.0±0.2 | 4.75 | 50 |
2×6 | 84/0.3 | 13.5±0.2 | 3.39 | 70 |
2×10 | 142/0.3 | 17.6±0.2 | 1.95 | 98 |
2×16 | 228/0.3 | 19.8±0.2 | 1.24 | 132 |

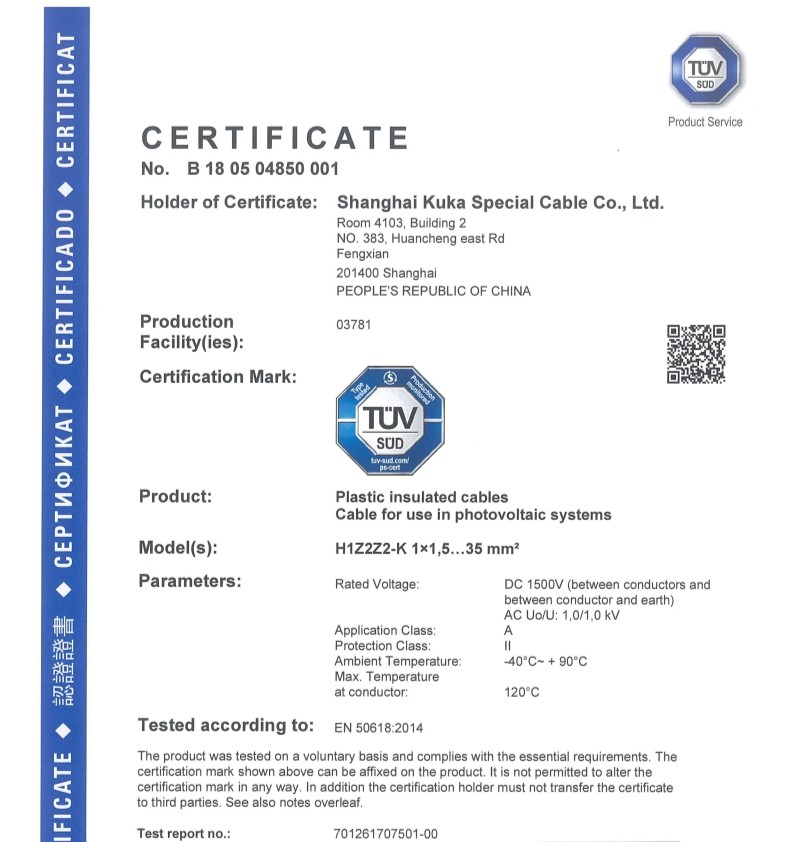

TUV certificate
