Y50EX-1418TK2 High Durable Military Circular Connector
- $12.00 /piece
- 1 piece
- Taixing Hangjie Electronic Co., Ltd.
- Jiangsu, China
- Ms fairy ji
| port: | Shanghai | Pin: | 18P |
| Gaskets and Seals: | Neoprene | type: | Adapter, DIN |
| place of origin; place of origin: | China | Supply capacity: | 50000 pieces per month |
| model: | Y50EX-1418TK2 | Material: | aluminum |
| application: | strength | Packaging Details: | Carton, 270*360*260cm |
| Contact type: | J-pin, K-type receptacle | payment terms: | T/T, MoneyGram |
| brand: | Hangjie | Plug socket type: | T-plug, Z-socket |
| Single block number: | 08,10,12,14,16,18,20,22,24 | Connector type: | circular connector |
| Relative temperature: | -55℃～+125℃ | structure: | X soldered, P shielded |
| gender: | female male |

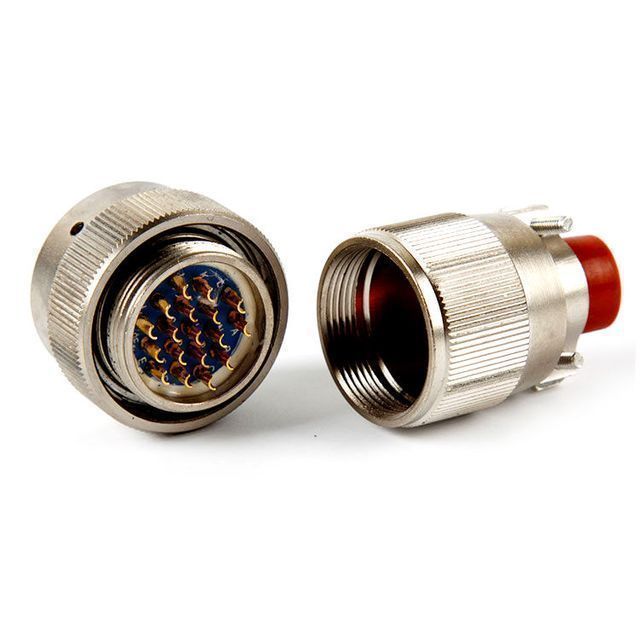

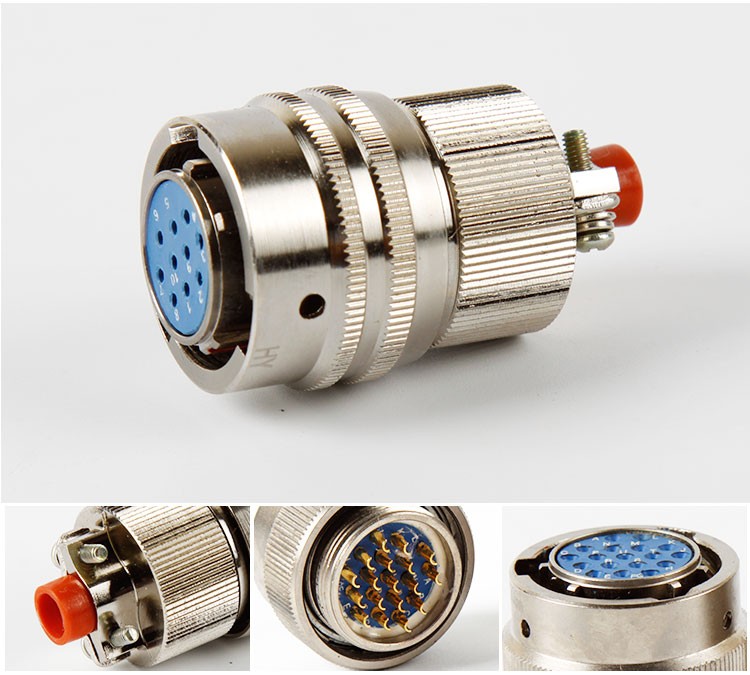

Y50EX-1418TK2 military circular connector
Y50EX series circular connectors are manufactured according to USMIL-C-26482 standard GJB598A, compatible with JY series, MS series and YB series. Response plugs and sockets of the same model are interchangeable. Bayonet connection mechanism series connectors have the characteristics of small size, light weight, high density, convenient use, high plug-in durability, etc., and are widely used in circuit connections in aviation, navigation, communication and other fields. , Railway locomotive command system, etc.
how to order

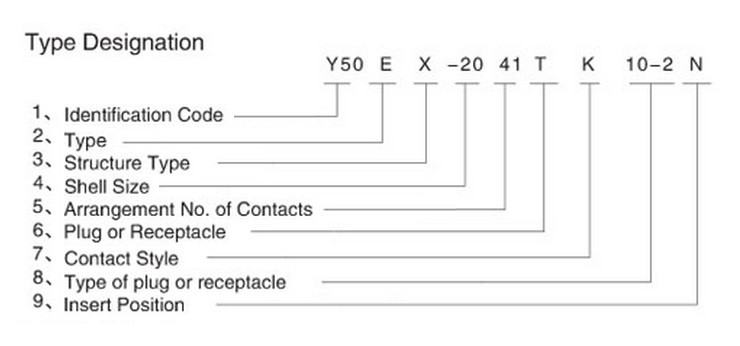

Model Name Introduction
| Do not. | type name | type | design |
| 1 | Identifier | circular connector | Y50 |
| 2 | type | Britain | Second |
| 3 | structure type | Welding plastic bottle caps | x |
| Welded Plastic Enclosures | P | ||
| Crimp casting | Meter | ||
| Glass sintered seal (socket) | number | ||
| 4 | Case size | 08,10,12,14,16,18,20,22,24 | number |

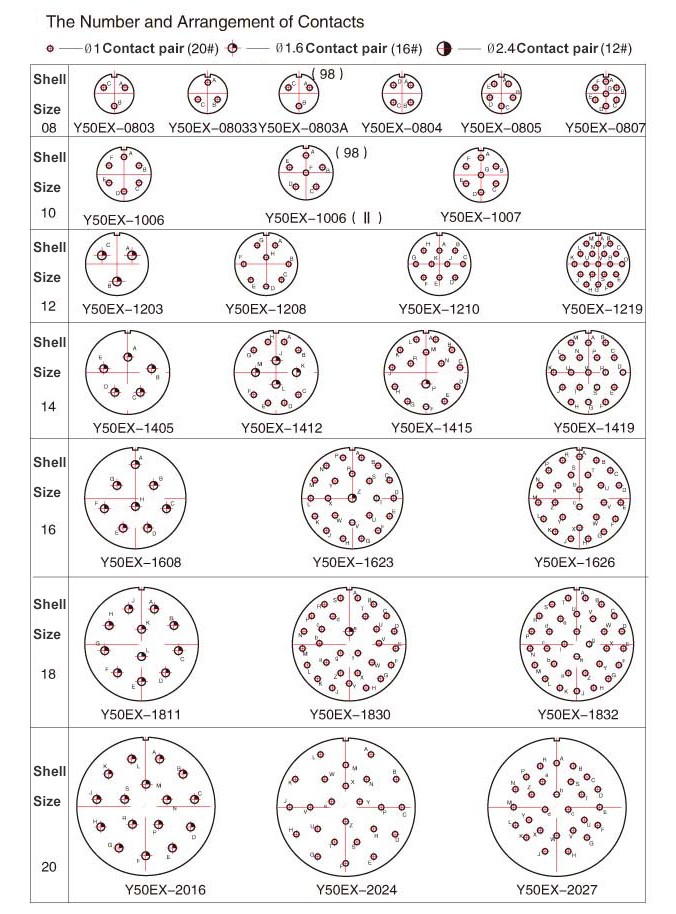

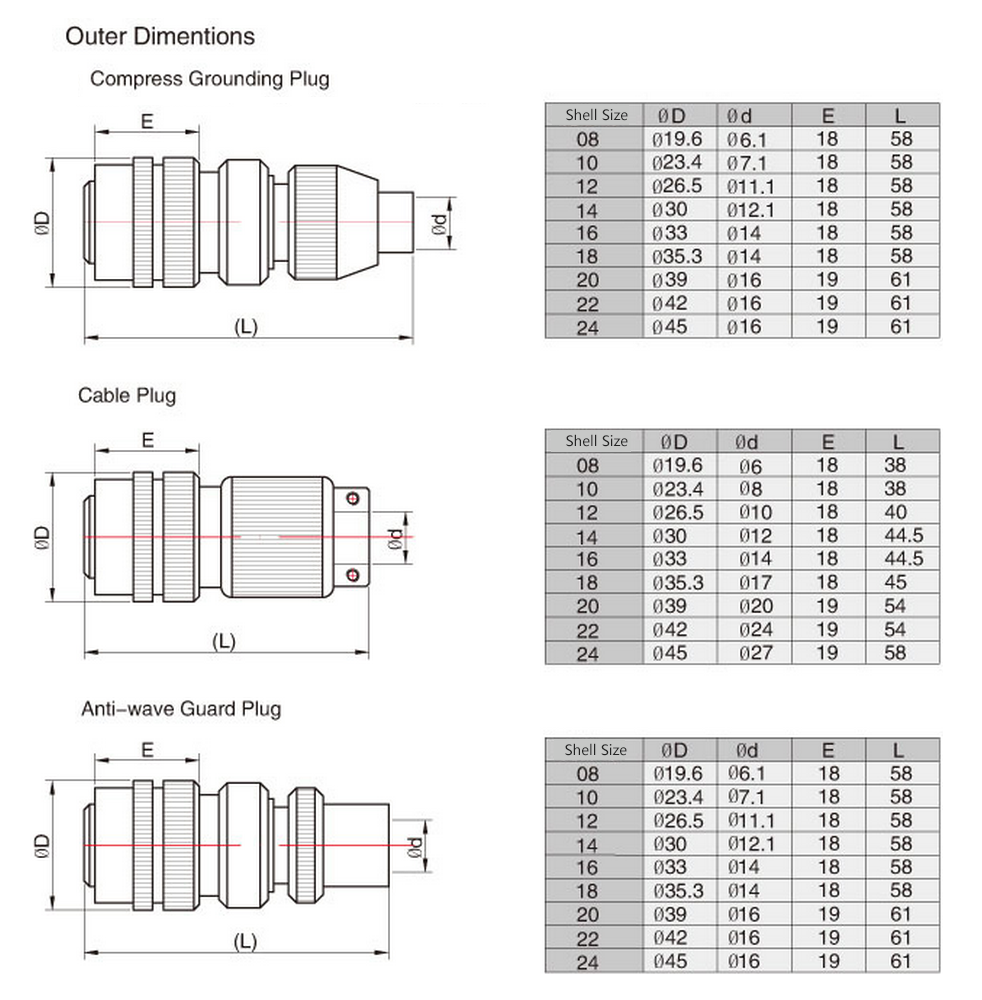

| 5 | Arrange NO.of Contacts | to "Number and Arrangement of Contacts" | number |
| 6 | plug or socket | plug | Ton |
| container | Z | ||
| 7 | contact details | pin | Jay |
| socket | Potassium | ||
| 8 | Plug or Socket Type | Compression ground plug | 1 |
| cable plug | 2 | ||
| simple plug | 3 | ||
| Anti-wave protection plug | 4 | ||
| Elboe Fuard Plug | 5 | ||
| Square flange socket | 10 | ||
| Square Flange Cable Socket | 10-2 | ||
| Round Flange Cable Socket | 11 | ||
| screw fixing socket | 14 | ||
| 9 | insertion position | N, W, X, Y, Z, except N. | letter |

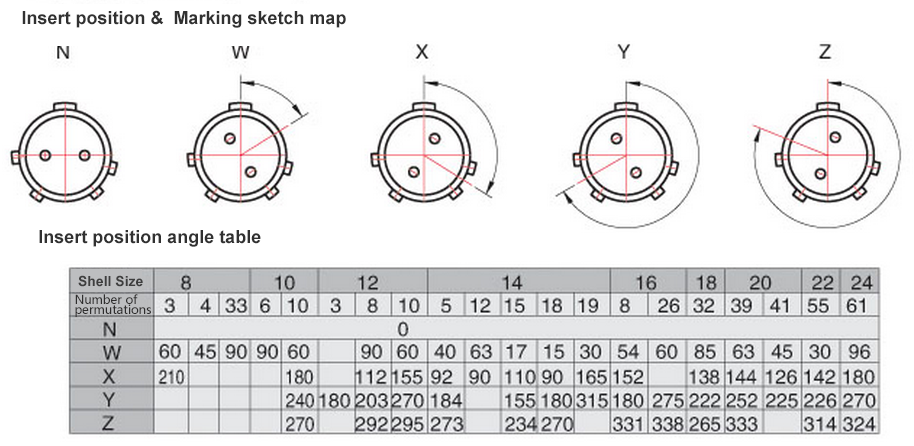

Anti-mis-insertion (instructions for transposition of the insulating mounting plate):
There are keyways with different angles on the periphery of the insulating mounting plate, which can be adjusted and assembled by the manufacturer according to the needs of use, so as to ensure that plugs and sockets of the same specification will not be inserted by mistake. In order to make plugs and sockets corresponding to the same assembly serial number of the same specification can be inserted, plugs and sockets corresponding to different assembly serial numbers cannot be inserted.
Environmental conditions
| ambient temperature | -55℃～+125℃ |
| Relative humidity | At +40°C, 90% ~ 95% |
| barometric pressure | 101KPa～0.8kPa |
| sinusoidal vibration | 10 ~ 2000HZ, 196m/s2 |
| collision | 392 m/s2 |
| Shock | 980 m/s2 |
| Rated voltage | 600V |
| Insulation resistance | ≥3000MΩ |
| Dielectric withstand voltage | 1500V |
| water proof | ≥ 0.2MPa |
| durability | 500 |
