YD300 High Precision Laboratory Portable Water Hardness Tester / Water Hardness Tester
- $350.00 / 1 - 1 sets
$320.00 / >=2 sets - 1 set
- Shanghai Yanhe Instrument Equipment Co., Ltd.
- Shanghai, China
- Ms Lisa Zhou
| Quality and safety certificate: | ISO9001:2000 and CE | Temperature Accuracy: | ±0.5℃ |
| Customization support: | OEM production | payment terms: | L/C, Western Union, T/T |
| model: | YD300 | Temperature Resolution: | 0.1°C |
| port: | Shanghai/Guangzhou | data storage: | 99 groups |
| Warranty: | 1 year | place of origin; place of origin: | China Shanghai |
| Supply capacity: | 15 pieces per week | brand: | Sanxin |
| temperature: | (5 ~ 50)℃((automatic)) | Resolution: | 0.01 and 0.1 water hardness units |
| temperature range: | 0～60℃ | type: | Water quality testing instrument |
| strength: | Two AA batteries (1.5V*2) | Packaging Details: | standard packaging |

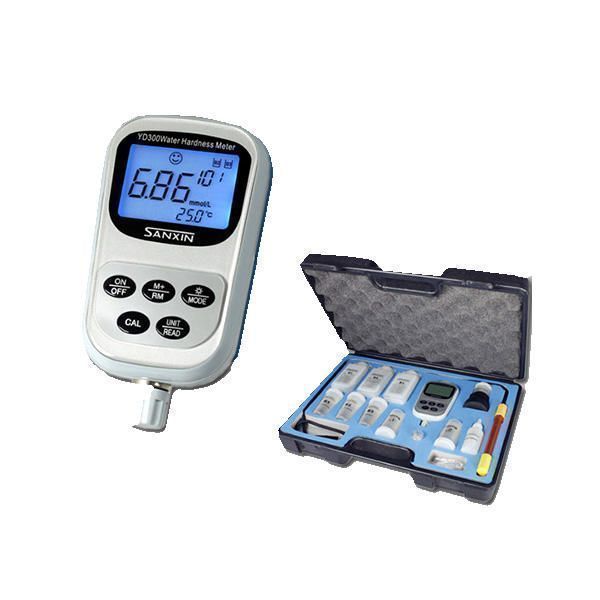

YD300 High Precision Laboratory Portable Water Hardness Tester / Water Hardness Tester
YD300 Portable Water Hardness Tester
Portable instrument for measuring water hardness by electrometric method, suitable for field and field use.
introduce
| Portable meter for measuring water hardness (total concentration of calcium and magnesium ions). |
| The electrode adopts the 601-F water hardness combination electrode with patented structure. It consists of a measuring electrode, a reference electrode and a temperature probe. The measuring head can be replaced, the potential is stable, the response speed is fast, and it is easy to use. |
| The meter is designed with an intelligent chip and has functions such as automatic calibration, automatic temperature compensation, time display, data storage, and low voltage display. |
| Ability to switch between eight units: mmol/L, mg/L (CaCO3), mg/L (CaO), mmol/L (boiler), mg/L (Ca). Three options for three units: ºfH (France), ºdH (Germany) and ºeH (UK) from the WH-Link communication software. |
| Equipped with B1, B2, B3 calibration solution. |
| IP57 waterproof grade, equipped with portable bag, calibration fluid and other accessories. |
Specification
|
water hardness
|
Measuring range
resolution
accuracy
temperature. compensation
Calibration solution
calibration mode
|
(0 ~ 10) mmol/L; (0 ~ 401) mg/L (calcium);
(0～1000)mg/L(CaCO3); (0～100)ºfH(French degree);
(0 ~ 561)mg/L (calcium oxide); (0 ~ 56)ºdH (German degree);
(0 ~ 20)mmol/L (boiler); (0 ~ 70)ºeH (UK degrees).
0.01 and 0.1 water hardness units
±5% of full scale
(5 ~ 50)℃((automatic))
B1 calibration solution — 2.00×10-2 mmol/L
B2 calibration solution — 2.00×10-1 mmol/L
B3 calibration solution - 2.00 mmol/L
(B3 calibration solution can also be used as soaking solution for electrodes)
(a) B1/B2 calibration - use B1 and B2 calibration solutions, suitable for low concentration water quality <2.00×10-2 mmol/L, such as boilers
water. (b) Calibration—use B2 and B3 calibration solutions, which are suitable for general water quality.
|
|
temperature
|
Measuring range
resolution
accuracy
|
0～60℃
0.1°C
±0.5℃
|
|
Other technical parameters
|
data storage
content storage
strength size and weight Quality and Safety Certificate |
99 groups
Measurement number, measurement, unit, temperature, ATC or MTC, date, time and calibration method. Two AA batteries (1.5V×2) Meter: (65×120×31)mm/180g; Suitcase: (255×210×50)mm/790g IISO9001:2000 and CE |
|
working environment
|
ambient temperature
environment humidity
|
(5~35)℃
≤85%RH
|

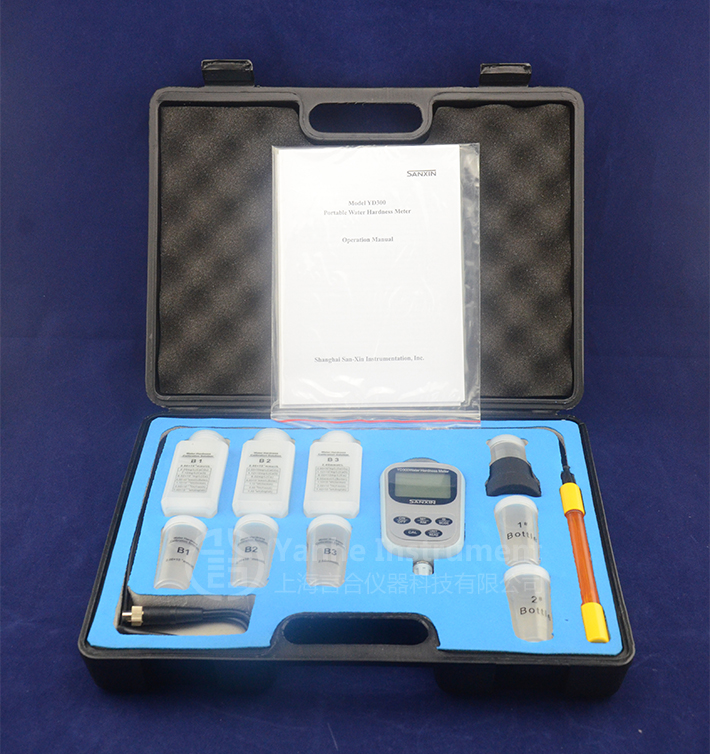

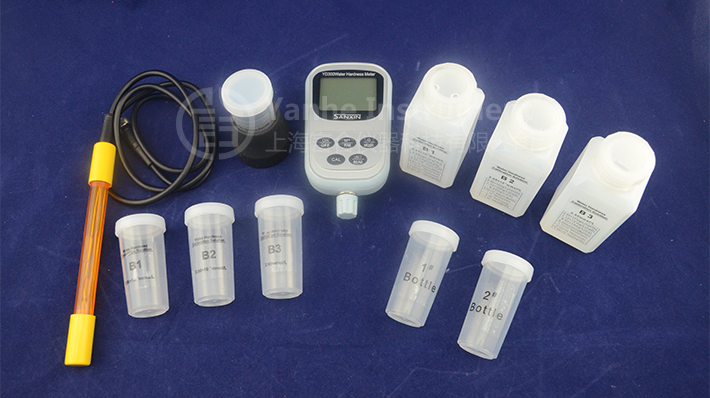

Standard kit includes
| 1. YD300 water hardness tester |
1 set |
| 2.601-S water hardness electrode (with two probes and a screw plug) |
1 item |
| 3. AA battery (1.5V) |
2 pieces (included) |
| 4. 100mL hardness calibration solution (B1, B2, B3) |
1btl/each |
| 5.20mL test cup |
6 |
| 6. Test cup holder |
1 item |
| 7. Carrying case |
1 item |
| 8. Operation manual |
1 set |
Optional accessories
|
Accessories category |
describe |
Specification |
|
Water Hardness Electrode |
601-S water hardness electrode |
Suitable for the measurement of the total concentration of calcium ions and magnesium ions, matching YD300 instrument, 8-pin connector |
|
Water Hardness Calibration Solution |
Water hardness calibration solution B1 |
2.00×10-2 mmol/L, 500mL/250mL/100mL (bottle) |
|
Water hardness calibration solution B2 |
2.00×10-1 mmol/L, 500mL/250mL/100mL (bottle) |
|
|
Water hardness calibration solution B3 |
2.00 mmol/L, 500mL/250mL/100mL (bottle) |
|
|
|
plastic test cup |
Specification: 20mL |
|
Test Cup Base |
Place the test cup on the base |
 |
 |
 |
 |
 |
 |
