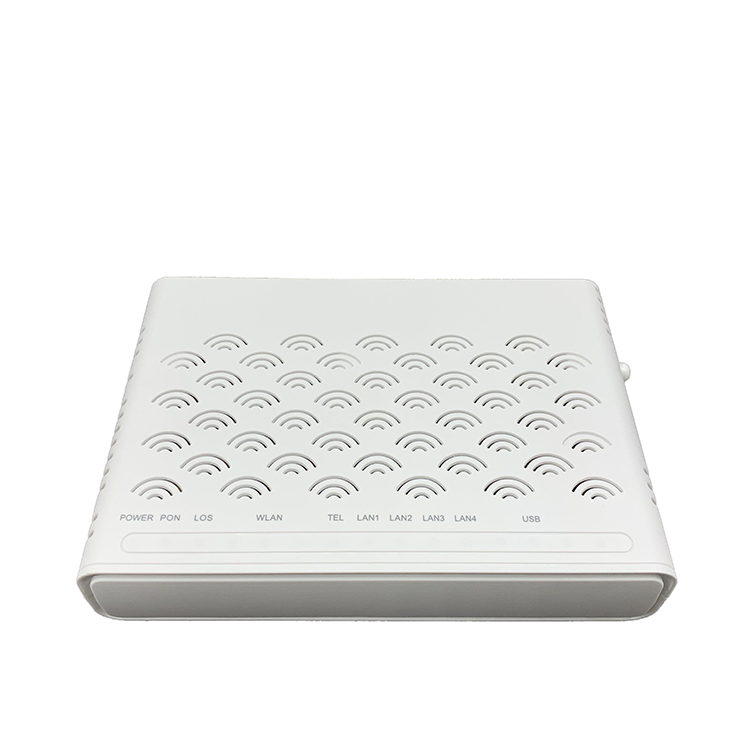

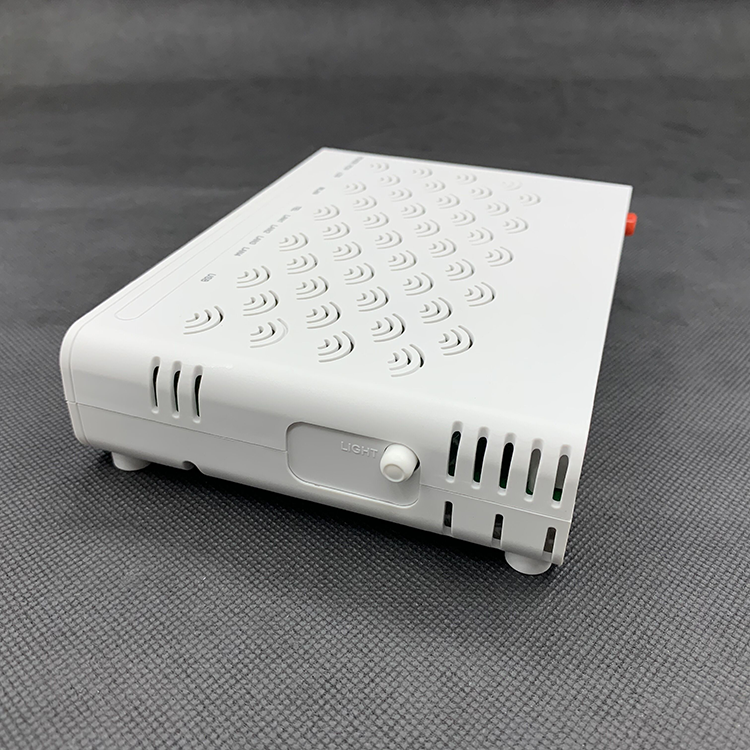

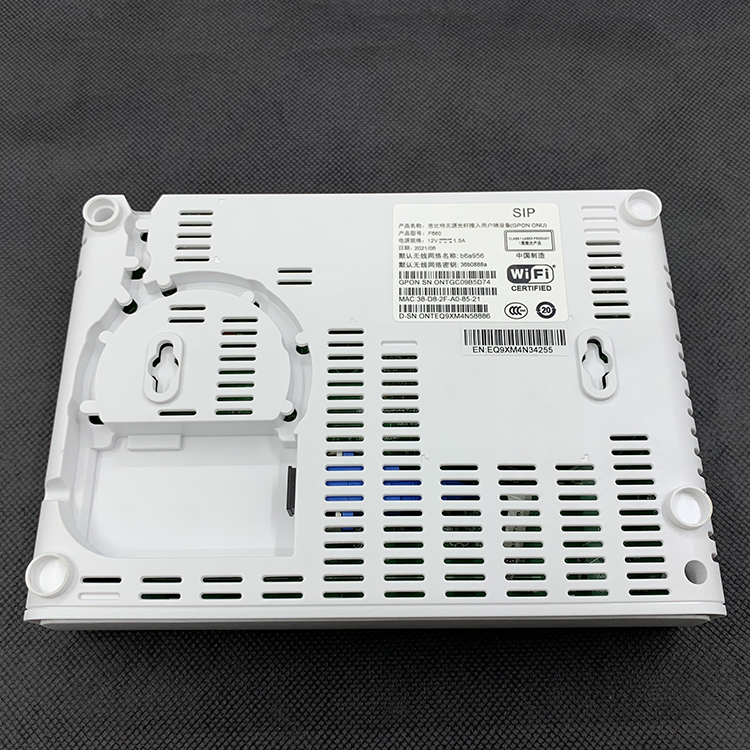

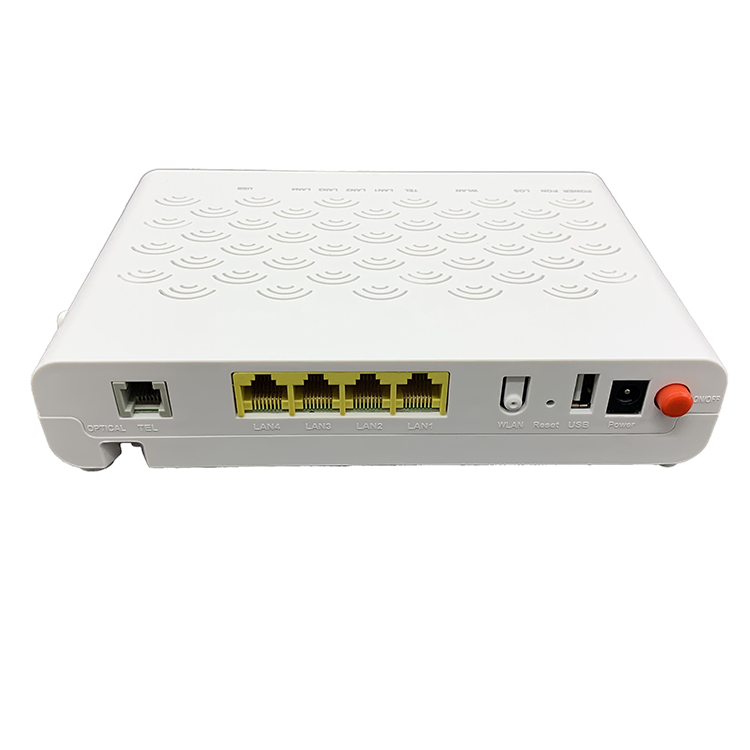

ZTE FTTH Optical Fiber Network Unit Modem WIFI Router 1GE+3FE+1POTS+WIFI+1USB ZTE F660 V6.0 GPON ONU

ZTE ZXHN F660 V6.0 Overview

ZTE ZXHN F660V6.0 is a GPON optical network unit, 1GE+3FE+1POTS+WIFI+1USB interface, designed for FTTH scenarios. Supports L3 functions to help users build smart home networks. It provides users with convenient services including voice, video (IPTV) and high-speed Internet access.

ZTE ZXHN F660 V6.0 technical parameters

ZTE ZXHN F660 V6.0 Features

· Supported services: VoIP, Internet, IPTV

GPON: 8 T-CONT, 32 GEM ports

VLAN: 802.1Q, 802.1P, 802.1ad

·MAC address table: 1K

· L3 functions: DHCP server/client, DNS client, NAT

· IPv6: dual stack, DS-Lite

· VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38

Wi-Fi: 4 SSIDs, 2×2 MIMO, WPS

Wi-Fi Authentication: Shared Key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK, WPA2-Enterprise

Multicast: IGMP v1/v2/ Snooping/Proxy, MLD v1 Snooping

· Multicast groups per user port: 256

· QoS: traffic classification based on physical port, MAC address, VLAN ID, VLAN priority, IP address; SP/WRR/SP+WRR

Management: local web management, OMCI, TR069

Management: local web management, OMCI

· USB: DLNA DMS, USB backup, 3G/LTE dongle
