automatic hydraulic style Steel Wire bending machine



Automatic Metal Strip and Wire Forming Machine



Equipment Main Characteristics:



1 Automatic Strip & Wire Forming Machine,also named as Wire Bending Machine,mainly used for bending metal wire or metal strip into various 2D or 3D shapes.



2 There are two models:Cam Type and Hydraulic Type.

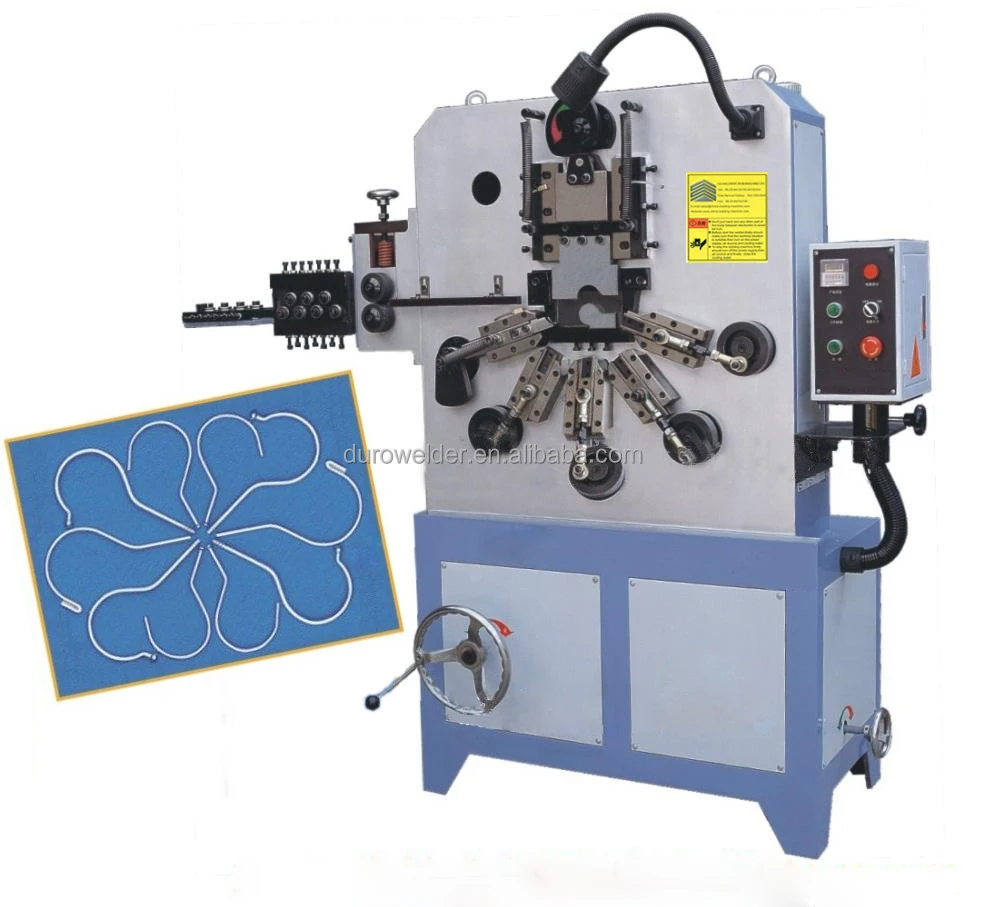

Cam Type Bending Machine,high speed, high efficiency,are mainly used for bending small diameter wire and thinner strip into various simple shape.

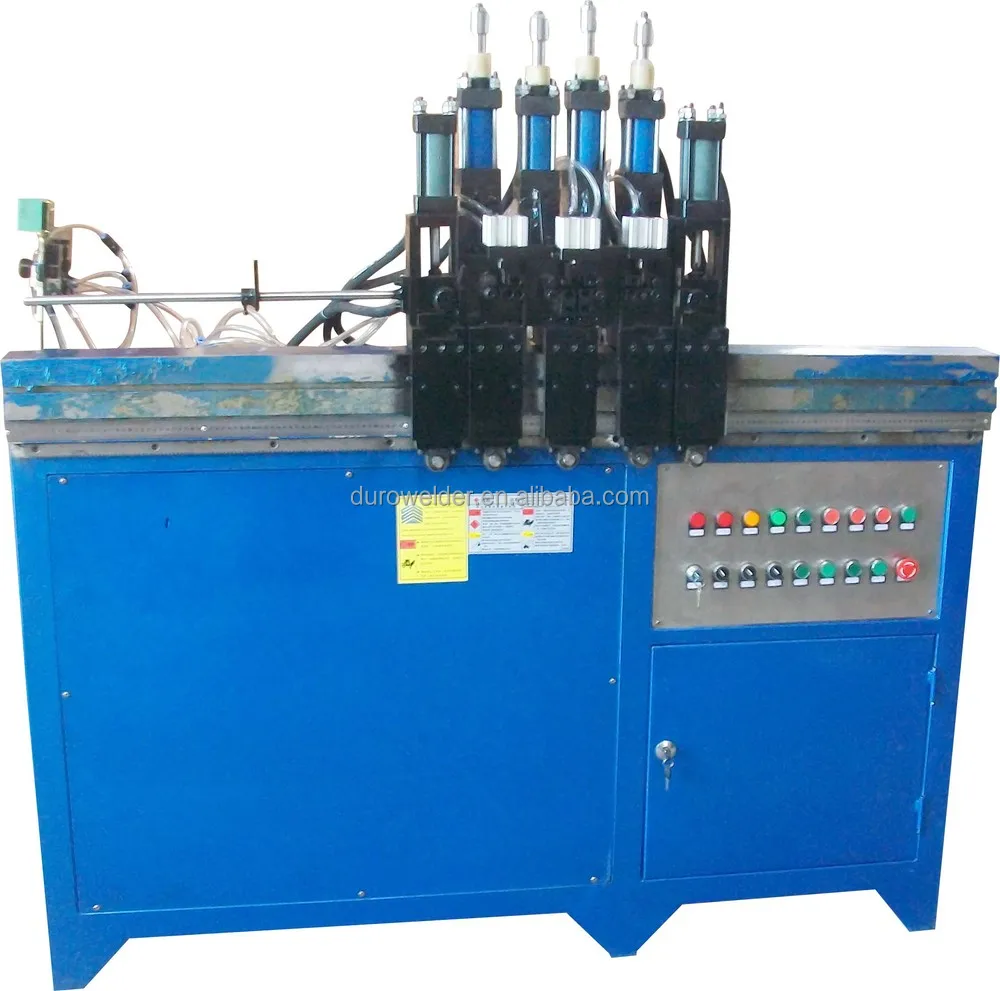

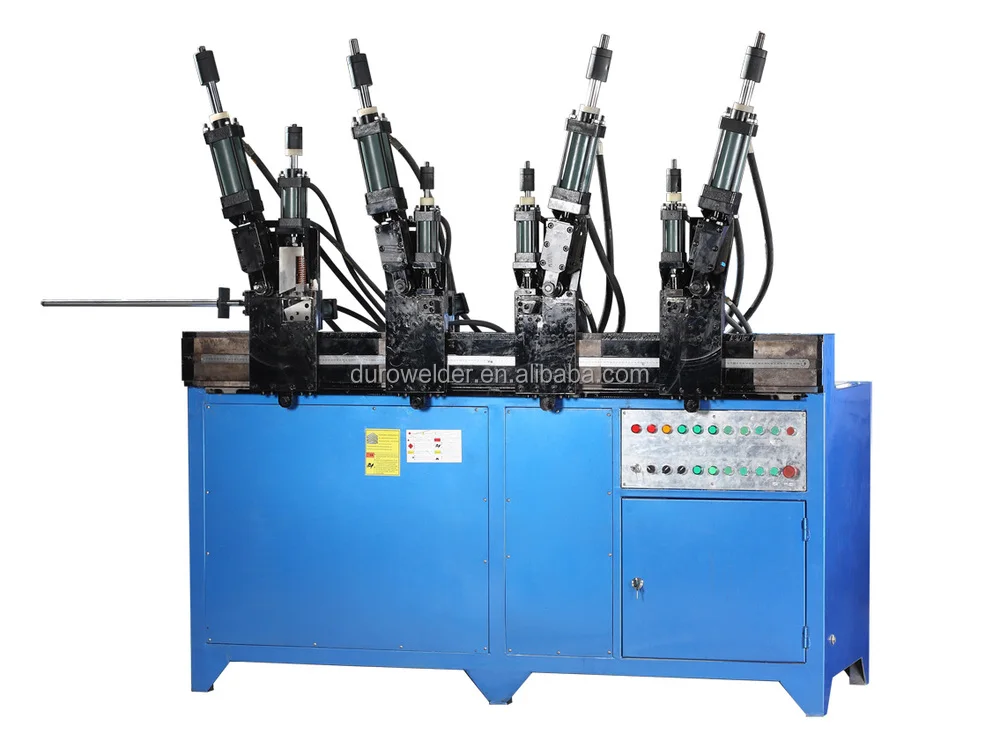

Hydraulic Type Bending Machine,can bend the metal wire and strip into any kind of shape,especially suitable for the big diameter wire and big thickness strip into various  two-dimensional(2D) or three-dimensional(3D) sophisticated shape.



3 The whole process is finished automatically, can also be equipped with hole-punching function.



4 Widely used for decorations,light fittings,handicrafts,various of hardware manufacturing and other industries,such as hanger hooks,key chains,refrigerator rack,stainless steel fruit baskets,and other metal wire and strip forming and bending.



Main Technical Parameters:



Equipment Name

Model No.

Wire Diameter

Cross-Sectional Area

Max Machining Length

Production Rate

(pcs/min)

Power

Cam Type Metal Forming Machine

CFM3

Φ1-3mm

≤7.0mm2

180mm

40-90

1.1KW

CFM4

Φ1-4mm

≤12.6mm2

220mm

40-90

1.5KW

CFM5

Φ1.5-5mm

≤19.6mm2

320mm

30-90

2.2KW

CFM7

Φ1.5-7mm

≤38.5mm2

400mm

30-90

3.0KW

Hydraulic Type Metal Forming Machine

HFM6

Φ1-6mm

≤T2*W20mm

500mm

20-40

10KW

HFM8

Φ1-8mm

≤T3*W30mm

1000mm

20-30

14KW
