cheap escalator cost
- $9000.00 /unit
- 1 unit
- Delfar Elevator Co., Ltd.
- Zhejiang, China
- Mr Benson Benson
| model: | DE10,DE20 | Project solution ability: | Graphic design, 3D model design, overall project solution, cross-category integration |
| After-sales service: | Online technical support, return and exchange | Package preview: | |
| type: | escalator | truss: | Welded mild steel (angle steel) |
| Origin: | China | Introduction to the interior: | Hairline St. British stone. |
| maximum. high: | 3.0≤H≤10.0 | Supply capacity: | 10000 units per year |
| Warranty: | 1 year | Packaging Details: | Use strong export plywood box, suitable for long-distance transportation, moisture-proof, moisture-proof, shock-proof, rust-proof. |
| design style: | modern | armrest: | black rubber |
| inclination: | 35° and 30° | application: | office building |
| Step width: | 600/800/1000 | railing: | tempered glass |
| payment terms: | L/C, T/T | Step/Tray: | Stainless steel |
| brand: | delfa | port: | Shanghai |
| Bottom plate: | Hairline St. British stone. |

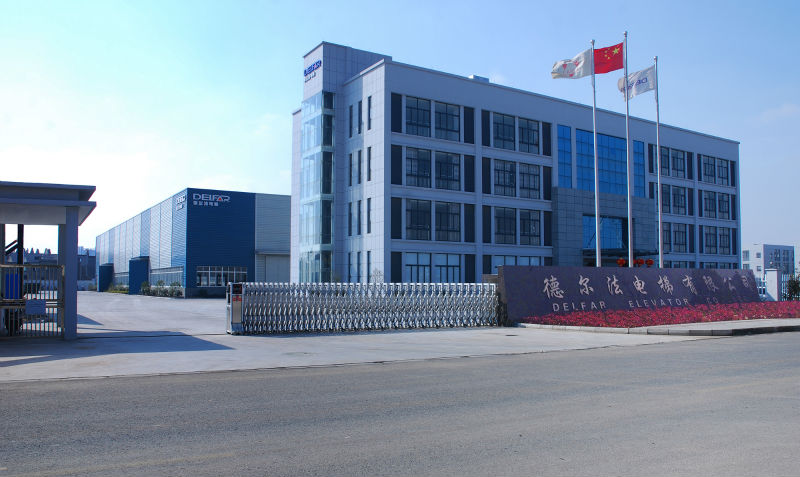

Delfar Elevator Co., Ltd.is a professional elevator company that designs and manufactures complete sets of elevators, escalators and moving walks, as well as elevator components. The company covers an area of more than 40,000 square meters, with a factory building of more than 17,000 square meters and an office area of more than 3,000 square meters. DELFAR currently has 135 employees, including 52 engineers and technicians.
Certificate

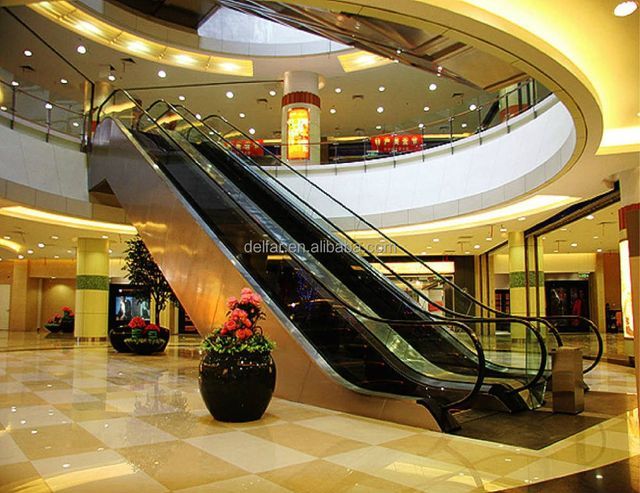

For escalators, we have 30° and 35° angle designs, which can meet the needs of major shopping malls, shopping centers, supermarkets, subway stations, airports, etc.

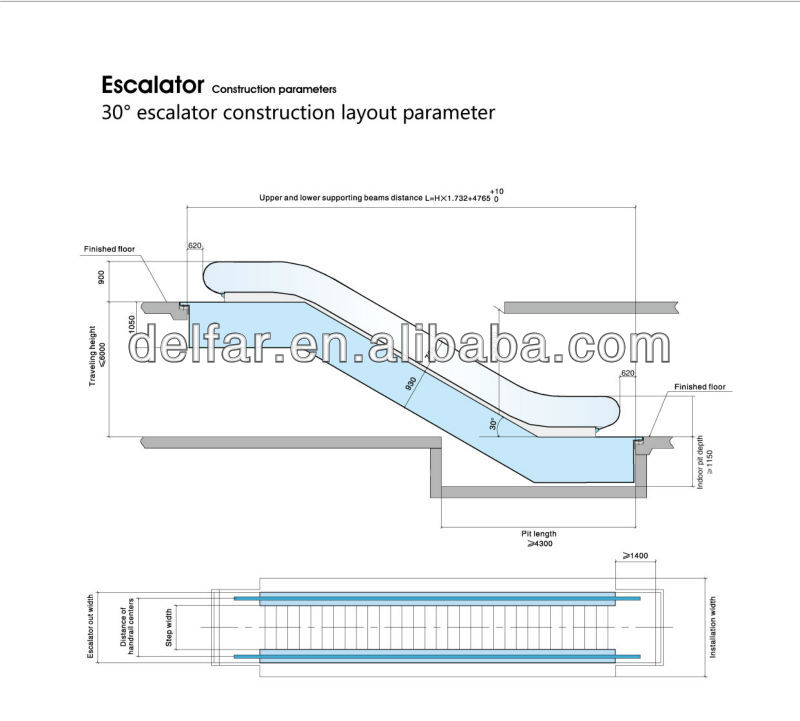

Escalator Construction Parameters
| 30° escalator structure size | ||||||||||
| Model | stroke height (mm) |
Nominal speed (Multiple Sclerosis) |
Maximum conveying capacity (person/hour) |
inclination | Number of flat steps | Motor Power (kilowatt) |
A(mm) | B(mm) | C(mm) | Diameter (mm) |
| DE(600/30°) | 3000≤H≤6000 | 0.5 | 3600 | 30 | 2 | 8 | 600 | 838 | 1200 | ≥1260 |
| DE(800/30°) | 3000≤H≤5000 | 0.5 | 4800 | 30 | 2 | 8 | 800 | 1038 | 1400 | ≥1460 |
| 5000 | 11 | |||||||||
| DE(1000/30°) | 3000≤H≤4500 | 0.5 | 6000 | 30 | 2 | 8 | 1000 | 1238 | 1600 | ≥1660 |
| 4500 | 11 | |||||||||

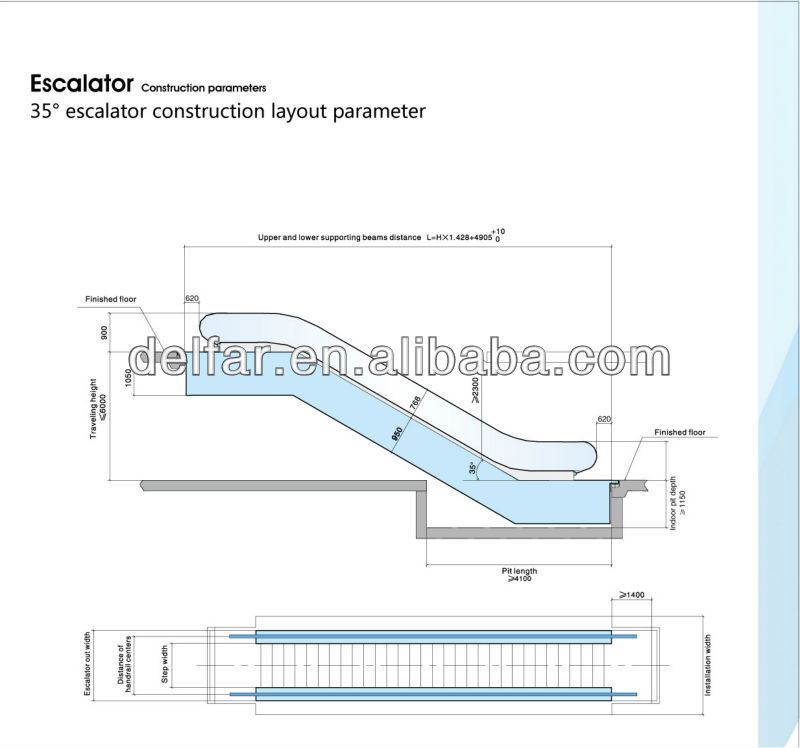

| 35° escalator structure size | ||||||||||
| Model | stroke height (mm) |
Nominal speed (Multiple Sclerosis) |
Maximum conveying capacity (person/hour) |
inclination | Number of flat steps | Motor Power (kilowatt) |
A(mm) | B(mm) | C(mm) | Diameter (mm) |
| DE(600/35°) | 3000≤H≤6000 | 0.5 | 3600 | 35 | 2 | 8 | 600 | 838 | 1200 | ≥1260 |
| DE(800/35°) | 3000≤H≤5500 | 0.5 | 4800 | 35 | 2 | 8 | 800 | 1038 | 1400 | ≥1460 |
| 5500 | 11 | |||||||||
| DE(1000/35°) | 3000≤H≤4500 | 0.5 | 6000 | 35 | 2 | 8 | 1000 | 1238 | 1600 | ≥1660 |
| 4500 | 11 | |||||||||
Advantage:
(1) The truss adopts first-class angle steel, which has a unique structure, high strength and durability.
(2) The overall design is simple and smooth, inclusive.
(3) Advanced international technology guarantees the accuracy of stepping.
(4) The diameter of the stepping roller is large, the operation is stable, the noise is low, and the service life is long.
(5) The entrance of the humanized handrail is fixed with a brush.

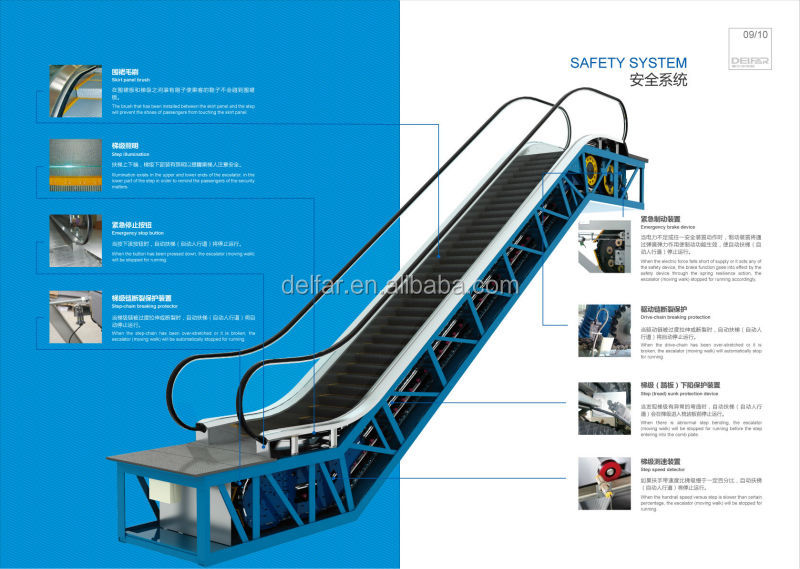

security system

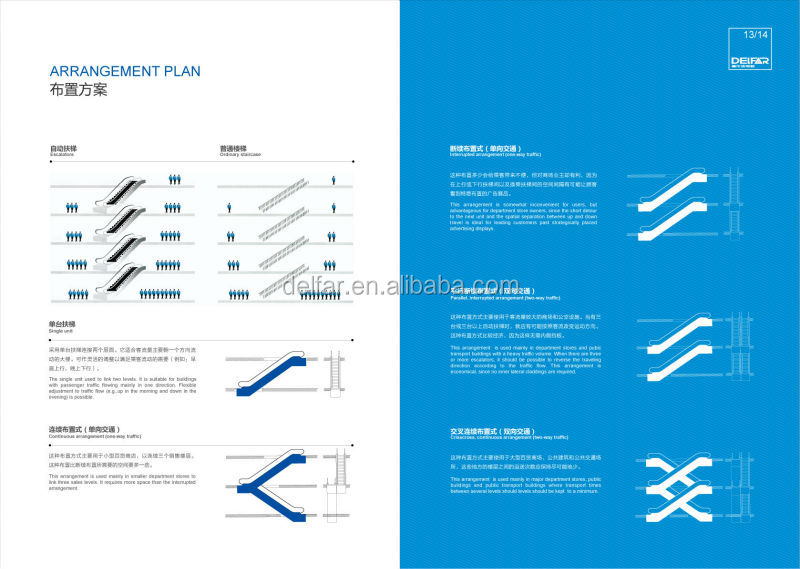

arrange plan

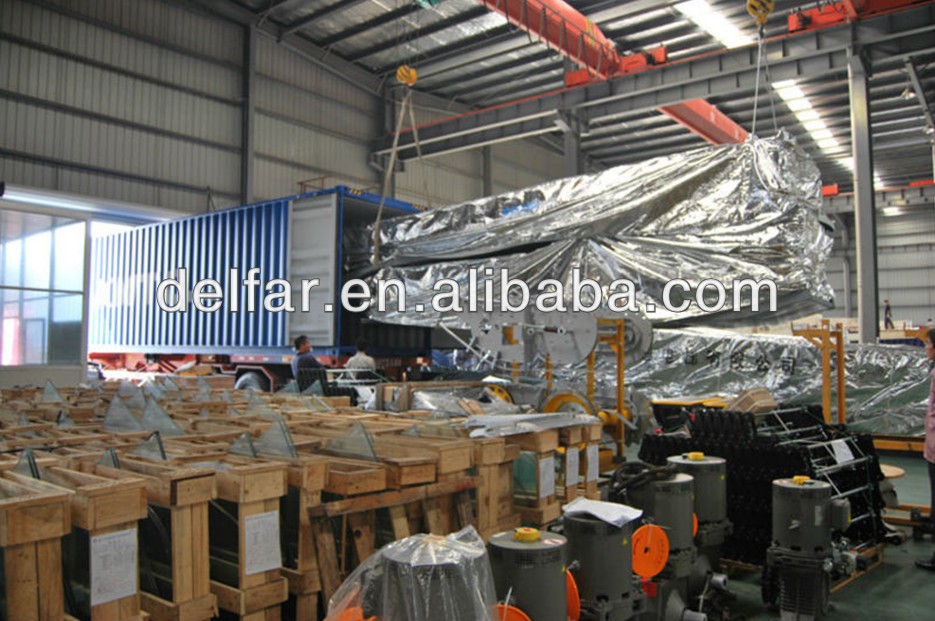

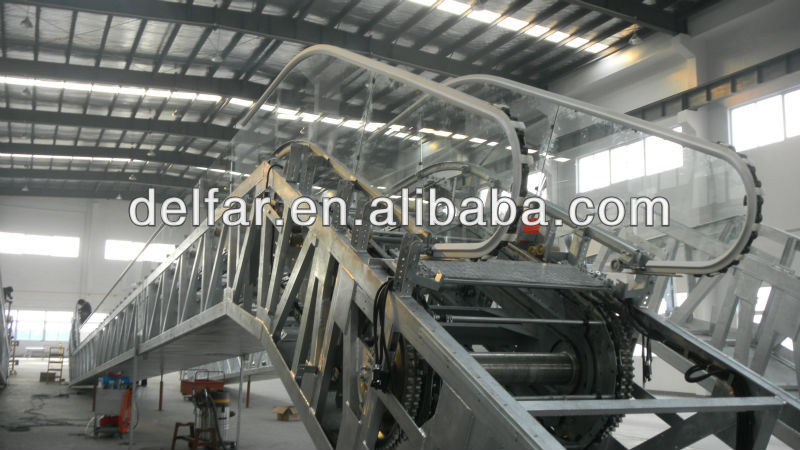

workshop
