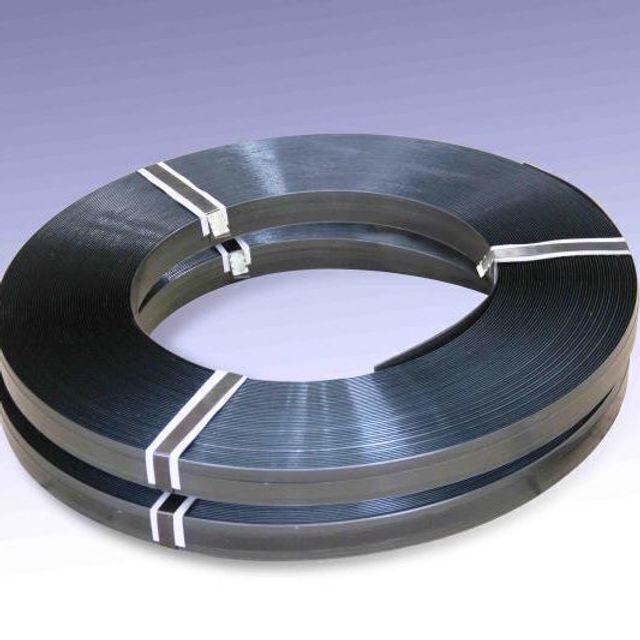

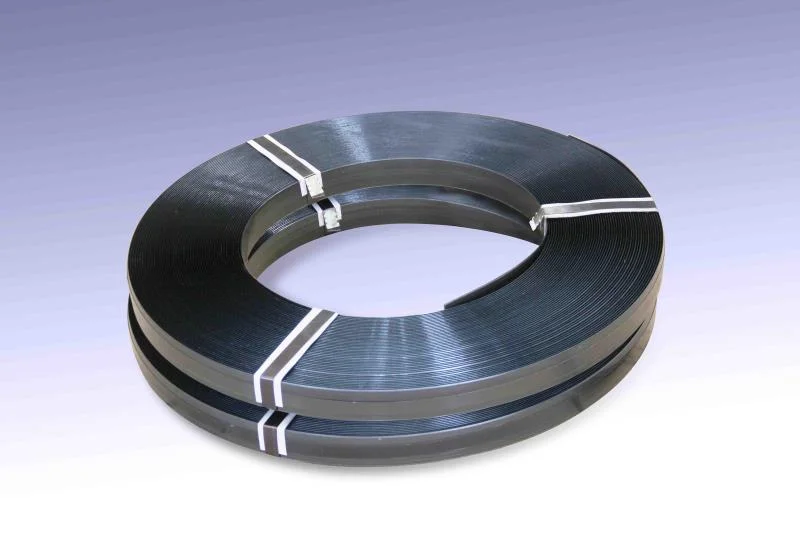

click die cutting blade die steel rule and leather rule die steel for shoe

PRODUCT DETAIL
Type:Cutting blade;Selling Units:Single item;
Single gross weight:20.0 KG;Package Preview:;
Single package size:80X60X72 cm;Packing:Wooden Case;
Material:Carbon Steel;Model Number:2pt3pt;
Place of Origin:China;Packaging Detail:Boxes on pallet;
Brand Name:Promega;Usage:Leather shoe or cloth cutting;

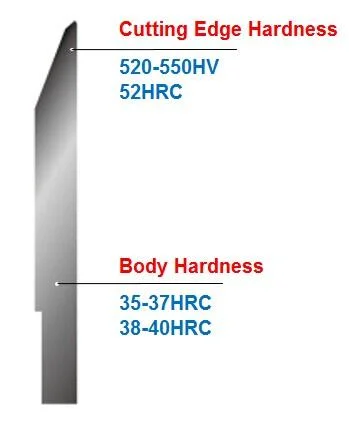

Hardness:Edge HV0.2 500-650;body 31-42HRC;







No Spec. Model Body Edge tip

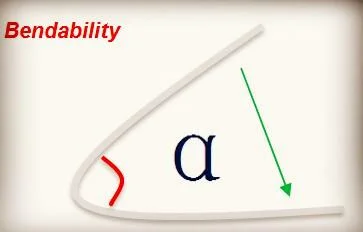

Hardness/HRC Bendabili(°) HRC
1 2
1 5040 TEG 36~38 70 80 50~54
2 5030 BE/TE/TEG 36~38 50 65 50~54
3 5025 BE/TE/TEG 36~38 35 50 50~54
4 4335 BE 37~39 70 80 50~54
5 4330 BE 36~38 50 65 50~54
6 4325 BE 36~38 35 50 50~54
7 4040 BE 36~38 70 80 50~54
8 4030 BE 36~38 50 65 50~54
9 4025 BE 36~38 35 50 50~54
10 3640 BE 36~38 70 80 50~54
11 3635 BE 37~39 70 80 50~54
12 3630 PA 39~41 65 80 50~54
13 3630 PE 39~41 50 65 50~54
14 3630 BE/AE 36~38 50 65 50~54
15 3627 BE 37~39 40 55 50~54
16 3625 AE/BE 36~38 35 50 50~54
17 3625 Extra hard 37~39 40 55 50~54
18 3240 BE 36~38 70 80 50~54
19 3235 BE 37~39 70 80 50~54
20 3230 BE/TEG 36~38 50 65 50~54
21 3227 BE 36~38 40 55 50~54
22 3225 BE/TE/TEG 36~38 35 50 50~54
23 3225 BD/AE 36~38 35 50 50~54
24 3220
BE/TE/BD
/AE/TEG
 36~38 25 40 50~54
25 3030 BE 36~38 50 65 50~54
26 3025 BE/BD 36~38 35 50 50~54
27 3020 BE/BD 36~38 25 40 50~54
28 2020 BE/BD 36~38 25 40 50~54
29 1930 BE 36~38 50 65 50~54


 Highlights of Rule Die Steel:

  • Combination of perfect bendability & excellent hardness

  • High-frequency treated cutting edge ensures itself with extra-long duration life

  • Sharp and clean finish of cutting edge accomplished by fine grinding process

  • A mirror like finish of back edge

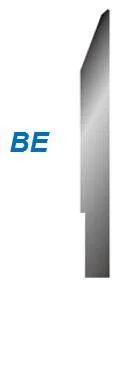

Type      Profile            Size ( height x thickness, mm) Application ( applicable to cut materials as bellow)















  •
