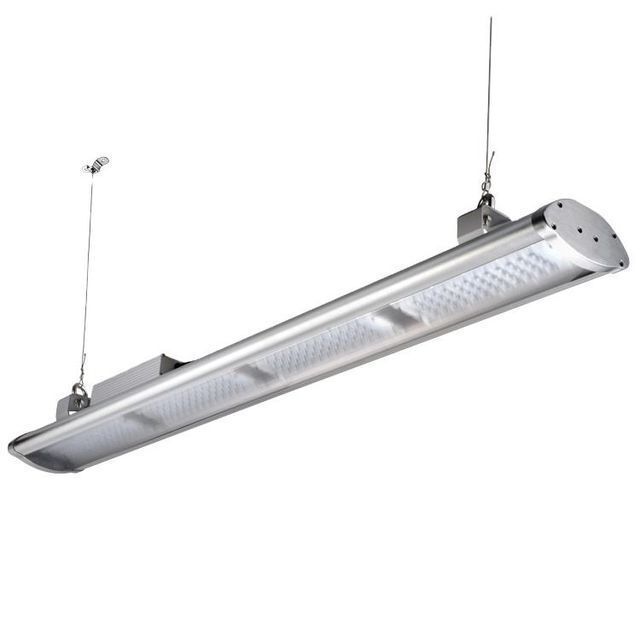

led 200W high bay light UGR19 waterproof workshop lighting Dali dimmable 150W warehouse use linear highbay led lights
- $68.00 / >=10 pieces
- 10 pieces
- Shenzhen Abest Lighting Co., Ltd.
- Guangdong, China
- Ms Betty Qin
PRODUCT DETAIL
| Luminous Efficiency: | 140-160lm/w; | Working Time (hours): | 50000; |
| Warranty(Year): | 5-Year; | Place of Origin: | Guangdong, China; |
| Model Number: | A2105-1200-80W-xx; | IP Rating: | IP65; |
| CRI (Ra>): | 80; | LED Light Source: | SMD2835; |
| IP Grade: | IP65 Wateproof; | Product Name: | 200w Linear LED High Bay; |
| Package Preview: | ; | Lighting solutions service: | Lighting and circuitry design,DIALux evo layout,auto CAD layout; |
| Color Rendering Index(Ra): | 80; | Single gross weight: | 7.000 KG; |
| Application: | Warehouse garage; | Lamp Luminous Flux(lm): | 26000; |
| Single package size: | 160X26X28 cm; | Certification: | ce,C-tick,EMC,ETL,FCC,LVD,RoHS,Saa,UL; |
| Brand Name: | OEM; | Lifespan (hours): | 50000; |
| Lamp Luminous Efficiency(lm/w): | 160; | Function: | 1-10V+Dali+Emergency Battery + Motion Sensor; |
| Power Factor: | PF>0.95; | Working Temperature(℃): | -25 - 45; |
| Selling Units: | Single item; | Packaging Detail: | Qty/Ctn: 2pcs, Ctn GW: 7kgs, Ctn Size: 160*26*28cm; |
| Color Temperature(CCT): | 2700K-6500K,3000-6500K soft white; | Support Dimmer: | yes; |
| Power: | 60w/80w/100w/120w/150w/200w/250w; | Working Lifetime(Hour): | 50000; |
| Installation: | Suspended; | Input Voltage(V): | AC100-277V / AC200-240V; |
| Light Source: | LED; | Lamp Body Material: | Aluminum Alloy; |
| Beam angle: | 120 Degree; |
222
Type | LED Linear Low Bay |

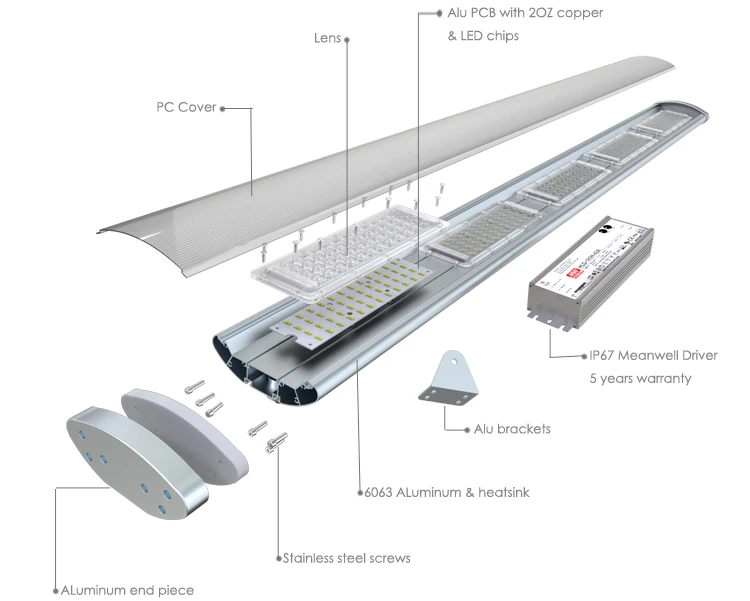

Material | Aluminium Body+ Optical Lens +PC Milky Cover |
Driver | Meanwell ELG Driver, flicker-free, PF>0.95 |
Voltage | 200-240VAC |
UGR | <19 |
Chip type | LM80 / SMD 2835 |
Efficacy | 160lm/W±8% |
CCT | 3000K, 4000K,5000K,6000K |
Ra | >80 |
Beam angle | 60° / 90° / 120° |
IP / IK Grade | IP65 / IK10 |
Installation | Suspended or Ceiling-mounted |
Working temp. | -20 ~ +50℃ |
Certificates | ENEC,SAA,TUV, UL, CE, RoHS |
Warranty | 5 years |

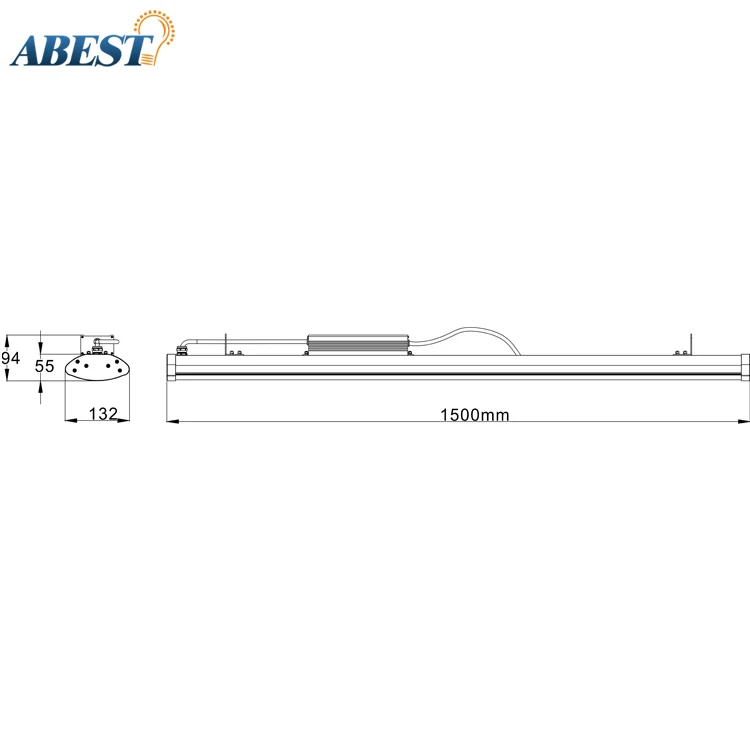

Data Sheet
More Specification for Option:
1+ Driver: Meanwell (standard), or other brand according to your required
2 Input Voltage: AC200-240V, AC100-277V 50/60Hz
3 Light Effeciency: 120 Lm/W, 140Lm/W, 160Lm/W
3 Color Temperature: Warm white, Pure White, Cool White (3000~6500K CCT range)
3 Installation type: Suspended, Ceilling mounted, Wall mounted adjustable
4 Length: 0.6M/2ft, 0.9M/3ft, 1.2M/4ft, 1.5M/5ft
5 Functions: 1-10V | Dali | Microwave motion sensor | Emergency | Zigbee
8 Power: 50 Watt, 60 Watt, 80 Watt, 100 Watt, 120 Watt, 150 Watt, 200 Watt, 250 Watt
More Data as below
Product Length | 0.6M / 2ft | 0.9M / 3ft | 1.2M / 4ft | 1.5M / 5ft |
Power | 50/ 60 / 80 Watt | 80 / 100 / 120 Watt | 80/100/120/150 Watt | 100/120/150/200/250 Watt |
Luminous | 8400~1200 lm | 12000~17000 lm | 12000~21000 lm | 14000~35000 lm |
Input Voltage | AC200~240V | AC200~240V | AC200~240V | AC200~240V |
UGR | <19 | <19 | <19 | <19 |
Ra | >80 | >80 | >80 | >80 |
Warranty | 5-Year | 5-Year | 5-Year | 5-Year |
Function Optional
More functions for optional, as below
1.Microwave motion sensor: built-in daylight sensor
2.Dimmable: 1-10V dimming and Dali dimming
3.Emergency : Integrated bettery pack, 1~3hrs, 10~30 watt available
4.Zigbee: wifi / bluetooth or with motion sensor
Products Description
333

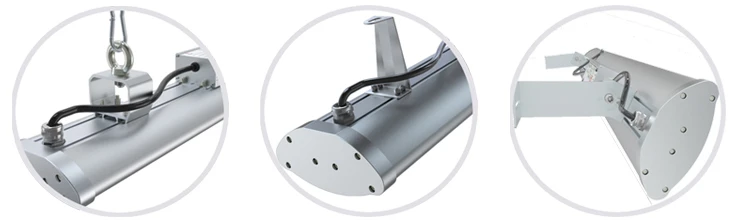

Details Images
Widely applied in
Plant workshop, garages, food processing industry, Airport, Auto Dealership, Education, Healthcare, Distribution, Gymnasiums, Industrial & Warehouse, Recreation & Public Venues.
