low voltage TTD Series 201FJ wire insulated piercing connectors
- $1.50 / >=10 pieces
- 10 pieces
- Wuxi Futao Import And Export Co., Ltd.
- Jiangsu, China
- Mr Edward zhu
| Main line: | 35-95 mm2; | Branch line: | 25-95 mm2; |
| Lining material: | Plastic; | Jacket: | PE; |
| Conductor Material: | Copper; | Model Number: | TTD 201FJ,TTD 201FJ; |
| Number of Conductors: | 2 core; | Type: | Wire piercing connectors; |
| Insulation Material: | PE; | Packaging Detail: | Carton, pallet or container; |
| Blade: | Aluminum, copper or brass; | Port: | shanghai; |
| Supply Ability: | 100000 Pieces per Month; | Place of Origin: | Jiangsu, China; |
| Payment Terms: | L/C,T/T; | Application: | 35-95/25-95 mm2; |
| Shell material: | PA66; |

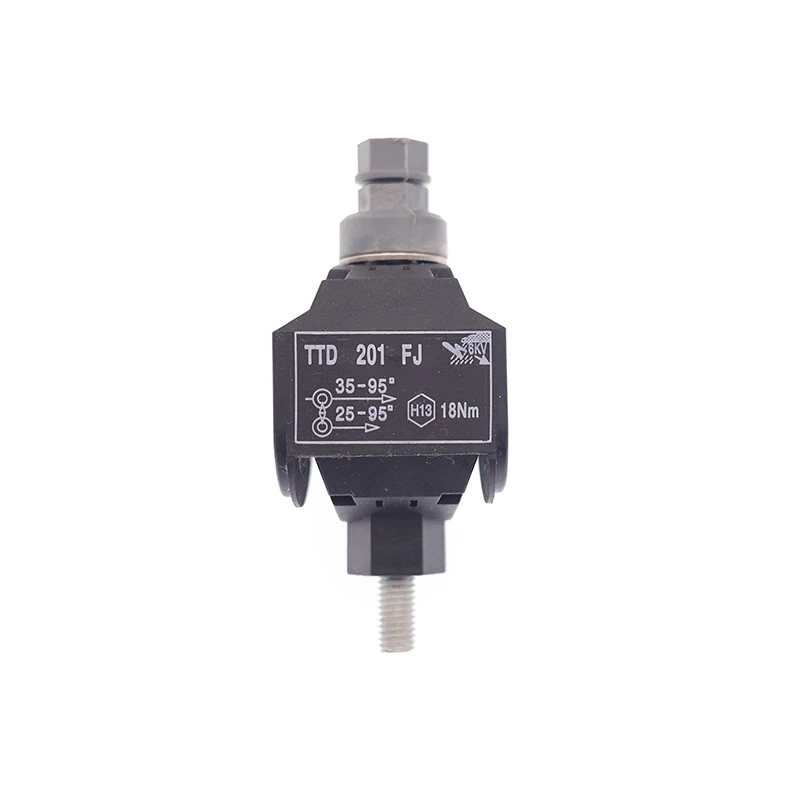

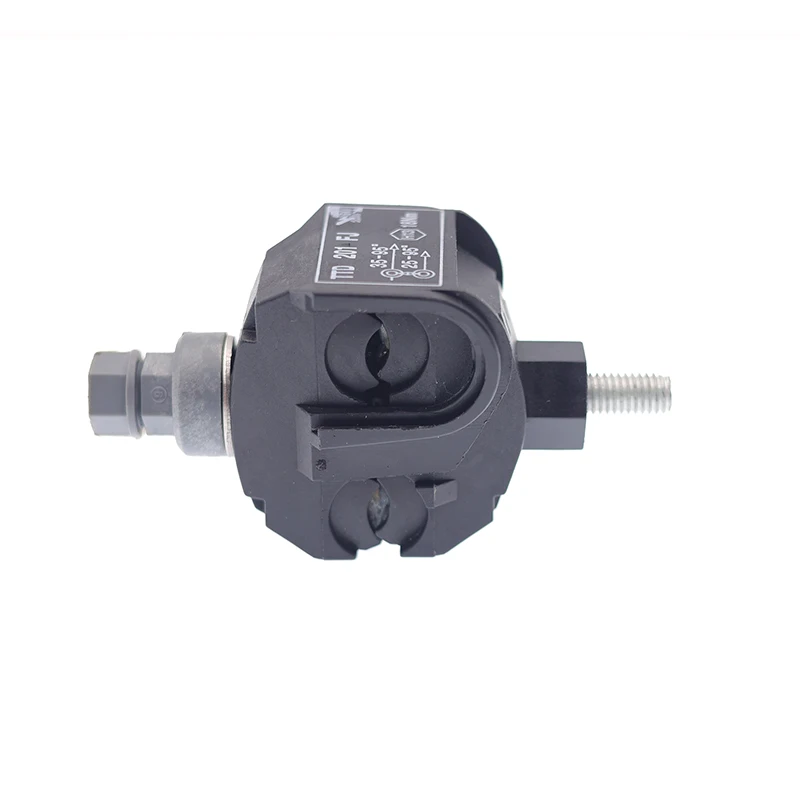

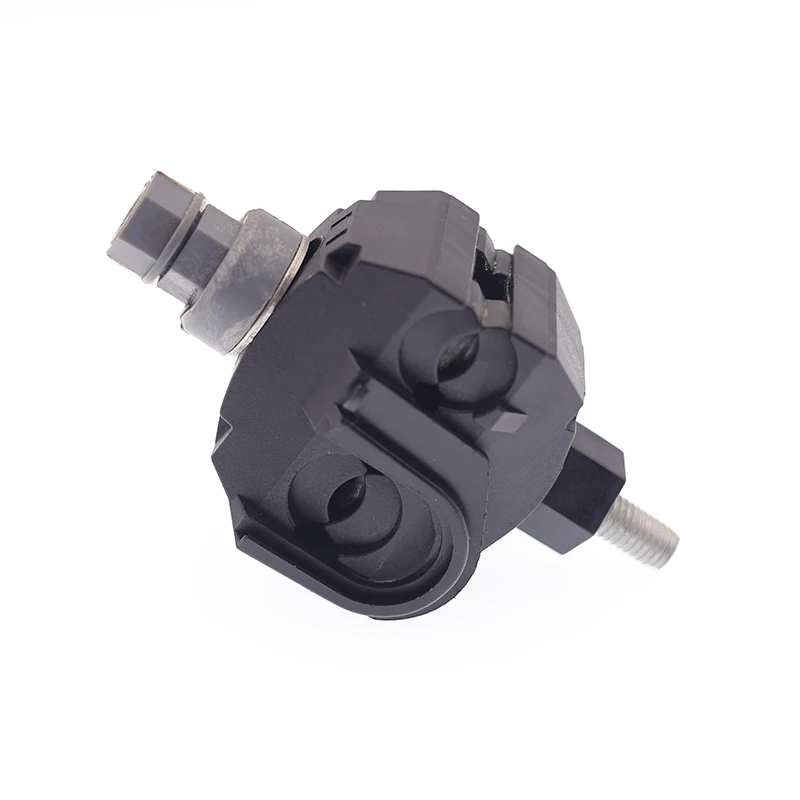

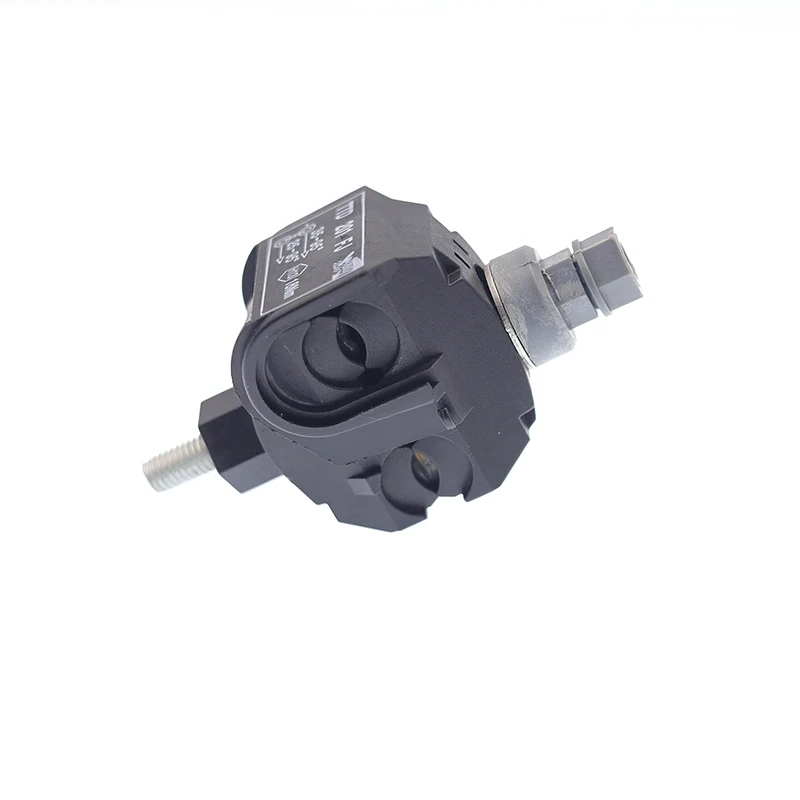

low voltage TTD Series 201FJ wire insulated piercing connectors
Description:The TTD Series 201FJ is used for all connections of insulated aluminum and copper main and branch conductors up to 1KV. The Design enables hot line installation.Equipped with shear head screw.
Technical specification
|
Type |
Main Line (mm2) |
Branch Line (mm2) |
Max Current |
Bolt Size |
Torque Nut |
|
|
Quantity |
H(mm) |
|||||
|
TTD041 |
6-35 |
1.5-10 |
86 |
1*M8 |
13 |
F1309 |
|
TTD051 |
16-95 |
1.5-10 |
86 |
1*M8 |
13 |
F1309 |
|
TTD101 |
6-50 |
2.5-35 |
200 |
1*M8 |
13 |
F1314 |
|
TTD151 |
25-95 |
2.5-35 |
200 |
1*M8 |
13 |
F1314 |
|
TTD201 |
35-95 |
25-95 |
377 |
1*M8 |
13 |
F1318 |
|
TTD251 |
50-150 |
25-95 |
377 |
1*M8 |
13 |
F1318 |
|
TTD271 |
35-120 |
35-120 |
377 |
1*M8 |
13 |
F1318 |
|
TTD281 |
50-185 |
2.5-35 |
200 |
1*M8 |
13 |
F1314 |
|
TTD401 |
50-185 |
50-150 |
504 |
2*M8 |
13 |
F1318 |
|
TTD431 |
70-240 |
16-95 |
377 |
2*M10 |
17 |
F1720 |
|
TTD441 |
95-240 |
50-150 |
504 |
2*M10 |
17 |
F1725 |
|
TTD451 |
95-240 |
95-240 |
530 |
2*M10 |
17 |
F1725 |
|
TTD551 |
120-400 |
95-240 |
679 |
2*M10 |
17 |
F1737 |

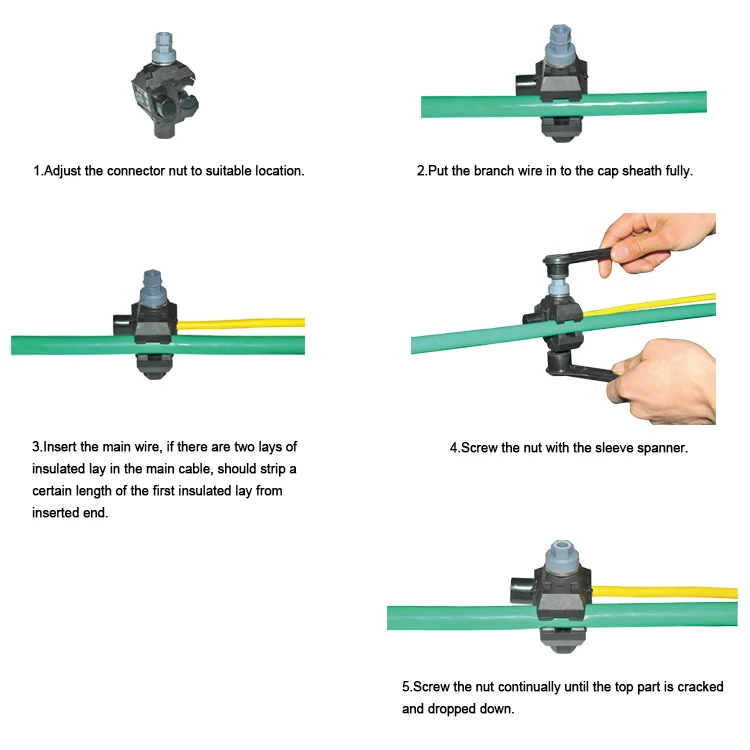

Installation
We will choose the most suitable express if your time is urgent or goods not so heavy.
We will ship goods by sea or by air if goods are heavy and deliver time is enough.
We will ship goods to your warehouse if you have your own freight company.
