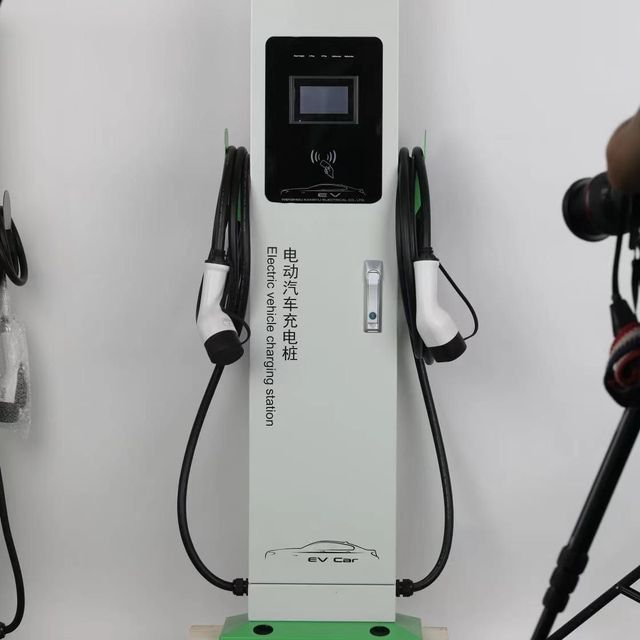

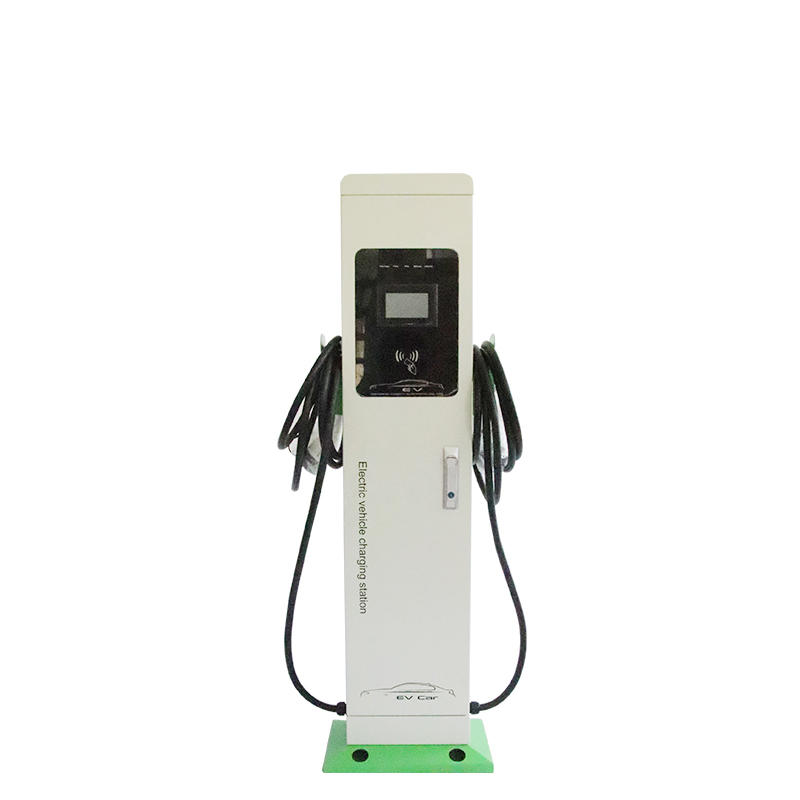

ocpp commercial electric charger car station ev charging 55 inch screen 22kw single phase app electric vehicle charger 11kw type 2 ev
- $999.00 / 1 - 49 pieces
$950.00 / 50 - 199 pieces
$900.00 / >=200 pieces - 1 piece
- Chongqing King Fit Technology Co., Ltd.
- Chongqing, China
- Ms Presillia Pan
PRODUCT DETAIL
| Start method: | RFID Card + Phone App | application: | AC commercial charging |
| model: | KF-ACFA22/44 | Charges: | IEC 62196 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | current: | Maximum 64A |
| Warranty: | 2 years | Origin: | Zhejiang, China |
| port: | Ningbo | Protect: | IP54 |
| Rated output power: | 22,44 kW | Supply capacity: | 3000 pieces per month |
| product name: | AC Floor Mounted EV Charger | Certificate: | CE certification |
| brand: | king size fit | cable length: | 3.5M (can be customized) |

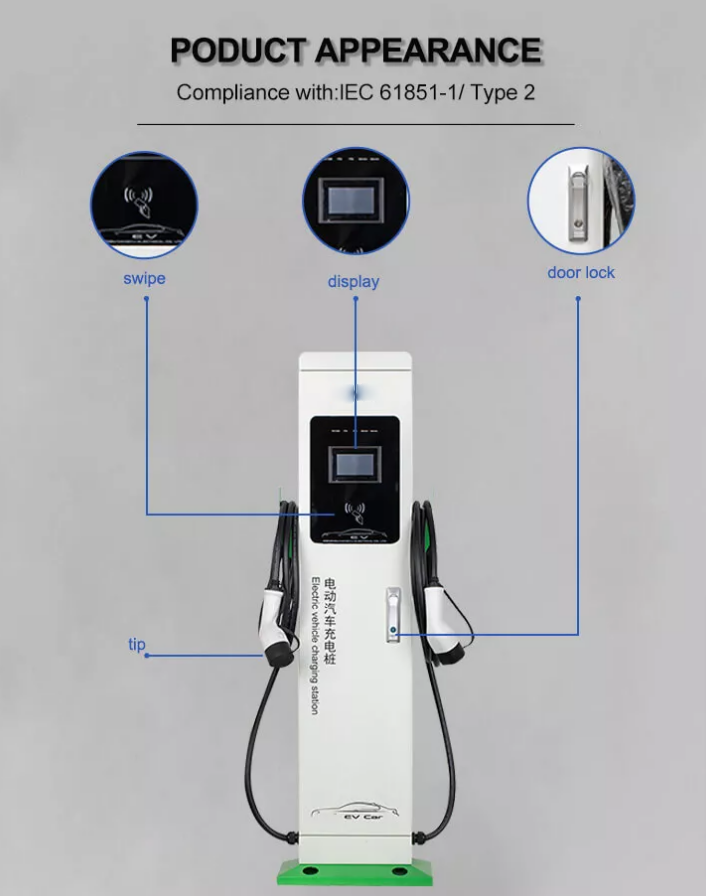

Product overview
product specification
Enter rated value | ||
Input voltage | AC380V±20% | |
input frequency | 50±10% Hz | |
output rating | ||
The output voltage | AC220V±20% | |
Maximum output current | 6A/32A | |
detail | ||
User Interface | 4.3 inches touch screen | |
Install | Floor type | |
routing method | down | |
cable length | 3.5m (support customization) | |
Electrical indicators | ||
measurement accuracy | Level 0.5 | |
Electrical indicators | ≥11 | |
Current limiting protection value | ≥110% | |
feature | ||
charging method | Automatic full/constant power/quantitative/constant time | |

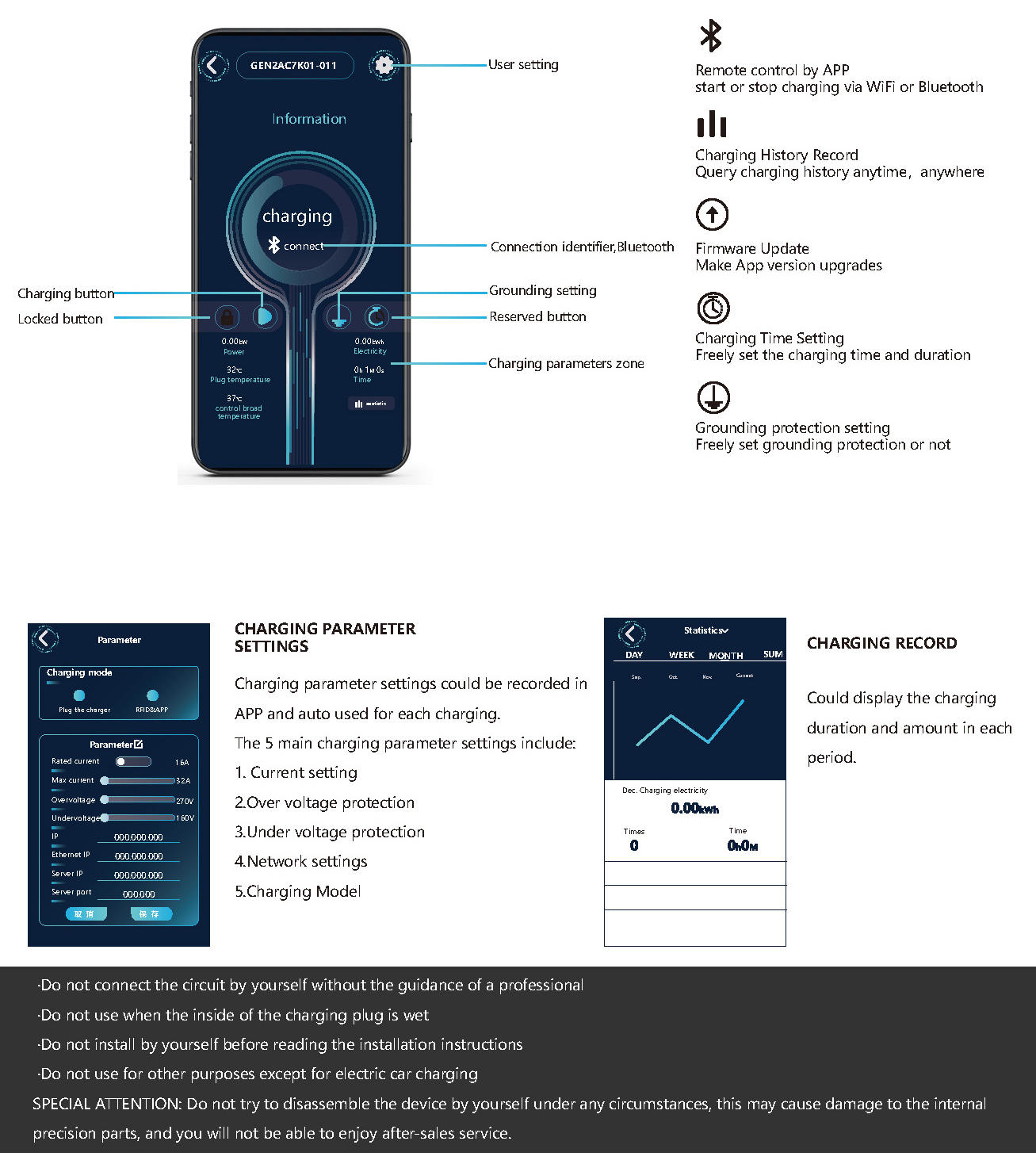

payment method | APP payment/credit card payment/scan code payment | |
security design | ||
security function | Overvoltage/undervoltage protection, overvoltage/underfrequency protection, overvoltage/undertemperature protection, overcurrent protection, leakage protection, grounding protection | |
Environmental indicators | ||
Operating temperature | -25℃~+50℃ | |
Working humidity | 5%~95% non-condensing | |
working altitude | <2000 meters | |
degree of protection | IP54 rating | |
cooling method | Forced air cooling | |
noise control | ≤60dB | |
MTBF | 100,000 hours | |
Double gun three phase 400a 630a ce dc commercial type 1 50kw 2*22kw ev new energy type 1 22kw 60kw fast charging chademo ccs model 3 charging pile ev charging station DC charging commercial operation
