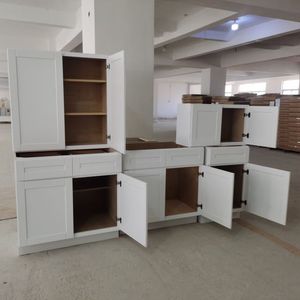

white shaker kitchen cabinets factory wood cabinet designs
- $35.00 / >=20 sets
- 20 sets
- Fuzhou Cabinext Furniture Manufacture Co., Ltd.
- Fujian, China
- Mr Alice
| Place of origin: | Fujian China | Package preview: | |
| Supply capacity: | 30,000 packs per month | Material: | wood, wood |
| port: | Fuzhou/Xiamen/Balang | Wood style: | solid wood |
| brand: | Processing | style: | modern |
| appearance: | modern | Selection of color: | Customized accepted |
| hardware: | DTC soft off | Wood type: | birch |
| Packaging details: | Flat pack with necessary accessories | Door style: | Customized accepted |
| Certification: | ISO9000 | payment terms: | L/C, D/A, D/A, wire transfer |
| model: | shaker | Mail packaging: | nitrogen |
| type: | kitchen cabinets | Place: | Fuzhou, China |
Face frame kitchen cabinet information:
|
Ccomponents |
feature |
|
Door |
Solid Russian birch, raised panel or shaker style, depending on your needs. Mortise and tenon connection. |
|
face frames |
Unless otherwise noted, 3/4" thick solid wood face frame with 1-1/2" wide jambs and rails. The frame uses blind tenon connections. |
|
top, bottom and sides |
1/2" thick 7-ply plywood with birch veneer sides/top/bottom, pre-painted with a clear UV coating on the interior and finished with a matching UV coating on the exterior. Matching interior options available. |
|
cabinet back panel |
1/4" thick plywood, 3" x 1/2" frame, pre-UV coated interior. Advantage cabinets are available with 1/2" thick backboard. |
|
shelves |
5/8” thick plywood, 1/2 depth, pre-UV coated. Advantage cabinets available in full depth. |
|
drawer box |
5/8” thick solid Russian birch, dovetail joints, 1/4” thick plywood base. |
|
toe kick |
1/2” thick plywood to cover the cabinet sides. |
|
hinge |
1. DTC 4-way hidden hinge. 2. DTC soft-closing 6-way hidden hinge. |
|
slide |
1. 3/4 extension white mounting rail, no soft close 2. Install soft-closed slide rails under full extension of DTC. |
Face frame kitchen cabinet structure:
Frameless kitchen cabinet information
|
Ccomponents |
feature |
|
Door |
Solid Russian birch, raised panel or shaker style, depending on your needs. Mortise and tenon connection. |
|
top, bottom and sides |
3/4" thick plywood with birch veneer sides/top/bottom, pre-painted with a clear UV coating on the interior and painted with a matching UV coating on the exterior. Matching interior options available. |
|
cabinet back panel |
1/4" thick plywood with UV coating pre-finished interior. Advantage cabinets available with 1/2" thick backing. |
|
shelves |
3/4” thick plywood, 3/4 depth, pre-UV coated. Advantage cabinets available in full depth. |
|
drawer box |
5/8” thick solid Russian birch, dovetail joints, 1/4” thick plywood base. |
|
hinge |
1. DTC 4-way hidden hinge. 2. DTC soft-closing 6-way hidden hinge. |
|
slide |
1. DTC fully extended side installation slide, no soft closing 2. Install soft-closed slide rails under full extension of DTC. |
Frameless kitchen cabinet structure:

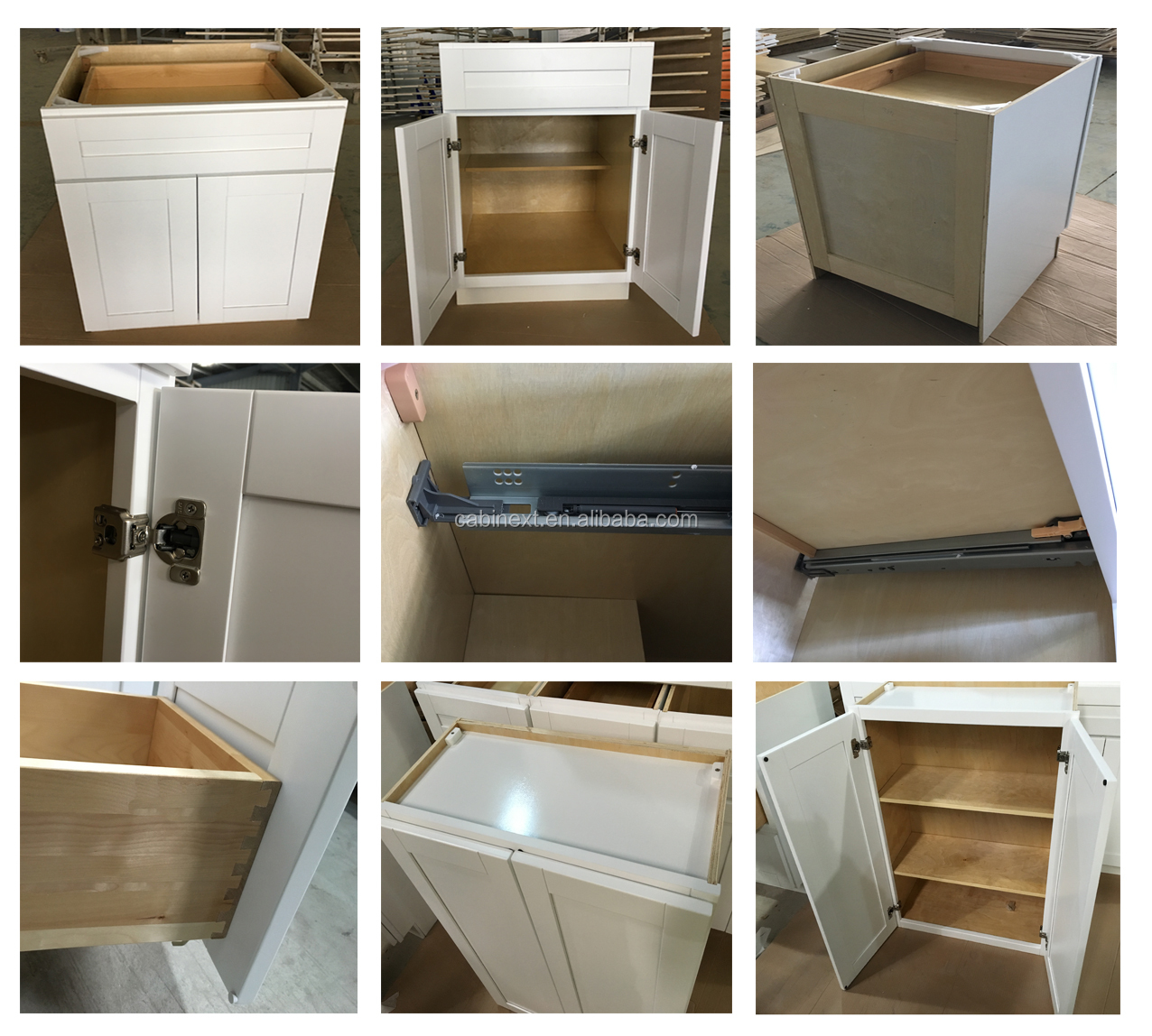

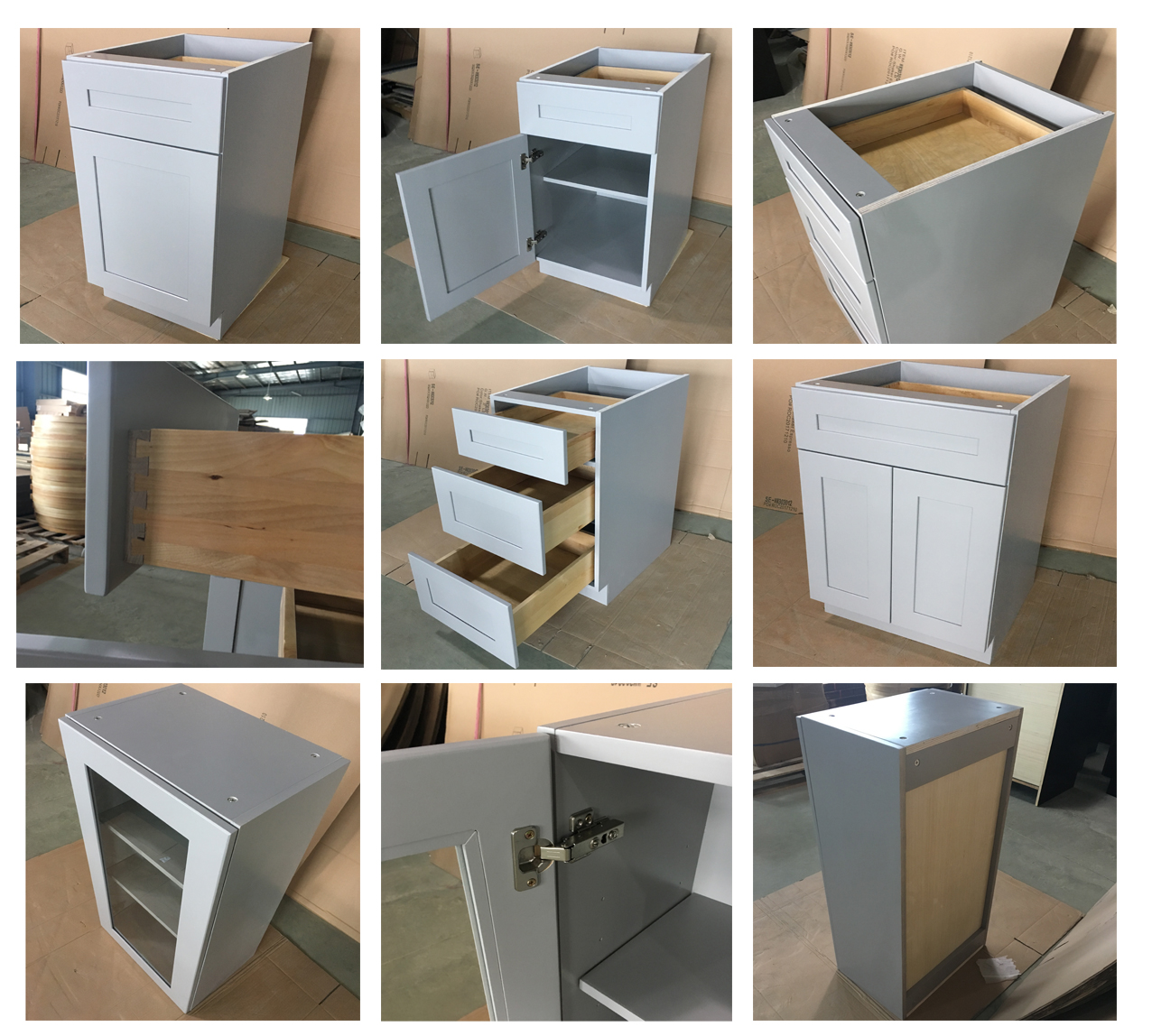

detailed picture:
Optional doors:
Completion options:
— Provide OEM/ODM services
— Professional salesperson service to answer your questions
— Prompt reply within 24 hours
— Provide free samples
— Excellent quality control system
