API Standard Oil Well Cementing Tool Centralizer
- $15.00 / >=100 pieces
- 100 pieces
- Puyang Zhongshi Group Co., Ltd.
- Henan, China
- Mr Allan Lee
| application: | Casing Cementing | color: | Black |
| Advantage: | reliable | Applicable industries: | Energy and Mining |

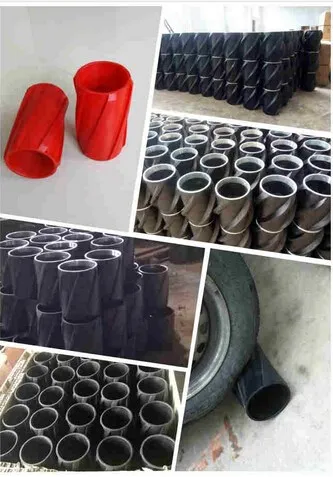

| Core Components Warranty: | 1 year | product name: | Composite Rigid Centralizer |
| type: | centralizer | port: | Shanghai/Tianjin/Qingdao |
| payment terms: | L/C,Western Union,T/T,MoneyGram | Pay: | ton/ton |
| Mechanical test report: | if | Showroom location: | not any |
| Supply capacity: | 20000 pieces per month | brand: | Puyang Zhongshi |
| Health status: | new | Warranty: | 1 year |
| Marketing Type: | Hot Products of 2019 | Applicable housing: | 3.5"---20" |

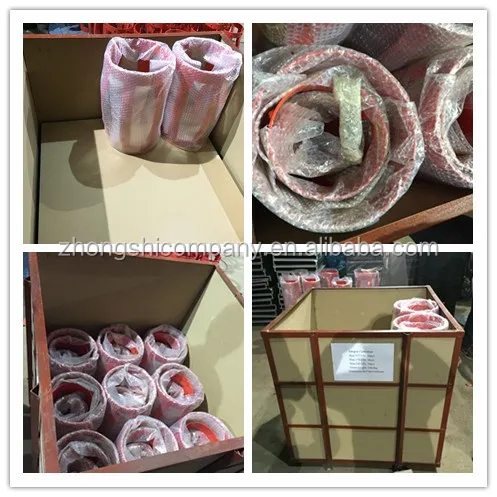

| Packaging Details: | Seaworthy case or wooden case or as your request. | Video external inspection: | if |
| Package: | wooden box | standard: | API 10D |
| After Warranty Service: | Online support | Material: | PA66/Aluminum |
| Core components: | Zhengtangzhuang |
Casing centralizers can be applied directly to the casing to form stabilizers for drilling with casing or liners in vertical and directional wells
With nearly 13 years of experience in the design, manufacture and continuous improvement of non-welded centralizers, we offer non-welded bow spring centralizers designed and manufactured to API Specification 10 D.
Popular styles are non-welded single bow spring centralizers and double bow spring centralizers with reliable quality.
2. Features:
1. Our latest design features make it ideal for tubing and casing applications:
2. The non-welded design eliminates any weak links.
3. Tapered pin to hold the bow and hinge in the collar
4. High-quality, super-strong spring steel bows and specially designed collar hinges provide reliable downhole performance.
5. The whole casing centralizer has no rivets and no welding.

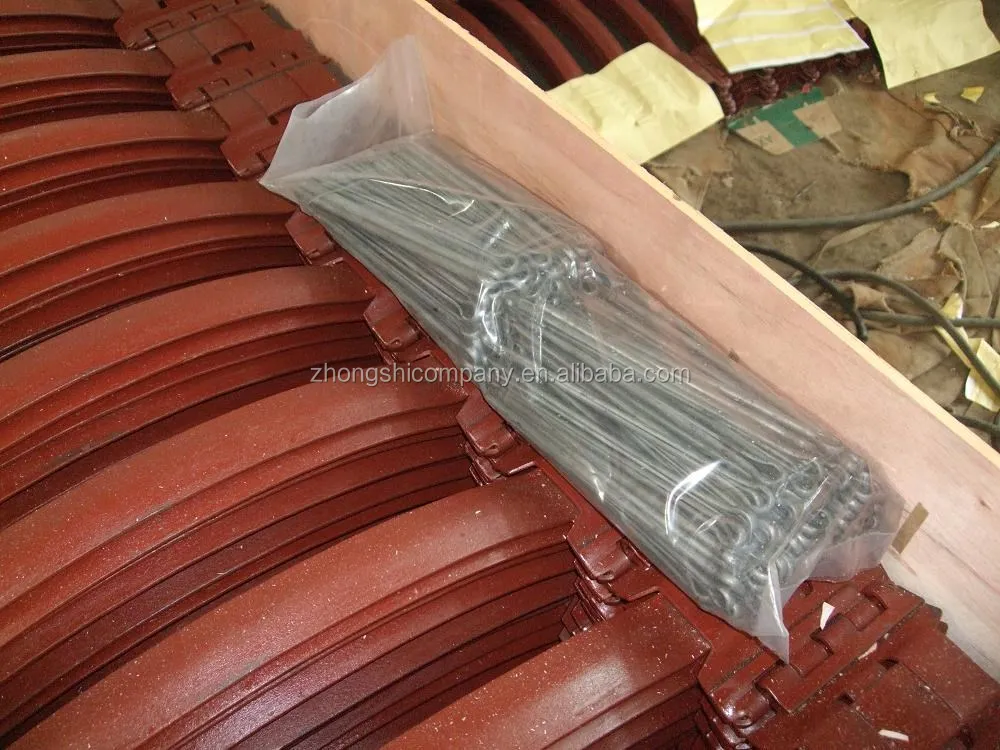

6. The whole casing centralizer is composed of three parts: spring, hinge and conical pin.
7. Easy to install and transport
8. Comply with API standards
3. Technical parameters:
|
Specification |
Inner diameter (mm) |
wall thickness (mm) |
Height(mm) |
Overall height (mm) |
Maximum diameter (mm) |
Number of springs |
|
5-1/2”*8-1/2” |
142-148 |
3-5 |
55 |
650 |
225 |
5 |
|
7”*9-5/8” |
181-186 |
3-5 |
55 |
650 |
255 |
6 |
|
7”*8-1/2” |
181-186 |
3-5 |
55 |
650 |
235 |
6 |
|
8-5/8”*12-1/4” |
223-228 |
3-5 |
55 |
650 |
330 |
8 |
|
9-5/8”*12-1/4” |
250-255 |
3-5 |
55 |
650 |
330 |
8 |
|
10-3/4”*12-1/4” |
274-276 |
3-5 |
55 |
650 |
330 |
9 |
|
13-3/8”*17-1/2” |
342-347 |
3-5 |
55 |
650 |
450 |
11 |
|
18-5/8”*24 |
476 |
3-5 |
55 |
600 |
610 |
12 |
|
20”*26 |
510 |
3-5 |
55 |
600 |
660 |
12 |
