API oil field aluminum spiral blade centralizer
- $120.00 / 5 - 9 pieces
$100.00 / 10 - 99 pieces
$70.00 / >=100 pieces - 5 pieces
- DEDICATED IMPEX COMPANY
- PUNJAB, China
- Mr Nitin Nath Mittal
PRODUCT DETAIL
| Material: | aluminum | Packaging details: | Standard export packaging, plywood boxes or as per customer requirements |
| Showroom location: | not any | brand: | DIC Oil & Gas Tools |
| Health status: | new | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal |
| type: | Casing Centralizer | Marketing type: | normal product |
| Video outbound inspection: | if | Applicable industries: | Energy & Mining, Oil & Gas Industry |
| Core component warranty: | 1 year | Supply capacity: | 1,000,000 pieces per month |
| model: | Rotating centralizer 34 | Core components: | custom |
| port: | China | Warranty: | 6 months |
| Mechanical test report: | if |
Product Description

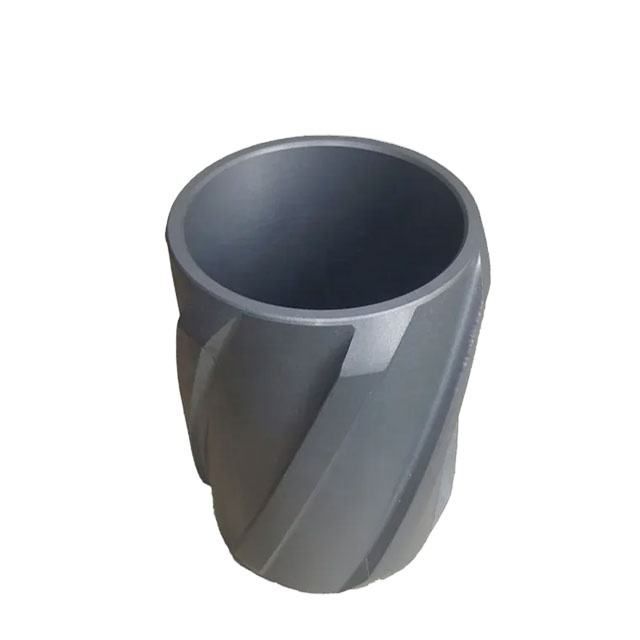

Aluminum Spiral Blade Centralizer:-
Aluminum rotating helical blade centralizers are unique and purpose-built centralizers due to their design. These centralizers are designed to run casing in unusually irregular wellbores, guide the casing and provide maximum flexibility to the casing string. These centralizers are not fixed to the housing. It rotates up and down by using a stop ring. It works somewhat like a bearing, greatly reducing the torque required to rotate the housing.
All centralizers are stored painted or polyester powder coated.
They are available in a variety of sizes ranging from 3 1/2" to 20" to fit any hole combination. Any special sizes are available upon request.

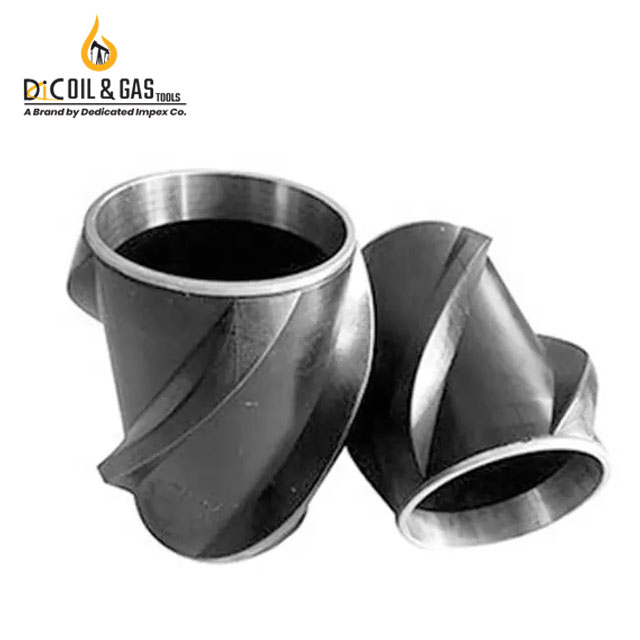

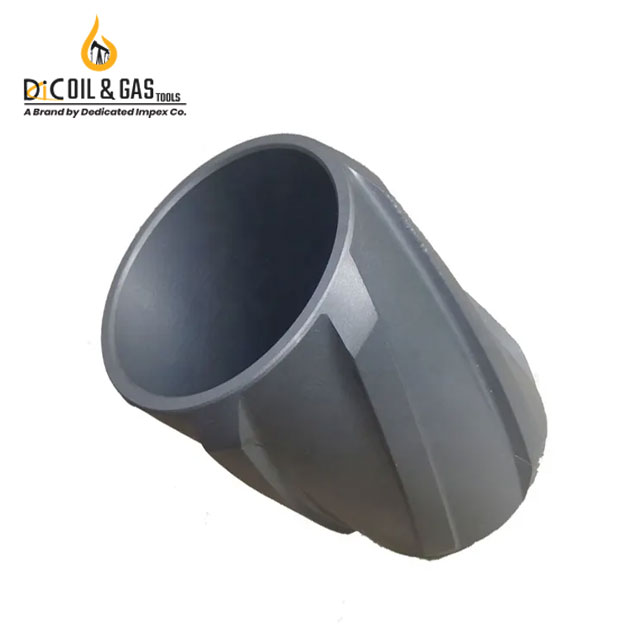

detailed image
Technical specifications
Specification | outside Diameter (mm) | Inner diameter (mm) | Height (mm) | rib cage |
4 1/2"×6" | 145 | 117 | 200 | 4 |
5”×6” | 145 | 129 | 200 | 4 |
5 1/2"× 8 1/2" | 210 | 142 | 200/300 | 5 |
6 5/8"×8 1/2" | 210 | 171 | 200/300 | 5 |
7"×8 1/2" | 210 | 181 | 200/300 | 5 |
7 inches by 9 1/2 inches | 235 | 181 | 200/300 | 5 |
9 5/8"×12 1/4" | 305 | 248 | 200/300 | 6 |
10 3/4"×14 3/4" | 370 | 278 | 200/300 | 8 |
13 3/8"×17 1/2" | Chapter 435 | Chapter 345 | 200/300 | 8 |
