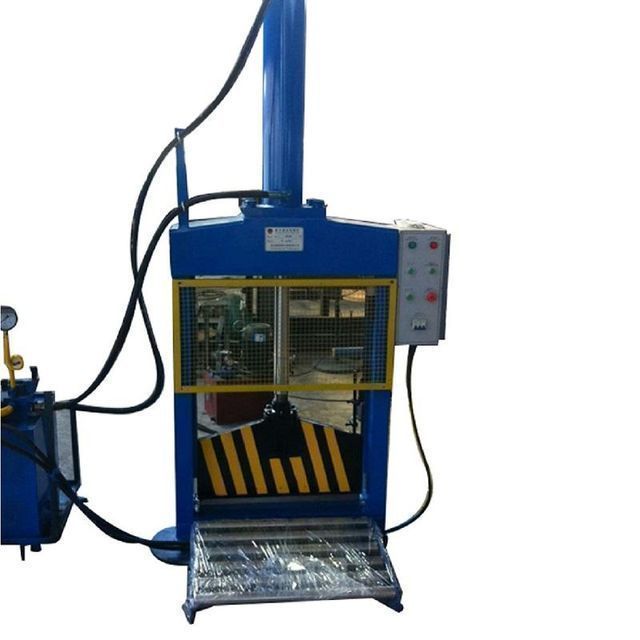

Competitive price of vertical hydraulic single knife rubber baler
- $2000.00 / 1 - 2 sets
$1700.00 / >=3 sets - 1 set
- Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd.
- Shandong, China
- Mr Jake Chen
PRODUCT DETAIL
| Weight (kg): | 1500kg | Rated cutting force: | 125mm |
| After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Serve: | custom made |
| Cutting stroke: | 780mm | Health status: | new |
| Voltage: | 380V or as your request | model: | XQL-125 |
| Packaging Preview: | Packaging Details: | Wooden packaging can be customized. Key components are wrapped in shock-resistant packaging and then packed in wooden boxes. | |
| Main selling point: | competitive price | port: | Qingdao |
| Power (W): | 5.5KW | history: | More than 20 years in our factory |
| place of origin; place of origin: | Shandong China | HS code: | 84778000 |
| weight: | 1.4-1.6T | Dimensions (L*W*H): | 1950*1400*2400mm |
| Certification: | ISO9001:2008/CE/SGS | Video external inspection: | if |
| type: | Rubber Cutting Machine | Energy source: | hydraulic |
| Power (kW): | 5.5kW | brand: | SFC |
| payment terms: | letter of credit, wire transfer | year: | custom made |
| Warranty: | 18 months | Supply capacity: | 20 sets per month |
| Applicable industries: | Manufacturing plants, mechanical repair shops, retail | method of sales: | factory Outlet |
| Auto grade: | automatic | Core components: | motor, pump |
| Cutting force (T): | 80 tons | Local service location: | Japan, Algeria, Turkey, Russia |
| Mechanical test report: | if | Showroom location: | Colombia, Egypt, India, Russia |
| Core Components Warranty: | 2 years | Cutting stroke (mm): | 680 |
| Marketing Type: | Hot Products of 2019 |
Product Description
1. This machine is mainly used to cut natural rubber, synthetic rubber or other plastic materials into pieces.
2. The machine is a frame structure, the tool is directly installed on the piston rod of the upper cylinder, the structure is simple, and the operation is convenient.
3. High hardness, high precision circular knife cutting, pneumatic feed, pneumatic tailstock (the tailstock has undervoltage protection device);
4. The cutting spindle can be changed and turned to meet the different cutting methods of customers.
5. According to customer needs, increase the feed diameter to ø300mm, increase the drive motor and reducer in the circular knife part, and install the precision linear guide bearing on the knife seat to make the cutting more stable and the edge of the finished product to be more beautiful, especially suitable for cutting large Diameter bubble surface material;
6. The sword-shaped flat knife slitting structure can be added (manual slitting machine slitting function), the blade can be manually pushed for slitting, which is more convenient, and the flat end face can be slit at the same time. Prevent the blade from scratching, the operation is very simple,
7. The slitting length is determined by the hexagonal positioning shaft. Six basic slitting widths can be set, or six basic slitting widths can be set, and various slitting widths can be accurately positioned.
2. The machine is a frame structure, the tool is directly installed on the piston rod of the upper cylinder, the structure is simple, and the operation is convenient.
3. High hardness, high precision circular knife cutting, pneumatic feed, pneumatic tailstock (the tailstock has undervoltage protection device);
4. The cutting spindle can be changed and turned to meet the different cutting methods of customers.
5. According to customer needs, increase the feed diameter to ø300mm, increase the drive motor and reducer in the circular knife part, and install the precision linear guide bearing on the knife seat to make the cutting more stable and the edge of the finished product to be more beautiful, especially suitable for cutting large Diameter bubble surface material;
6. The sword-shaped flat knife slitting structure can be added (manual slitting machine slitting function), the blade can be manually pushed for slitting, which is more convenient, and the flat end face can be slit at the same time. Prevent the blade from scratching, the operation is very simple,
7. The slitting length is determined by the hexagonal positioning shaft. Six basic slitting widths can be set, or six basic slitting widths can be set, and various slitting widths can be accurately positioned.
| type | XQL-80 | XQL-120 | XQL-125 |
| Width(mm) | 660 | 760 | 760 |
| Stroke(mm) | 680 | 680 | 780 |
| Total Cylinder Pressure(KN) | 80 (approx.) | 120 (approx.) | 125 (approx.) |
| Stroke time | 14-16 | 13-16 | 14-16 |
| Power(KW) | 5.5 | 5.5 | 5.5 |
| Outer diameter (LxWxH) (mm) | 1800x600x2450 | 2300x1500x2530 | 2400x1500x2530 |
