Corn soybean particle vibrating grading sieve Red bean grading and screening machine
- $7713.00 / 1 - 4 sets
$7703.00 / 5 - 9 sets
$7693.00 / >=10 sets - 1 set
- Shandong Jiesheng Heavy Industry Machinery Co., Ltd.
- Shanghai, China
- Mr Alan Liu
| Mechanical test report: | if | After-sales service provided: | Video Technical Support |
| Applicable industries: | Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, household, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies | Video outbound inspection: | if |
| Health status: | new | clear: | ≥97% |
| port: | Qingdao Port | Production capacity (kg/hour): | 3000-5000kg/hour |
| screen size: | 2400*1500mm | Core component warranty: | 1 year |
| Local service locations: | not any | Screen layers: | three floors |
| Maximum productivity: | 3000-5000kg/hour | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Energy source: | 380V 50Hz |
| Selectivity: | ≥98% | aspect: | 4640*2350*3560mm |
| Showroom location: | not any | Packaging Details: | wooden box |
| damage rate: | ≤0.2% | Dimensions (L*W*H): | 4640*2350*3560mm |
| brand: | js | Total Weight: | 1950 kg |
| Warranty: | 3 years | Total power: | 10.5 kW |
| Origin: | Shandong Province, China | Marketing Type: | 2020 New Products |
| type: | agricultural machinery | Main selling points: | easy to operate |
| Package preview: | Supply capacity: | 300 cases per day | |
| Core components: | engine, motor |

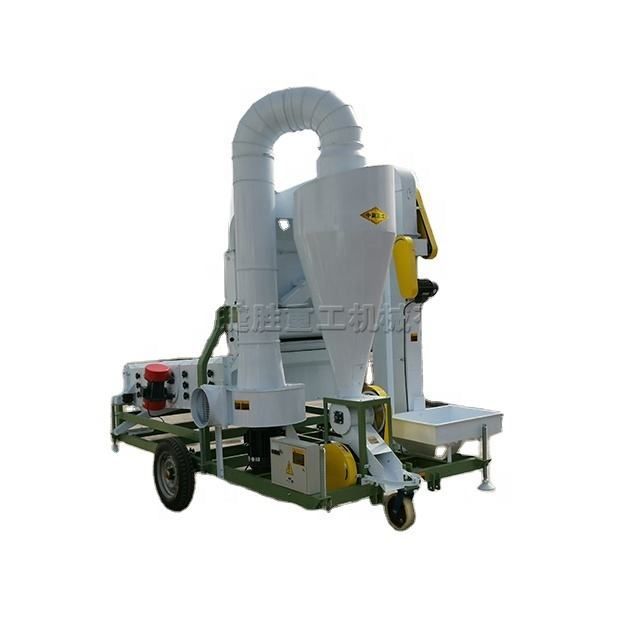

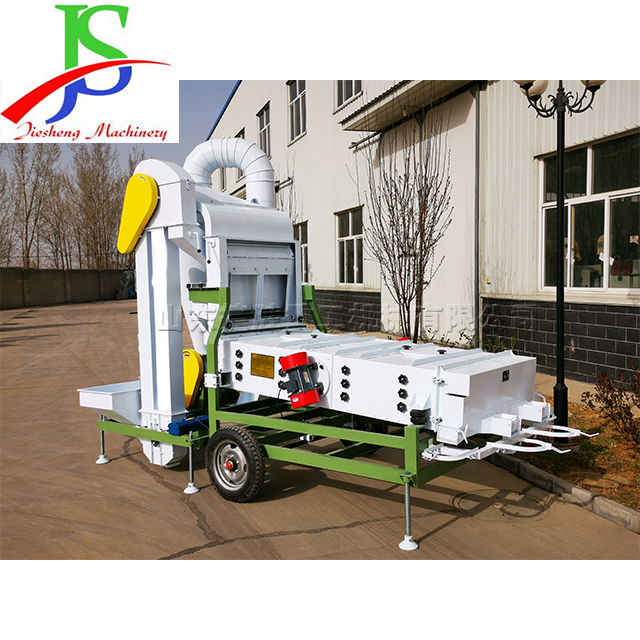

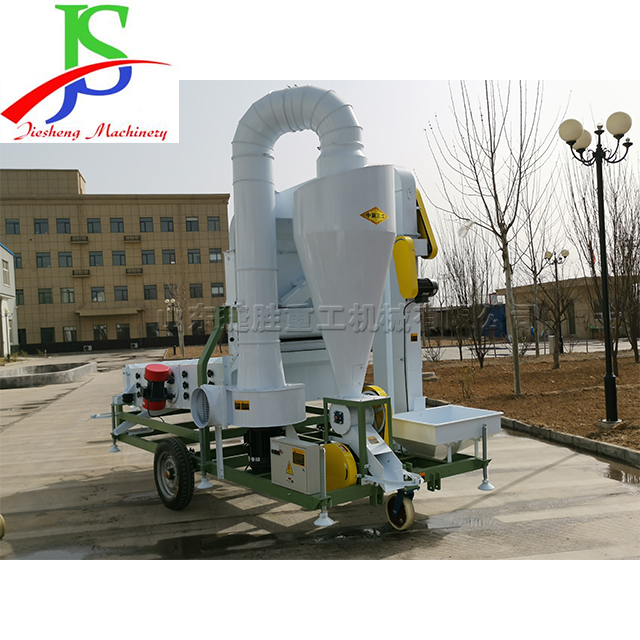

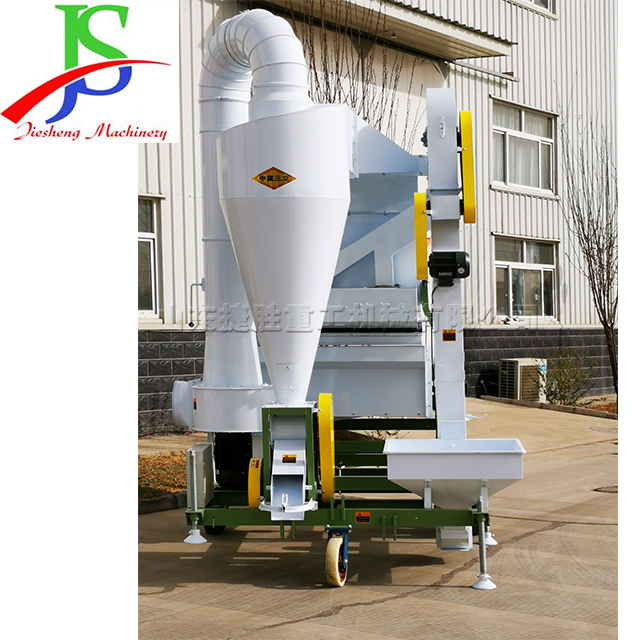

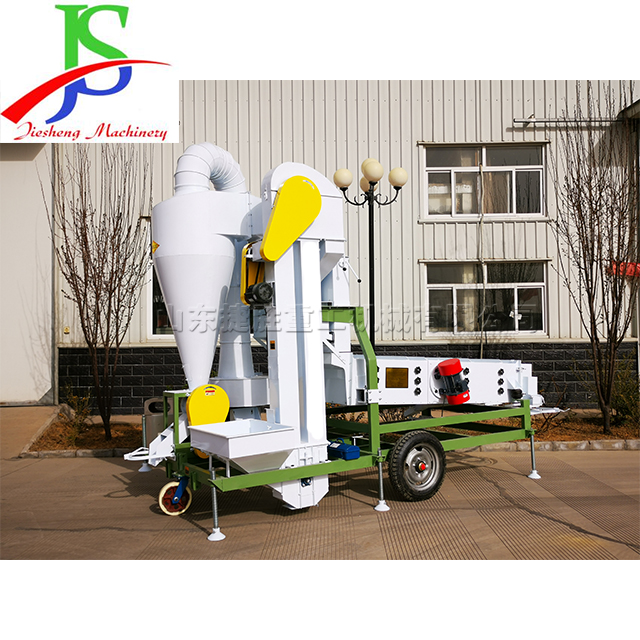

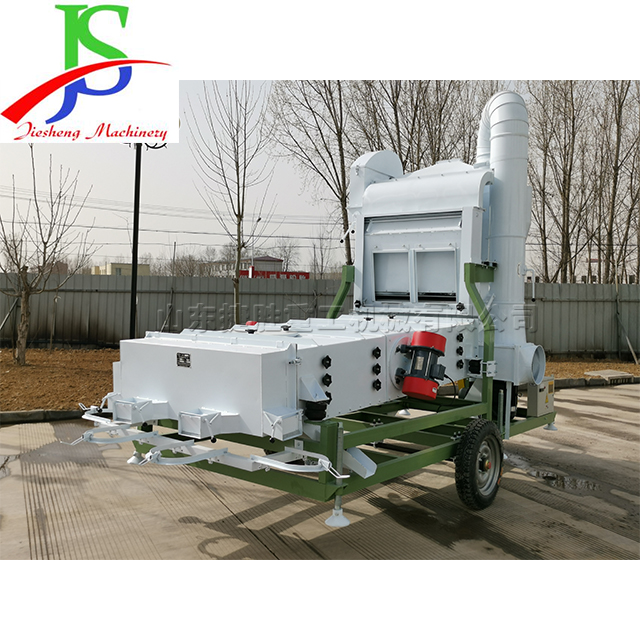

Corn soybean particle vibrating grading sieve Red bean grading and screening machine

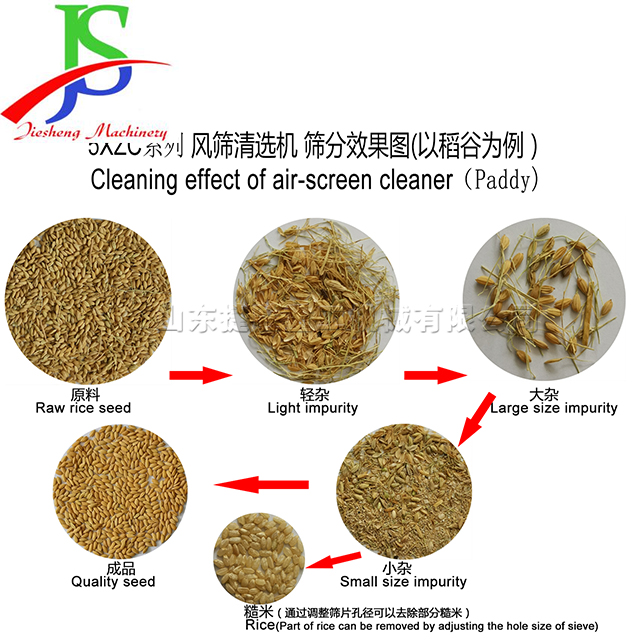

5XZC-15BXA windshield washer is the larger model in our company's washer series. It mainly relies on vertical wind screen and vibrating screen to complete the sorting function. According to the aerodynamic characteristics of the seeds, according to the critical velocity of the seeds and impurities, the purpose of separation is achieved by adjusting the airflow velocity. The lighter impurities are sucked into the dust collector and discharged, and the better seeds are vibrated after passing through the wind screen. Screen. The vibrating screen can discharge large impurities, small impurities and selected seeds separately. The sorting principle of the vibrating screen is determined according to the geometrical size characteristics of the seeds. There are different types and varieties of seeds. If you choose to replace the sieves with different specifications and apertures, you can meet the requirements of sorting and grading.
|
maximum productivity |
3000-5000kg/hour |
|
aspect |
4640*2350*3560 mm |
|
Screen layers |
three floors |
|
screen size |
2400*1500 mm |
|
Total Weight |
1950 kg |
|
energy source |
380V 50Hz |
|
total power |
10.5 kW |
|
selectivity |
≥98% |
|
clear |
≥97% |
|
damage rate |
≤0.2% |
