Hybrid AC/DC Solar Pump with Stainless Steel Impeller 5 Inch Solar Agriculture Water Pump System Maximum Head Lorentz Solar Water Pump Price
- $200.00 /set
- 1 set
- Juancheng County Yibiyuan Water-Saving Equipment Technology Co., Ltd.
- Guangdong, China
- Mr Terry Xiang
PRODUCT DETAIL
| horsepower: | February 5, 2010 | Material: | Stainless steel 304, stainless steel 304 |
| model: | Ibiyi | brand: | Yibiyuan |
| Warranty: | 3 years | pressure: | 4 inches, high pressure |
| product name: | solar water pump price | Head: | 30-310m |
| flow: | 3-78 cubic meters / hour | Packaging Details: | Carton + tape package |
| Inverter power: | 7.5 kW | Package preview: | |
| application: | agricultural irrigation, submersible | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| strength: | 3000W | Pump size: | high efficiency |
| Supply capacity: | 500 pieces per week | Voltage: | 216V |
| port: | Shenzhen | Origin: | Guangdong, China |
Hybrid AC/DC Solar Pump with Stainless Steel Impeller 5 Inch Solar Agriculture Water Pump System Maximum Head Lorentz Solar Water Pump Price
Product Description

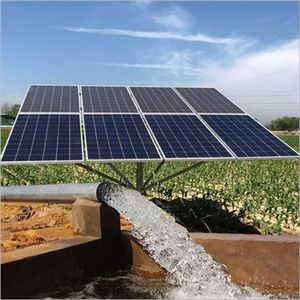

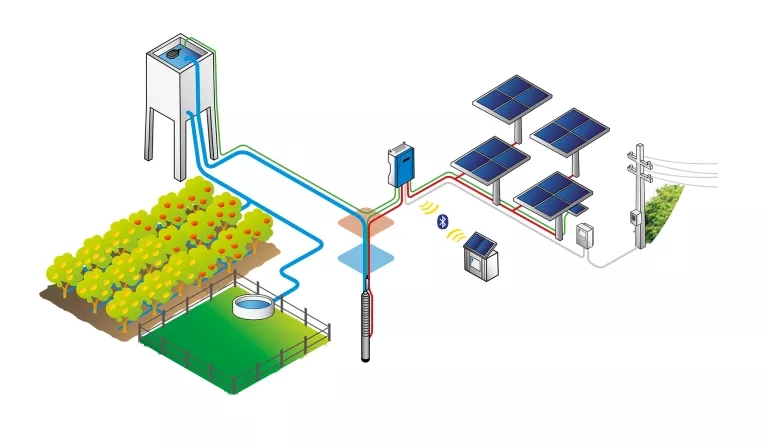

Solar pumping system

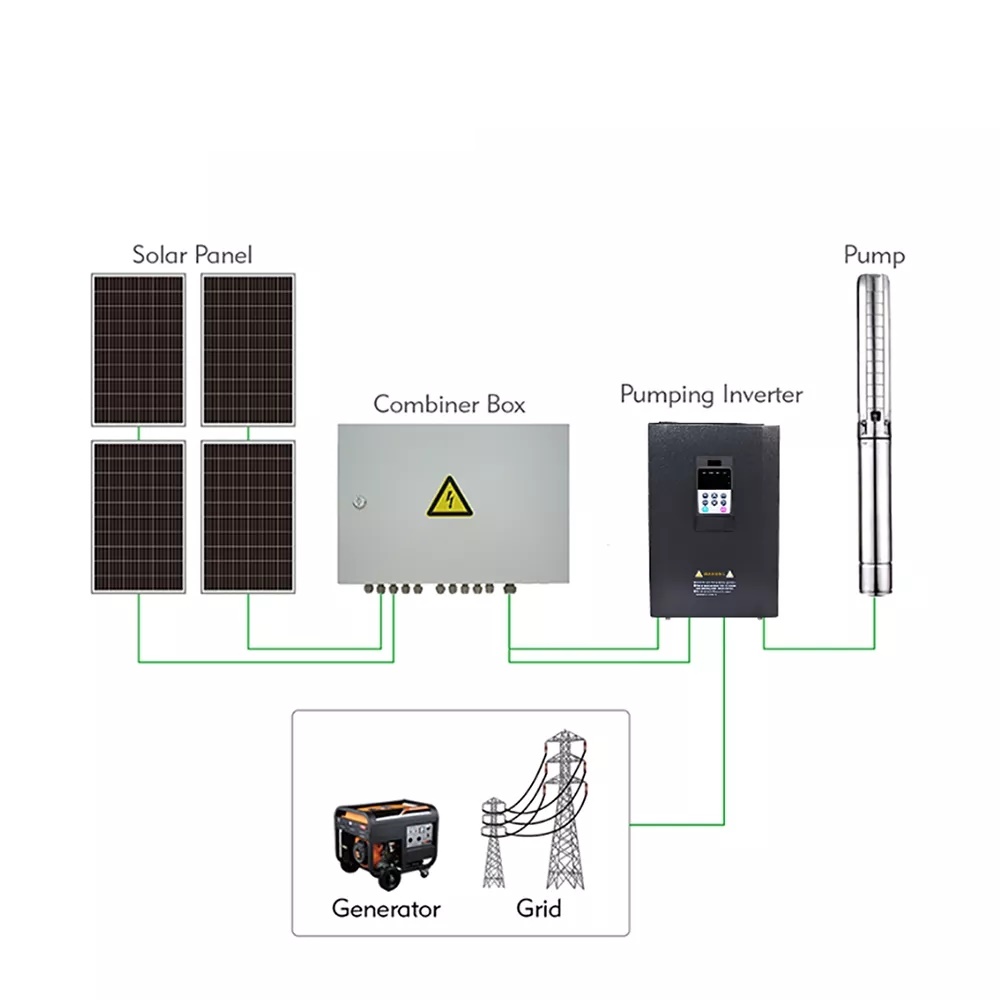

As a professional manufacturer of complete solar power generation systems and solar water pumping systems, Ebiyuan provides practical, professional and affordable AC/DC solar water pumping systems for residential and commercial applications.Yibiyuan solar pumping system is mainly composed of solar panels, special pump inverters and pumps.
DC water pump data 3 inches | ||||||||||||||||
Solar Array Voltage | Powered by a solar array | Maximum flow | Maximum head | exit | GW | size | ||||||||||
V | watt | rice3/H | rice | exist | Kilogram | mm | ||||||||||
3JTS(T)1.0/30-D24/80 | tighten | 36 | 110 | 1.0 | 30 | 0.75" | 7 | 76x460 | ||||||||
3JTS(T)1.3/50-D24/140 | 36 | 180 | 1.3 | 50 | 0.75" | 7.2 | 76x460 | |||||||||
3JTS(T)1.5/80-D24/210 | 36 | 280 | 1.5 | 80 | 0.75" | 7.5 | 76x460 | |||||||||
3JTS(T)1.5/95-D24/270 | 36 | 360 | 1.5 | 95 | 0.75" | 8 | 76x460 | |||||||||
3JTS(T)2.1/100-D48/500 | 72 | 660 | 2.1 | 100 | 0.75" | 8.5 | 76x460 | |||||||||
3JTS(T)2.3/80-D48/750 | 72 | 960 | 2.3 | 80 | 0.75" | 9 | 76x460 | |||||||||
3JTS(T)2.3/120-D72/1000 | 108 | 1320 | 2.3 | 20 | 0.75" | 9.5 | 76x460 | |||||||||
3JTS(T)2.3/140-D72/1300 | 108 | 1680 | 2.3 | 140 | 0.75" | 10 | 76x460 | |||||||||
3JTSI1.0/30-D24/80 | tighten | 36 | 110 | 1 | 30 | 0.75" | 7 | 76x460 | ||||||||
3JTSI1.3/50-D24/140 | 36 | 180 | 1.3 | 50 | 0.75" | 7.2 | 76x460 | |||||||||
3JTSI1.5/80-D24/210 | 36 | 280 | 1.5 | 80 | 0.75" | 7.5 | 76x460 | |||||||||
3JTSI1.5/95-D24/210 | 36 | 360 | 1.5 | 95 | 0.75" | 8 | 76x460 | |||||||||
3JTSI1.5/115-D36/500 | 72 | 660 | 2.1 | 100 | 0.75" | 8.5 | 76x460 | |||||||||
3JTSI2.3/80-D48/750 | 72 | 960 | 2.3 | 80 | 0.75" | 9 | 76x460 | |||||||||
3JTSI2.3/120-D72/1000 | 108 | 1320 | 2.3 | 120 | 0.75" | 9.5 | 76x460 | |||||||||
3JTSI2.3/140-D72/1300 | 108 | 1680 | 2.3 | 140 | 0.75" | 10 | 76x460 | |||||||||
3JTSC5.0/30-D24/270 | 36 | Chapter 480 | 5.0 | 30 | 1.25 inches | 13 | 76x500 | |||||||||
3JTSC5.0/50-D48/500 | 72 | 600 | 5.0 | 50 | 1.25 inches | 13.5 | 76x500 | |||||||||
3JTSC5.0/65-D48/750 | 72 | 600 | 5.0 | 65 | 1.25 inches | 14.0 | 76x500 | |||||||||
3JTSC6.5/80-D72/1000 | 108 | 1320 | 6.5 | 80 | 1.25 inches | 14.5 | 76x560 | |||||||||
3JTSC6.5/120-D72/1300 | 108 | 1680 | 6.5 | 120 | 1.25 inches | 15.5 | 76x600 | |||||||||
3JTSC7.0/140-D192/1800 | 288 | 2400 | 7.0 | 140 | 1.25 inches | 17.5 | 76x650 | |||||||||
3JTSC7.0/180-D216/2200 | 288 | 2880 | 7.0 | 180 | 1.25 inches | 18.5 | 76x720 | |||||||||
detailed

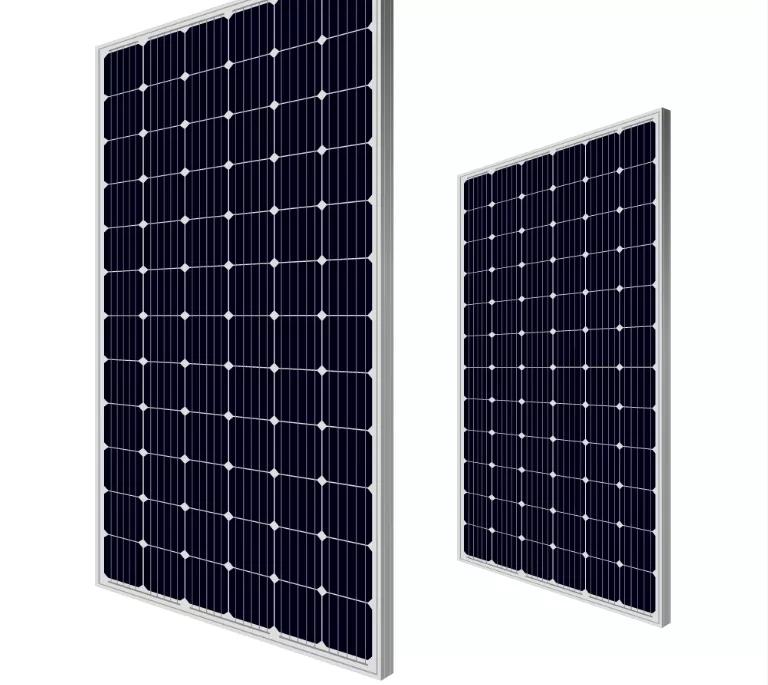

Solar panels
> From 5W to 360W
>25 year warranty
> Top quality with TUV, ETL, CE, INMETRO, ISO certificates
> Excellent mechanical load resistance
> Anti-PID, high salt, ammonia resistance
>25 year warranty
> Top quality with TUV, ETL, CE, INMETRO, ISO certificates
> Excellent mechanical load resistance
> Anti-PID, high salt, ammonia resistance

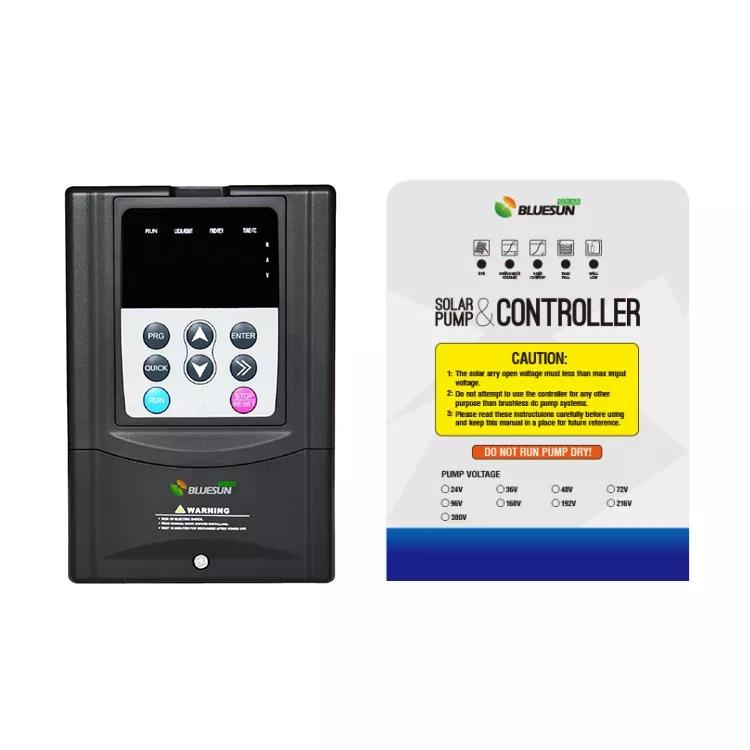

Water pump inverter
> AC Water Pump Inverter
380/400/415/440VAC(+15%), three-phase
>DC Water Pump Inverter
24/36/48/72/192/216VAC
Warranty: 3 years warranty
The full inverter has the function of grid connection and connects to the city grid
380/400/415/440VAC(+15%), three-phase
>DC Water Pump Inverter
24/36/48/72/192/216VAC
Warranty: 3 years warranty
The full inverter has the function of grid connection and connects to the city grid

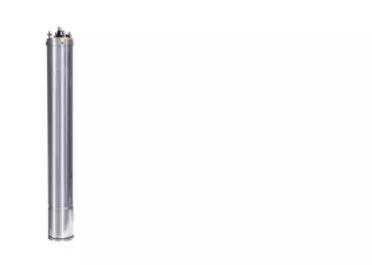

water pump
> AC submersible pump
From 0.25KW to 93KW
> DC submersible pump
From 80W to 3000W
Warranty: 1 year warranty
From 0.25KW to 93KW
> DC submersible pump
From 80W to 3000W
Warranty: 1 year warranty

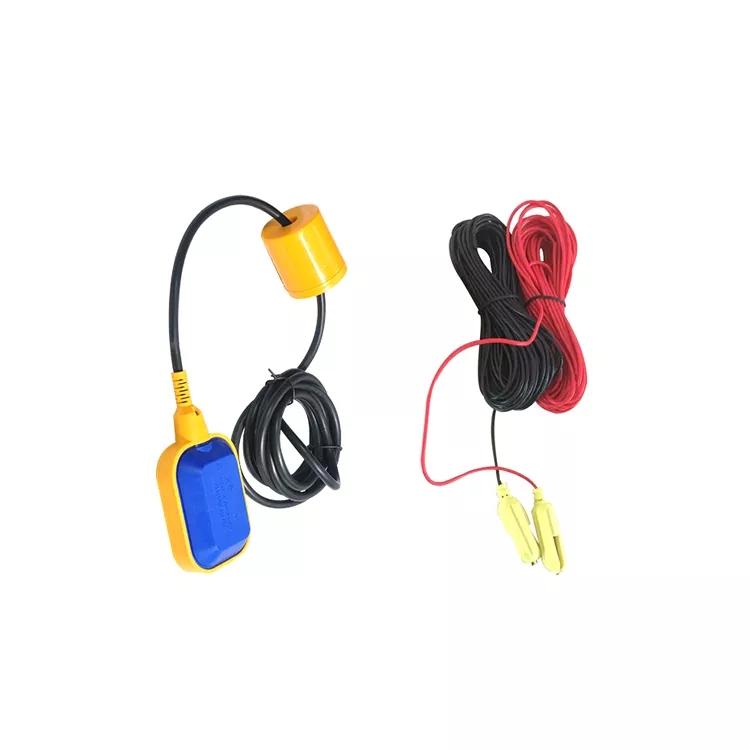

Accessories
> Water sensor
> Resistors
> Photovoltaic cable
> Photovoltaic connector
> Resistors
> Photovoltaic cable
> Photovoltaic connector

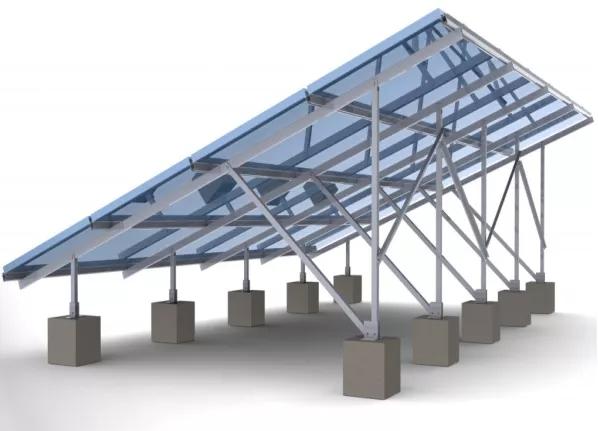

installation structure
> Ground Solar Mounting System
> Aluminum and galvanized steel structure
> Warranty: 15 years warranty, 25 years service
> Aluminum and galvanized steel structure
> Warranty: 15 years warranty, 25 years service
application
wattWhy choose us
Efficient:Efficiently designed products deliver more water, increase reliability and reduce the overall cost of the system, our solar water pumping systems will run cooler and require fewer photovoltaic modules to pump water.
Best Engineer Team:Our engineering team focuses on the right design, right materials and manufacturing methods to make a very reliable, maintainable and repairable solar pump system for the application.

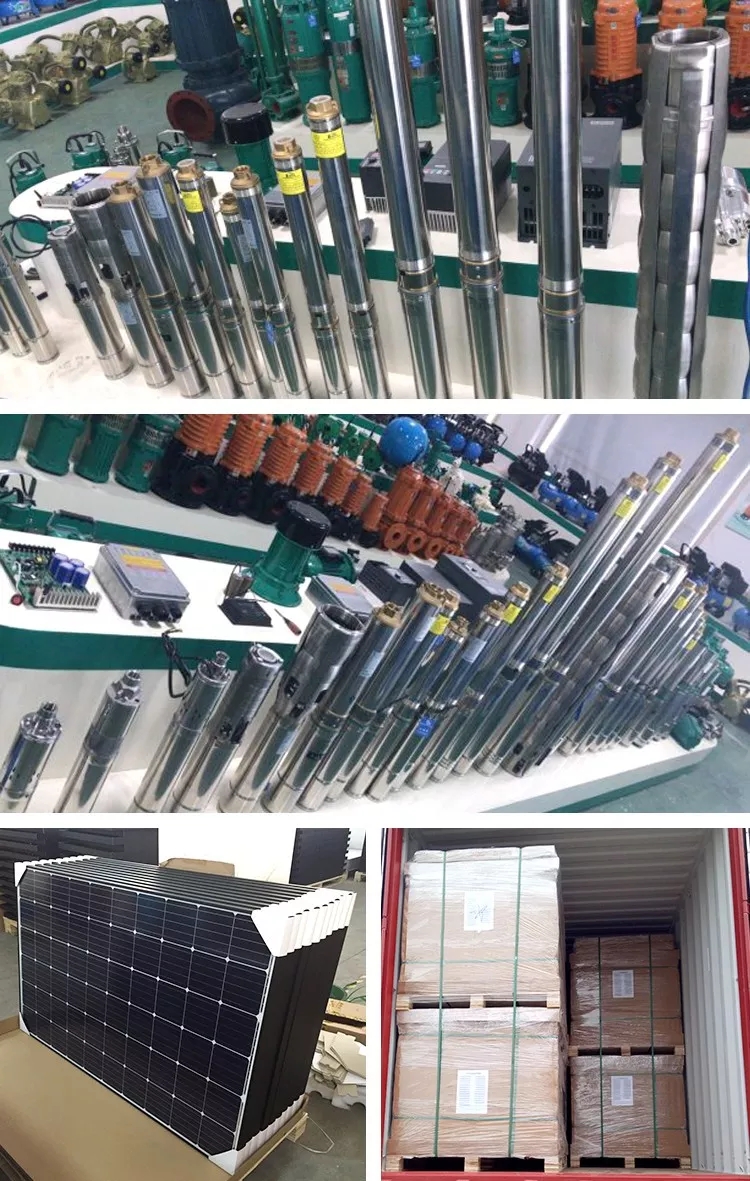

production display
