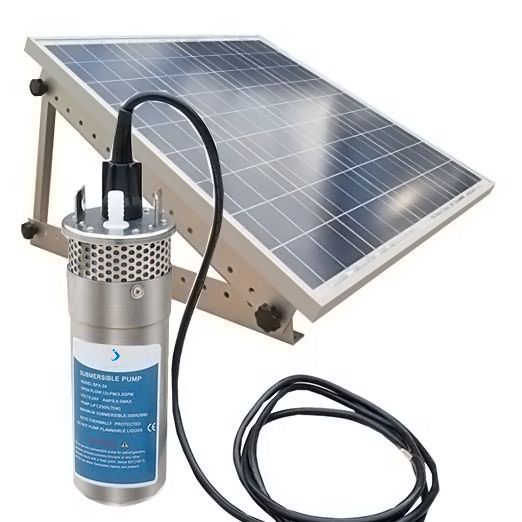

Jetmaker Solar Water Pump System High Quality Solar DC Water Pump Powered Submersible Water Pump for Irrigation
- $95.00 / 1 - 100 pieces
$88.00 / 101 - 300 pieces
$83.00 / 301 - 1000 pieces
$81.60 / >=1001 pieces - 1 piece
- Jetmaker (Xiamen)Technology Co., Ltd.
- Fujian, China
- Ms Abigale Luo
PRODUCT DETAIL
| model: | YM1260-30 | strength: | electrical |
| horsepower: | 120W | structure: | Diaphragm pump |
| application: | submersible | Packaging Details: | Strong export carton |
| port: | Shenzhen, Xiamen | brand: | jet builders |
| Export material: | Barb Fitting/1'' Stainless Steel Threaded Connector | Material: | Stainless steel |
| ampere: | 5A/10A | Package preview: | |
| Origin: | Fujian Province, China | Supply capacity: | 20000 pieces per month |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Alipay; paypal | Voltage: | 12V/24V DC |
| fuel: | solar | Egress port: | 1'' |
| engine: | permanent magnet, thermal protection | Maximum Submersion Depth: | Up to 100 feet (30m) |
| pressure: | low pressure | usage: | water |
| Warranty: | 12 months |
Welcome to Jetmaker
Click the text below the product picture to jump to the product link

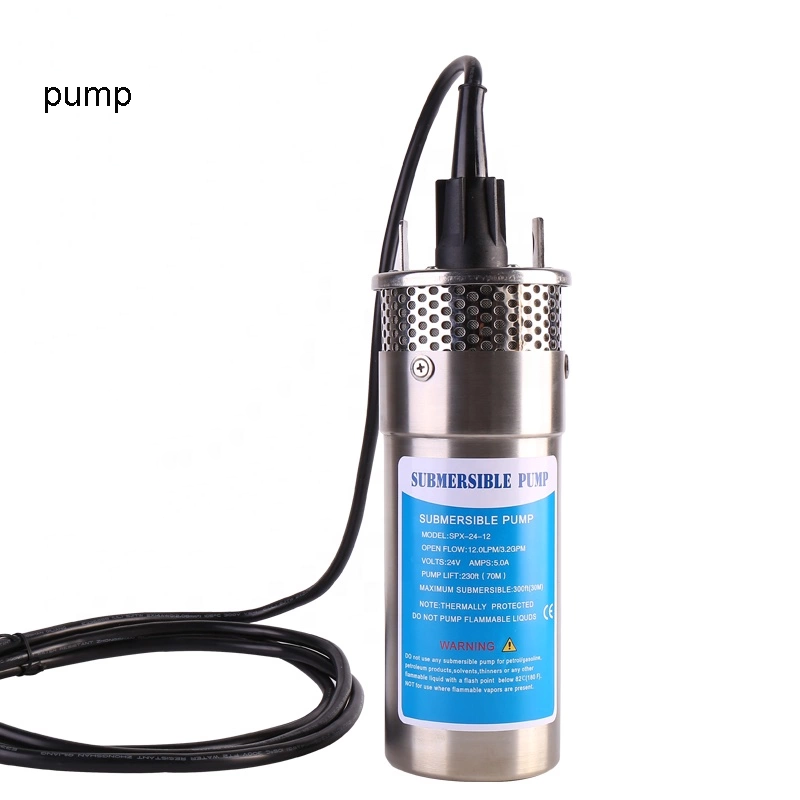

Option 1: Pump = $99

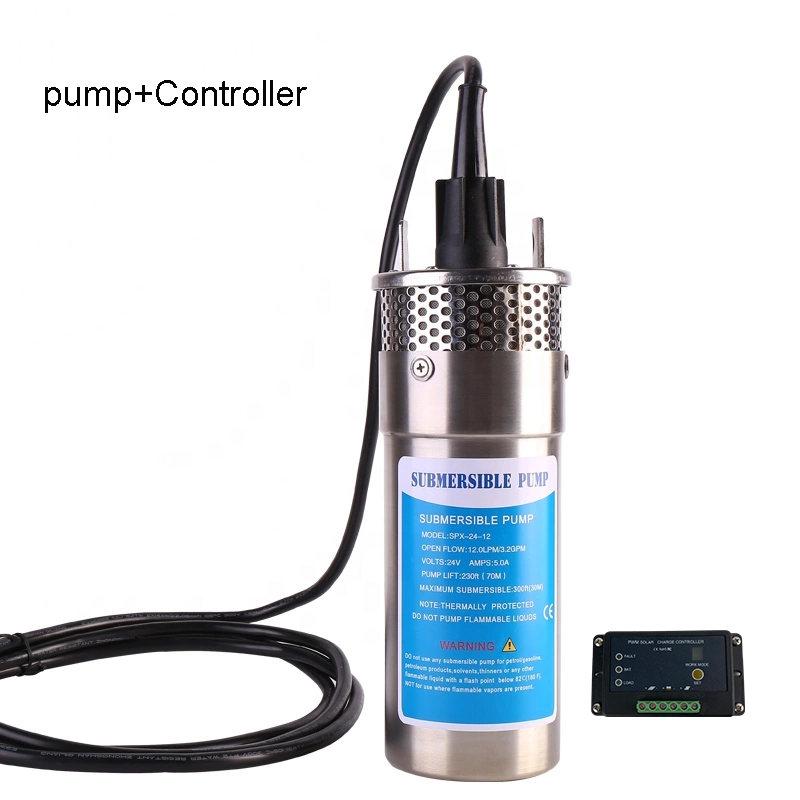

Option 2: Pump + Controller = $135

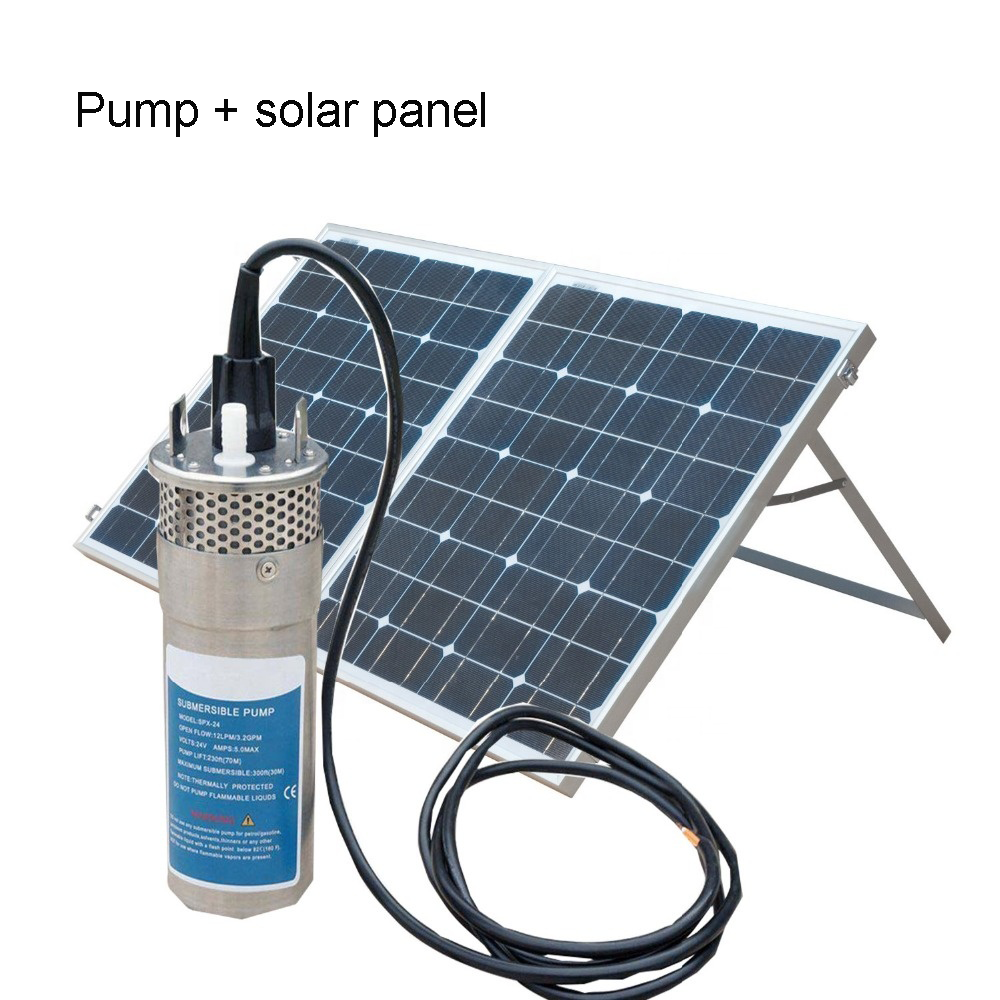

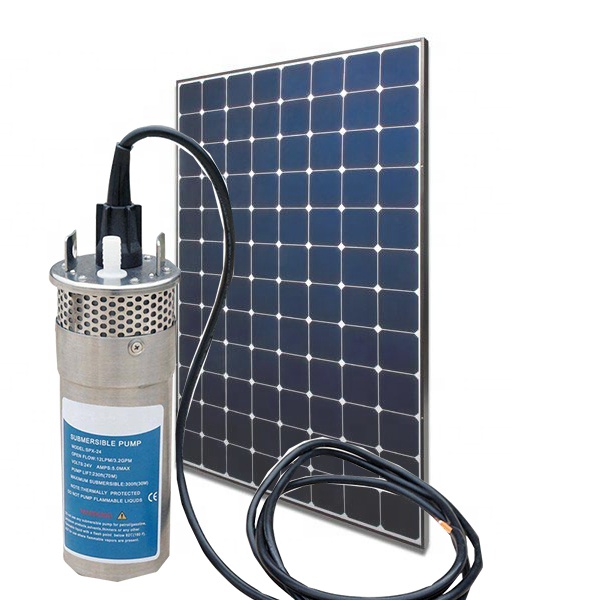

Option 3: Water pump + solar panel = USD259

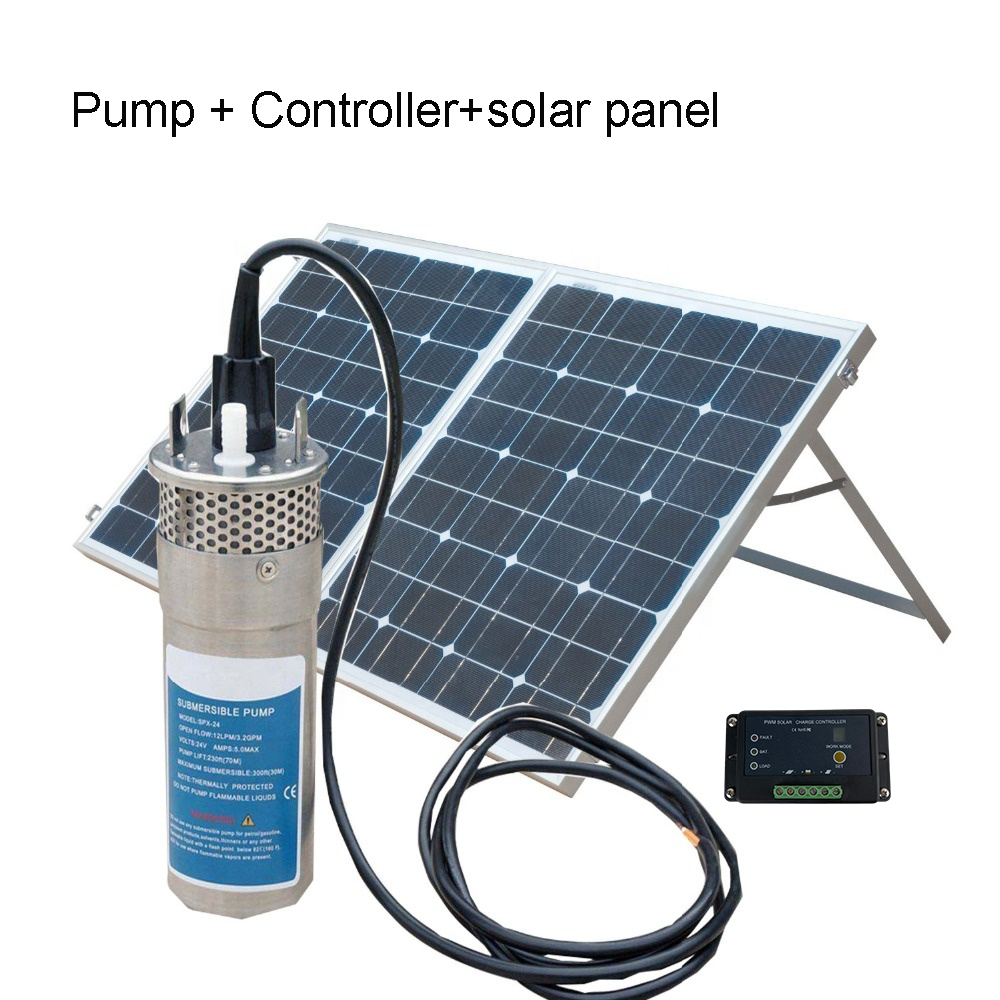

Option 4: pump+controller+solar panel=USD295
DC Solar Diaphragm Water Pump

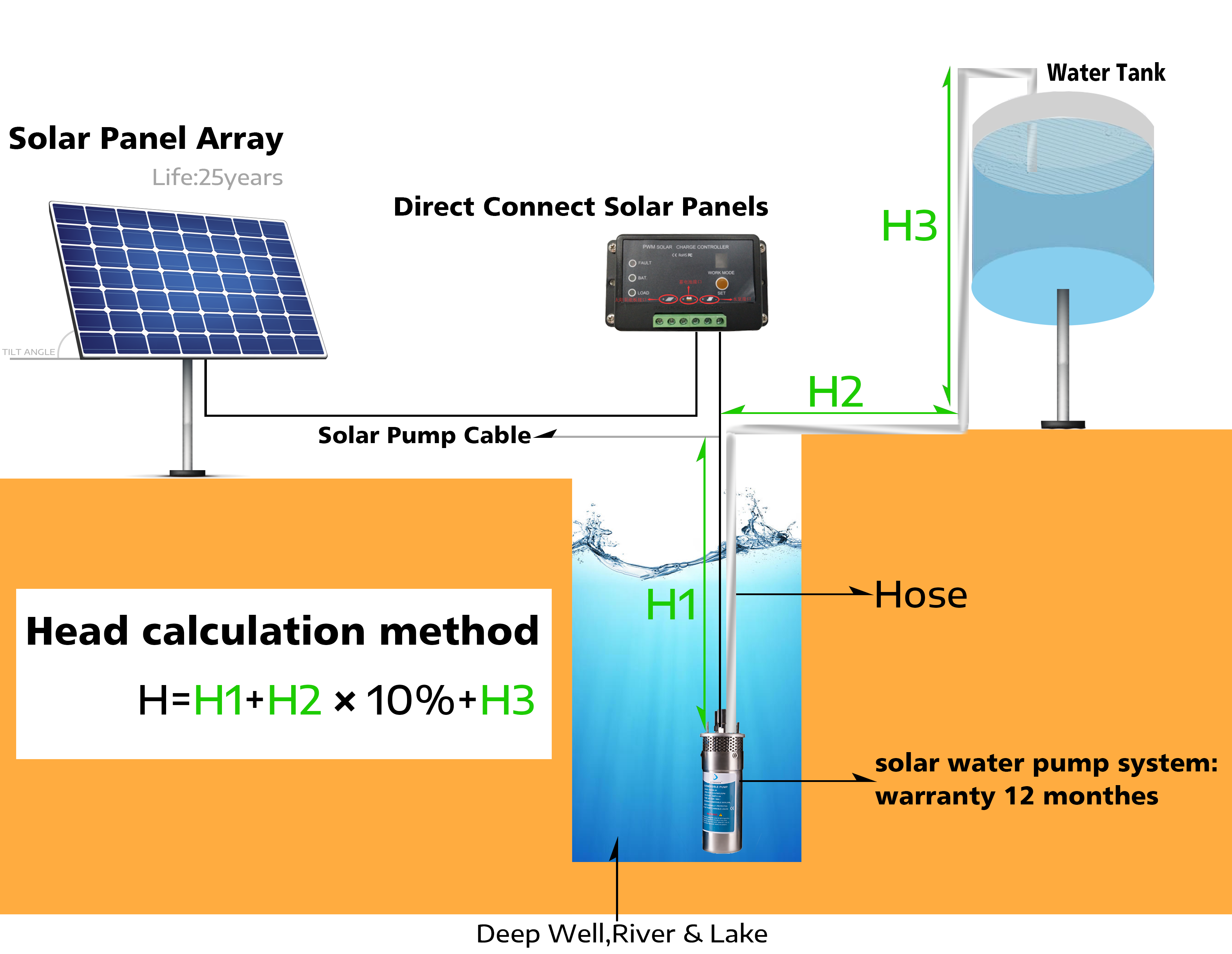

The solar submersible pump can solve your long-distance water troubles. This is a durable water pump that can continuously provide you with a water flow of 3 to 6 liters per minute at a maximum depth of 70 meters. It is generally used for outdoor long-distance water supply . Range water operation.
*Solar submersible pumps are suitable for wells 4 inches in diameter or larger.
*Design is strong and lightweight.

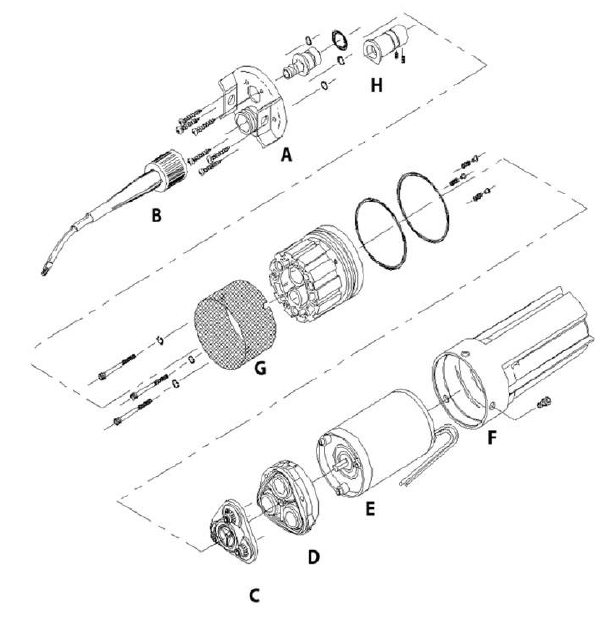

* Wide variety of parts and kits for easy rebuilding and repairing.
*Great for livestock watering, irrigation, deep wells, remote homes and cabins.
*Design is strong and lightweight.
* Wide variety of parts and kits for easy rebuilding and repairing.
*Great for livestock watering, irrigation, deep wells, remote homes and cabins.
Features and advantages
Pump:
*Sturdy structure, but light weight.
* Dry running capability without damaging the pump.
*Internal bypass function for pump protection.
*Long life, 24VDC operation.
*Easy field repair.
* State-of-the-art solid diaphragm.
Power connector:
* Unique waterproof gland connector.
*Stops water wicking and prevents potential condensation.
* Quick disconnect - no splicing required.
*Accepts various jacketed cables.
* Dry running capability without damaging the pump.
*Internal bypass function for pump protection.
*Long life, 24VDC operation.
*Easy field repair.
* State-of-the-art solid diaphragm.
Power connector:
* Unique waterproof gland connector.
*Stops water wicking and prevents potential condensation.
* Quick disconnect - no splicing required.
*Accepts various jacketed cables.
Technical data
*Sturdy structure, but light weight.
*Corrosion resistant housing with stainless steel fasteners.
* Dry running capability without damaging the pump.
*Internal bypass function for pump protection.
*Long life, 12VDC/24VDC operation.
*Easy field repair.
* State-of-the-art solid diaphragm.
*New product with stainless steel body.
* Dry running capability without damaging the pump.
*Internal bypass function for pump protection.
*Long life, 12VDC/24VDC operation.
*Easy field repair.
* State-of-the-art solid diaphragm.
*New product with stainless steel body.

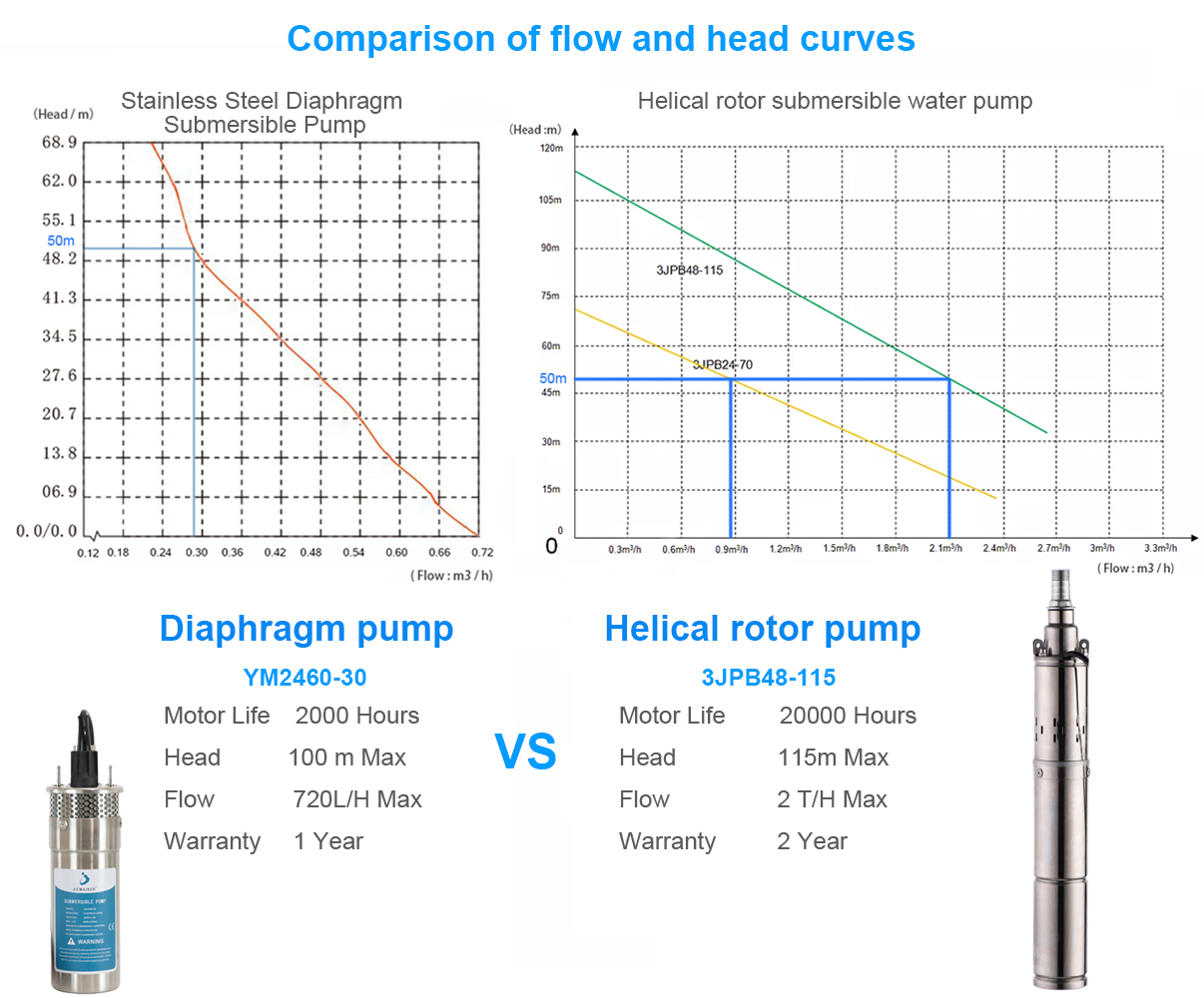

Model | YM2460-30 | YM1260-30 | |
Model | 24V DC | 12V DC | |
ampere | Maximum 5.0 | Maximum 10.0 | |
flow | 12.0LPM (720LPH) | ||
egress port | Plastic 1/2'' hose barb and 3/4'' BSPF | ||
body cover | stainless steel body | ||
Maximum lift | Up to 330 feet (100m) | ||
maximum submersion | Up to 100 feet (30m) | ||
pump design | Positive Displacement 3 Chamber Diaphragm Pump | ||
engine | permanent magnet, thermal protection | ||
import | 50 mesh stainless steel screen | ||
typical application | drinking water well pump | ||
detailed picture

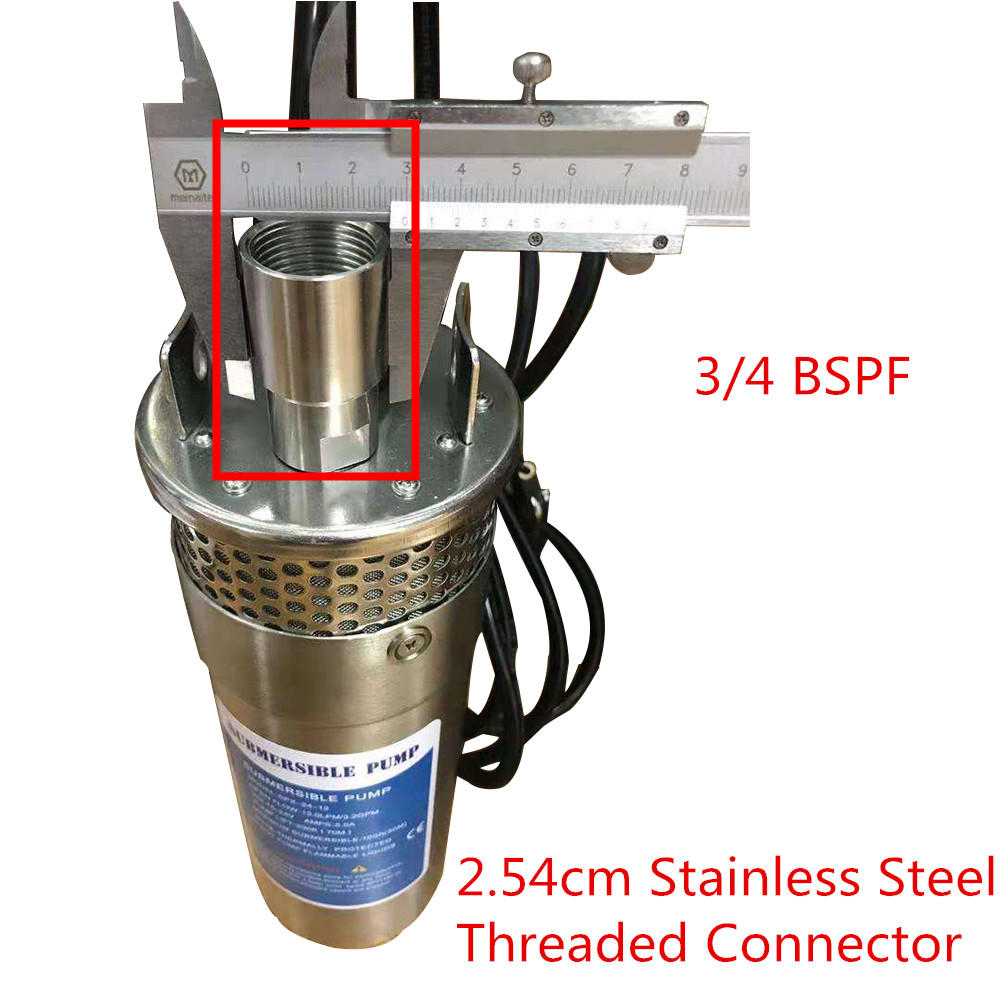

3/4 BSPF
2.54cm stainless steel threaded connector
barb accessories

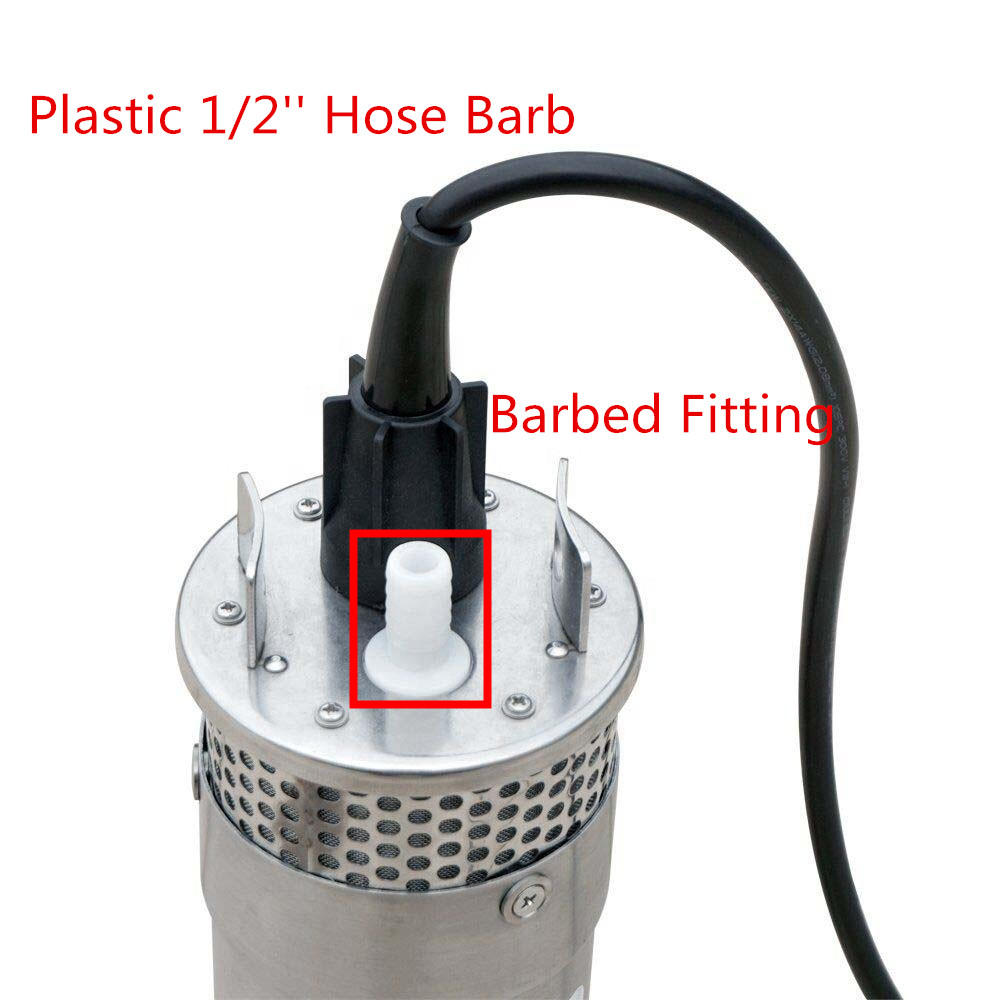

Plastic 1/2'' hose barb
Plastic 1/2'' hose barb
If you want to know more water pumps, please follow the link.
application
