RSB search tool
- $1800.00 / >=5 pieces
- 5 pieces
- DEDICATED IMPEX COMPANY
- PUNJAB, China
- Mr Nitin Nath Mittal
PRODUCT DETAIL
| Packaging Details: | Standard export packing, plywood case or according to customer's requirement. | Core components: | pressure vessel |
| Showroom location: | not any | Local service location: | not any |
| Warranty: | 1 year | Marketing Type: | normal product |
| property: | Corrosion resistance | type: | baler |
| model: | rsbtool23 | Core component warranty: | 1 year |
| After warranty service: | online support | Applicable industries: | Energy and Mining, Oil and Gas Industries |
| brand: | DIC Oil Tools | Supply capacity: | 20 pieces per month |
| port: | China | Video shipment inspection: | if |
| Health status: | new | Mechanical test report: | if |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Certificate: | API 11D |
| Case weight: | 18--47 lbs |
Product Description

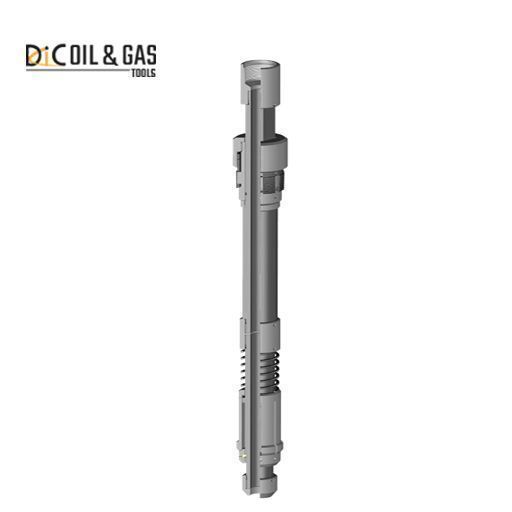

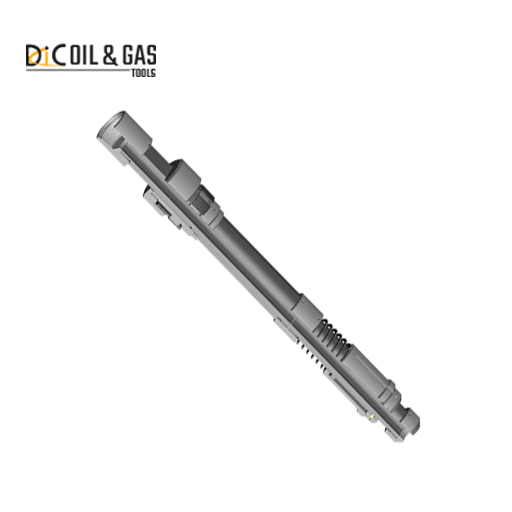

RSB search tool
The RSB Search Tool is used to search RSB Packers. The retrieval tool latches into the top sub using a standard anchor bolt, allowing the RSB Packer to be retrieved with a straight pull. Collet chucks sit below the support rings and lock the packer in the set position. The locking fingers lock into the packer. Pull the shear support ring and release the packer. ifThe packer cannot be retrieved normally, the retrieval tool has a safety release which can be disconnected from the packer by turning it to the right.
special function:
1.easy to use2.economy3.easy to retrieve
4.Easily modified to suit various conditions and temperatures.
detailed drawing
Specification
single hole RSB
Packer Dimensions (inches) | Packer bore diameter (inches) | Tool Outside Diameter (inches) | Tool ID (inches) | top connection | ||||
5 | 2.688 | 3.500 | 1.00 | 2-3/8 European Union | ||||
5-1/2 | 3.000 | 3.688 | 1.25 | 2-7/8 European Union | ||||
6-5/8 | 3.250 | 4.250 | 1.38 | 2-7/8 European Union | ||||
7 | 3.000 | 3.688 | 1.25 | 2-7/8 European Union | ||||
4.000 | 5.062 | 1.75 | 2-7/8 European Union | |||||
9-5/8 | 6.000 | 6.980 | 2.75 | 4-1/2 Europa League | ||||
13-3/8 | 9.000 | 9.365 | 5.75 | 7” long gun | ||||
Double Hole RSB
.
Packer Dimensions (inches) | Packer bore diameter (inches) | Tool Outside Diameter (inches) | Tool ID (inches) | top connection | ||||
4-1/2 | 3.50 | 0.50 | 2.688 / 2.062 | 2-3/8 European Union | ||||
5 | 3.000 / 2.688 | 3.688 | 1.00 | 2-7/8 European Union | ||||
5-1/2 | 3.000 | 3.688 | 1.25 | 2-7/8 European Union | ||||
7 | 5.250 / 4.000 | 5.062 | 1.75 | 2-7/8 European Union | ||||
7-5/8 | 4.750 / 4.000 | 5.810 | 1.75 | 2-7/8 European Union | ||||
Hydraulic kit RSB
Packer Dimensions (inches) | Packer bore diameter (inches) | Tool Outside Diameter (inches) | Tool ID (inches) | top connection | ||||
5-1/2 | 3.000 | 3.688 | 1.25 | 2-7/8 European Union | ||||
7 | 4.000 | 5.062 | 1.75 | 2-7/8 European Union | ||||
