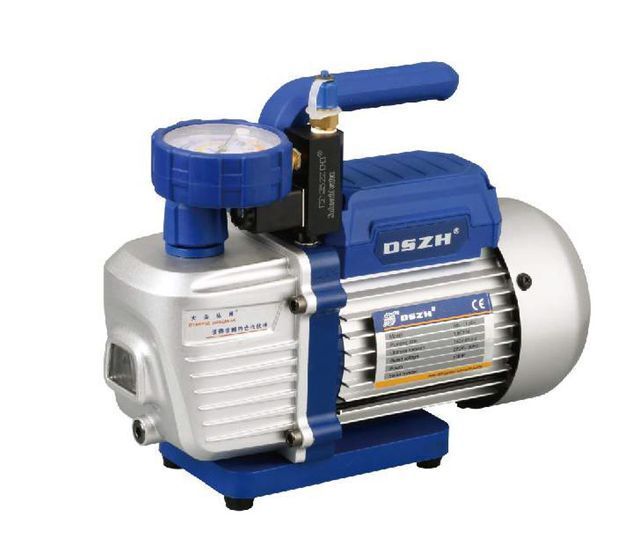

1/2HP 6.0 CFM Single stage vacuum pumps with Solenoid valve
- $139.90 / 10 - 99 sets
$118.80 / 100 - 499 sets
$105.50 / >=500 sets - 10 sets
- Jinhua Slihe Refrigeration Co., Ltd.
- Zhejiang, China
- Mr
PRODUCT DETAIL
| Warranty: | 3 years; | Model: | WK-160SV; |
| Stucture: | Single stage; | Inlet port: | 1/4" Flare &3/8" flare; |
| Partial pressure: | 2Pa; | Total pressure: | 150 Microns; |
| Place of Origin: | Zhejiang, China; | Supply Ability: | 100000 Sets per Month; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Power: | 1/2Hp; |
| Model Number: | WK-160SV; | Customized support: | OEM; |
| Port: | ningbo; | Flow rare(50Hz): | 6.0CFM; 170L/MIN; |
| Product Name: | Vacuum pump; | Brand Name: | DSZH; |
| Oil capacity: | 430ml; | Flow rare(60Hz): | 7.0CFM; 198L/MIN; |
| Packaging Detail: | 10set/box; |
Product Description
* 【High efficiency】Vacuum pump hvac is made of lightweight cast aluminum construction, the maximum durability; Direct-driven motor makes it easy to start up; Built-in cooling fan can protect the motor thermally.
* 【Humanized design】Oil viewing window allows you to observe the oil level and quality at any time; Handle design comes with rubber and allows you to carry the vacuum pump easily.
* 【Portable valves design】Oil drain valve makes oil drained faster and more completely; Oil fill port makes adding oil conveniently, which can be accessible from one side to another.
* 【Wide application】Our air conditioning vacuum pump is widely applied in household or automobile air conditioning maintenance, food packaging, wine degassing, deaeration, medical experiment, etc.
* 【Humanized design】Oil viewing window allows you to observe the oil level and quality at any time; Handle design comes with rubber and allows you to carry the vacuum pump easily.
* 【Portable valves design】Oil drain valve makes oil drained faster and more completely; Oil fill port makes adding oil conveniently, which can be accessible from one side to another.
* 【Wide application】Our air conditioning vacuum pump is widely applied in household or automobile air conditioning maintenance, food packaging, wine degassing, deaeration, medical experiment, etc.
Item No | WK-125SV | WK-135SV | WK-160SV | WK-180SV | WK-1100SV | |||||
Flow Rare | 50Hz | 2.5CFM | 3.5CFM | 6.0CFM | 8.0CFM | 10.0CFM | ||||
70L/MIN | 100L/MIN | 170L/MIN | 226L/MIN | 283L/MIN | ||||||
60Hz | 3.0CFM | 4.0CFM | 7.0CFM | 9.0CFM | 12.0CFM | |||||
84L/MIN | 114L/MIN | 198L/MIN | 254L/MIN | 340L/MIN | ||||||
Ultimate Vac | Partial pressure | 2Pa | 2Pa | 2Pa | 2Pa | 2Pa | ||||
Total pressure | 150 Microns | |||||||||
Power | 1/4Hp | 1/3Hp | 1/2Hp | 3/4Hp | 1Hp | |||||
Inlet port | 1/4"Flare | 1/4"Flare | 1/4" & 3/8" Flare | 1/4" & 3/8" Flare | ||||||
Oil capacity | 180ml | 240ml | 430ml | 520ml | 500ml | |||||
Weight | 5.7Kgs | 8.3Kgs | 10.3Kgs | 15Kgs | 17.3Kgs | |||||

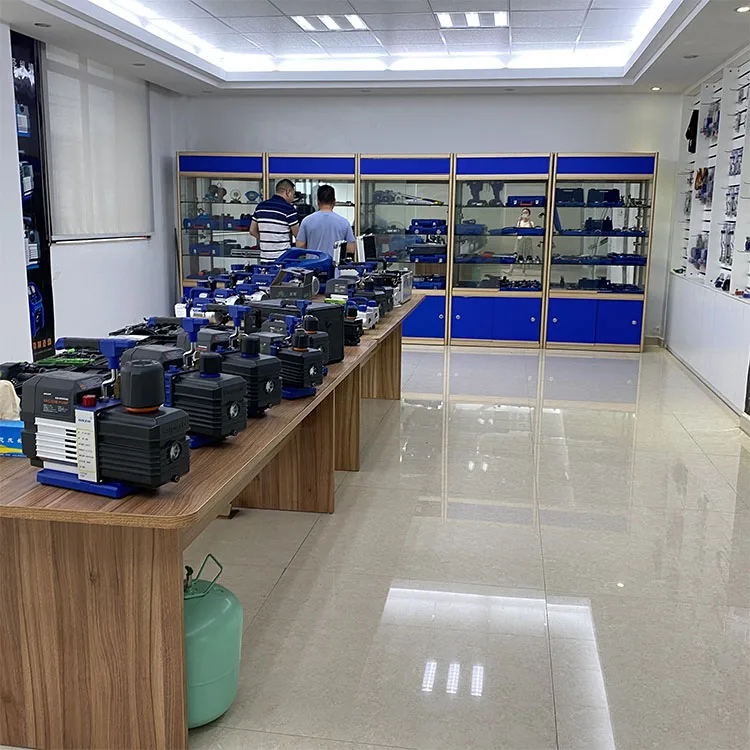

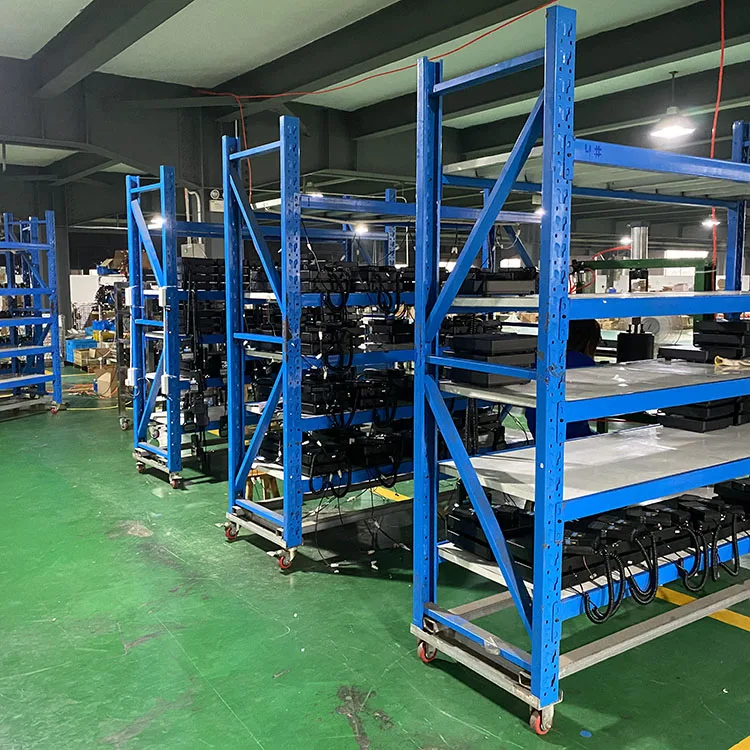

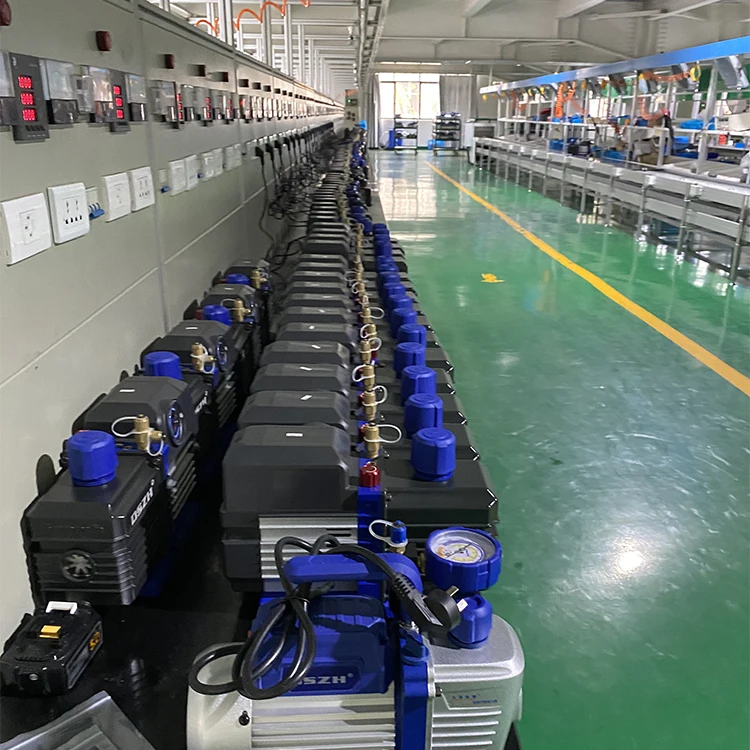

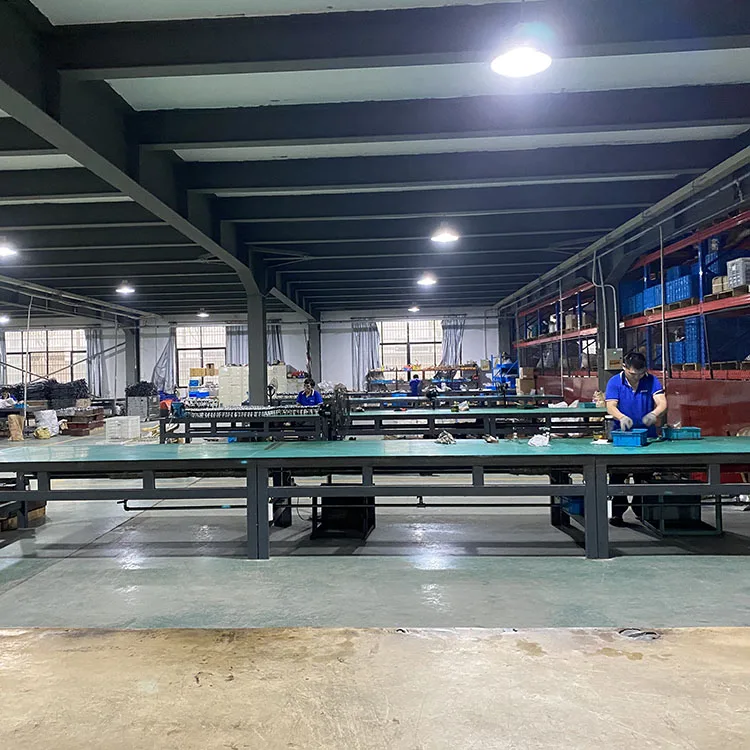

Company Profile
JINHUA SLIHE REFRIGERATION COMPANY mainly manufacture and export refrigeration parts since 2011 , there is a professional group of sales and technoligists in the field of refrigerations parts, we are delicated to provide one-stop service to provide convenience for each client. The product was shipped to all over the world . We insist on best quality and better price to get good reputation from the client and keep long term cooperation with them .
Buyer's feedback
FAQ
1. What is MOQ ?
10pcs at least with neutral package ;
2. Could you send us sample ?
Yes , the sample is free ,but buyer must pay the sample freight ,we will return back as long as the total amount is up to 20,000usd;
3. How long do you need prepare sample ?
7 days after get the sample cost ;
4. How to guarantee the quality ?
The warranty is 1 year , if the quality is poor ,we will send new one or return back the fee .
5. Could you customize the buyer's brand ?
We will make design for you for free if you need, as long as the box is up to 1000pcs ;
