Foundry customizes shell mold cast iron pump shell according to drawings, CNC machining
- $1.50 / >=1000 kilograms
- 1000 kilograms
- Taiyuan Simis Investment Casting Co., Ltd.
- Shanxi, China
- Ms SIMIS CN
PRODUCT DETAIL
| Package preview: | port: | China port | |
| Surface treatment: | Spray paint or powder coating or anti-rust oil | process: | Casting + machining (if required) + surface treatment |
| standard: | GB ASTM AISI DIN BS | brand: | MIS |
| Warranty: | 3 years | Supply capacity: | 300 tons per month |
| Packaging details: | Export standard packaging | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Place of origin: | Shanxi, China | Certification: | ISO 9001:2008, TUV16949, PED |
| unit weight: | 19.93kg | Package: | wooden box |

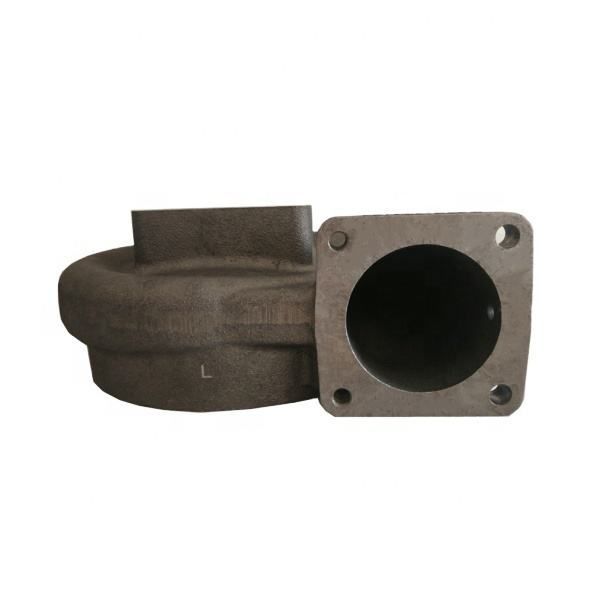

| product name: | Cast iron water pump impeller housing | delivery time: | 45-50 days |
| Customization support: | OEM, ODM | Material: | ASTM A159 G2500A |
| model: | custom made | payment terms: | T/T 30% advance payment |
Product Description
Material | Carbon steel, alloy steel, stainless steel, aluminum alloy, copper, etc. |
process | Resin sand casting/shell casting+cnc processing |
Casting Dimensional Tolerance | CT9-CT12 |
Casting surface roughness | Ra 12.5 micron |
Casting weight range | 0.1-300kg |
Casting size | Maximum linear dimension: 1200 mm, maximum diameter dimension: 600 mm |
Precision | Positioning accuracy 0.008 mm, Rep. position. Accuracy 0.006mm |
Processing surface roughness | Ra0.8~6.3um |
Maximum stroke of spindle | 1900mm×850mm×700mm |
Maximum rotation diameter | 830mm |
Material standards | GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR |
surface treatment | KTL (electrophoresis), galvanized, mirror polished, sand blasted, pickled, non-oxidized, spray painted, hot dip galvanized, powder coated, nickel plated. |
Provide services | OEM & ODM |
QC | 0 defects, 100% inspection before packaging |
application | Trains and railways, cars and trucks, construction machinery, forklifts, agricultural machinery, shipbuilding, petroleum machinery, Construction, valves and pumps, motors, hardware, electrical equipment, etc. |
Key words | Sand casting, steel castings, iron castings, ductile iron castings, shell casting, resin sand casting, gray iron castings, iron castings |

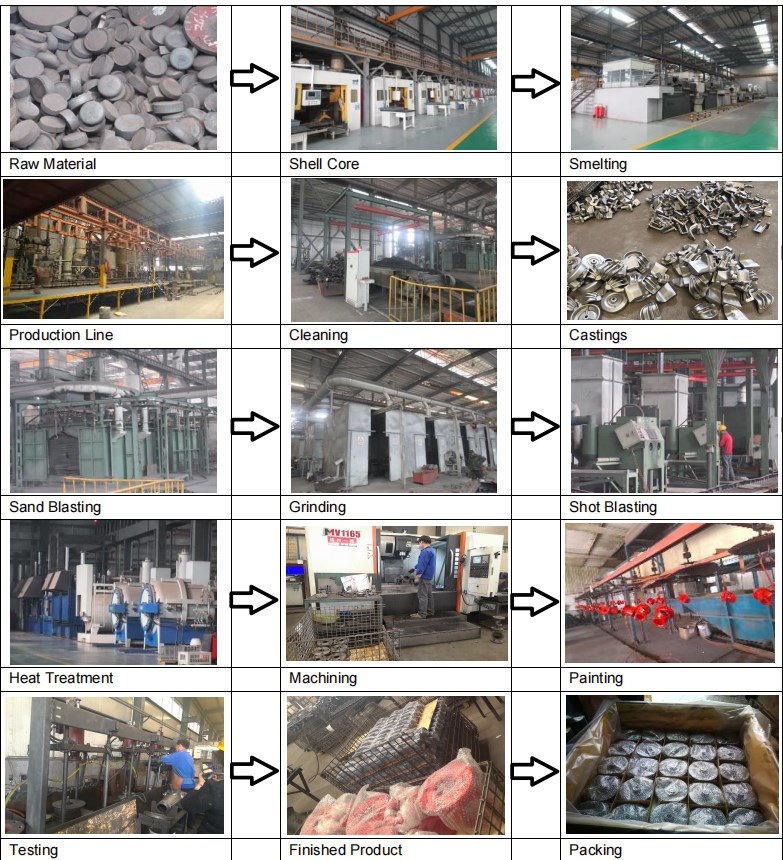

Production Process
