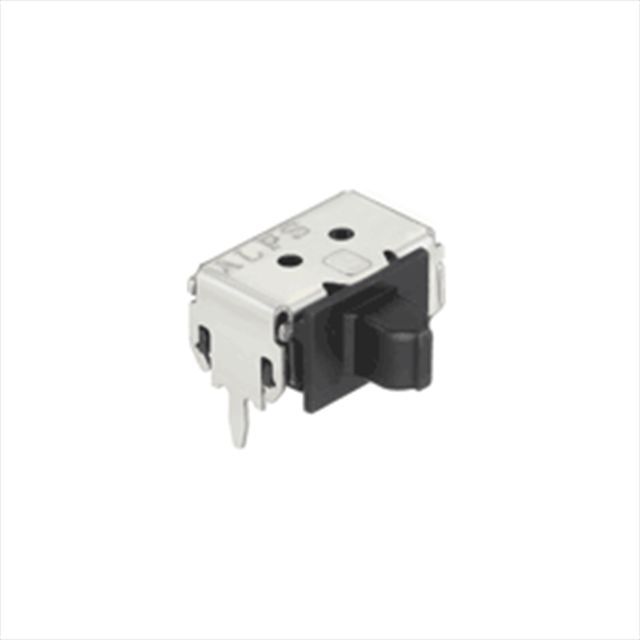

1.5mm stroke external knob type SSAC series ALPS Japanese slide switch Japanese original
- $0.15 / 20 - 399 pieces
$0.13 / 400 - 1199 pieces
$0.12 / >=1200 pieces - 20 pieces
- Guangzhou Saner Electronics Limited
- Guangdong, China
- Ms jiaxin Hong

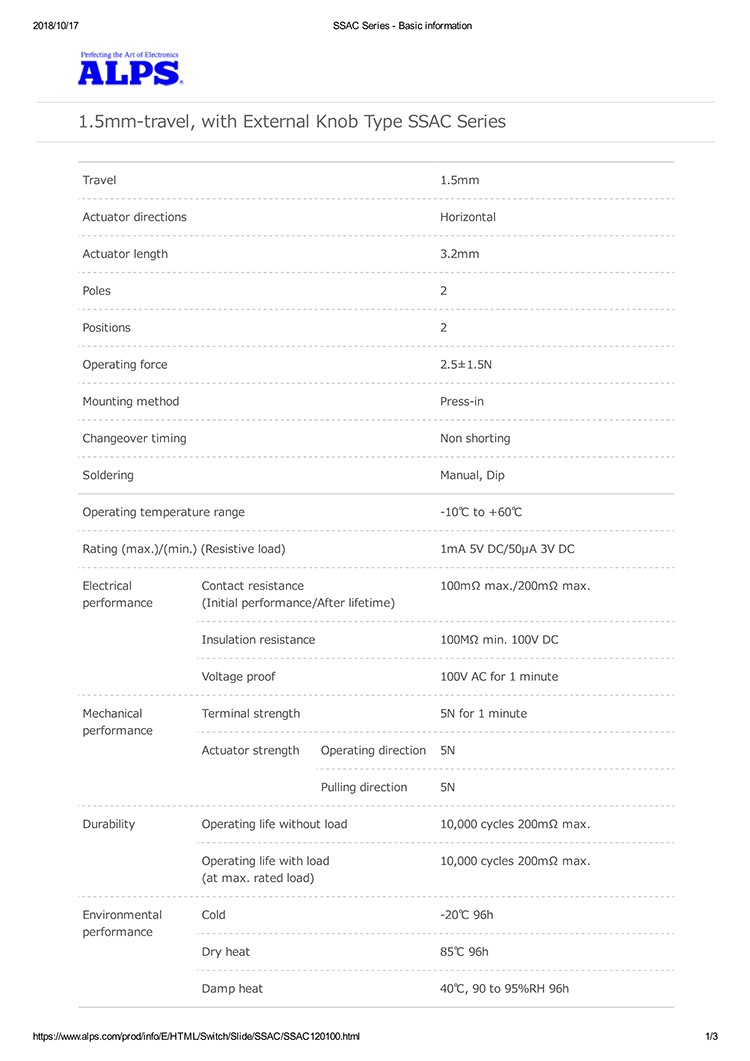

PRODUCT DETAIL
| Poles: | 2 | maximum. Voltage: | 5V |
| range of working temperature: | -10°C to +60°C | Packaging Details: | 400 pieces in a tray, 1200 pieces in a box |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | installation method: | push-in |
| Operating force: | 2.5±1.5N | port: | Shenzhen Port |
| Certification: | Alps | travel: | 1.5mm |
| Position: | 2 | brand: | Alps |
| welding: | manual, impregnated | model: | SSAC120100 SSAC120200 |
| maximum. current: | 1mA | Actuator Direction: | horizontal |
| Mechanical life: | 10,000 cycles | Origin: | Japan |
| Conversion time: | non short circuit | Actuator length: | 3.2mm |
our certificate
company information
Founded in 1996, Guangzhou Saner Electronics Co., Ltd. has won a good reputation in the industry for its good reputation and reliable quality, and has now developed into a well-known supplier of electronic components in China. The company has established good business relationships with many well-known manufacturers in Japan, South Korea, Europe and the United States. The most important thing is that our company has a large stock, and can provide original brand-new international famous brand products in time, and our customers are all over the world.
