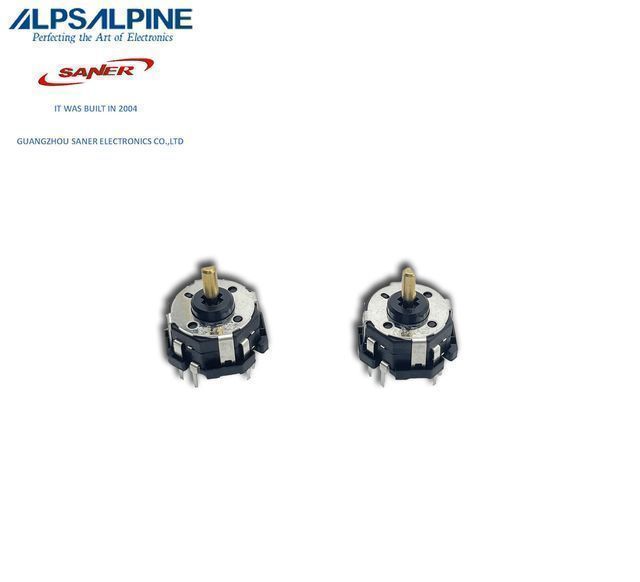

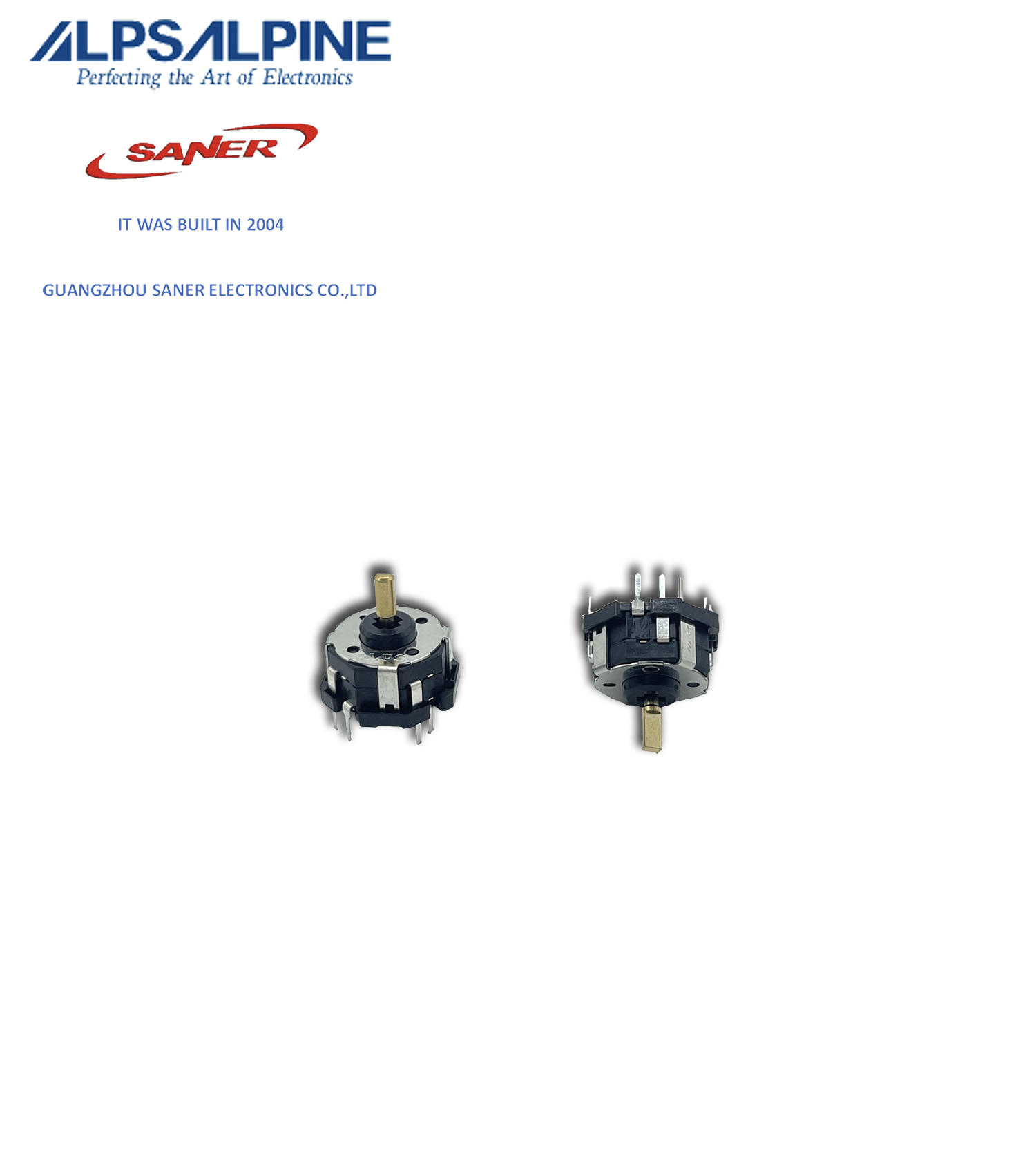

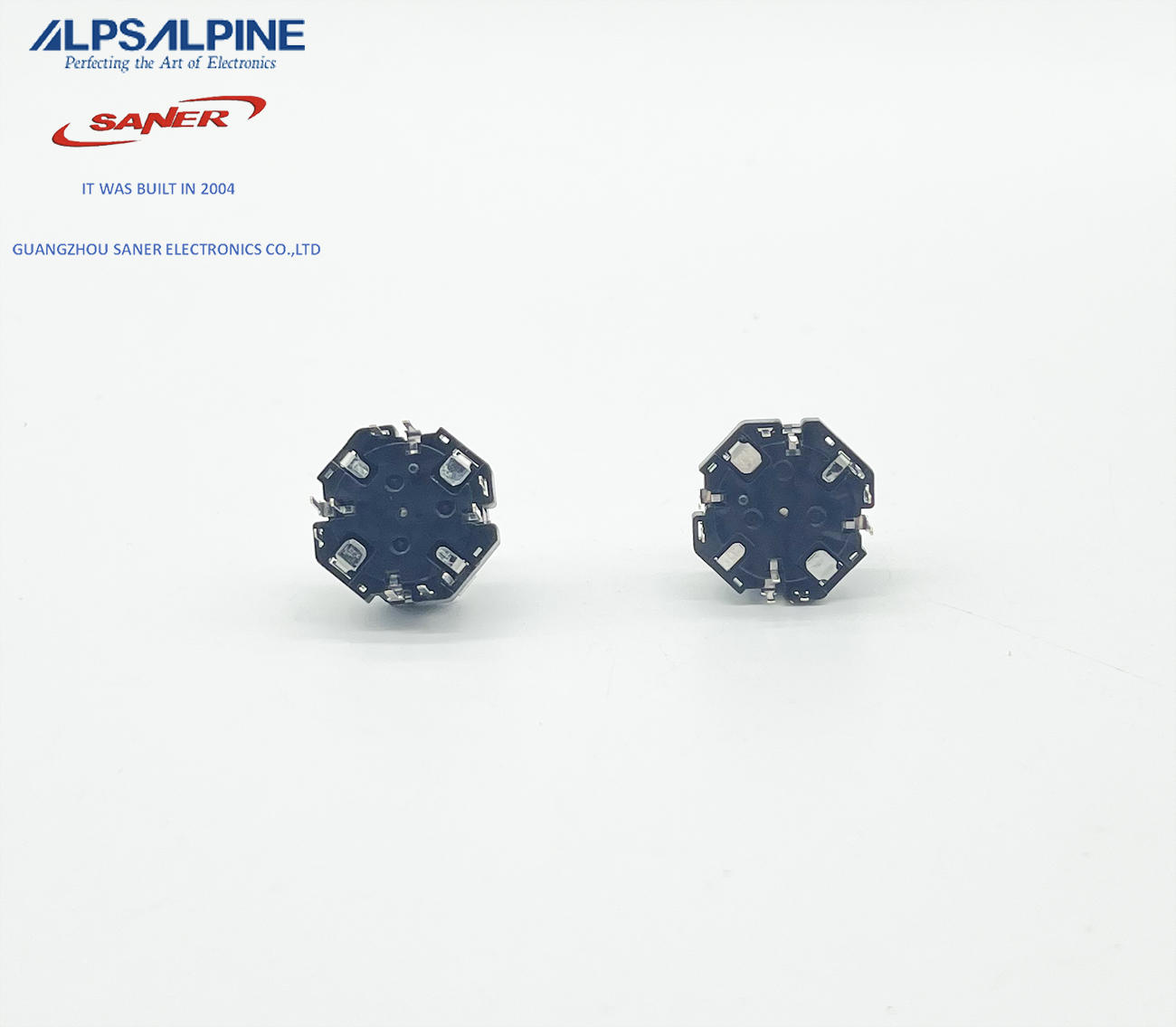

ALPS 4-way stick switch RKJXT1F42001 rocker rotary potentiometer
- $2.00 / 1 - 99 pieces
$1.80 / >=100 pieces - 1 piece
- Guangzhou Saner Electronics Limited
- Guangdong, China
- Ms jiaxin Hong
PRODUCT DETAIL
| Types of: | rotary potentiometer | Payment/Payment: | 5 VDC |
| Packaging Details: | One small box, one medium box, ten pieces, one large box, one hundred pieces | Adjustment type: | optimal |
| place of origin; place of origin: | Japan | payment terms: | wire transfer |
| Operating temperature: | -40°C to +85°C | Resistance: | 1Ω max |
| maximum. Operating Voltage: | 300V AC for 1 minute | model: | RKJXT1F42001 |
| Orientation sense of operation: | and | brand: | joystick rotary potentiometer |
| Operating force: | 40±5mN·m | Orientation resolution: | 4 directions |
| Number of operating axes: | single axis | Operating Life Stick Switches: | 50000 cycles |
| technology: | carbon film | travel: | 0.3±0.2mm |
| brand: | Alps / ALPSALPINE | Operating Angle: | up to 9° |
Product Description
Specification
thing | value |
model | RKJXT1F42001 |
Types of | rotary potentiometer |
place of origin; place of origin | Japan |
brand | Alps / ALPSALPINE |
direct current | 5 VDC |
technology | carbon film |
Resistance | 1Ω max |
maximum. Operating Voltage | 300V AC for 1 minute |
Operating temperature | -40°C to +85°C |
brand | joystick rotary potentiometer |
adjustment type | optimal |
working angle | up to 9° |
operating force | 40±5mN·m |
travel | 0.3±0.2mm |
Operating life stick switch | 50000 cycles |
Encoder service life | 15000 cycles |
Number of operating axes | single axis |
Orientation resolution | 4 directions |
sense of direction | and |
