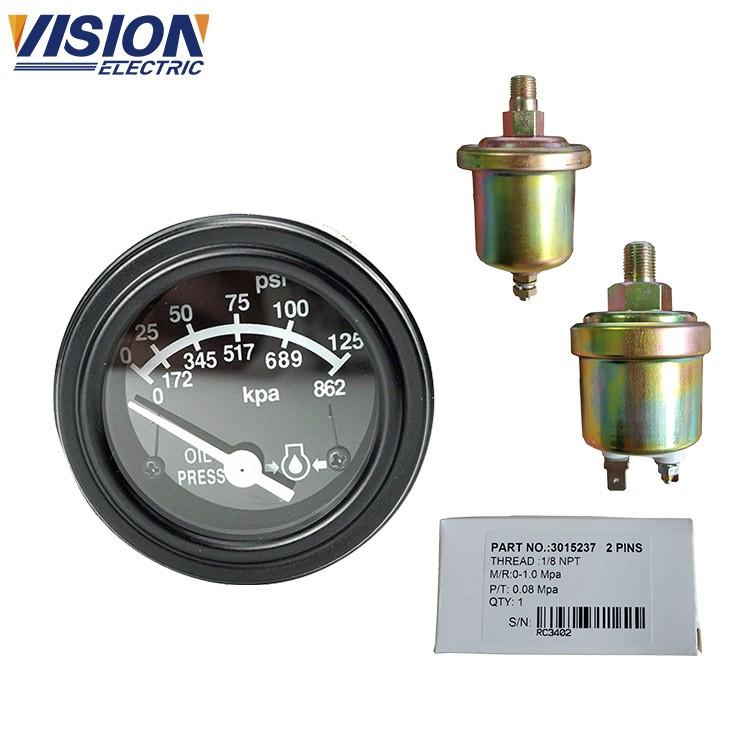

1/8 NPT 0-10 Bar Oil Pressure Sensor VDO Engine Sender with Warning Contact 360-081-032-014C
- $8.99 / 1 - 9 pieces
$7.99 / 10 - 49 pieces
$6.99 / 50 - 199 pieces
$4.99 / >=200 pieces - 1 piece
- Fuan Vision Machinery & Electric Co., Ltd.
- Fujian, China
- Ms Sophie Huang
PRODUCT DETAIL
| Sales unit: | Single product | Single piece packaging size: | 20X20X10cm |
| Warning bar: | 0.8±0.3 bar | Warranty: | 1 year, 1 year |
| Place of origin: | China | Gross weight of single piece: | 0.450kg |
| Wire: | 1/8 NPT | Function: | Oil pressure sensor with warning contact |
| in stock: | VDO's stock supply | product name: | Engine VDO oil pressure sensor replaces original VDO |
| weight: | 115g | Customization support: | Processing |
| type: | Engine oil pressure sensor | Packaging details: | Standard export packaging |
| brand: | imagine | model: | VDO oil pressure sensor |
| Certificate: | CE, RoHS, ISO9001 |
VISION popular items
Product Description

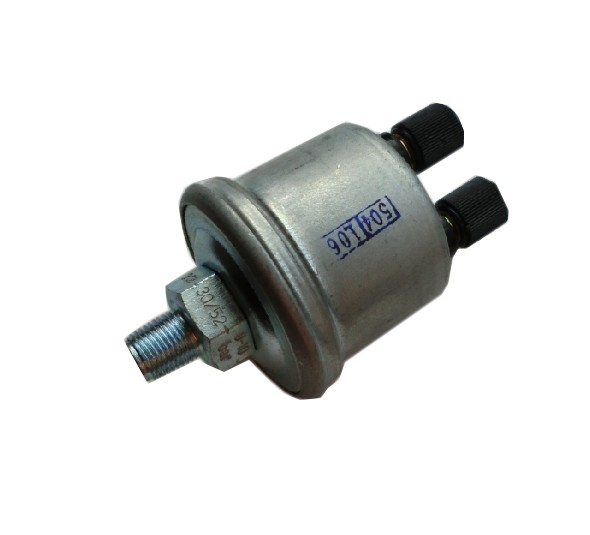

High quality oil pressure sensor
The oil pressure sensor is a protective device for the generator and is connected to the controller to protect the normal operation of the generator. When the generator is at abnormal levels, the sensor will send a signal to the controller, which will then send a warning to ensure you find the problem.
Oil Pressure Sensor | oil pressure sensor | ||||||||||
Pressure (bar) | 0 | 2 | 4 | 6 | 8 | 10 | |||||
resistance | 10±3 | 52±4 | 88±4 | 124±5 | 155±5 | 184±10 | |||||
Varin pressure | 0.8±0.3 bar | ||||||||||
Wire | 1/8 NPT | ||||||||||
net weight | 115g | ||||||||||

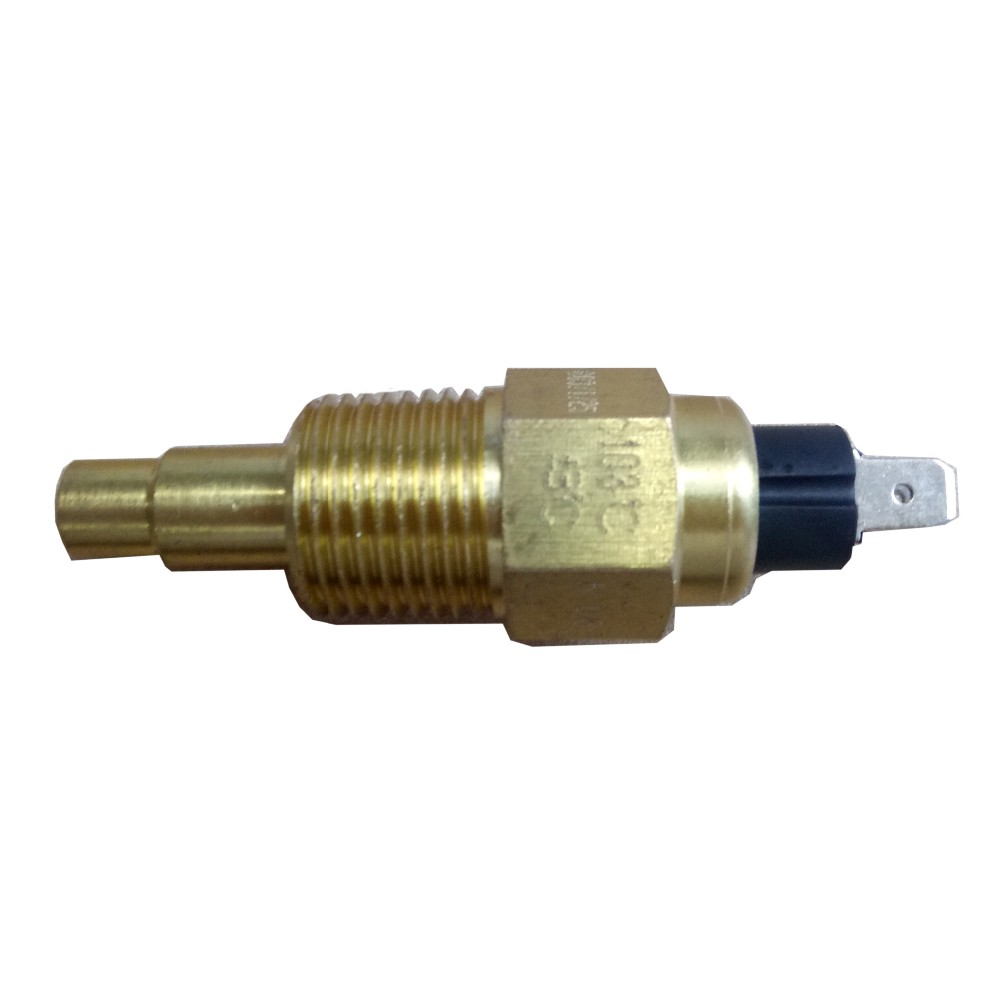

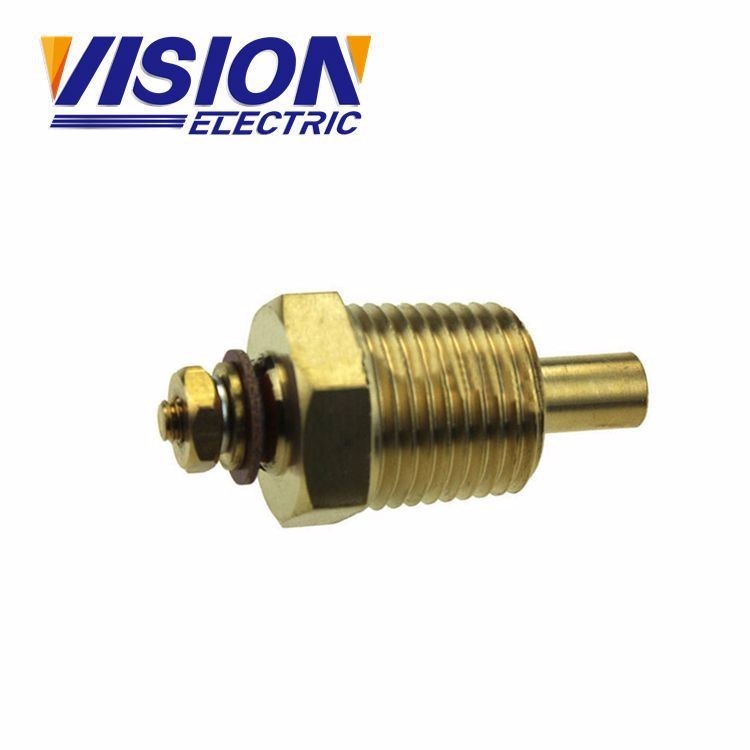

Temperature sensor 1/2NPT
1/2NPT is a generator protection device, connected to the controller to protect the normal operation of the generator. When the generator is at abnormal levels, the sensor will send a signal to the controller, which will then send a warning to ensure you find the problem.
Water temperature sensor | |||||||||||
Temperature(℃) | 20 | 40 | 60 | 80 | 100 | 120 | |||||
resistance | 677±20 | 294±15 | 134±10 | 70±10 | 38.5±10 | 22.4±10 | |||||
Varin pressure | 97±3℃ 103±3℃ | ||||||||||
Wire | 1/2NPT | ||||||||||
net weight | 100 g | ||||||||||
you may like
Voltmeter
Generator table VDO type
3034572

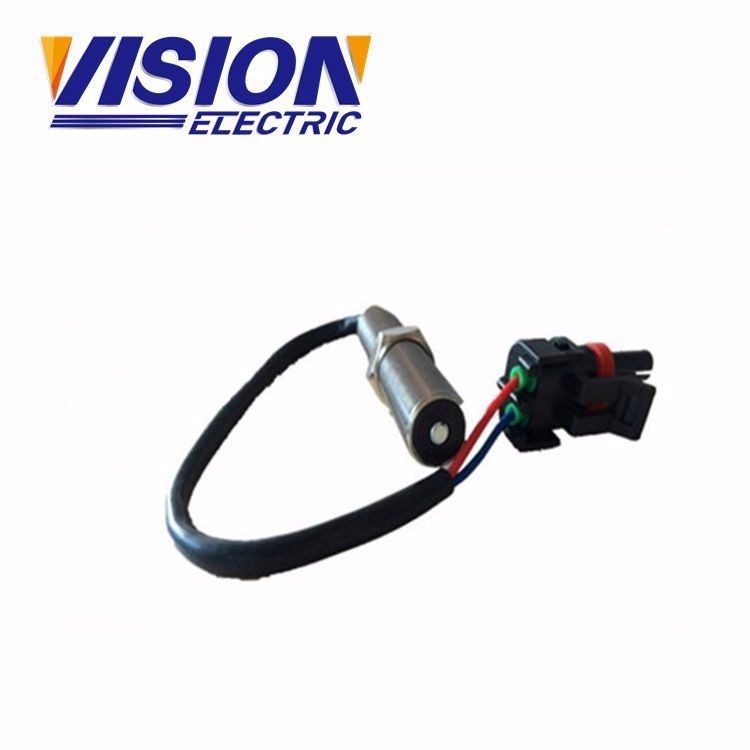

5/8-18UNF-80mm Generator Magnetic Sensor MPU 3034572 Speed Sensor
