Meokon Original New Design MD-G501 Micro Wireless Pressure Sensor Transmitter
- $79.00 / 1 - 9999 pieces
$45.99 / >=10000 pieces - 1 piece
- Meokon Sensor Technology (shanghai) Co., Ltd.
- Shanghai, China
- Ms Calin Sun
| Operating temperature: | -5-40℃ | appendix: | 0.5FS,0.25FS |
| Warranty: | 1 year | Gross weight per piece: | 0.200 kg |
| Single pack size: | 10X8X6 cm | model: | MD-G501 |
| Customization support: | OEM, ODM, OBM | Sales unit: | single product |
| scope: | -0.1...-0.01~0...0.1...1...1.6...60MPa | Origin: | China Shanghai |
| brand: | Maycomb | Storage temperature: | -40-80℃ |
| product name: | Miniature Wireless Pressure Sensor | power supply: | CR 2032 coin cell battery (standard), expandable |
| Overload capacity: | Overload capacity: <10MPa 200%; ≥10MPa 150% | accuracy: | 0.25% full scale 0.5% full scale |
| Long-term stability: | Typical value ±0.25%FS/year |

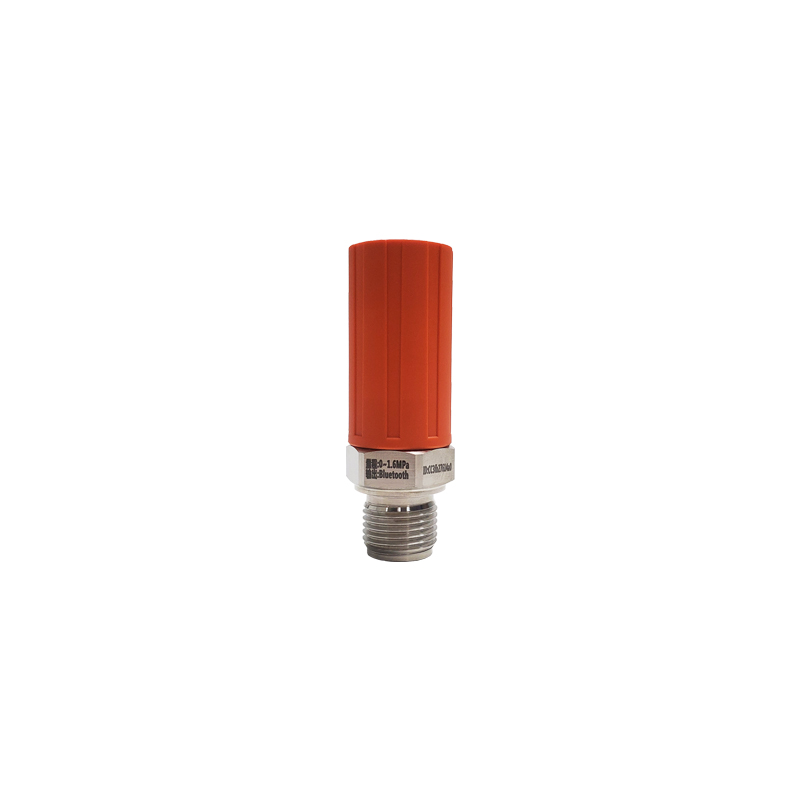

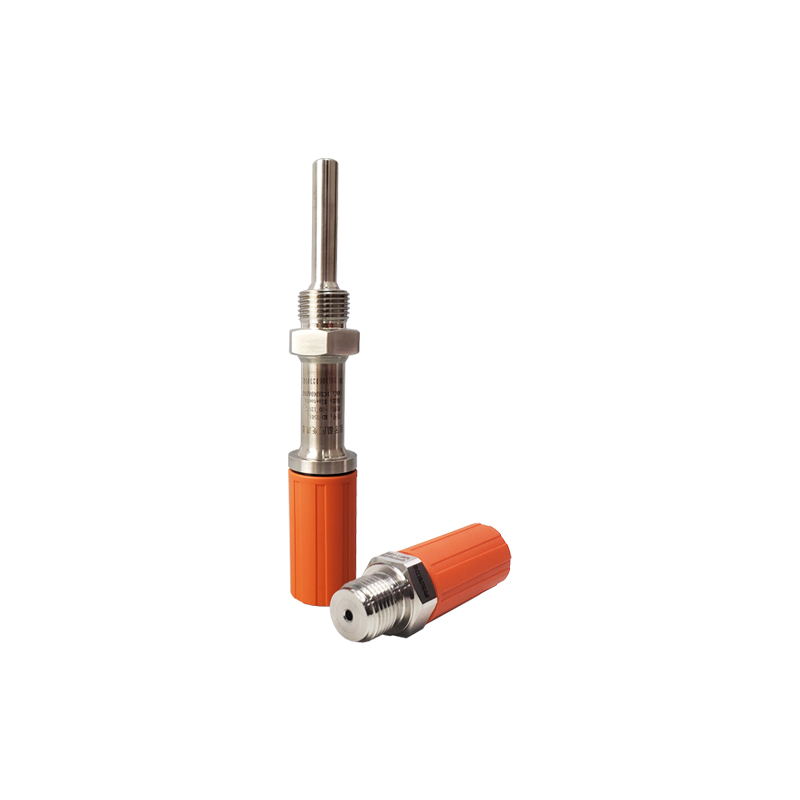

Meokon Original New Design MD-G501 Micro Wireless Pressure Sensor Transmitter
The ultra-small wireless pressure transmitter adopts an ultra-low-power Bluetooth transmission module, equipped with a high-precision pressure sensor and a digital conditioning circuit, small in size, easy to install, and easy to operate.
The product supports a variety of adaptation methods and supports mobile phone data viewing. You can search for the wireless sensor in the WeChat APP, connect the wireless sensor with the Bluetooth of the mobile phone, and carefully view the data and parameter configuration.
A Bluetooth gateway can be selected to transmit 4G to the cloud through the gateway. Or transfer to a local server using Ethernet.
This series of wireless sensors can be used for pressure monitoring where wiring is inconvenient.
technical features
Small size, maximum height 82.5mm
Bluetooth transmission, the longest distance is more than 20 meters
Various functions: unit switching, zero clearing, high and low alarm and fluctuation alarm threshold setting
Battery-powered, low-power design, 12 months of continuous work
Support Bluetooth configuration and Bluetooth gateway remote parameter configuration. Reduce maintenance costs
application
model test
wind tunnel experiment
hydraulic equipment
Petroleum and petrochemical
Automated production line
Pipe Network
pump room, engine room
Specification
Range: -0.1...-0.01~0...0.1...1...1.6...200MPa
Connection method: M20*1.5, G1/4, G1/2 or 1/4NPT, 1/2NPT (customized)
Overload capacity: <10MPa 200%; ≥10MPa 150%
Speed up 0.5FS, 0.25FS
Long-term stability: typical ±0.25%FS/year
Working temperature: -5-40℃
Storage temperature: -40-80°C
Power supply: CR 2032 button battery (standard), expandable
Shell material: PA66
Connection material: 304SS
Transmission distance: >20 meters
Standby power consumption: <5uA
Measuring medium: water, oil, gas, non-corrosive medium to stainless steel
Accessories: CR 2032 battery, debugging applet and account
