18-24 inches split frame vertical cutting OD-Mounted pipe cutting and beveling machine
- $5195.00 /set
- 1 set
- Henan E-Work Industrial Equipment Co., Ltd.
- Henan, China
- Mr Chris Lee
PRODUCT DETAIL
| Rated Power: | 1.5-2KW; | Video outgoing-inspection: | Provided; |
| Type: | Circular Cutting Machine; | Dimension(L*W*H): | 620*928*190mm; |
| Packaging Detail: | Wooden box; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Construction works ,Other; |
| Condition: | New; | Year: | 2021; |
| Automation: | Automatic; | Certification: | CE; |
| Weight (KG): | 161; | Brand Name: | E-work; |
| O.D.: | 457-610mm; | Key Selling Points: | Easy to Operate; |
| Cutting Thickness (mm): | 30; | Port: | Shanghai , Qingdao , Ningbo; |
| Frequency: | 50-60hz; | Power: | 1.5-2KW; |
| Package Preview: | ; | Core Components: | PLC,Bearing,Motor,Gear; |
| Voltage: | 220V/380V, 220-240V; | Material / Metal Processed: | PVC,Stainless Steel,Carbon steel,Aluminium alloy,Aluminum; |
| After Warranty Service: | Video technical support; | Supply Ability: | 100 Sets per Month; |
| Rotation speed: | ≤11r/min; | Warranty: | 1 Year; |
| Place of Origin: | Henan, China; | Local Service Location: | None; |
| Warranty of core components: | 1 Year; | Application: | Pipe Cutting & Beveling; |
| Blade Size(mm): | 5*25*100; | Showroom Location: | None; |
| Machinery Test Report: | Provided; | Wall thickness: | 30mm; |
| After-sales Service Provided: | Online support; | Marketing Type: | New Product; |
| Payment Terms: | L/C,T/T; |
Product Description

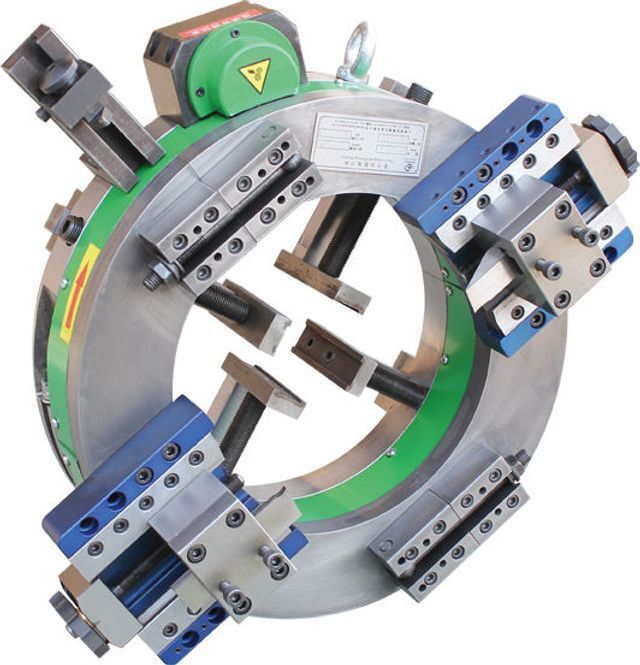

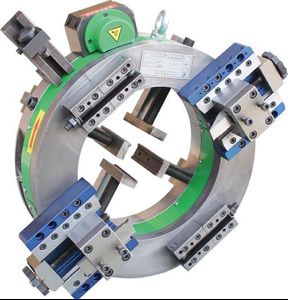

External clamp pipe cutting and beveling machine, the body can be divided into two petals, installed on the pipe spindle for processing. It is suitable for pipe cutting, beveling, boring inner holes, flange end face processing and outer circle processing,etc. The processing bevel angle can be selected at will, and the tool holder can move automatically.

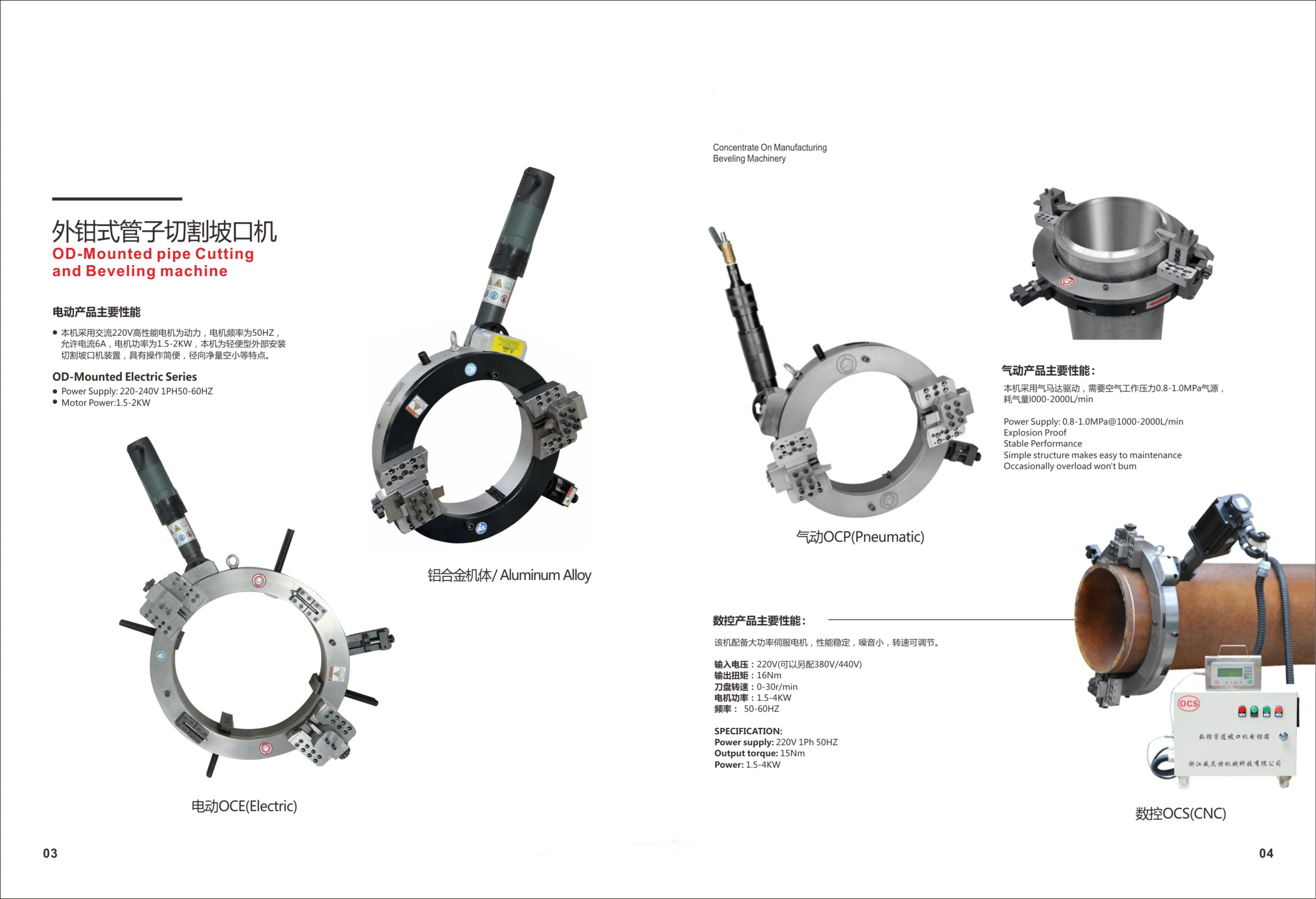

According to different driving methods, it is divided into a small number: electric type, servo electric, hydraulic drive and
pneumatic, which converts different pipe diameter requirements. Extensive replacement of oil, petrochemical, beer, beverage and dairy products, pharmaceutical, metallurgy, water treatment, shipbuilding, electric power and other industries after cutting, directly welding; at the same time, non-standard specifications can be customized according to customer needs, cutting non-standard grooves
The machine body adopts the advanced forging process and heat treatment process of the Yangtze River Delta to ensure the strength and hardness of the machine body. At the same time, the precision turning CNC lathe is used to ensure the processing accuracy.
According to different driving methods, it is divided into a small number: electric type, servo electric, hydraulic drive and
pneumatic, which converts different pipe diameter requirements. Extensive replacement of oil, petrochemical, beer, beverage and dairy products, pharmaceutical, metallurgy, water treatment, shipbuilding, electric power and other industries after cutting, directly welding; at the same time, non-standard specifications can be customized according to customer needs, cutting non-standard grooves
The machine body adopts the advanced forging process and heat treatment process of the Yangtze River Delta to ensure the strength and hardness of the machine body. At the same time, the precision turning CNC lathe is used to ensure the processing accuracy.

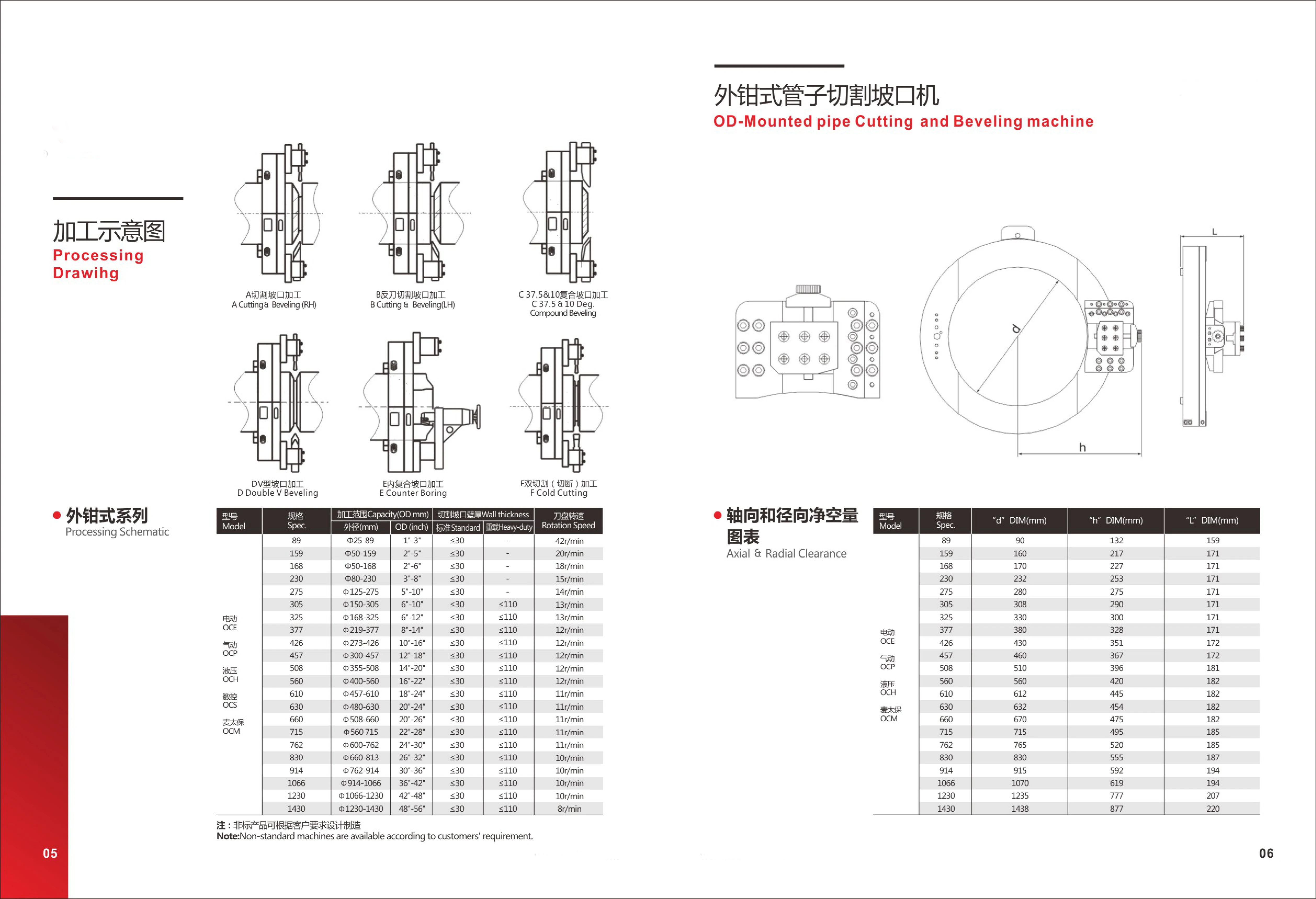

Specification
Model | Working Range | Wall Thickness | Wall Thickness | Rotation Speed | |||
（Outside Diameter) | Standard | Heavy-duty | |||||
89 | 1"-3" | 25-89mm | ≤30mm | - | 42r/min | ||
168 | 2"-6" | 50-168mm | ≤30mm | - | 18r/min | ||
230 | 3"-8" | 80-230mm | ≤30mm | - | 15r/min | ||
275 | 5"-10" | 125-275mm | ≤30mm | - | 14r/min | ||
305 | 6"-10" | 150-305mm | ≤30mm | ≤110mm | 13r/min | ||
325 | 6"-12" | 168-325mm | ≤30mm | ≤110mm | |||
377 | 8"-14" | 219-377mm | ≤30mm | ≤110mm | |||
426 | 10"-16" | 273-426mm | ≤30mm | ≤110mm | |||
457 | 12"-18" | 300-457mm | ≤30mm | ≤110mm | |||
508 | 14"-20" | 355-508mm | ≤30mm | ≤110mm | |||
560 | 16"-22" | 400-560mm | ≤30mm | ≤110mm | |||
610 | 18"-24" | 457-610mm | ≤30mm | ≤110mm | |||
630 | 20"-24" | 480-630mm | ≤30mm | ≤110mm | |||
660 | 20"-26" | 508-660mm | ≤30mm | ≤110mm | |||
715 | 22"-28" | 560-715mm | ≤30mm | ≤110mm | |||
762 | 24"-30" | 600-762mm | ≤30mm | ≤110mm | |||
830 | 26"-32" | 660-830mm | ≤30mm | ≤110mm | |||
914 | 30"-36" | 762-914mm | ≤30mm | ≤110mm | |||
1066 | 36"-42" | 914-1066mm | ≤30mm | ≤110mm | |||
1230 | 42"-48" | 1066-1230mm | ≤30mm | ≤110mm | |||
1430 | 48"-56" | 1230-1430mm | ≤30mm | ≤110mm | 8r/min | ||
Note:We can produce customized machines.
Detailed Images

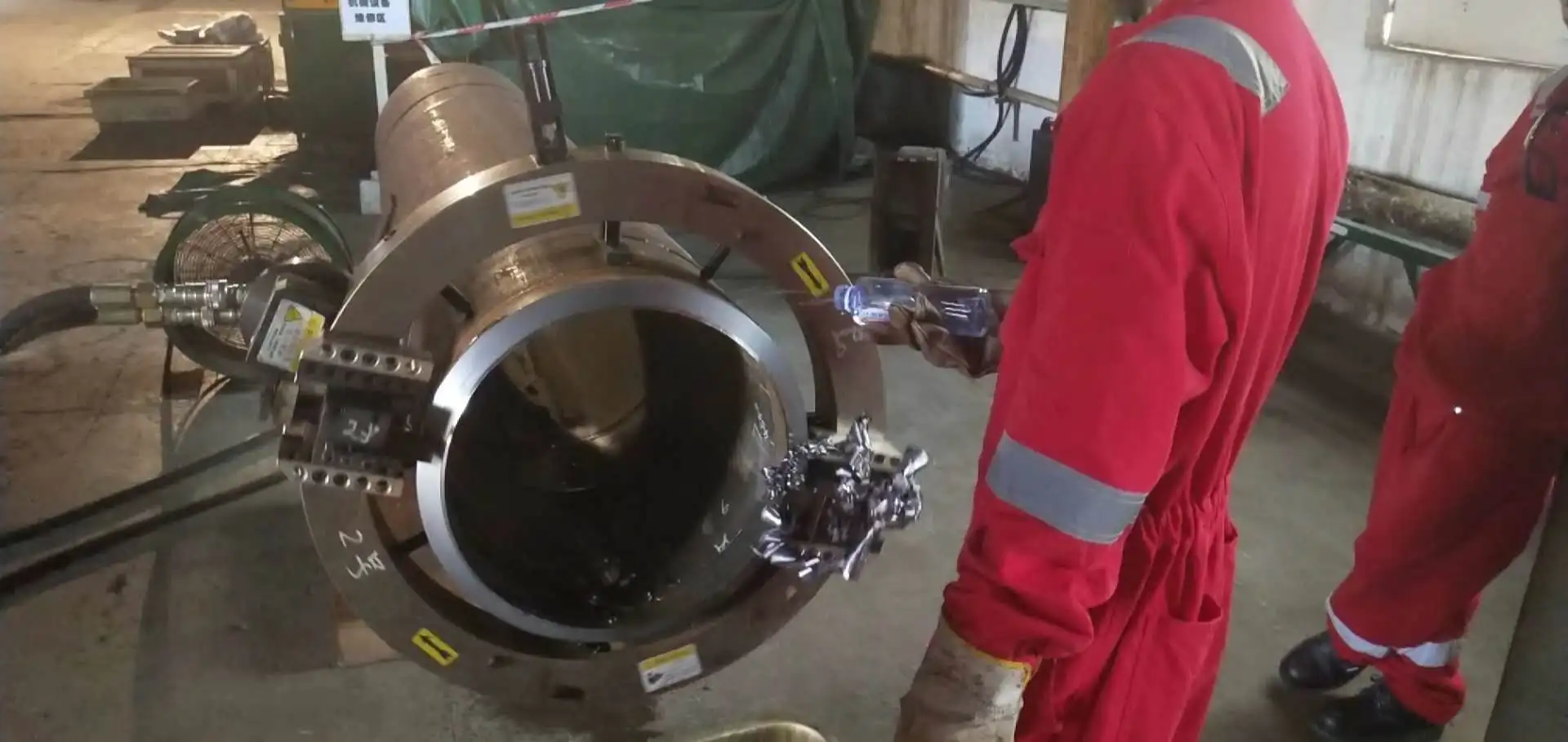

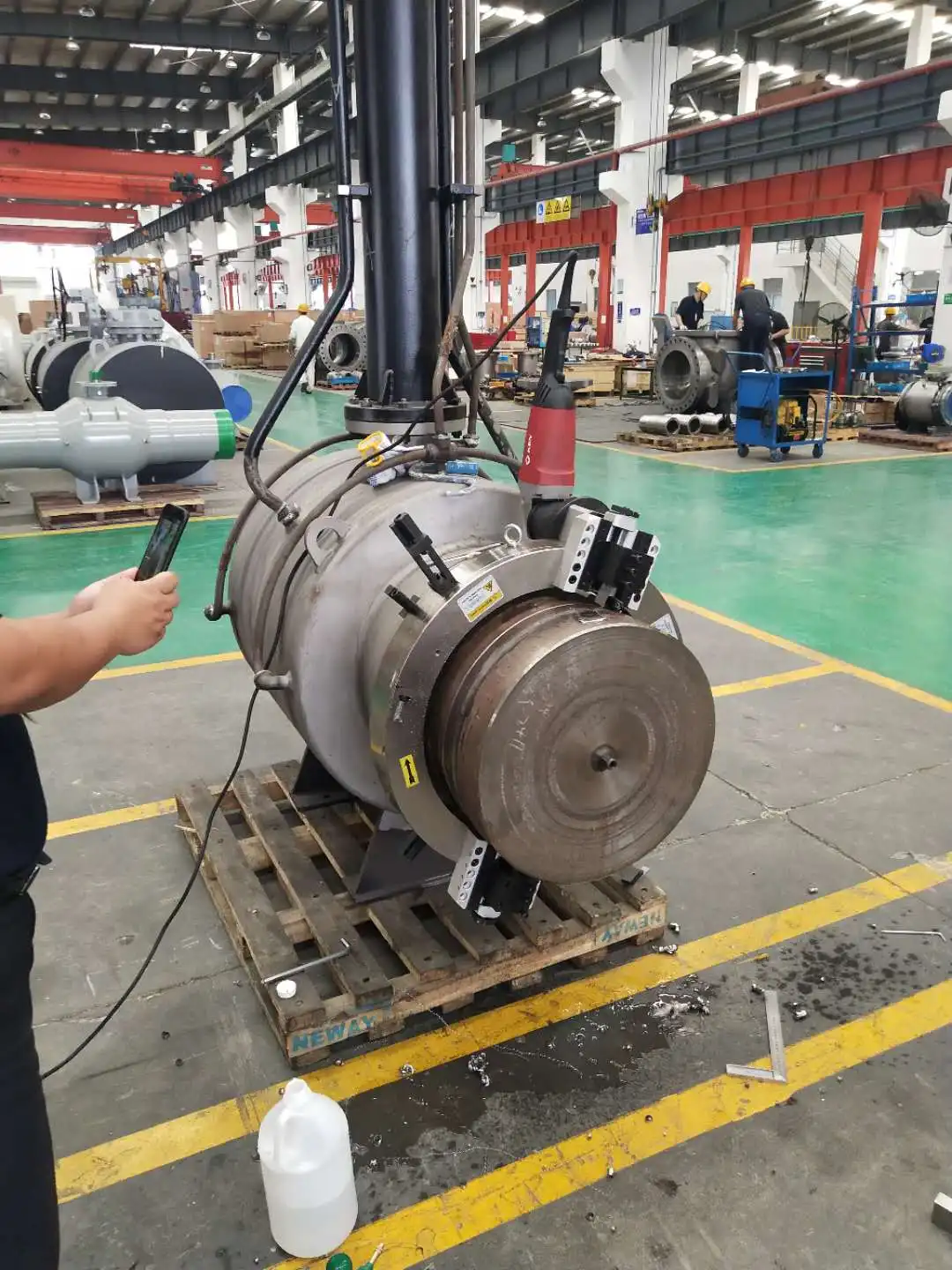

This machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut and bevel, single point and flange facing operations, as well as weld end preparation on open ended pipe. It can be used on pipe size from 1” to 56" of most wall thicknesses and materials.
