194DR electric power three-phase watt-hour meter
- $100.00 /piece
- 1 piece
- Chongqing Blue Jay Technology Co., Ltd.
- Chongqing, China
- Mr Petter Wan

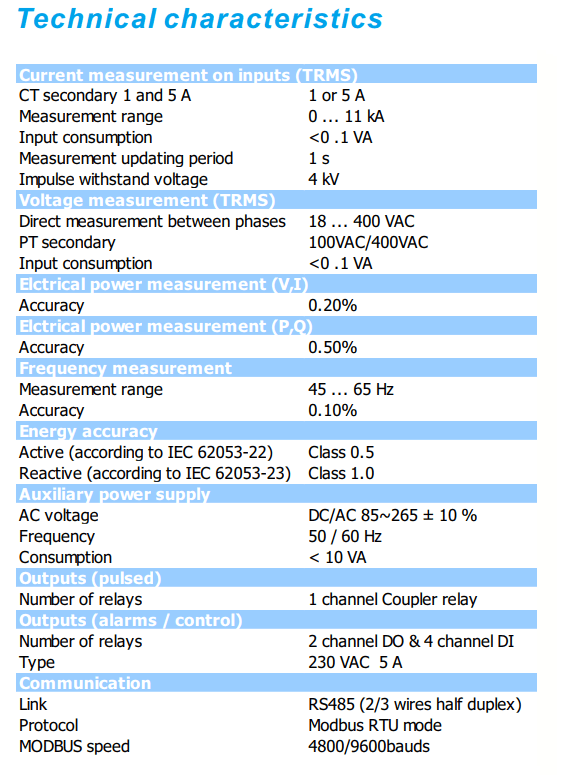

| Supply capacity: | 10000 pieces per month | Accuracy class: | 0.5 |
| Update time: | 1 cycle | weight: | 0.70 kg (1.54 lb) |
| voltage: | 85-265Vac/dc | Operating temperature: | -20~60℃ |
| Origin: | Zhejiang, China | isolation: | 2500 VAC for 1 minute |
| brand: | blue jay | aspect: | 88*132*47mm |
| payment terms: | Western Union, T/T | Sampling Rate: | 128 samples/cycle |
| model: | 194DR | Measuring range: | 0-9999A |
| humidity: | 0 to 95% RH non-condensing | Display type: | numbers only |

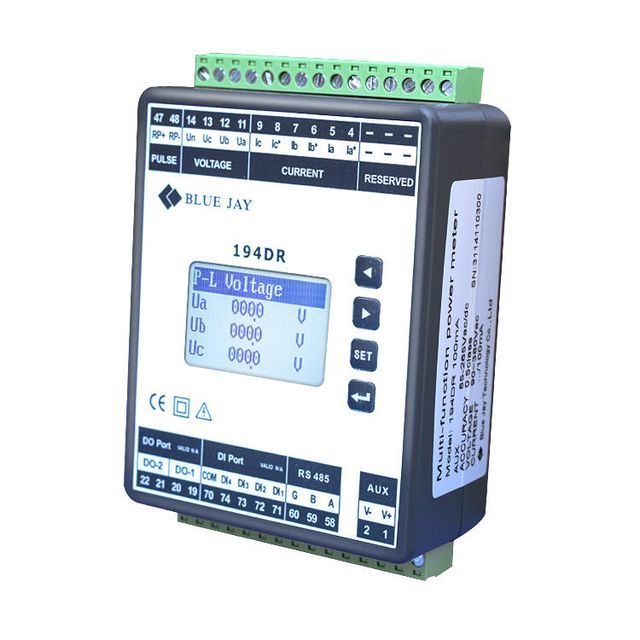

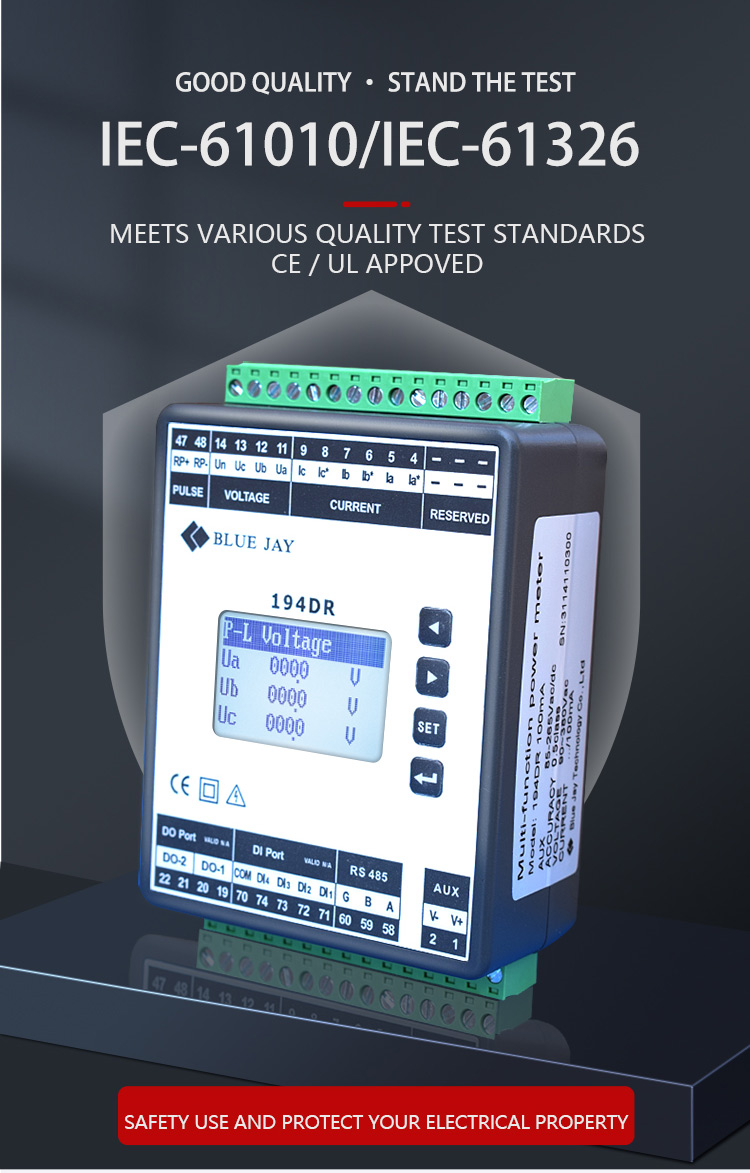

194DR multifunctional instrument

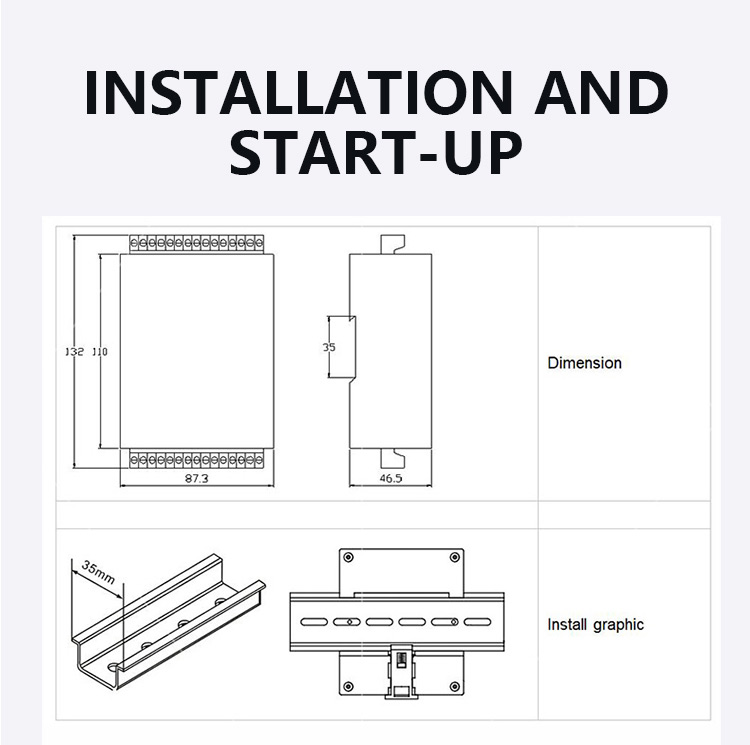

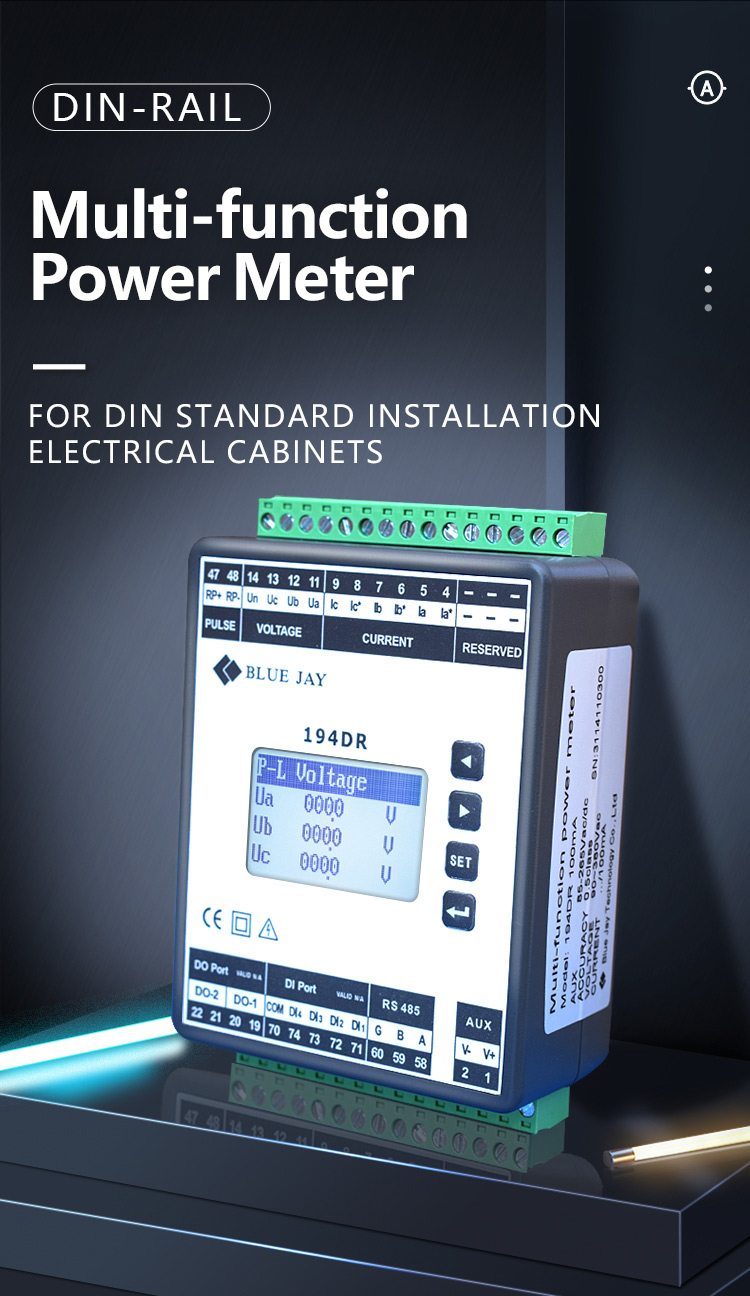

Three-phase for Din rail mounting
Designed for DIN rail mounting, it is a high-end multifunctional power meter. With dot matrix LCD screen, more electrical parameters can be displayed on the same screen more conveniently.
Class 0.5 high-precision performance, it can replace your old-fashioned analog indicators or digital single-function products such as ammeters, voltmeters or wattmeters. A built-in virtual alarm trigger detects a voltage drop or flicker event and records it in a register for future trace jobs.
feature
·Measurement accuracy level 0.5
· Current measurement .../5 or .../1 A
·1.6 inch dot matrix LCD screen
·Universal series power supply (85-265VAC/DC)
ITF technology: electrical insulation protection input and output
Provide up to 50 state-owned enterprise filing lists
Provide 5 virtual alarm triggers
· Optional advanced electrical parameters*
· Optional recording and reading of multiple tariff rates, up to 3 months
·With RS-485 Modbus/RTU communication
·With 1 pulse output (PO) for active energy counting
Optional 4-way digital input (DI) and 2-way digital output (DO)
