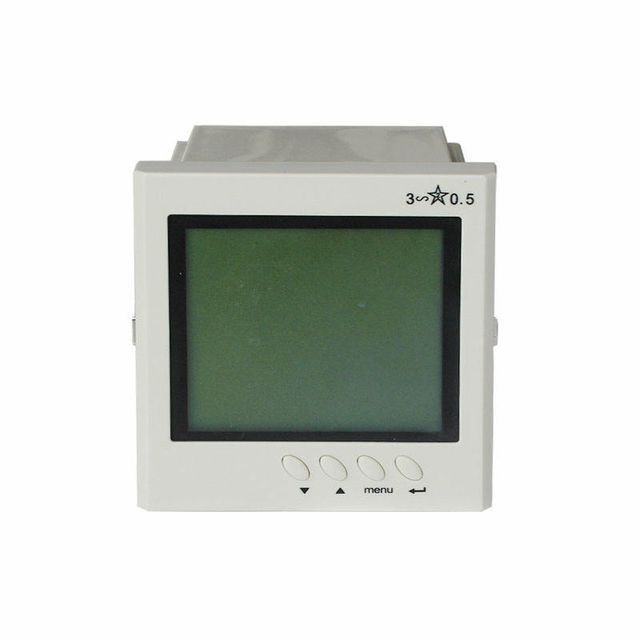

BJ194E-9SY Three-phase digital multifunctional power meter, 96x96mm panel mount energy meter, digital panel voltmeter
- $58.00 / 5 - 49 pieces
$52.00 / >=50 pieces - 5 pieces
- Chongqing Blue Jay Technology Co., Ltd.
- Chongqing, China
- Mr Petter Wan
| model: | 194E-9SY | Measurable voltage range: | 0~400V |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Warranty: | 3 months - 1 year |
| type: | dynamometer | Accuracy class: | 0.5 |
| brand: | blue jay | Certification: | ce |
| custom made: | Yes | Packaging Details: | export carton |
| place of origin; place of origin: | Chongqing, China |
Working with electrical parameters means using multiple analog or digital single-function products such as ammeters, voltmeters or wattmeters. The BJ194E-9SY has four direct access keys and an LCD display to help you use all parameters in a 3P3W or 3P4W LV installation. To facilitate and optimize the operator's work, the BJ194E uses one of the most practical principles to integrate communication or metering.
default:
- Three-phase I, U, KW, KVAR, KWH, KVARH, HZ, COS measurement
- Dimensions: 96x96x123mm
- Two energy pulse outputs
Note: 194E-9SY has two shells with the same specifications. If there is no special message after placing the order, Lanjie Technology will deliver the goods randomly
Functions and Features
·0.5 power and energy
· Current measurement .../5 or .../1 A
ITF technology: electrical insulation protection input and output
·Universal series power supply
