1x6500 CNC disc brake bending machine
- $10000.00 / 1 - 1 sets
$9800.00 / >=2 sets - 1 set
- Nantong Super Machinery Co., Ltd.
- Jiangsu, China
- Ms shelly song
PRODUCT DETAIL
| brand: | excellent | Video shipment inspection: | if |
| port: | Shanghai | Weight (kg): | 5000 |
| Warranty: | 1 year | Control System: | CNC |
| type: | Hydraulic 4x3200mm hydraulic CNC disc brake bending machine | Packaging Details: | standard meal |
| Applicable industries: | retail, manufacturing plant | Package preview: | |
| Bending Thickness(mm): | 1 - 1.5 mm | Mechanical test report: | if |
| Bending Length(mm): | 6500 mm | payment terms: | L/C, D/P, T/T |
| Marketing Type: | normal product | Dimensions (L*W*H): | 4200X1400X1900MM |
| weight: | 4800KG | Health status: | new |
| Material/Metal Processing: | stainless steel, carbon steel, aluminum | Origin: | Jiangsu, China |
| Supply capacity: | 20 sets per month | Core component warranty: | 1 year |
| Type of machine: | Disc brake caliper | After-sales service provided: | Engineers available to service machinery overseas |
| Showroom location: | not any | Year: | 2021 |
| Core components: | PLC, gearbox, motor, gear, pump | raw material: | sheet bending |
| Main selling points: | automatic |
Product Description
Name: 1x6500 CNC disc brake bending machine
Structural and operational features;
* Hydraulically operated folding and clamping beams allow for efficient heavy-duty operations.
* Thick plate steel box structure with continuous weld seam has high structural rigidity.
* Folding beam powered by dual hydraulic cylinders.
* Fully integrated and closed electrical/hydraulic system with large oil tank.
* High load double spherical bearings for folding beam pivots and eccentric clamping bearings.
* Precise electric/hydraulic control, manual micro-movement of folding beam.
* Utilizes easy-to-set microswitches to provide precise adjustable angle control for folding aprons.
* Comprehensive equipment protection from electrical and hydraulic overload systems

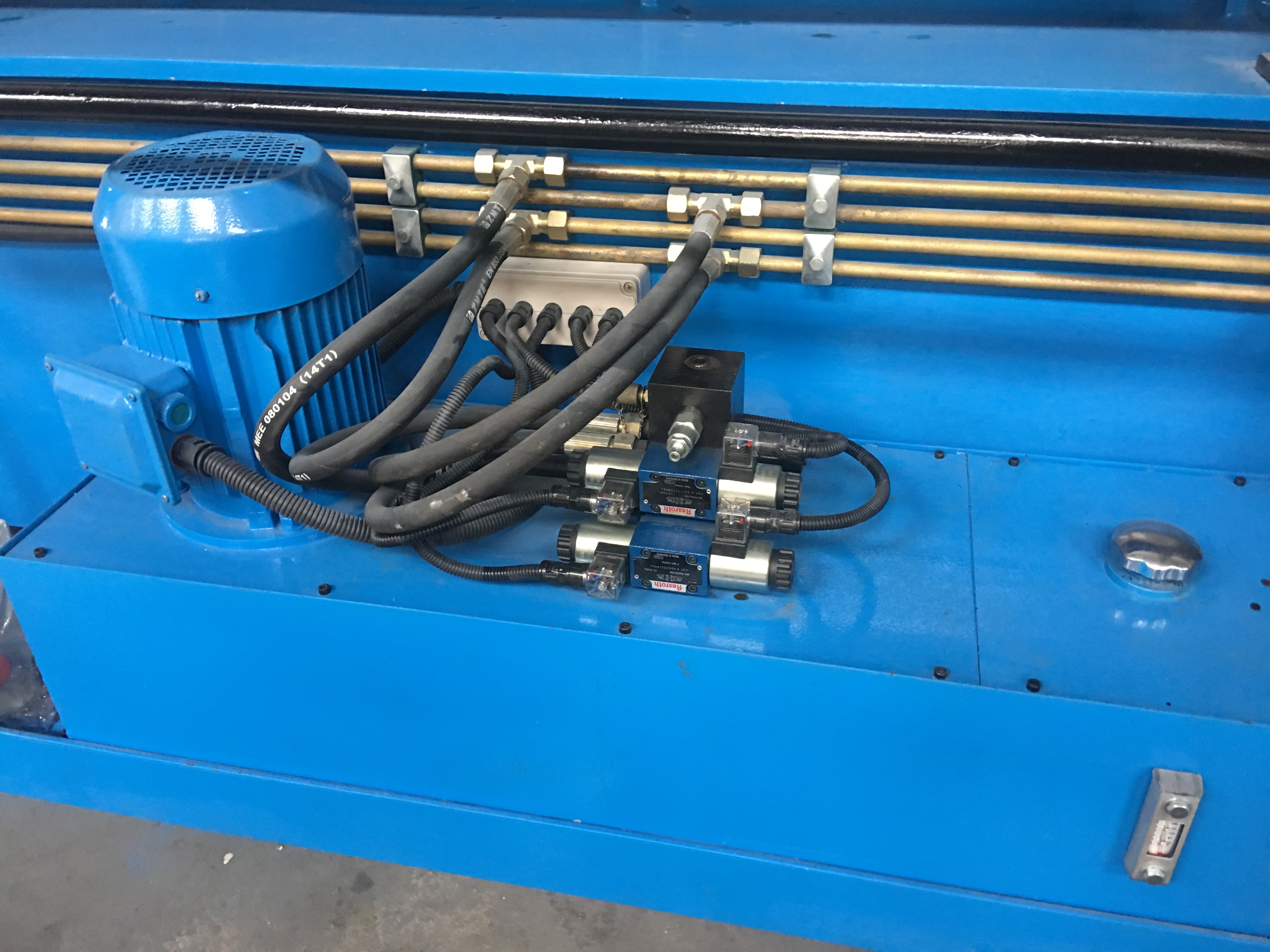

Hydraulic system;
* High quality components ensure reliable performance for years of continuous operation
* Powerful direct coupled hydraulic pump and motor provide efficient and fast operation.
* Unique electric/hydraulic control ensures safe and easy operation.
Specification;
* Available in folded lengths up to 4000 mm - available in capacities from 4.0 to 6.0 mm
* High bending angle from 0-135° - Box bending depth up to 145mm - Clamping beam lift up to 150mm
* 24V Control Wire – Segmented and folded tooling made of hardened material for maximum life
* Instructions, Hydraulic and Electrical Manuals – CE Marked
* Hydraulically operated folding and clamping beams allow for efficient heavy-duty operations.
* Thick plate steel box structure with continuous weld seam has high structural rigidity.
* Folding beam powered by dual hydraulic cylinders.
* Fully integrated and closed electrical/hydraulic system with large oil tank.
* High load double spherical bearings for folding beam pivots and eccentric clamping bearings.
* Precise electric/hydraulic control, manual micro-movement of folding beam.
* Utilizes easy-to-set microswitches to provide precise adjustable angle control for folding aprons.
* Comprehensive equipment protection from electrical and hydraulic overload systems
Hydraulic system;
* High quality components ensure reliable performance for years of continuous operation
* Powerful direct coupled hydraulic pump and motor provide efficient and fast operation.
* Unique electric/hydraulic control ensures safe and easy operation.
Specification;
* Available in folded lengths up to 4000 mm - available in capacities from 4.0 to 6.0 mm
* High bending angle from 0-135° - Box bending depth up to 145mm - Clamping beam lift up to 150mm
* 24V Control Wire – Segmented and folded tooling made of hardened material for maximum life
* Instructions, Hydraulic and Electrical Manuals – CE Marked
feature
* 14′-1″ bend width, 14 gauge max thickness

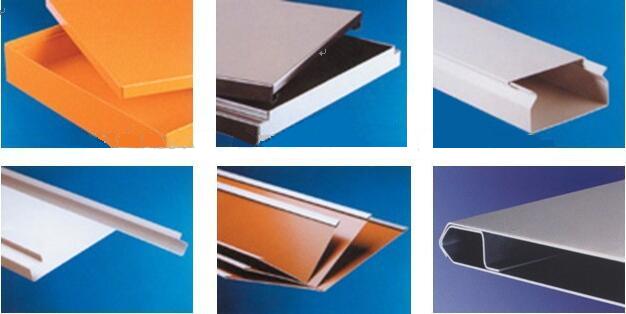

* Clips on boxes and pans
* Advanced computer control
* Draw the desired shape on the touch screen, adjust the length and angle, adjust the bending sequence, save the part, run the part, bend the part. Very easy to use.
* Servo controlled back gauge
* Light Curtain – Safety Device
* Provide operation video
* CE&ISO 9001:2000.
* Clips on boxes and pans
* Advanced computer control
* Draw the desired shape on the touch screen, adjust the length and angle, adjust the bending sequence, save the part, run the part, bend the part. Very easy to use.
* Servo controlled back gauge
* Light Curtain – Safety Device
* Provide operation video
* CE&ISO 9001:2000.
options
*E21s control panel
* Rear ball roller table* Back gauge extension
* Pneumatic back gauge fingers
Product parameters
Model | Capacity (mm) | fold angle (o) | Opening height(mm) | Motor power (kw) | net weight/kg) | Dimensions (L*W*H) (mm) |
W62K | 2*2500 | 0~120 | 110 | 2.2 | 1700 | 3300x850x1550 |
W62K | 2*3200 | 0~120 | 110 | 2.2 | 3600 | 4100x1550x1550 |
W62K | 3*2500 | 0~120 | 110 | 4 | 3100 | 3450x1130x1800 |
W62K | 3*3200 | 0~120 | 110 | 4 | 3800 | 4150x1130x1800 |
W62K | 3*4000 | 0~120 | 110 | 4 | 6100 | 4900x1150x1900 |
W62K | 4*1320 | 0~120 | 110 | 4 | 1800 | 2270x1130x1800 |
W62K | 4*2000 | 0~120 | 110 | 4 | 2500 | 2900x1130x1700 |
W62K | 5*2500 | 0~120 | 110 | 5.5 | 4000 | 3500x1130x1800 |
W62K | 5*3200 | 0~120 | 110 | 5.5 | 5500 | 4150x1130x1900 |
W62K | 2*4300 | 0~120 | 110 | 4 | 6100 | 5400*1150*1650 |
W62K | 1.5*6300 | 0~120 | 110 | 5.5 | 12000 | 7100*1850*1650 |

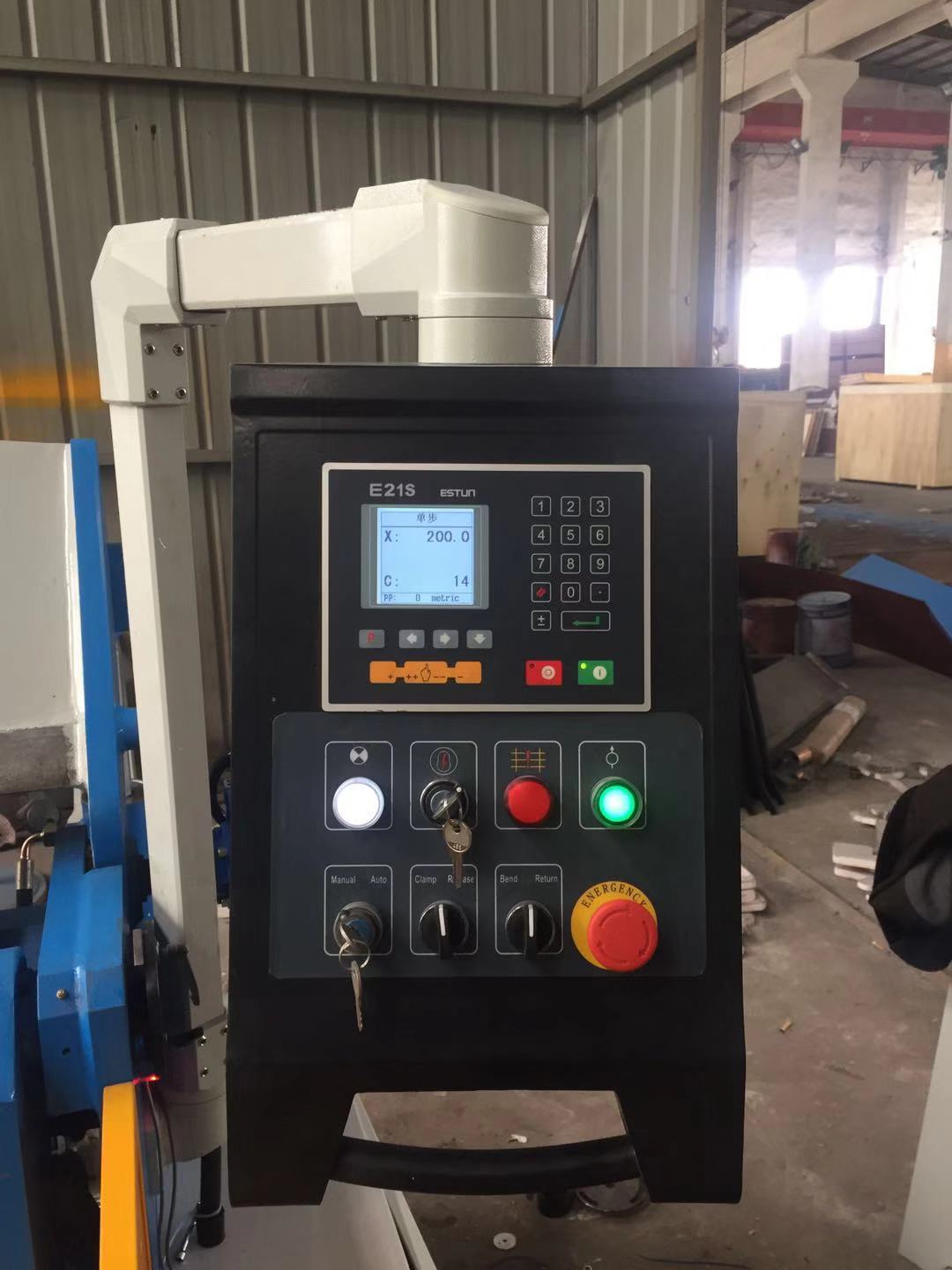

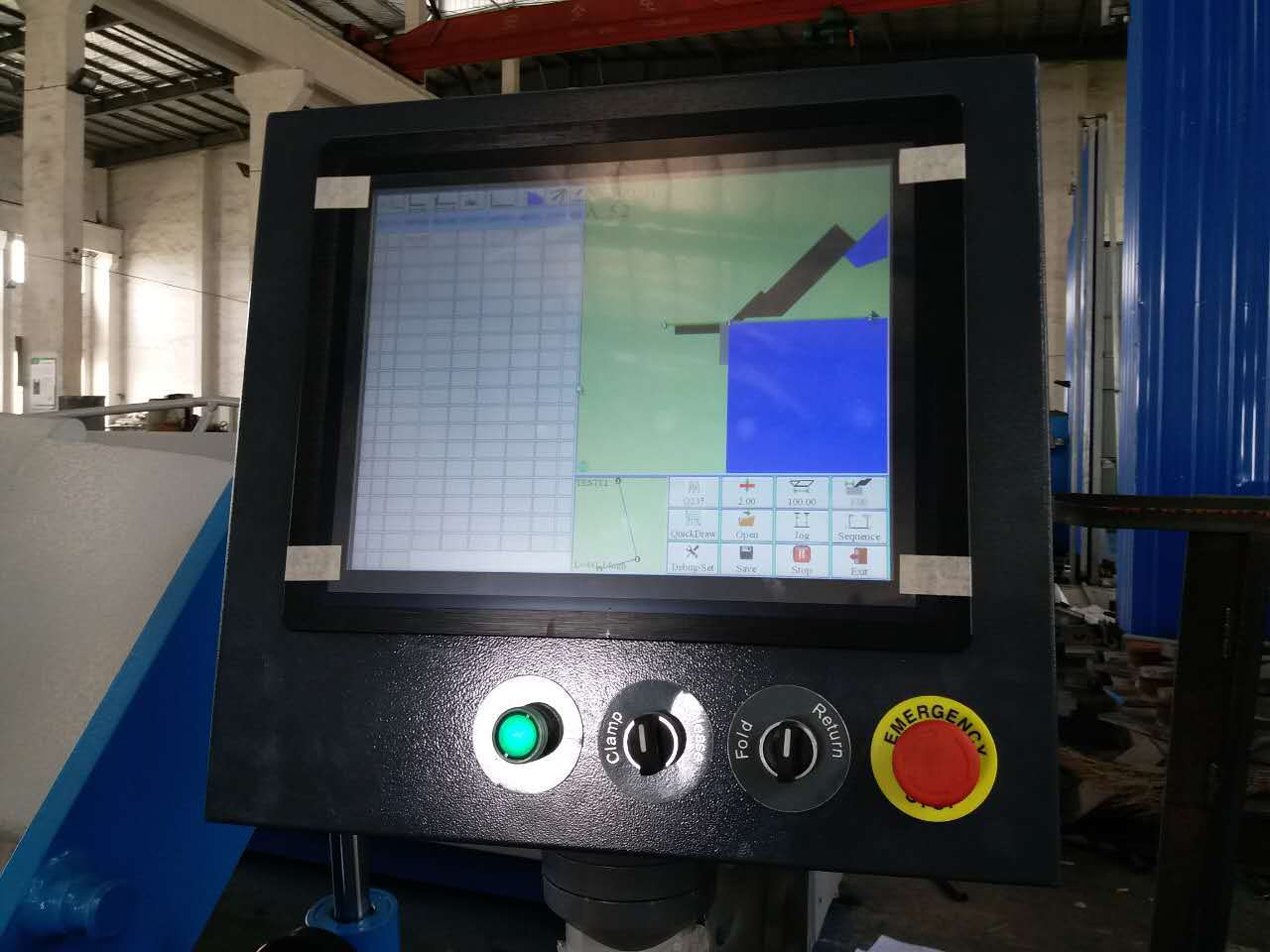

Graphical touchscreen (standard)

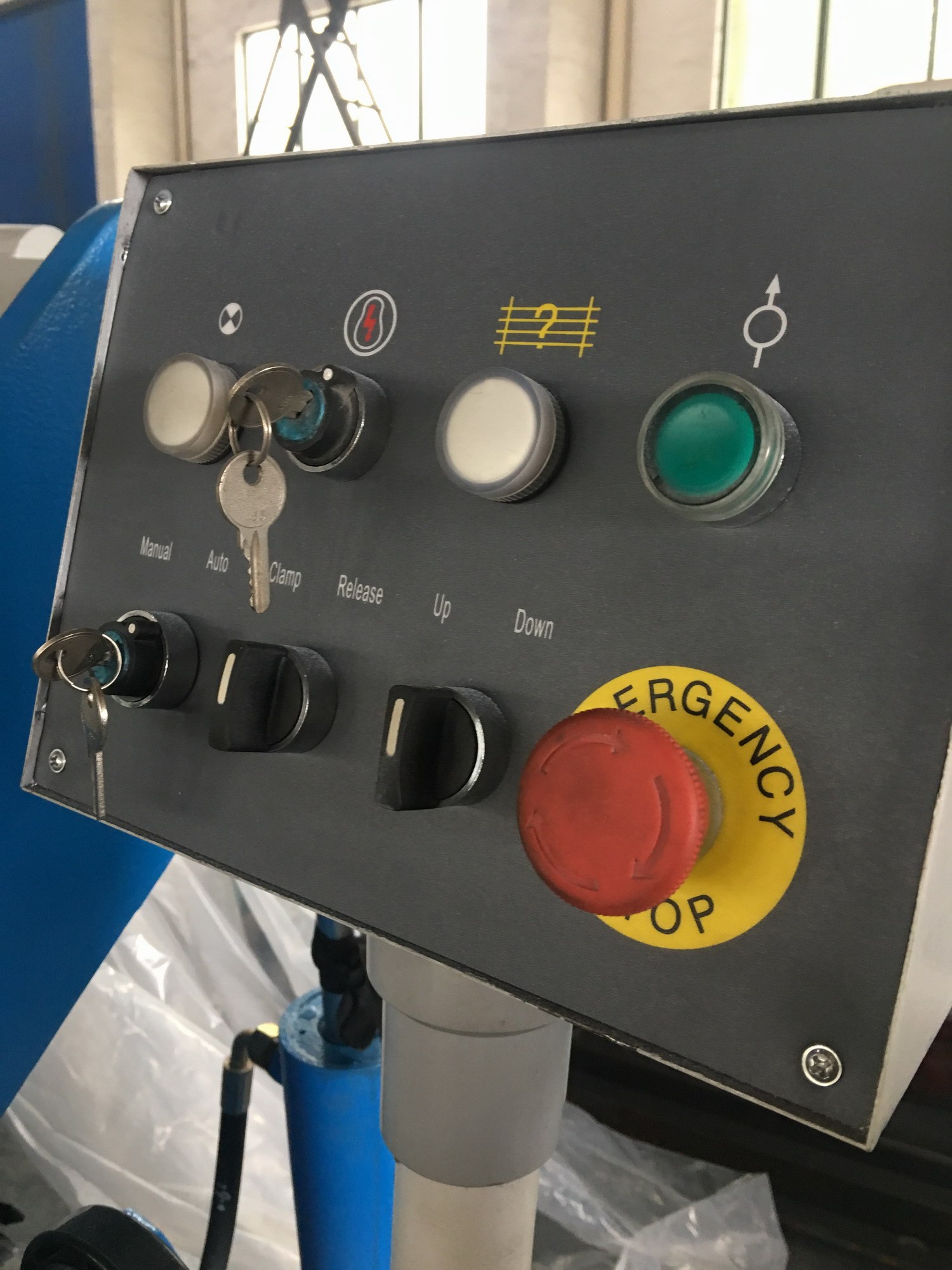

Button panel (optional)
Digital readout panel (optional)

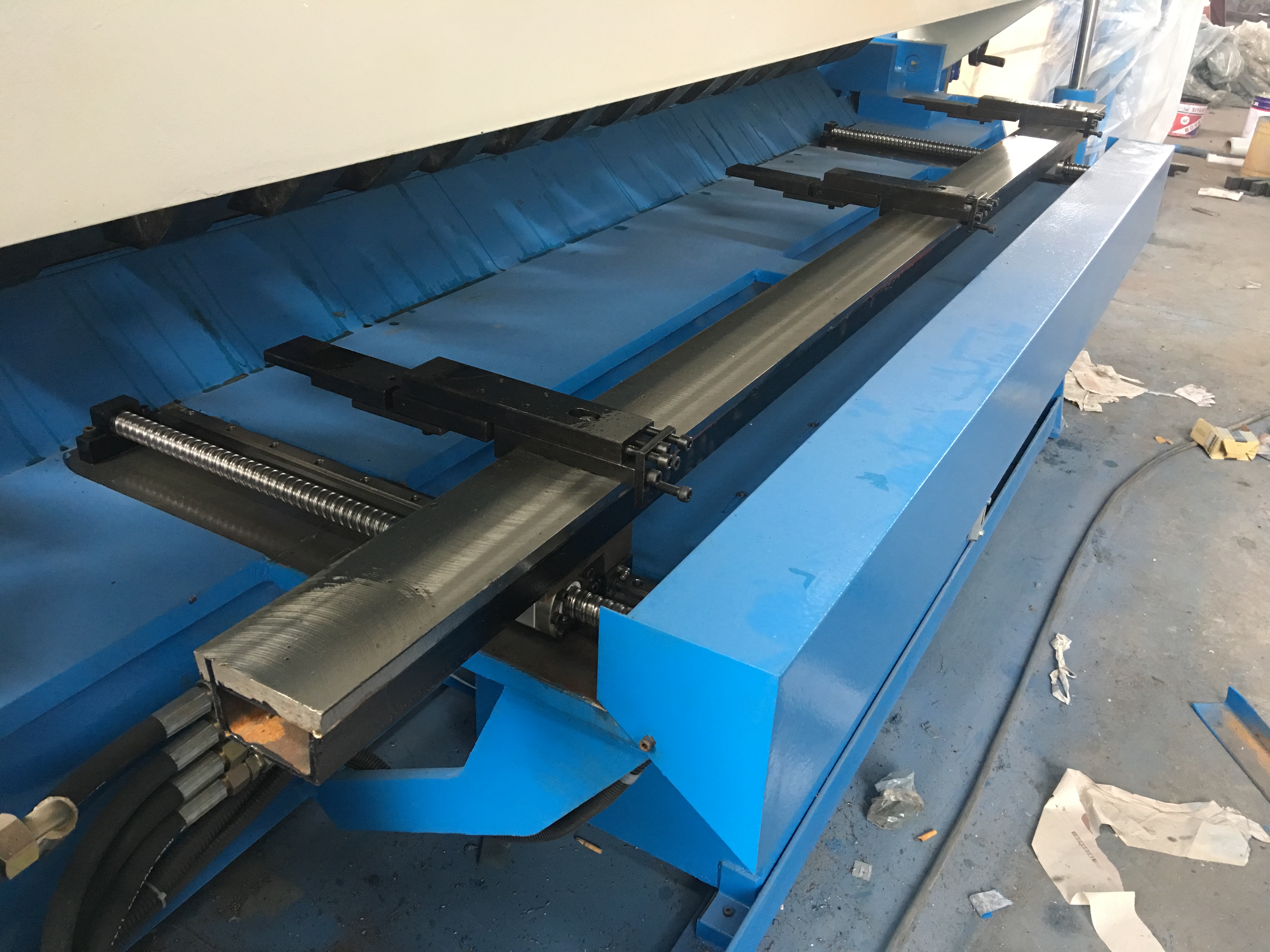

Standard backgauge (servo motor drive, linear guide and ball screw)
Main motor (Siemens), solenoid valve (Rexroth), hydraulic system

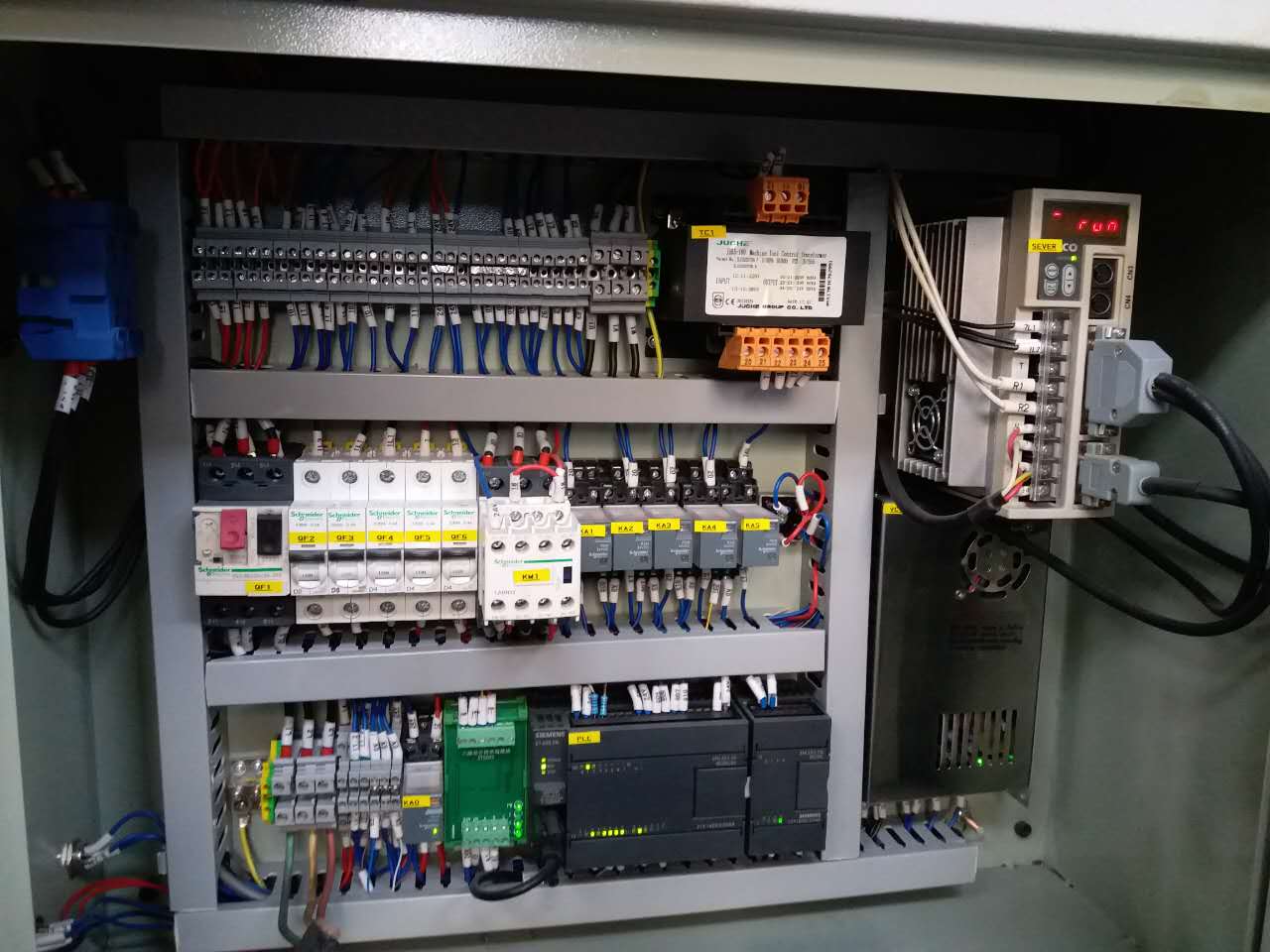

Electrical components (Schneider), PLC+ touch screen (Xinjie)
Rear roller table and pneumatic block fingers (optional)

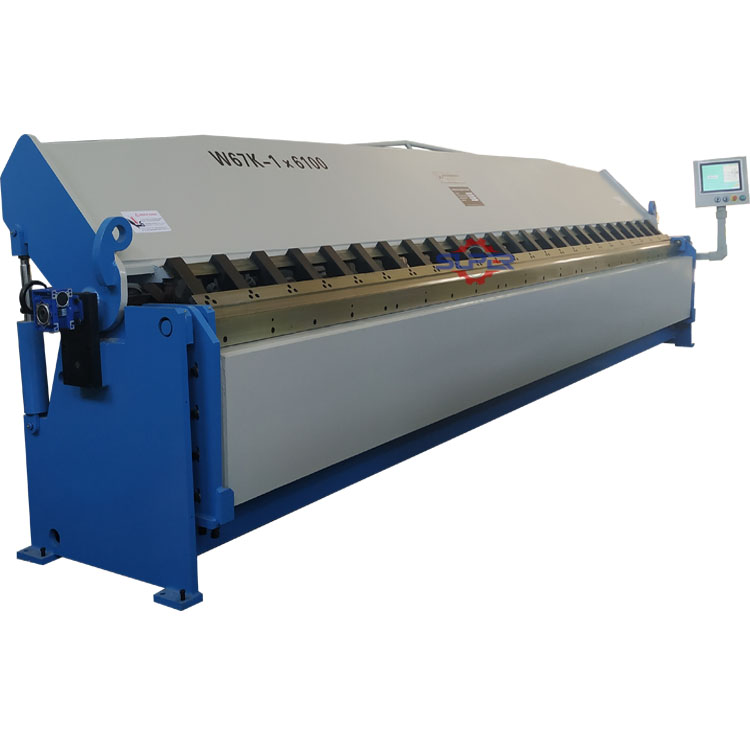

CNC folding brake sample
Sheet metal box and pan folding gate options:
A. Hydraulic with manual back gauge
B. 1 axis digital CNC for bend angle/back gauge with manual back gauge/bend angle.
C. 2-axis graphic CNC for bending angle and backgauge
B. 1 axis digital CNC for bend angle/back gauge with manual back gauge/bend angle.
C. 2-axis graphic CNC for bending angle and backgauge
