2.54mm smt double row 40 round pin header
- $0.01 / >=1000 pieces
- 1000 pieces
- Shenzhen Soulin Electronics Technology Co., Ltd.
- Guangdong, China
- Ms timana CAI
PRODUCT DETAIL
| type: | printed circuit board connectors | Available media: | Surin |
| DC: | 2.54mm needle row double row round needle | asphalt: | 2.54mm |
| Material: | Pa 6 tons | Specification: | 2.54mm needle row double row round needle |
| Contact resistance: | 20m max | describe: | 2.54mm needle row double row round needle |
| delivery time: | 3-10 working days | application: | circuit board |
| port: | Shenzhen | Supplier Type: | original manufacturer |
| place of origin; place of origin: | Guangdong, China | model: | 2.54mm needle row double row round needle |
| Contact material: | brass | color: | black, black |
| payment terms: | L/C,D/A,D/P,T/T,Western Union | Minimum order quantity: | 1000 |
| Insulator material: | Polyester (UL94V-0) | Bale: | tube |
| Insulation resistance: | 1000M Ohm min/500 VDC | Packaging Details: | PE Bag,Tube,Tube+CAP,Tray,Tape&Reel,Plastic Box 2.54mm pin header dual row smt round pin |
| Contact Plating: | Au or Sn over Ni | Current rating: | 2.0 Amp |
| Card: | Surin | Connector use: | circuit board |
| Pressure resistance: | AC/DC 1000Vmin/min |

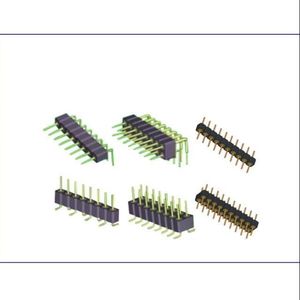

40Pin double row smt 2.54mm round pin header
Product Description
| Specification | |
| asphalt | 1mm, 1.27mm, 2mm, 2.54mm, 3.96mm, 5.08, 1.778mm |
| Material | PA6T,PA9T,LCP |
| Instrument material | Polyester (UL94V-0) |
| Contact material | brass |
| Contact plating | AU or SN over 40u" NI |
| current rating | 1.5 amps |
| Withstand voltage | AC 500Vmin/min |
| Insulation resistance | 1000M minutes |
| Operating temperature | -40℃ to +150℃ |
| pack | Bag, Tube, Tape and Reel |
| application | circuit board |
| Position | 1-40 stitches |
| sample | if |

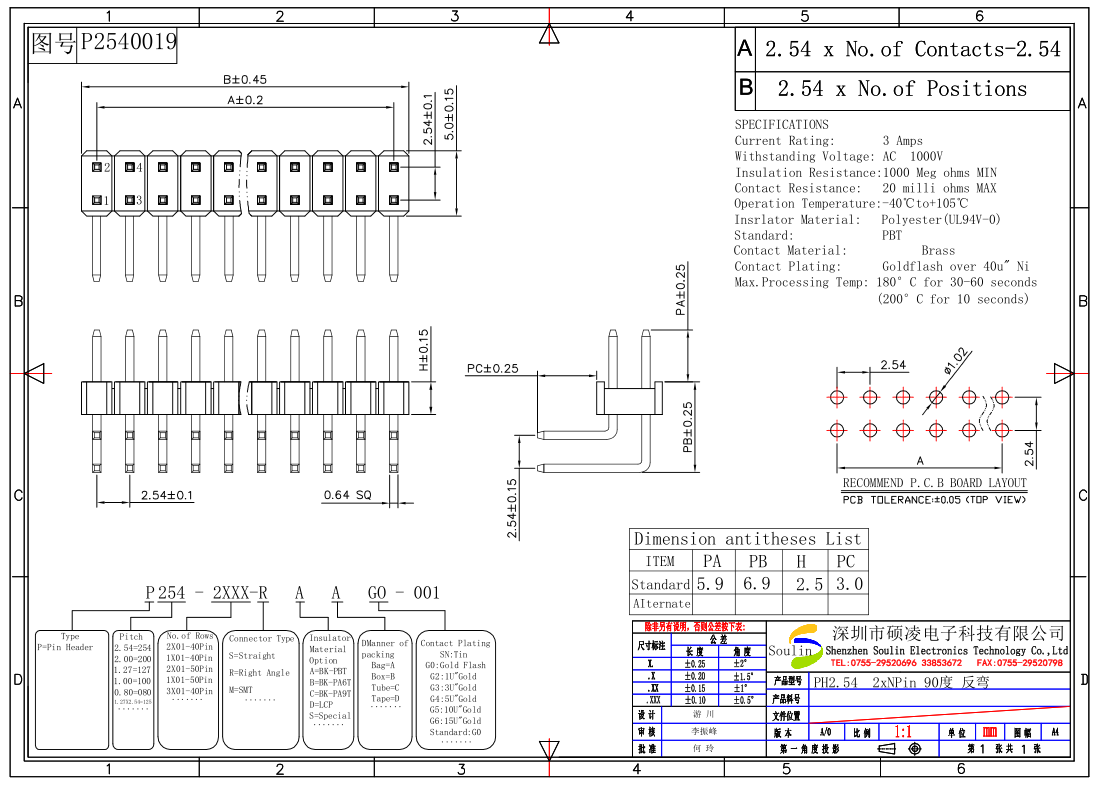

| confirm | Drawings will be provided before production |
Please feel free to contact us and we will send you the drawings you need
