JST GH BM02B-GHS-TBT BM03B-GHS-TBT 1.25mm pcb vertical pin header connector
- $0.10 / >=100 pieces
- 100 pieces
- Shenzhen Scondar Electronic Co., Ltd.
- Guangdong, China
- Ms Ada Cheng
PRODUCT DETAIL
| temperature range: | -25°C~+85°C | Bale: | contact us |
| Insulation resistance: | 100M minutes | model: | SCT1258 |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Rated voltage: | 50V AC, DC |
| Pressure resistance: | 500V AC/min | port: | Shenzhen Yantian |
| Supply capacity: | 10000000 pieces/week | describe: | Wire-to-Board Connector |
| Contact resistance: | 30M max | Packaging Details: | Packing: 1. Shell: 1000 pcs/bag 20kpcs/CTN 1CTN= Length: 13-3/4"* Width: 13-3/4"* Height: 13-3/4" 2. Terminal: 5kpcs/roll, 50kpcs / CTN 1CTN= Lenth:22-1/2"* width: 10-3/4"*height:23" 3.wafer: 1000peices/box 10kpcs/CTN 1CTN= Lenth:13-3/4"* width: 13 - 3/4"*Height: 13-3/4" 4. Harness :: polybag and carton, or customized |
| thing: | GHR 03V S 1.25mm Connector | Packaging Preview: | |
| Certificate: | ISO9001/CE/ROHS/REACH/MSDS | type: | other |
| Current rating: | 1A AC, DC | Card: | Sconda |
| DC: | 1A | place of origin; place of origin: | Guangdong, China |
| Connector type: | circuit board | application: | A printed circuit board |
Product Description
SCT1258 Series JST GH Wire-to-Board Connectors
The SCT1258 series replaces the JST GH connector. 1.25mm pitch, wire-to-board crimp terminal style, low contact resistance.
Compatible:JST GH series connectors
asphalt:1.25mm
pole:2-15P
Current rating:1A (AWG#26-#30)
project | Specification |
Part Number: | SCT1258 |
Compatible: | JST GH series connectors |
Spacing - Mating Interface: | 1.25mm |
Circuit: | 2-15P |
Applicable wire: | AWG#26-#30 (Max.OD:0.8mm) |
Current rating: | 1A |
Rated voltage: | 50V |
temperature range: | -25°C~+85°C |
Contact resistance: | 30m Omega Max |
Insulation resistance: | 100M Omega Minimum |
Pressure resistance: | 500V AC/min |
Wire and cable assemblies: | custom made |

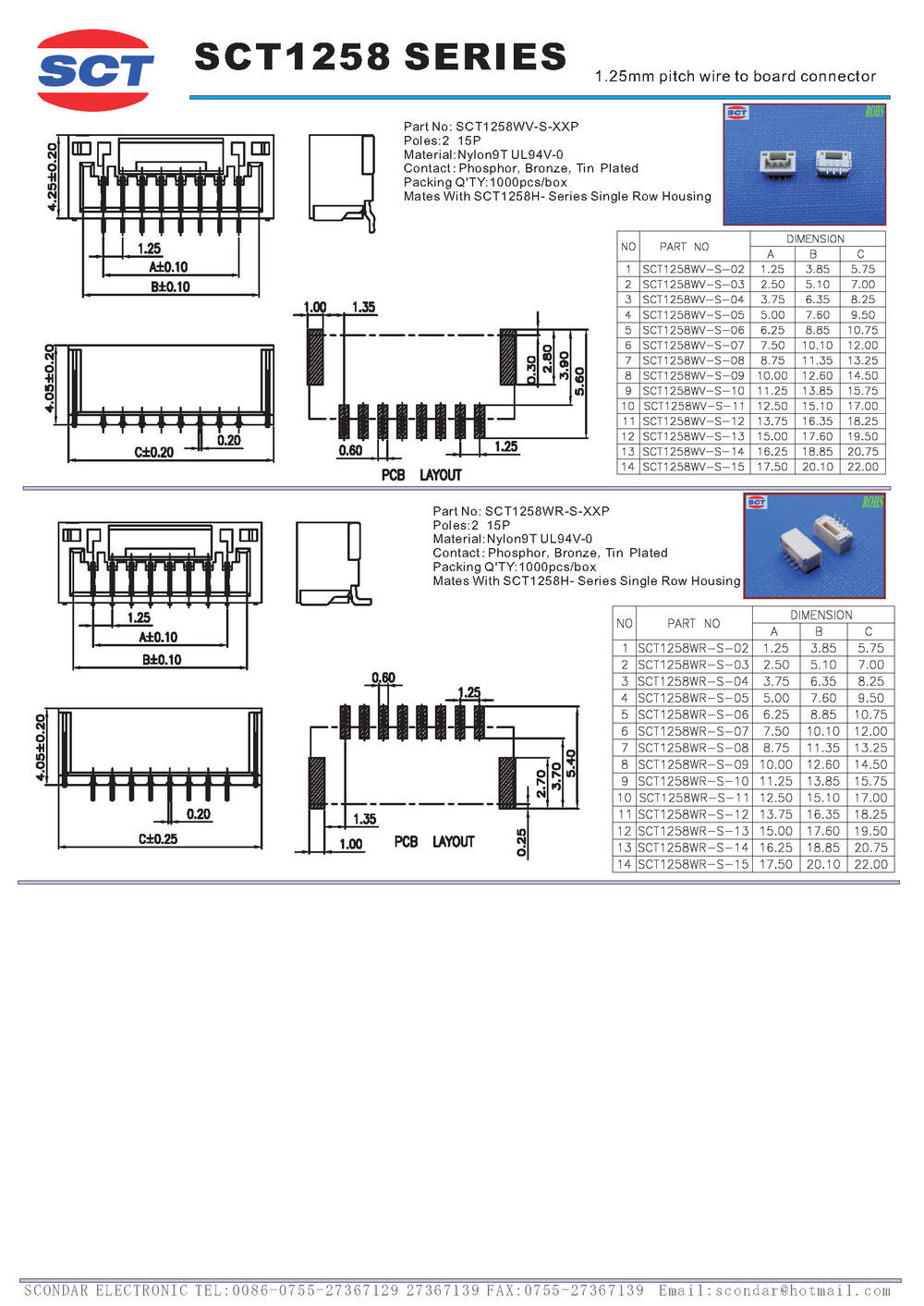

Drawings and Data Sheets
