2022 New design tri-band GSM900mhz DCS1800mhz WCDMA2100mhz 2g 3g 4g full set of mobile phone network signal booster
- $35.00 /piece
- 1 piece
- Shenzhen Shuangyueda Technology Co., Ltd.
- Guangdong, China
- Ms Flora Tang
| port: | Shenzhen | Supply capacity: | 5000 pieces per month |
| work network: | CDMA/GSM/DCS/WCDMA/PCS/AWS/2G/3G/4G LTE | Output Power: | 23dBm |
| get: | 60~ 70dBi | model: | SYD-018 |
| Packaging Details: | carton | network: | 4g,GSM,3G |
| power supply: | AC 110/220V DC12V | Warranty: | 1 year |
| Working frequency (optional): | 800mhz/850mhz/900mhz/1800mhz/1900mhz/2100mhz/2600mhz/AWS1700/2100mhz | brand: | bimonthly |
| type: | 4G signal booster | Coverage: | 500 square meters barrier-free |
| product: | mobile signal booster | Function: | signal expander |
| Accessories: | Outdoor LPDA Antenna, Indoor Ceiling Antenna with 3m Cable, 10m Cable | place of origin; place of origin: | Guangdong, China |
| payment terms: | T/T, Trade Assurance, Visa, Mastercard, Credit Card, Alipay, Paypal, etc. |
Tri-band 900/1800/2100mhz complete kit 2g 3g 4g lte mobile phone network signal booster amplifier repeater for rural
700/800/850/900/1800/1900/2100/2600/AWS1700/2100MHZ
B28/B20/B5/B8/B3/B2/B1/B7/B4 frequency band optional
Pentaband/Quadband/Triband/Dual Band/Single Band options

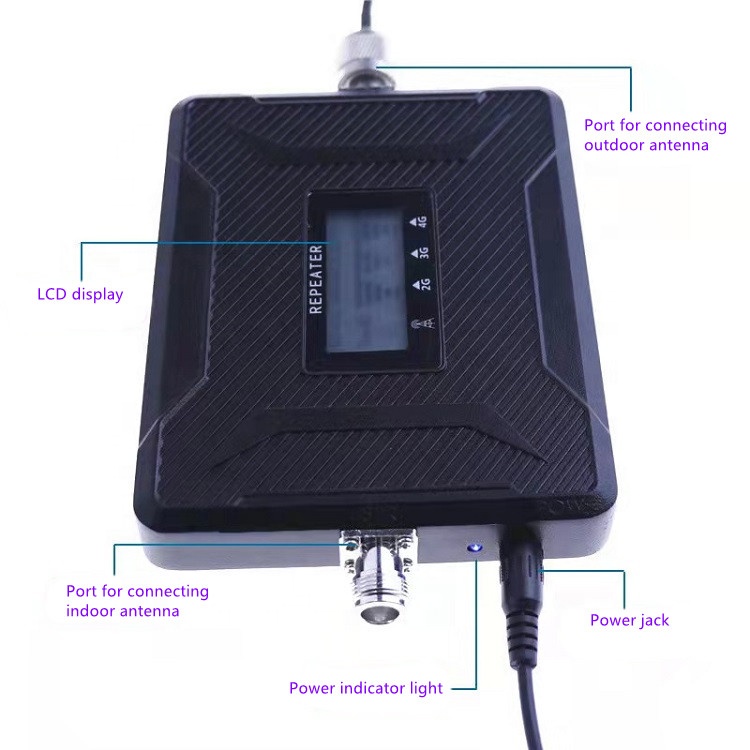

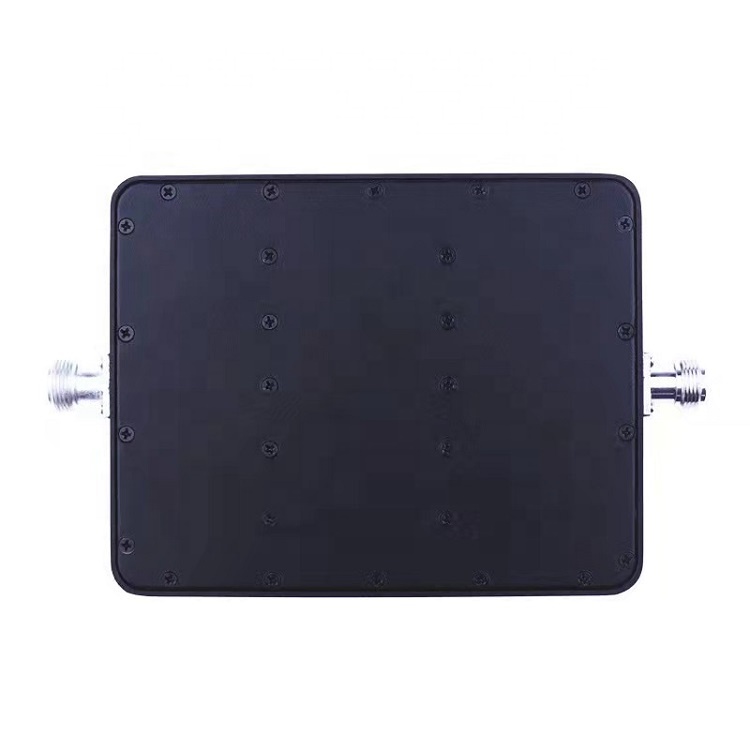

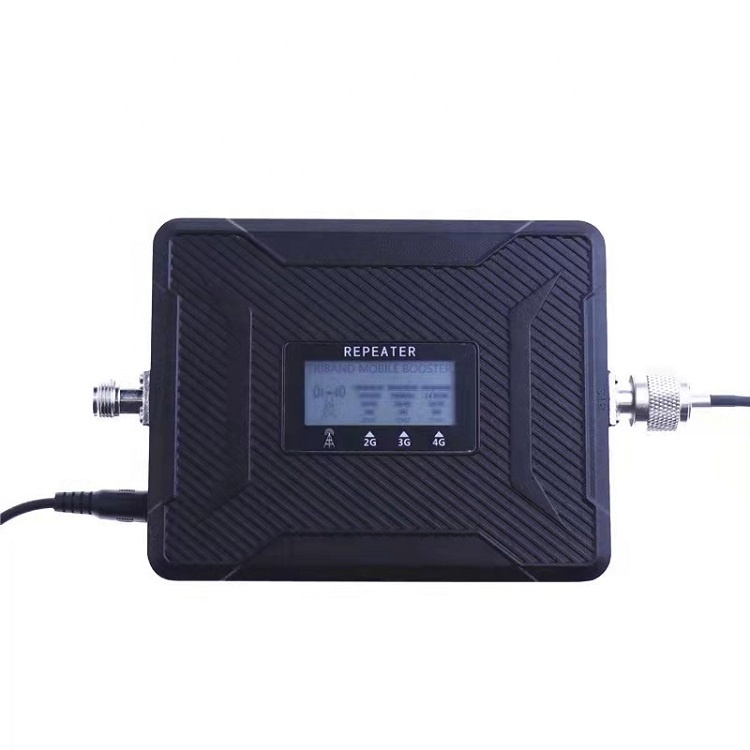

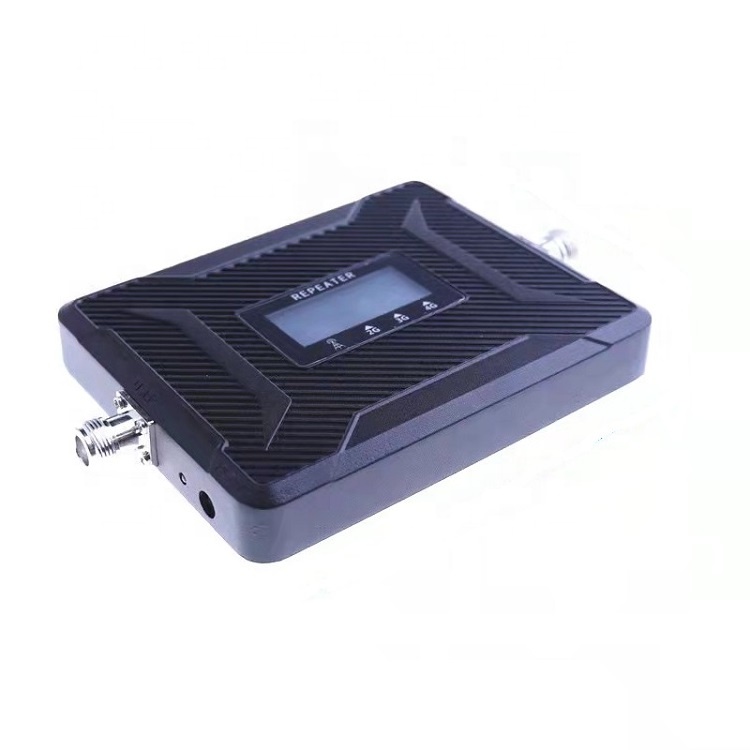

picture display:
Are you irritated by the weak cell phone signal?
A signal booster can help you out.

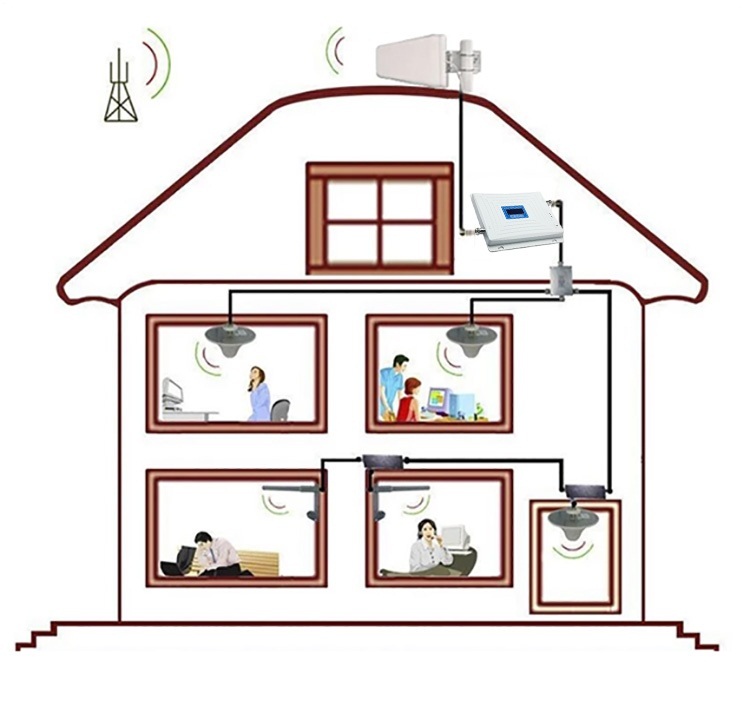

How does it work?
1. The outdoor antenna receives the mobile signal from the signal tower.
2. The booster receives the external signal from the external antenna.
3. The booster improves the outdoor signal and sends it to the indoor antenna.
4. The indoor antenna broadcasts the enhanced signal to devices in the home.
Please pay attention before buying!
1. Make sure your carrier's frequency band is suitable for this project. Otherwise the device cannot work for you. If you don't know your cell frequency so well, you will click this link
www.frequencycheck.comCheck your carrier's frequency band.

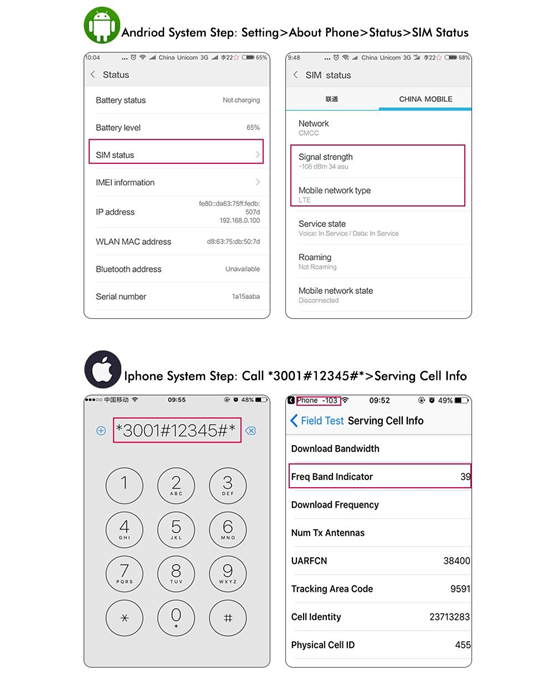

2. Make sure you can receive a good signal outdoors that you want to amplify. Which one must be able to get 3~5 bar signal (-70dB~90dB signal strength) on your phone. Please note that a signal booster can only boost the cellular network signal and will not help generate any signal. For example, if your external signal is 0 bar, it won't work or give you any signal. Here's how to check your phone's signal strength.
technical parameter:
| product | Cell Phone Network Signal Booster | ||
| Function |
signal expander |
||
| application | Village, garage, home, basement, parking lot, tunnel, hotel, office, warehouse, building, etc. | ||
| working frequency |
GSM(2G)/DCS(4G LTE)/WCDMA(3G) 900/1800/2100mhz (B8/B3/B1 band) |
||
| Frequency Range | band | uplink | downlink |
| B8 900MHz | GSM: 890~915mhz | GSM: 935~960mhz | |
| B3 1800MHz | DCS: 1710~1785mhz | DCS: 1805~1880mhz | |
| B1 2100 MHz | 3G: 1920~1990MHz | 3G: 2110~2180MHz | |
| get | 60~70dBi | ||
| strength | 23dBm | ||
| with volatility | >3dbm | ||
| wandering | <-36dbm | ||
| third-order intermodulation | 9K-1GHZ S-36/1G-12.75GHZ S-30 | ||
| power supply | AC 110/220V DC12V | ||
| coverage | 500 square meters barrier-free | ||
| installation type | wall mount | ||
| Operating temperature | -10℃~+60℃ | ||
| power plug | EU/US/AUS/UK standard optional | ||
| connector type | N female | ||

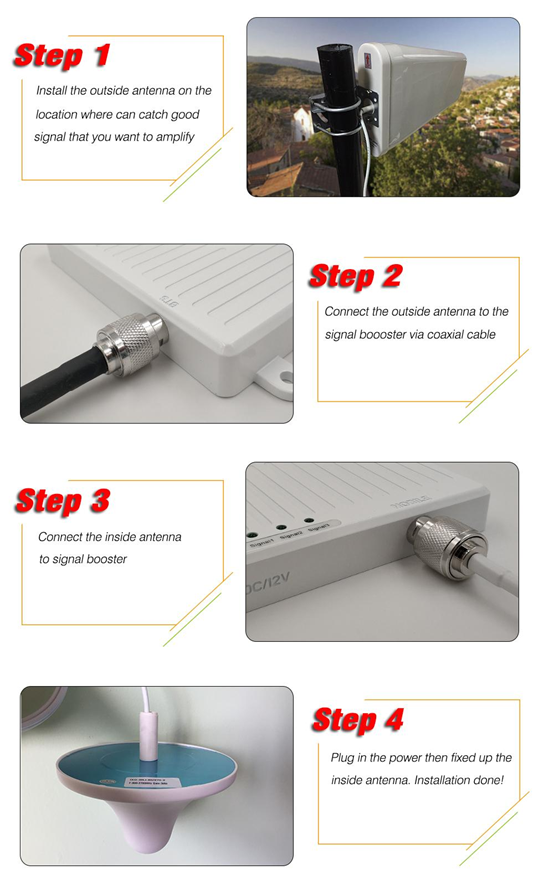

Installation diagram:
Simple 4-step installation:
|
1. Find a suitable location with strong mobile signal to install the outdoor antenna, facing the cell tower. (It is usually installed on the roof of the balcony, and at least 3 signals are displayed on the mobile phone display.) |
| 2. Connect the outdoor antenna to the signal booster with a cable. |
| 3. Connect the indoor antenna to the signal booster. |
| 4. Check that all connectors are tightened and plug into power. complete! |
attention:
| 1. Please ensure that the outdoor antenna and the indoor antenna are well isolated and cannot be on the same horizontal line. The outdoor antenna should be installed on the roof, at least 10 meters away from the indoor antenna, preferably with stairs or walls in between. Place the indoor antenna in the center of the room, away from doors and windows. |
| 2. If the signal is still not received after activating the relay, please check whether the outdoor antenna points to the signal tower or other places to see if there is a strong signal, and check whether the strength reaches -70dBm. Please adjust the direction of the outdoor antenna until you receive a good and stable signal. To ensure the effect, the outdoor signal should be as strong as possible. |
| 3. More indoor antennas and splitters/couplers are needed to achieve larger indoor coverage, because one indoor antenna can only cover about 100~250 square meters. |
application:

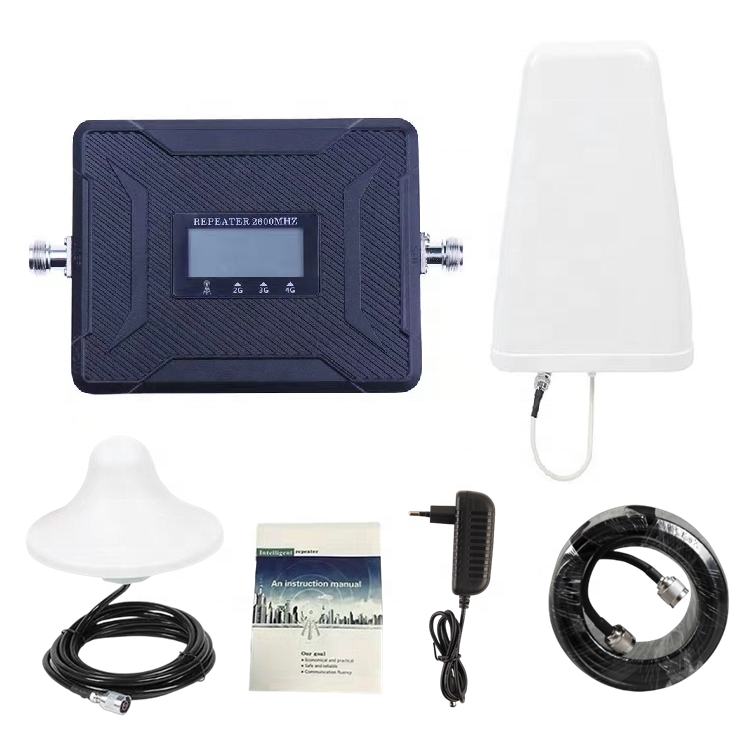

Packing list:
1pc signal booster
1pc Outdoor Log Period Antenna
1 Indoor Ceiling Antenna with 3M Cable
1x 10M cable with connector
1 power plug
1 English user manual

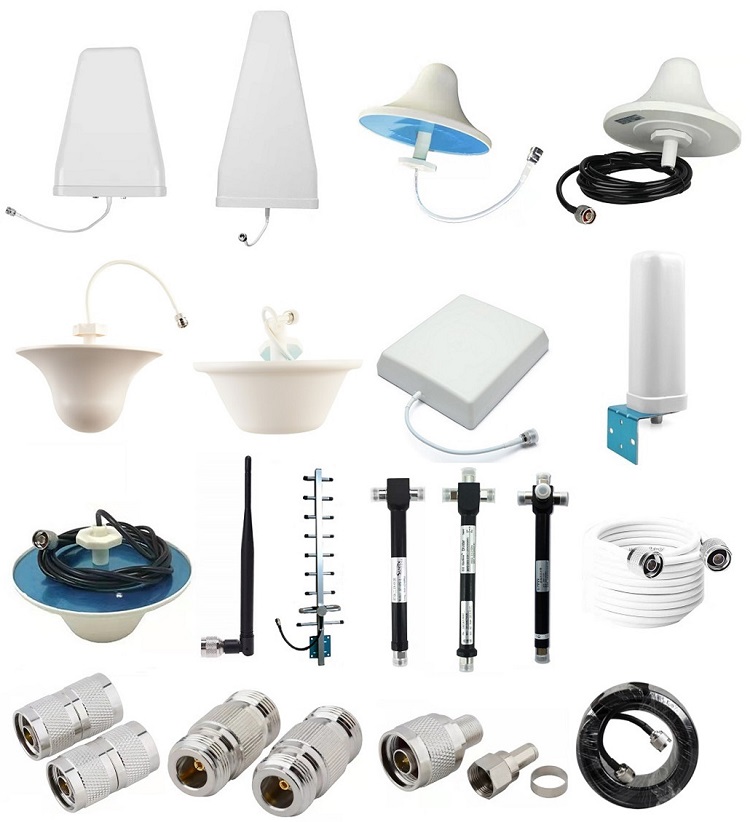

Optional accessories:
| outdoor antenna | Outdoor log periodic antenna, outdoor omnidirectional antenna, outdoor Yagi antenna |
| indoor antenna | Indoor Ceiling Mushroom Antenna, Indoor Ceiling Antenna with 3M Cable, Indoor Panel Antenna |
| Splitter | Two-way splitter, three-way splitter, four-way splitter |
| Connector | N-JJ male connector, N-KK female connector, NF connector |
| cable | 3M, 5M, 10M, 15M, 20M, 25M (white/black optional) |
