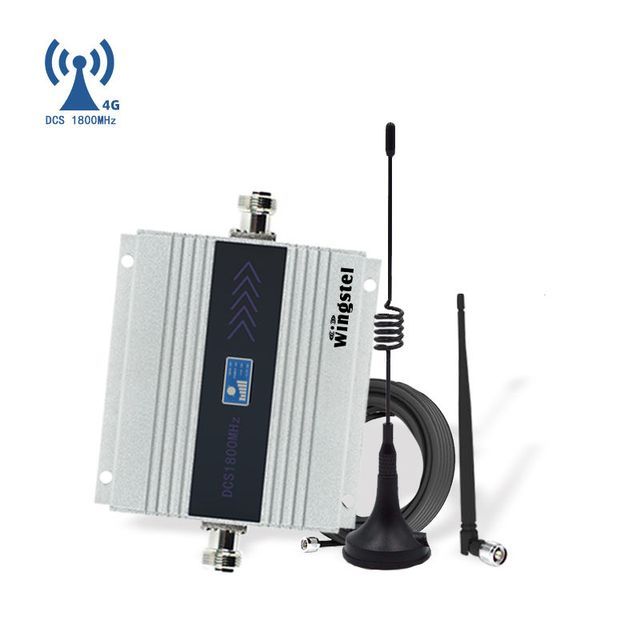

Tri-band GSM Network Lte 2G 3G 4G 1800MHz Outdoor Long Range Mobile Phone Signal Repeater Booster Amplifier

payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramOrigin:Guangdong, China
frequency:900/1800/2100MHzPackage preview:
Function:signal extenderCertificate:EU ROHS
model:WT-MW01size:140 x 100 x 19mm
Frequency Range:Uplink: 1920~1990MHz Downlink 2110~2180MHzbrand:wing
network:wifi,4g,GSM,3GGain (dB):Uplink Gp≥50 Downlink Gp≥55
type:4G signal boosterCoverage:Covering area 100m2
Packaging Details:traditionalget:23 decibels
Supply capacity:50000 sets per weekOutput Power:20 decibels
heat booster





Introduction to mobile phone signal repeater

1. Enhance the signal strength of mobile phone

2. Improve communication quality

3. Reduce mobile phone radiation

4. Extend phone battery life

5. Economic construction cost

6. Easy to operate

7. Easy installation

8. Built-in power supply


The device is easy to install and operate without interference. It is an ideal device to enhance the signal of mobile phones. Cell phone repeaters can also improve the indoor electromagnetic environment, prolong cell phone battery life and reduce cell phone radiation.



High gain, easy installation and operation.

Full duplex, single port design, built-in power supply.

Using ALC technology to automatically adjust the range

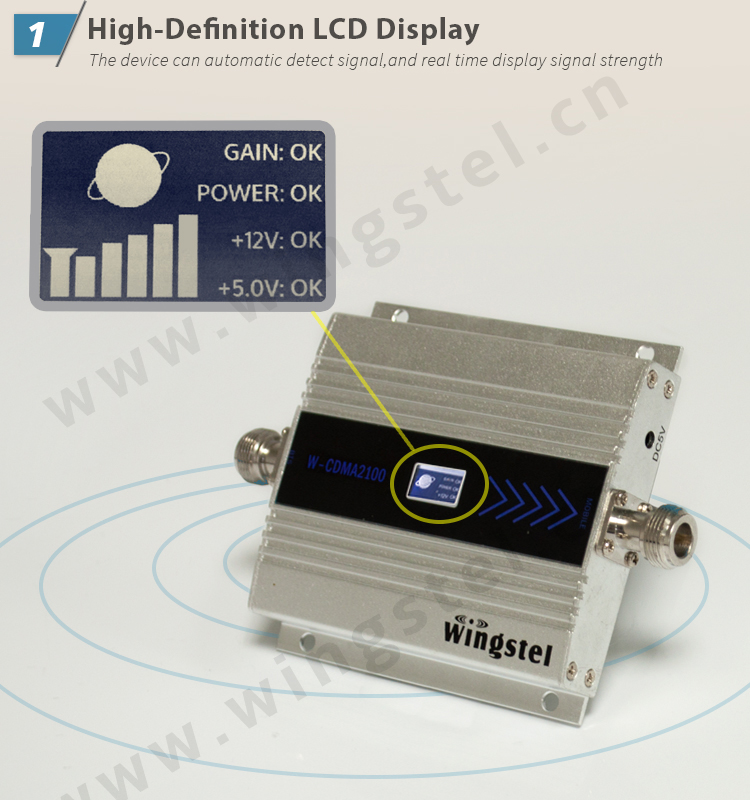

LED Light Operation and Signal Status Indicators

High power, stable control of intermodulation and scattering

Reliability complies with GB6993-86 standard

Electromagnetic compatibility complies with ETS300 609-4

Obtained CE and RoHs certification







Frequency Range

Uplink: 1920~1990MHz

Downlink 2110~2180MHz

Gain (dB)

Uplink Gp≥50 Downlink Gp≥55

Output power (Po)


Passband Ripple


Input/Output Impedance

50Ω/N connector

Noise Figure


transmission delay


ambient temperature


power supply

AC110~240V 45~55Hz

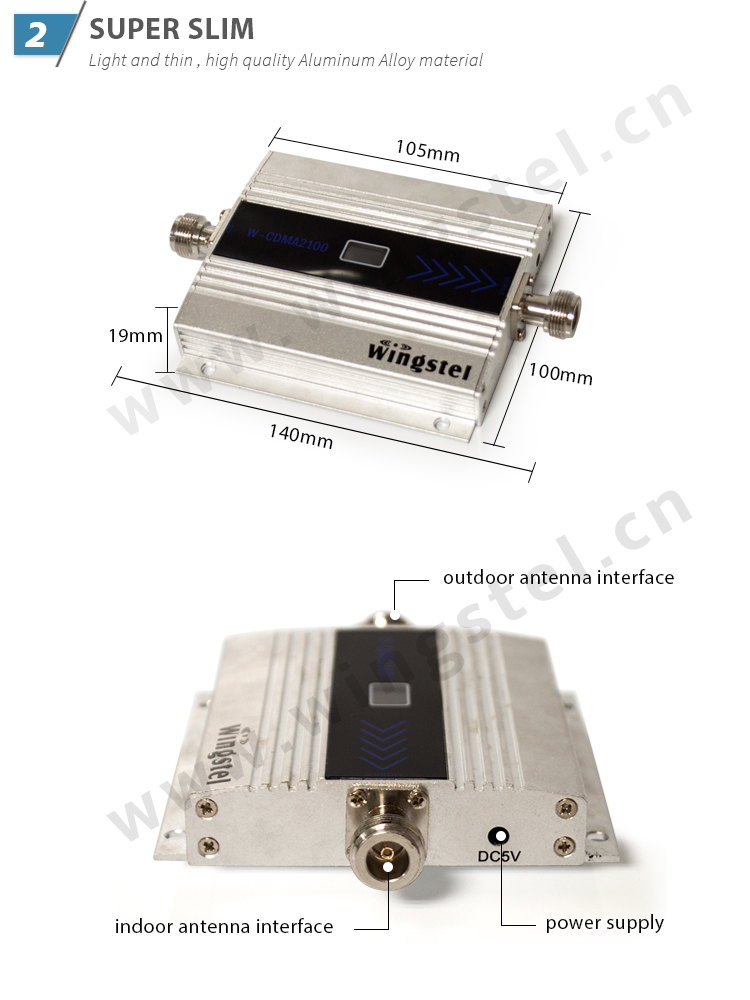

140 x 100 x 19mm


Reach GB6993-86 standard



Conforms to ETS300 694-4 standard


a) Power LED indicates

b) Output power LED indication

coverage area

100 square meters

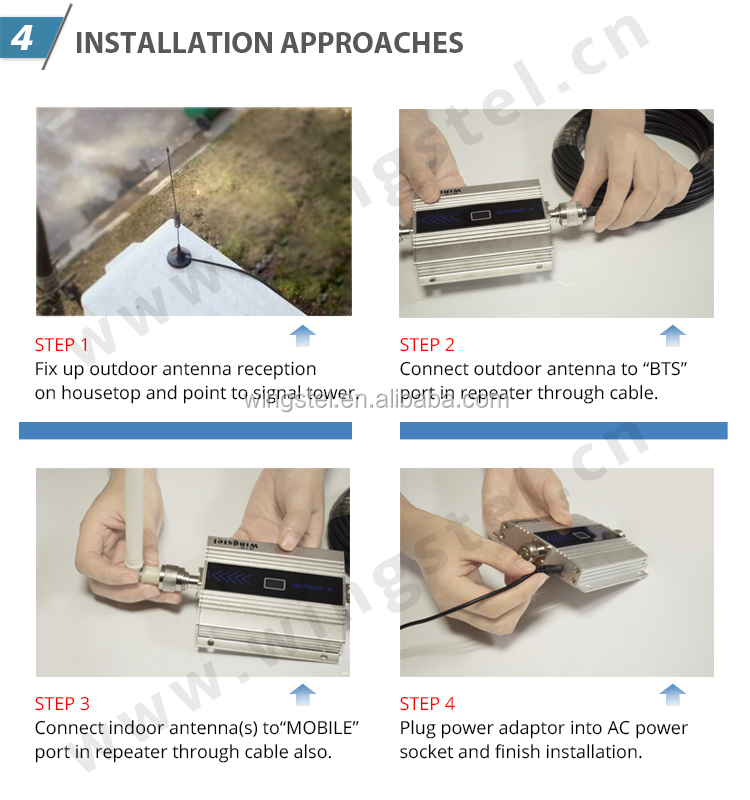

 installation method

  1. Install an outdoor antenna on the roof to receive and point to the signal tower.
  2. Connect the outdoor antenna via cable to the "outdoor" port of the repeater.
  3. Also connect the indoor antenna to the "indoor" port in the repeater via a cable.
  4. Plug the power adapter into an AC outlet and complete the installation.

Technical Support

  1. If you still do not receive a signal after activating the repeater, please check whether the outdoor antenna is pointing to the signal tower or somewhere else has a strong signal, and check whether the strength reaches -70DBM.
  2. If you cannot call out, please adjust the direction of the outdoor antenna.
  3. If the strength is unstable, check whether the outdoor and indoor antennas are too close together. Please ensure that the distance between the outdoor antenna and the indoor antenna is at least 20 meters, there is a wall in between and they are not on the same horizontal line (the outdoor antenna can be one floor higher than the repeater and the indoor antenna).
  4. Indoor antennas and repeaters are best placed at least 4 meters away from nearby doors and windows.

To amplify your signal with this product, the outdoor signal should be as good as possible. If our outdoor signal is not good or not good, the product will not work properly.


If the indoor signal is always weak and the outdoor signal is good, the repeater will work just fine.If the indoor signal is sometimes full and sometimes not before installation, this environment is not suitable for installing repeaters.




How do boosters/repeaters work?

Repeaters are designed to achieve one main principle: fill an area with weak or bad signals and amplify those low signals in order to give you communication that works for you.

Reasons to buy a cell phone repeater.

1) Signal Repeater provides a well-organized service, which is why the connection quality is very good after installing the system.

2) The Signal Repeater requires no extra wires to connect to your phone, so you can use your phone without any extra hassle accessories, and in other worlds, no physical connection to your phone.

3) They are practical, beautiful and easy to install. You don't need to hire anyone to install the equipment. You will be able to install it yourself using only the manual list that comes with the repeater.

4) The system can be used by multiple mobile phones. All phones within range and suitable for the frequency of the repeater can use the amplified signal.

5) The signal repeater is able to cover different coverage areas: small to large. In this case, you can decide which of our repeaters is right for your office or supermarket.

6) The repeater works in full-duplex state. This means that they not only receive a weak signal from a mobile base station, but then transfer it to the mobile phone through an amplifier. They also receive a signal from your phone and send it to a mobile base station.

7) Our equipment is completely secure. Mobile repeaters do not emit any radiation.

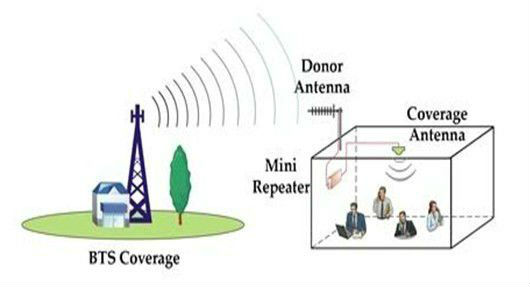

Describe the steps in which the Repeater works.

1) The outdoor antenna receives the signal from the nearest mobile base station.

2) The outdoor antenna sends the received signal through the coaxial cable to the installed repeater.

3) The repeater takes the low signal and improves it.

4) The improved signal goes to the internal antenna by connecting the coaxial cable.

5) Built-in antenna sends improved good signal to your phone.


Repeaters make the signal stronger in places with poor coverage, such as:


1) Underground area: basement, parking lot, tunnel;


2) Other places where cellular signals are shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;


3) Places away from BTS, such as private houses.




1) The product does not include accessories such as cables, connectors and antennas that you need to purchase additionally. It only provides the power adapter and instruction manual.

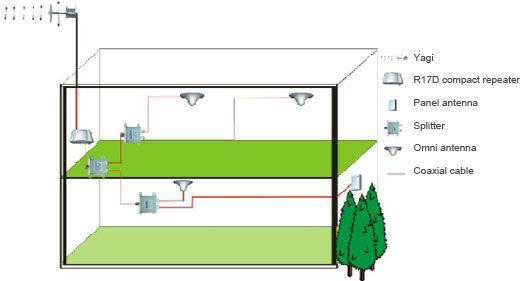

2) An indoor antenna can only use about 300 square meters. If you want to make full use of the 1000 square meters supported by the main unit, you need to add more indoor antennas (about 3-4) and power splitters/distributors. Welcome your inquiry if you need.






This model works with 3G in the following countries:


Asian countries:


3G work is available in Afghanistan through operators Roshan, MTN, Etisalat, Airtel Afghanistan, Wasel.

3G is available in Australia through operators Telstra, Optus, Vodafone.

Bangladesh can work on 3G through operators Grameenphone, Robi, Banglalink, Tele talk.

Bhutan can carry out 3G work through operators Tashicell, Airtel Bhutan.

Hong Kong can open 3G through operators CMHK, CSL, and Smar Tone.

3G work is available in Indonesia through operators Telkomsel, Indosat Ooredoo, 3, XL Axiata.

Kazakhstan can carry out 3G work through operators Kcell, Beeline, Tele2, Altel.

Laos can work on 3G through operators Lao Telecom, Untel, Beeline.

Mongolia can carry out 3G work through operators Mobicom, Unitel, Skytel, G-Mobile.

3G work is available in New Zealand through operators Vodafone, Spark, 2degrees.

Pakistan can carry out 3G work through operators Jazz, Telenor, Zong, Ufone, Special Communications Organization.

Russia can carry out 3G work through operators MTS, Megafon, Beeline, Tele2.

Sri Lanka works on 3G through operators Dialog, Mobitel, Etisalat, Airtel, Hutch.


European countries:


Albania works on 3G through operators Vodafone Albania, Telekom Albania, Albetelecom.

Armenia works on 3G through operators MTS Armenia, Ucom, Beeline.


Other countries Please feel free to contact us for more information on whether it is available in your country.
